Hydraulic rotary swivels are critical components in modern hydraulic systems, enabling the seamless transfer of pressurized fluid between stationary and rotating parts of machinery. They play an indispensable role in a wide range of industries, from construction and manufacturing to oil and gas and maritime operations. This comprehensive article explores what hydraulic rotary swivels are, how they work, their design features, applications, benefits, and maintenance considerations. We will also include relevant images and videos to illustrate key concepts and conclude with a FAQ section addressing common questions.
A hydraulic rotary swivel, also known as a rotary union, swivel joint, or rotating joint, is a precision-engineered mechanical device designed to transfer hydraulic fluid from a stationary source to a rotating component without leakage or pressure loss. It enables continuous rotation of the connected parts while maintaining a secure, sealed fluid passage.
- Stationary housing: The fixed part connected to the fluid supply.
- Rotating shaft or mandrel: The part that rotates relative to the housing.
- Seals: Critical elements that prevent fluid leakage while allowing rotation.
- Bearings: Support smooth rotation and reduce friction.
Hydraulic fluid under pressure enters the stationary side of the swivel and flows through internal channels or passages inside the rotating shaft. The seals maintain fluid containment despite the relative motion between the shaft and housing. Bearings facilitate smooth rotation with minimal torque drag, ensuring efficient fluid transfer even during continuous 360-degree rotation.
Hydraulic rotary swivels are built to withstand high pressures, rotational speeds, and demanding environmental conditions.
The seal is the most critical part of a hydraulic swivel. It must be tight enough to prevent leakage yet minimize torque drag (resistance to rotation). Designs vary from simple machined surfaces for low rotation angles to complex spring-loaded, pressure-balanced seals for continuous rotation under high pressure.
The seal design often includes multiple sealing lips arranged in a way that fluid pressure helps to enhance the sealing effect. Some advanced seals use a combination of elastomeric materials and PTFE (polytetrafluoroethylene) to provide excellent wear resistance and chemical compatibility with various hydraulic fluids.
Typically made from hardened carbon steel or stainless steel, hydraulic swivels are designed for durability and corrosion resistance. High-performance seals often use plastic-lined or composite materials to reduce wear and extend service life. For applications involving corrosive fluids or harsh environments, stainless steel or special alloy materials are preferred to resist corrosion and maintain structural integrity.
Hydraulic swivels come in various configurations to suit different installation requirements:
- Straight-through: Fluid flows coaxially through the swivel, offering the simplest routing and minimal pressure drop. This configuration is common in general-purpose applications where space is not constrained.
- Right-angle: The outlet ports are perpendicular to the inlet ports, allowing installation in tight spaces or where fluid routing requires a 90-degree turn.
- Offset: This design includes elbows or bends at both ends, enabling complex fluid routing in confined spaces.
Custom designs may include multiple independent flow paths to transfer different fluids or pressures simultaneously through the same swivel. Some swivels also integrate valves, sensors, or electrical slip rings to combine hydraulic and electrical connections in one compact unit.
Hydraulic rotary swivels are available in a wide range of sizes, from small units with port sizes as small as 1/4 inch to large swivels exceeding 6 inches in diameter. Pressure ratings typically range from a few hundred psi (pounds per square inch) for light-duty applications to over 6,000 psi for heavy-duty industrial uses.
Temperature ratings vary depending on seal materials and construction, generally spanning from -20°F to 250°F (-29°C to 121°C). Specialized designs can operate at even higher temperatures or in cryogenic conditions.
Hydraulic rotary swivels are used wherever fluid must be transferred to a rotating part without interruption. Their versatility and reliability make them indispensable in many industries.
In construction machinery such as excavators, cranes, and aerial work platforms, hydraulic swivels enable the rotation of the upper structure relative to the undercarriage. This allows 360-degree rotation without twisting or damaging hydraulic hoses. The swivel ensures continuous fluid supply to hydraulic cylinders, motors, and valves controlling boom movement, bucket operation, and other functions.
Hydraulic swivels are integral to manufacturing equipment like hydraulic presses, injection molding machines, and rotary tables. They allow the transfer of hydraulic fluid to rotating components, facilitating smooth motion and precise control during metal forming, plastic molding, or assembly processes.

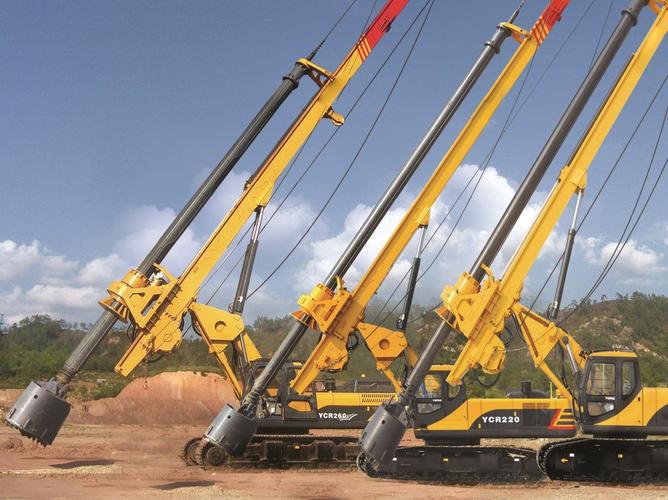

Drilling rigs use hydraulic swivels to pump drilling fluids (mud) down the drill string while the drill bit rotates continuously. The swivel must withstand high pressures, abrasive fluids, and harsh environmental conditions, making durability and sealing performance critical.
In the maritime industry, hydraulic swivels are used in loading arms and fluid transfer systems on ships and offshore platforms. They accommodate vessel movement while maintaining a secure fluid connection for loading and unloading fuels, chemicals, or water.
Irrigation systems and rotating sprinklers employ hydraulic swivels to maintain continuous water flow during rotation, ensuring even coverage and efficient water use.
Wind turbines use hydraulic swivels to transfer hydraulic fluid for blade pitch control systems. These swivels enable the blades to rotate and adjust their angle relative to the wind while maintaining hydraulic pressure for precise control.
Hydraulic rotary swivels offer several important advantages:
- Leak Prevention: High-quality seals ensure no fluid leakage, maintaining system integrity and environmental safety. This is especially important when handling hazardous or expensive fluids.
- Pressure Maintenance: Designed to handle high pressures without loss, ensuring efficient hydraulic system performance and consistent actuator response.
- Extended Equipment Life: By preventing hose twisting and reducing mechanical stress, swivels prolong the life of hoses and connected components, reducing maintenance costs and downtime.
- Operational Flexibility: Allow continuous or limited rotation while maintaining fluid flow, enabling complex machine movements and enhancing productivity.
- Compact and Robust Design: Space-saving designs and durable materials make swivels suitable for harsh environments, including outdoor and marine applications.
- Ease of Maintenance: Modular designs with replaceable seals and bearings simplify servicing and reduce downtime. Many swivels are designed for quick disassembly and seal replacement without removing the entire unit.
Proper maintenance of hydraulic rotary swivels is essential to ensure long service life and reliable operation.
Regularly inspect the swivel for signs of fluid leakage, corrosion, or physical damage. Pay close attention to the seal area and bearing housing.
Some swivel designs include bearings that require periodic lubrication. Use the manufacturer-recommended grease or lubricant to prevent bearing wear and overheating.
Seals are wear components and should be replaced at the first sign of leakage or increased torque resistance. Using genuine replacement seals ensures proper fit and performance.
Keep the swivel clean from dirt, debris, and contaminants that could damage seals or bearings. In harsh environments, consider protective covers or shields.
- Leakage: Often caused by worn or damaged seals. Replace seals promptly to avoid fluid loss and contamination.
- Increased Torque or Stiffness: May indicate bearing wear or seal damage. Inspect and replace components as needed.
- Noise or Vibration: Could result from misalignment, bearing failure, or contamination. Address alignment and replace faulty parts.
Hydraulic rotary swivels are essential components that enable the reliable transfer of pressurized fluid between stationary and rotating parts of hydraulic machinery. Their sophisticated design, robust materials, and precise sealing technology allow them to operate efficiently under high pressure and continuous rotation. These swivels enhance equipment flexibility, prevent hose damage, and maintain system integrity across a broad range of industries including construction, manufacturing, oil and gas, maritime, and renewable energy. Understanding their function, design, and maintenance is crucial for maximizing equipment performance and longevity.
By selecting the right hydraulic rotary swivel for your application and maintaining it properly, you can ensure smooth operation, reduce downtime, and extend the life of your hydraulic systems.
Its primary function is to transfer pressurized hydraulic fluid from a stationary source to a rotating component without leakage or pressure loss, enabling continuous rotation in hydraulic systems.
They use precision-engineered seals that maintain a tight barrier between the rotating shaft and stationary housing, often incorporating hydrodynamic seal designs and pressure balancing to minimize torque drag and leakage.
They are commonly made from hardened carbon steel or stainless steel for strength and corrosion resistance, with seals made from plastic-lined or composite materials to reduce wear.
They are widely used in construction (excavators, cranes), manufacturing (presses, rotating tables), oil and gas (drilling rigs), maritime (fluid transfer arms), agriculture (irrigation systems), and renewable energy (wind turbines).
Regularly inspect seals and bearings for wear, lubricate bearings if needed, monitor for abnormal noises or increased rotation resistance, and replace worn components promptly to avoid leaks and failures.
