Planetary gearboxes, also known as epicyclic gear systems, are complex mechanical devices used to transmit power and motion in various applications. They are characterized by their compact design, high efficiency, and versatility. This article will delve into the structure, operation, applications, and benefits of planetary gearboxes, providing a comprehensive overview of these essential components in modern machinery.

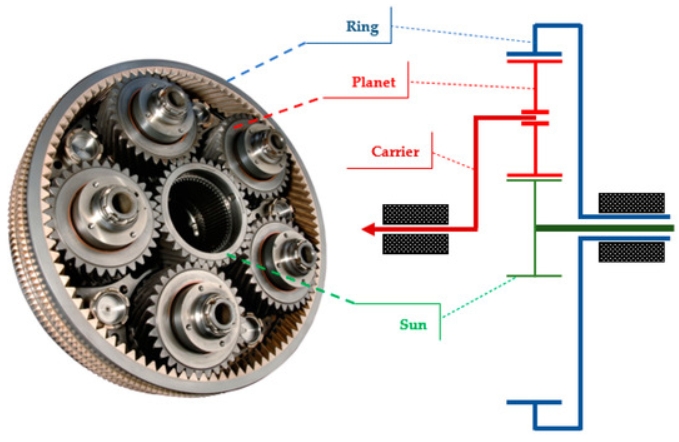

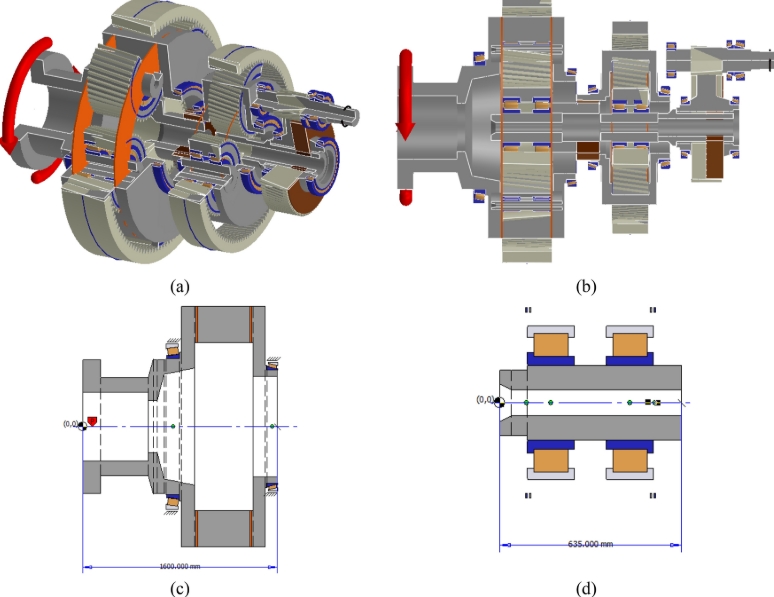

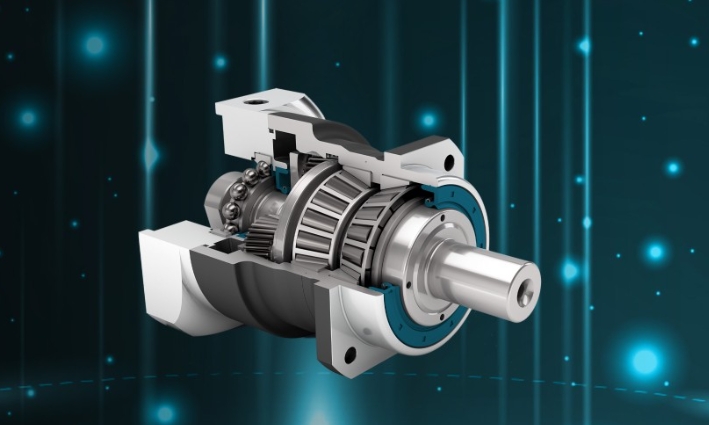

A planetary gearbox consists of three main components: the sun gear, planet gears, and ring gear. The sun gear is located at the center, surrounded by multiple planet gears, which are enclosed by the ring gear. The planet gears are mounted on a carrier that rotates around the sun gear, allowing the system to achieve high torque in a small space.
- Sun Gear: The central gear that receives input power.
- Planet Gears: These gears orbit the sun gear and are mounted on a carrier. They distribute the load and increase torque.
- Ring Gear: The outer gear that encloses the planet gears and can be fixed or rotating depending on the application.
- Carrier: Holds the planet gears and transmits the output power.
The operation of a planetary gearbox involves the rotation of the sun gear, which drives the planet gears. These planet gears then rotate around their own axes while orbiting the sun gear, distributing the load across multiple gears. This design allows for high torque transmission with minimal space requirements.
To visualize the operation, watch this video on how planetary gears work:
Planetary gearboxes are used in a wide range of industries due to their compact size, high efficiency, and ability to handle high torque.
In the automotive sector, planetary gearboxes are crucial in automatic transmissions, providing multiple gear ratios for efficient power transmission. Their compact size makes them ideal for the limited space within a vehicle's transmission system.
Planetary gearboxes are extensively used in industrial machinery where precise control of speed and torque is crucial. They are found in conveyor systems, mixers, and other machinery requiring varying speeds and high torque.
In aerospace, planetary gearboxes are used in mechanisms like landing gear systems and satellite deployment systems due to their lightweight and compact nature.
Planetary gearboxes play a crucial role in wind turbines and solar tracking systems, optimizing rotational speeds for efficient electricity generation. In wind turbines, they convert the low-speed rotor rotation to high-speed output for electricity generation. In solar tracking systems, they enable accurate positioning of solar panels for optimal sunlight capture.
In robotics and automation, planetary gearboxes are preferred for their precision and reliability, ensuring accurate and controlled movements. Robotic arms, CNC machines, and automated manufacturing systems often incorporate planetary gears to ensure precise motion control.
Planetary gear systems are also utilized in various medical devices, such as diagnostic equipment, imaging devices, and robotic surgical systems. Their ability to provide precise motion control and their compact design make them suitable for applications where space is limited, and accuracy is paramount.
In agriculture, planetary gearboxes are used in tractors and harvesters to manage power distribution efficiently. They help in optimizing the performance of machinery under varying load conditions.
- Compact Design: Ideal for space-constrained applications.
- High Efficiency: Approximately 97% of the input energy is delivered as output.
- High Torque Density: Allows for high torque transmission in a small space.
- Low Maintenance: Requires less maintenance compared to other gearbox types.
Planetary gearboxes come in various configurations, including:
- Shaft Output Gears: Deliver rotating shaft output with fixed ring gear.
- Spindle Output Gears: Similar to shaft output but with flange output.
- Wheel Drive Gears: High torque output with planet gears attached to a wheel carrier.
Recent innovations in planetary gear technology include the use of advanced materials and nanocoatings to enhance strength and efficiency. The integration of harmonic and strain wave gearing with planetary gears offers higher torque efficiency and compact design, making them ideal for robotic actuators.
Additive manufacturing, or 3D printing, is increasingly used in producing planetary gears. This method allows for rapid prototyping and customization, enabling faster design changes and on-demand manufacturing. It also facilitates the production of intricate, optimized gear geometries that would be difficult or impossible with traditional methods.
Smart sensors integrated into planetary gear systems enable real-time condition monitoring. This allows for predictive maintenance by tracking parameters like temperature, vibration, and load, reducing downtime and increasing gear life.
Common issues include abnormal noise, overheating, and reduced torque output. Troubleshooting involves checking gear alignment, lubrication, and inspecting for wear or damage.
Installing a planetary gearbox involves ensuring compatibility with the motor and checking mounting dimensions. Here are the steps:
1. Check Mounting Dimensions: Ensure the gearbox fits the motor's output flange.
2. Clean Mounting Surfaces: Remove dust or particles.
3. Install the Motor: Align and secure the motor to the gearbox.
4. Tighten Screws: Use a torque wrench to ensure proper tightening.
Planetary gearboxes can be customized for specific applications. For instance, SEW-EURODRIVE developed a custom planetary gearbox solution that matched the torque of an existing gearbox, ensuring precise speed synchronization with the existing equipment.
- Backgauge Drive for Press Brakes: Planetary gears ensure precise positioning in CNC-controlled press brakes.
- Automated Guided Vehicles (AGVs): Custom planetary gears are used in wheel hub drives for AGVs, providing high torque and compact design.
- Mobile Satellite Receivers: Two-stage planetary gearboxes reduce torsional backlash for precise signal reception.
As technology advances, planetary gearboxes are expected to become even more efficient and versatile. The integration of advanced materials and smart technologies will further enhance their performance and reliability. Additionally, the use of planetary gearboxes in emerging fields like electric vehicles and renewable energy systems will continue to grow.
In electric vehicles, planetary gearboxes are used to optimize the power transmission from electric motors to the wheels. Their high efficiency and compact design make them ideal for these applications, contributing to improved vehicle performance and range.
The use of advanced materials such as carbon fiber and nanomaterials in planetary gearboxes is becoming more prevalent. These materials offer enhanced strength-to-weight ratios, allowing for lighter and more efficient gear systems.
In the marine industry, planetary gearboxes are used in propulsion systems for boats and ships. They provide efficient power transmission and are designed to withstand harsh marine environments.
Planetary gearboxes are also used in construction equipment like cranes and excavators. They help manage heavy loads and provide precise control over machinery movements.
In advanced robotics, planetary gearboxes are integrated into robotic arms and grippers to achieve precise motion control. This is crucial for tasks requiring high accuracy, such as assembly and inspection.
When designing planetary gearboxes, several factors must be considered:
- Material Selection: Choosing materials that offer high strength and durability.
- Gear Geometry: Optimizing gear shapes for maximum efficiency and torque.
- Lubrication Systems: Ensuring proper lubrication to reduce wear and overheating.
Planetary gearboxes contribute to reducing the environmental impact of machinery by increasing efficiency and reducing energy consumption. This is particularly important in renewable energy systems, where maximizing output while minimizing energy loss is crucial.
Planetary gearboxes are versatile and efficient components used across various industries. Their compact design, high torque capacity, and low maintenance requirements make them ideal for applications requiring precise power transmission. Whether in automotive, industrial, aerospace, or renewable energy sectors, planetary gearboxes play a crucial role in optimizing machinery performance.
The main components of a planetary gearbox include the sun gear, planet gears, ring gear, and carrier.
Planetary gearboxes achieve high torque by distributing the load across multiple planet gears, allowing for efficient power transmission in a compact space.
Planetary gearboxes are used in the automotive industry, industrial machinery, aerospace, renewable energy, and robotics due to their high efficiency and compact design.
Benefits include a compact design, high efficiency, high torque density, and low maintenance requirements.
Troubleshooting involves checking for gear misalignment, ensuring proper lubrication, and inspecting for wear or damage.
