Air motor rotary vanes are compact, efficient pneumatic devices widely used in industrial applications to convert compressed air energy into mechanical rotary motion. This article delves deeply into the design, working principle, advantages, applications, maintenance, and frequently asked questions about air motor rotary vanes, providing a comprehensive understanding of these versatile motors.

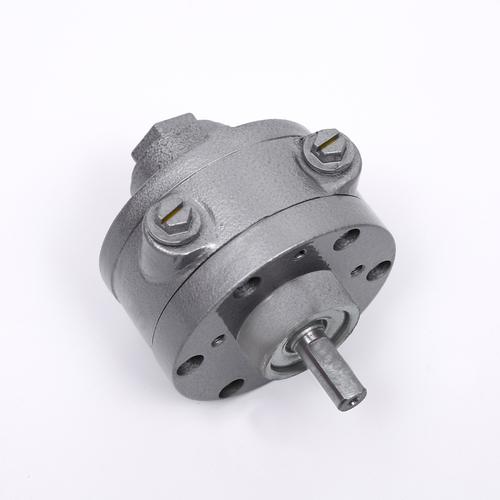

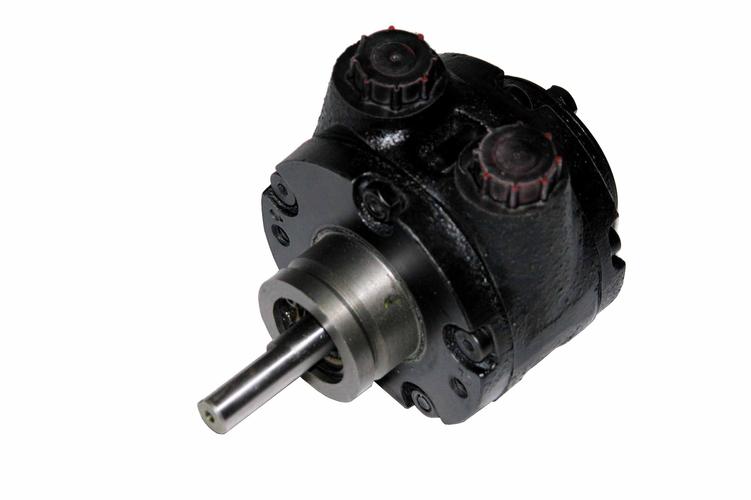

An air motor rotary vane is a type of pneumatic motor that uses compressed air to generate rotary motion. Unlike electric motors, air motors are powered by compressed air, making them ideal for environments where spark or electrical hazards exist. The rotary vane design is one of the most common and effective types of air motors, prized for its simplicity, reliability, and ability to deliver high torque at low speeds.
The structure of an air motor rotary vane is elegantly simple yet highly effective. It mainly consists of the following components:
- Cylinder (Housing): A cylindrical chamber that houses the rotor and vanes.
- Rotor: Positioned eccentrically (off-center) inside the cylinder, the rotor has slots where the vanes slide in and out.
- Vanes: Rectangular blades that move radially within the rotor slots, maintaining contact with the cylinder wall.
- End Plates: Front and rear plates that seal the cylinder and hold the rotor in place.
- Air Inlet and Outlet Ports: Allow compressed air to enter and exhaust air to leave the motor.
The rotor is smaller in diameter than the cylinder and is mounted off-center, which creates a crescent-shaped space between the rotor and the cylinder wall. The vanes slide out due to centrifugal force and air pressure, sealing the chambers formed between the rotor, vanes, and cylinder wall.
The working principle of an air motor rotary vane is based on the conversion of compressed air energy into mechanical rotary motion through the expansion of air in variable volume chambers.
1. Air Intake: Compressed air enters the motor through the inlet port into the crescent-shaped chamber.
2. Vane Sealing: The combination of centrifugal force and air pressure pushes the vanes outward, forcing them against the cylinder wall to create sealed chambers.
3. Expansion and Rotation: As compressed air fills a chamber, it expands and pushes against the vanes, causing the rotor to turn.
4. Chamber Volume Change: The rotor's eccentric position causes the volume of each chamber to increase and decrease as it rotates, allowing continuous expansion of air and sustained torque.
5. Exhaust: After expanding, the air is exhausted through the outlet port, completing the cycle.
This process repeats continuously, converting the energy of compressed air into smooth rotary motion.
- Power Ratings: Typically up to approximately 5 kW, suitable for small to medium industrial tasks.
- Rotational Speed: Free speeds can be very high (around 20,000 rpm), but gearing is often used to reduce speed and increase torque.
- Torque Output: High torque at low speeds is achievable, making them ideal for applications requiring strong rotational force.
- Reversibility: Some models are reversible, allowing rotation in both directions by switching the air inlet and outlet ports.
- Lubrication: Traditionally lubricated by oil mixed with compressed air, but lubrication-free models exist with special low-friction vanes and permanently lubricated bearings.
- Compact Size: Their small footprint allows integration into tight spaces.
- Durability: Designed to withstand harsh environments and continuous operation.
- Non-Sparking Operation: Safe for explosive or flammable environments.
- Compact and Lightweight: Easy to install and integrate into machinery.
- High Torque at Low Speed: Eliminates the need for complex gearboxes in many applications.
- Simple Construction: Few moving parts mean lower maintenance and higher reliability.
- Reversible Operation: Flexibility in motor direction for versatile applications.
- Lubrication Options: Available in lubricated and lubrication-free versions to suit different needs.
- Quiet Operation: Compared to other pneumatic motors, rotary vane motors operate with relatively low noise levels.
- Instant Start and Stop: No delay in response time, useful in precision applications.
Air motor rotary vanes are used in a variety of industrial sectors due to their versatility and safety:
- Automotive Industry: For assembly tools, torque wrenches, and paint spraying equipment.
- Food and Beverage: In packaging and bottling lines where spark-free operation is essential.
- Mining and Petrochemical: For hazardous environments requiring explosion-proof motors.
- Textile Industry: For spinning and weaving machines.
- Robotics and Automation: As compact, lightweight actuators.
- Medical Equipment: In devices requiring clean, oil-free operation.
- Printing Industry: For rotary presses and paper handling machinery.
- Aerospace: In assembly lines and testing equipment where precision and safety are critical.
- Marine Applications: Due to their corrosion resistance and spark-free operation.
- Woodworking: For sanding, grinding, and polishing tools.
Proper maintenance is crucial to ensure the longevity and optimal performance of air motor rotary vanes.
- Lubrication: Use the correct oil type for lubricated motors to prevent wear and corrosion. Lubrication-free motors require dry, clean air.
- Air Quality: Ensure compressed air is dry and free from contaminants to avoid damage.
- Regular Inspection: Check vanes for wear after approximately 80 hours of use and replace if necessary.
- Monitor Performance: Watch for changes in speed or torque, which may indicate lubrication or mechanical issues.
- Cleaning: Keep air filters clean and replace as needed to maintain air quality.
- Bearing Checks: Inspect bearings periodically for smooth operation and replace if noisy or rough.
- Seal Replacement: Replace seals if air leakage is detected to maintain efficiency.
- Storage: Store motors in a dry, dust-free environment when not in use to prevent corrosion and contamination.
- Mounting Orientation: Most air motor rotary vanes can be mounted in any orientation, but consult manufacturer guidelines for best performance.
- Air Supply: Use clean, dry, and regulated compressed air to maximize motor life and efficiency.
- Air Line Size: Ensure air supply lines are adequately sized to prevent pressure drops.
- Exhaust Management: Direct exhaust air away from operators and sensitive equipment.
- Vibration Isolation: Use mounts or pads to reduce vibration transmission to surrounding equipment.
- Control Valves: Install appropriate valves for speed and direction control.
- Safety Measures: Incorporate safety guards and emergency stop mechanisms where necessary.
- Loss of Power or Torque: Check for air leaks, clogged filters, or worn vanes.
- Excessive Noise: May indicate vane wear, bearing failure, or lack of lubrication.
- Motor Not Starting: Verify air supply pressure and flow; inspect inlet and exhaust ports for blockage.
- Overheating: Usually caused by overloading or insufficient lubrication.
- Irregular Speed: Could be due to air supply fluctuations or internal leakage.
Recent developments in air motor rotary vane technology focus on improving efficiency, reducing maintenance, and enhancing environmental friendliness:
- Advanced Materials: Use of composite vanes and corrosion-resistant coatings to extend service life.
- Lubrication-Free Designs: Minimizing environmental impact and contamination risks.
- Integrated Electronics: Sensors for monitoring motor health and performance remotely.
- Energy Recovery Systems: Capturing exhaust air energy to improve overall system efficiency.
- Compact Multi-Stage Motors: Combining multiple rotors for higher torque in smaller packages.
The air motor rotary vane is a robust, efficient, and versatile pneumatic motor design that converts compressed air energy into rotary motion through a simple yet ingenious mechanism involving sliding vanes and an eccentric rotor. Its advantages in safety, torque delivery, compactness, and reversibility make it indispensable in many industrial applications, especially where electrical motors pose risks. Proper maintenance and lubrication ensure long service life and reliable operation. Understanding the design and working principles of air motor rotary vanes empowers engineers and technicians to select and maintain these motors effectively for optimal performance.
Vanes are typically made from carbon fiber, graphite composites, or other low-friction materials to reduce wear and ensure smooth sliding against the cylinder wall.
Yes, lubrication-free models exist that use special low-friction vanes and permanently lubricated bearings, but they require very dry and clean compressed air to prevent wear.
Reversible air motors use a valve mechanism to switch the inlet and outlet ports, allowing the rotor to turn in either direction. Non-reversible motors have fixed air port configurations.
Efficiency depends on the sealing effectiveness of the vanes against the cylinder wall, internal leakage, air pressure, and the quality of lubrication.
Regular lubrication (for lubricated models), ensuring dry and clean air supply, vane inspection and replacement after wear, and monitoring motor performance are essential maintenance steps.
