Rotary hydraulic pumps are the backbone of countless industrial, automotive, and manufacturing processes. Their unique design, efficiency, and versatility make them essential for powering hydraulic systems, transferring fluids, and enabling precise control in a wide variety of applications. This comprehensive guide will explore the fundamentals of rotary hydraulic pumps, their working principles, types, advantages, maintenance, and real-world uses. Throughout the article, you'll find illustrative images and informative videos to enhance your understanding.

Introduction to Rotary Hydraulic Pumps

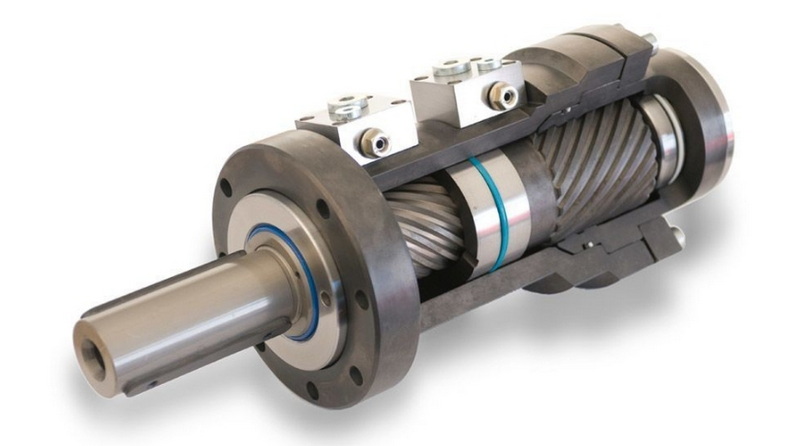

A rotary hydraulic pump is a type of positive displacement pump that uses rotary motion to move fluids—typically hydraulic oil—through a system. Unlike reciprocating pumps, which use back-and-forth motion, rotary pumps rely on rotating components such as gears, vanes, screws, or lobes to trap and transport fluid from the inlet to the outlet[2][3][15].

Pumps are prized for their:

- Consistent flow rates

- Ability to handle a wide range of fluid viscosities

- Compact and robust design

- High efficiency and reliability[5][14]

They are commonly found in:

- Industrial machinery

- Automotive power steering and transmissions

- Construction equipment

- Chemical processing plants

- Food and beverage manufacturing[4][12]

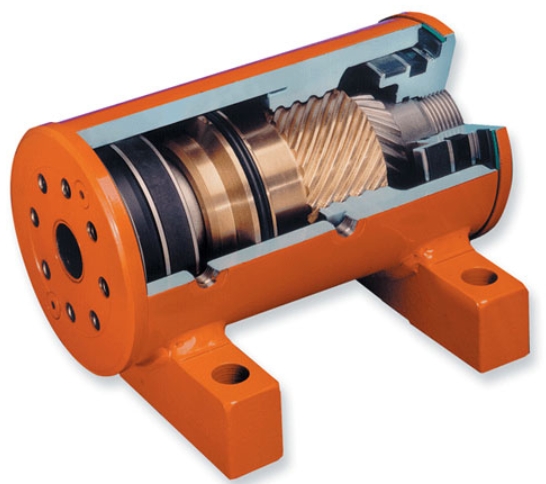

How Does a Rotary Hydraulic Pump Work?

At the heart of every rotary hydraulic pump is a rotating element—such as a gear, vane, or screw—that traps fluid and moves it through the pump housing. The process can be broken down into three main stages[2][12]:

1. Suction: As the pump's rotor turns, cavities or chambers open up, creating a low-pressure area that draws fluid into the pump from the reservoir.

2. Transport: The rotating element carries the trapped fluid from the inlet side to the outlet side, maintaining a tight seal to prevent leakage.

3. Discharge: The chambers decrease in volume, forcing the fluid out of the pump and into the hydraulic system at a controlled pressure.

A rotary vane pump consists of a rotor mounted eccentrically inside a cylindrical housing. Vanes slide in and out of the rotor, maintaining contact with the housing wall due to centrifugal force or springs. As the rotor turns, the volume between the vanes increases on the suction side, drawing in fluid, and decreases on the discharge side, expelling fluid[1][12].

- “The vanes may be encouraged to maintain such contact through means such as springs, gravity, or centrifugal force. A small amount of oil may be present within the mechanism to help create a better seal between the tips of the vanes and the cavity's wall.”[1]

Types of Rotary Hydraulic Pumps

Rotary hydraulic pumps come in several designs, each suited for specific applications and fluid characteristics. The most common types include:

1. Rotary Gear Pumps

- Design: Two gears (external or internal) mesh together inside a casing. As the gears rotate, they trap fluid between the gear teeth and the casing, moving it from the inlet to the outlet.

- Applications: Lubrication systems, fuel transfer, chemical processing, hydraulic power units[4][7][8].

- Advantages: Simple construction, high efficiency, ability to handle viscous fluids.

2. Rotary Vane Pumps

- Design: A rotor with sliding vanes spins inside a cavity. The vanes create expanding and contracting chambers to move fluid.

- Applications: Automotive power steering, air conditioning, espresso machines, hydraulic systems[1][12][14].

- Advantages: Good for low-viscosity fluids, self-priming, smooth and pulse-free flow.

3. Rotary Screw Pumps

- Design: One or more screws rotate inside a cylinder, trapping fluid and moving it axially along the screw threads.

- Applications: Oil transfer, chemical processing, hydraulic power for heavy machinery[3].

- Advantages: Handles high-viscosity fluids, operates at high pressures, quiet and efficient.

4. Rotary Lobe Pumps

- Design: Two or more lobed rotors turn in opposite directions, creating cavities that move fluid from inlet to outlet.

- Applications: Food and beverage, pharmaceuticals, biotechnology (sanitary applications)[3].

- Advantages: Gentle handling of shear-sensitive fluids, easy to clean.

5. Peristaltic (Flexible Tube) Rotary Pumps

- Design: A flexible tube is compressed by rotating rollers, pushing fluid through the tube.

- Applications: Chemical dosing, medical devices, laboratory equipment[3].

- Advantages: No contact between fluid and pump components, ideal for sterile or corrosive fluids.

Key Advantages of Rotary Hydraulic Pumps

Rotary hydraulic pumps offer several distinct benefits over other pump types:

- High Efficiency: They maintain consistent flow rates and can handle both thin and thick fluids with minimal performance loss[5].

- Compact Design: Their small footprint allows for easy integration into tight spaces and mobile equipment[5].

- Versatility: Capable of pumping a wide variety of fluids, from water-like liquids to viscous oils and polymers[4][5].

- Low Maintenance: Fewer moving parts mean less wear and tear, reducing the need for frequent servicing[5][14].

- Durability: Built from robust materials like stainless steel and cast iron, they withstand harsh environments and demanding conditions[4][5].

- Self-Priming: Many rotary pumps can generate enough suction to start moving fluid without manual priming[2][12].

- Smooth, Pulse-Free Flow: Especially important in applications where steady pressure is critical.

Applications of Rotary Hydraulic Pumps

Rotary hydraulic pumps are employed across numerous industries due to their reliability and adaptability:

- Industrial Hydraulic Systems: Powering presses, injection molding machines, and material handling equipment[4].

- Automotive: Power steering, automatic transmissions, lubrication systems[12].

- Construction Equipment: Excavators, cranes, loaders, and other heavy machinery[4].

- Oil and Gas: Fuel transfer, crude oil pumping, lubrication of drilling equipment[4].

- Chemical Processing: Transporting corrosive or abrasive fluids, solvent transfer[4].

- Food and Beverage: Handling syrups, chocolate, dairy, and other viscous products without contamination[4].

- Water Treatment: Feeding pressurized water to filtration systems[12].

Proper maintenance is crucial for maximizing the lifespan and efficiency of rotary hydraulic pumps. Here are essential tips and best practices:

- Monitor Fluid Quality: Regularly check the cleanliness and condition of hydraulic oil. Contaminated fluid increases wear and can cause premature failure[14].

- Inspect for Leaks: Check seals, gaskets, and piping connections for any signs of oil leakage[11][14].

- Temperature Monitoring: Ensure the pump operates within recommended temperature ranges to avoid overheating[11].

- Listen for Abnormal Noises: Unusual sounds may indicate cavitation, air bubbles, or mechanical wear[11].

- Check Pressure Gauges: Monitor system pressure to ensure it remains within safe operating limits[11].

- Routine Lubrication: Keep moving parts well-lubricated to minimize friction and wear[14].

- Replace Filters: Regularly inspect and replace hydraulic filters to prevent clogging and contamination[11].

- Tighten Connections: Periodically check and tighten bolts, screws, and fittings to prevent loosening due to vibration[11].

- “Regular maintenance typically involves simple tasks such as lubricating components, inspecting seals, and checking for wear on moving parts. The ease of maintenance and the reliability of rotary pumps make them a cost-effective solution over time.”[5]

Comparison: Rotary vs. Centrifugal Pumps

Feature	Rotary Hydraulic Pump	Centrifugal Pump
Pump Type	Positive displacement	Kinetic/rotodynamic
Flow Rate	Nearly constant, regardless of pressure	Varies with pressure, not constant
Fluid Viscosity	Handles high and low viscosities	Best for low-viscosity fluids
Self-Priming	Yes	Usually requires priming
Pulse-Free Flow	Yes	Can be pulsed
Applications	Hydraulic systems, oil, chemicals	Water supply, irrigation, HVAC
Maintenance	Low, fewer moving parts	Moderate, more moving parts
Efficiency	High for viscous fluids	High for low-viscosity fluids

- “Rotary pumps are a displacement type of pump that traps and displaces a volume of liquid through the pump with meshing screws, gears, vanes, lobes or other similar mechanisms. For this reason, these pumps will provide nearly constant flow regardless of pressure, and if you vary the speed of the pump, the output flow will change linearly with the change in speed. This is a fundamentally different pumping action than the centrifugal pump's rotating impeller.”[15]

Conclusion

Rotary hydraulic pumps are indispensable components in modern industry, offering unmatched efficiency, reliability, and versatility. Their ability to handle a broad spectrum of fluids, deliver consistent flow rates, and operate in challenging environments makes them the preferred choice for hydraulic systems worldwide. With proper maintenance and the right selection for your application, rotary hydraulic pumps can provide years of trouble-free service.

FAQ: Rotary Hydraulic Pumps

1. What are the main types of rotary hydraulic pumps?

The main types include gear pumps, vane pumps, screw pumps, lobe pumps, and peristaltic (flexible tube) pumps. Each type has unique features suited for specific fluids and applications[3][4].

2. How do rotary hydraulic pumps differ from centrifugal pumps?

Rotary pumps are positive displacement pumps that deliver a nearly constant flow regardless of pressure, making them ideal for viscous fluids and hydraulic systems. Centrifugal pumps, on the other hand, are kinetic pumps best suited for low-viscosity fluids and applications requiring variable flow rates[15].

3. What maintenance is required for rotary hydraulic pumps?

Regular maintenance includes monitoring fluid quality, checking for leaks, inspecting seals and filters, lubricating moving parts, and ensuring all connections are tight. Proper maintenance extends pump life and ensures efficient operation[11][14].

4. Can rotary hydraulic pumps handle abrasive or corrosive fluids?

Yes, many rotary pumps are constructed from materials like stainless steel or PTFE to resist corrosion and abrasion, making them suitable for chemical processing and challenging environments[4].

5. What are common signs of rotary hydraulic pump failure?

Warning signs include abnormal noises, reduced flow rate, leaks, overheating, and increased vibration. Immediate inspection and maintenance are recommended if these symptoms appear[11].
