The quest for optimal efficiency and reliability in feeding applications across various industries has led to the exploration of different technologies. Among these, the air motor type vane pump has emerged as a strong contender, offering a unique blend of advantages. This article delves into the intricacies of air motor type vane pumps, examining their working principles, benefits, applications, and factors to consider when selecting the best option for feeding applications.

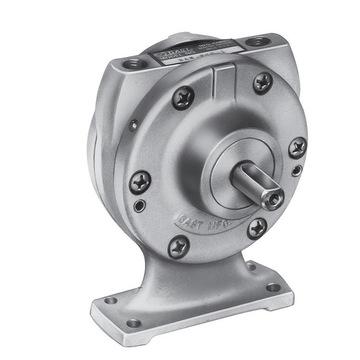

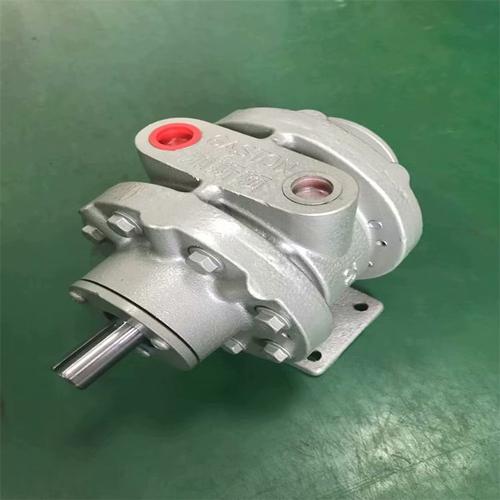

An air motor type vane pump combines the functionalities of an air motor and a vane pump to convert compressed air into rotational mechanical energy, which in turn powers the pumping action. This integration allows for precise control and efficient operation, making it suitable for a wide range of feeding applications.
The operation of an air motor type vane pump is a fascinating interplay of mechanical and pneumatic engineering principles. The air motor converts the energy of compressed air into rotational motion, which is then harnessed by the vane pump to move fluids efficiently. This process ensures that the pump can handle a variety of fluids with precision and reliability.
1. Air Motor Operation: Compressed air enters the air motor, typically of the vane type, causing the rotor to turn. The design and working principle of the vane air motor involves a slotted rotor that rotates eccentrically within a chamber. Vanes within the rotor slots move freely, dividing the chamber into varying sizes. Compressed air pushes these vanes against the cylinder wall, creating a seal and facilitating rotational motion.
2. Vane Pump Operation: The rotational motion from the air motor drives the vane pump. Vane pumps are positive displacement pumps that use a set of vanes mounted on a rotor to create compartments. As the rotor turns, the volume between adjacent vanes changes due to the eccentric mounting position, creating a pumping action.
For example, in a chemical processing plant, the pump can precisely control the flow of corrosive liquids, ensuring safe and efficient transfer without leaks or spills. Similarly, in food processing, the pump's gentle handling of liquids preserves the quality and integrity of sensitive ingredients.
There are primarily two types of vane pumps:
- Sliding Vane Pumps: These pumps have vanes fitted into radial slots in a cylindrical rotor. When the pump operates, the vanes extend outwards due to centrifugal force, maintaining contact with the casing wall.
- Flexible Vane Pumps: These pumps use a flexible material for the rotor, with lobes that maintain contact with the pump casing. The compression and expansion of these lobes create suction and discharge.
- Air Motor: The power source that drives the pump, converting compressed air into mechanical energy.
- Rotor: The rotating component with slots for the vanes.
- Vanes: The sliding or flexible components that create chambers for pumping fluid.
- Casing: The housing that encloses the rotor and vanes, providing a sealed environment for the pumping action.
- Inlet and Outlet Ports: The openings for fluid to enter and exit the pump.
The unique design of air motor type vane pumps offers several operational benefits that make them highly suitable for feeding applications. Their ability to operate in hazardous environments without risk of ignition is particularly valuable in industries dealing with flammable substances. Additionally, their compact size and ease of control allow for flexible installation and operation in diverse settings.
- Explosion-Proof Performance: Air motors do not generate sparks during operation, making them suitable for environments with explosive hazards.
- Overload Protection: These pumps can work at full load for extended periods with minimal temperature rise and inherent overload protection.
- High Starting Torque: They can start with a load, providing immediate pumping action.
- Easy to Control: Operation is simple, with stepless speed regulation capabilities.
- Compact Size: Air motor type vane pumps have a small unit power size and are lightweight, making them ideal for installations in confined spaces.
- Self-Priming: Vane pumps have good self-priming capabilities, ensuring quick start-up.
- Dry Running Capability: They can run dry for short periods without damage.
- Consistent Flow: Vane pumps provide a constant flow even with varying feed pressure.
Moreover, these pumps require minimal maintenance compared to other pump types, reducing downtime and operational costs. Their ability to run dry for short periods without damage adds to their reliability in fluctuating operational conditions.
Due to their versatility and reliability, air motor type vane pumps are employed in numerous feeding systems where precise fluid handling is critical. Their ability to handle corrosive and sensitive fluids without contamination makes them indispensable in sectors such as pharmaceuticals and food processing.
- Chemical Industry: Transfer of acids, solvents, and aqueous solutions.
- Food and Beverage: Dispensing drinks and handling various liquid food products.
- Oil and Gas: Fuel transfer, loading, and unloading operations.
- Automotive and Aviation: Fuel loading and transmission systems.
- Printing: Ink transfer.
- Agriculture: Pesticide and fertilizer dispensing.
- Pharmaceuticals: Handling sensitive fluids with precision.
For instance, in the pharmaceutical industry, these pumps ensure accurate dosing of liquid medications, maintaining strict hygiene standards. In agriculture, they facilitate the controlled dispensing of fertilizers and pesticides, enhancing crop yield and safety.
In a leading pharmaceutical manufacturing facility, air motor type vane pumps are used to transfer active ingredients with high precision. The pumps' ability to maintain sterile conditions and prevent contamination has significantly improved product quality and compliance with regulatory standards.
A beverage company utilizes these pumps for dispensing syrups and flavorings. The pumps' consistent flow rate and gentle handling of liquids have enhanced the taste and quality of the final products, while also reducing waste and cleaning time.
Choosing the right air motor type vane pump involves a comprehensive evaluation of the application requirements and environmental conditions. Understanding the fluid characteristics and operational demands ensures that the selected pump delivers optimal performance and longevity.
- Fluid Type and Viscosity: Vane pumps are ideal for low to medium viscosity liquids.
- Flow Rate and Pressure Requirements: Determine the required flow rate and pressure for the application.
- Operating Environment: Consider the environmental conditions, including temperature, humidity, and potential hazards.
- Motor Performance: Assess the motor's power, speed, and air consumption.
- Pump Materials: Choose materials compatible with the fluid being pumped to prevent corrosion and contamination.
- Maintenance Requirements: Evaluate the ease of maintenance and availability of spare parts.
- Certifications: Check for necessary certifications such as ATEX for explosion-proof environments or food-grade certifications for sanitary applications.
For example, selecting a pump with materials resistant to chemical corrosion is crucial when handling aggressive fluids. Similarly, considering the ambient temperature and humidity can prevent premature wear and failure. It is also important to consult with pump manufacturers or experts to ensure the selected pump meets all specific application needs and complies with industry standards.
Ensuring proper installation and diligent maintenance practices are key to maximizing the lifespan and efficiency of air motor type vane pumps. Adhering to manufacturer guidelines and implementing routine checks can prevent common issues and reduce downtime.
- Proper Alignment: Ensure proper alignment of the pump with the driving source to prevent excessive wear and vibration.
- Inlet Conditions: Avoid obstructions and ensure adequate fluid supply to the pump inlet.
- Filtration: Use appropriate filters to prevent contaminants from entering the pump.
- Pressure Monitoring: Install pressure gauges to monitor inlet and outlet pressures.
- Regular Inspection: Inspect the pump regularly for leaks, unusual noises, and vibrations.
- Lubrication: Follow the manufacturer's recommendations for lubrication to ensure smooth operation and prevent overheating.
- Vane Replacement: Replace vanes as needed to maintain optimal performance.
- Filter Cleaning: Clean or replace filters regularly to prevent blockages.
- Air Motor Maintenance: Maintain the air motor according to the manufacturer's guidelines, including lubrication and inspection of vanes.
For example, scheduling regular maintenance during planned downtime minimizes operational disruptions. Using high-quality lubricants and replacement parts also extends the pump's service life.
An automotive parts manufacturer implemented a maintenance schedule for their air motor type vane pumps, resulting in a 30% reduction in unexpected breakdowns. This proactive approach improved production efficiency and lowered repair costs.
While air motor type vane pumps are robust, operators should be aware of potential challenges such as wear and contamination. Proactive measures, including regular maintenance and the use of high-quality filters, can mitigate these risks and ensure consistent pump performance.
- Wear and Tear: Vanes can wear over time, reducing pump efficiency. Regular inspection and timely replacement can mitigate this issue.
- Contamination: Contaminants in the fluid can cause damage to the pump components. Proper filtration is essential.
- Overheating: Inadequate lubrication or excessive load can lead to overheating. Ensuring proper lubrication and operating within recommended limits can prevent this.
- Noise: Vane pumps can be noisy. Using noise-dampening materials and proper installation can reduce noise levels.
Additionally, training operators on proper pump handling and monitoring can prevent operational errors that lead to premature failure. Implementing condition monitoring systems can also provide early warnings of potential issues.
Air motor type vane pumps are environmentally friendly due to their use of compressed air as a power source, which eliminates the need for electrical energy and reduces the risk of oil contamination. Their efficient design also minimizes waste and energy consumption, aligning with sustainable industrial practices.
Recent advancements in materials and design have enhanced the durability and efficiency of air motor type vane pumps. Innovations such as improved vane materials and optimized air motor designs contribute to longer service life and better performance under demanding conditions.
When selecting and operating an air motor type vane pump, understanding the technical specifications is crucial. Key parameters include air consumption, maximum pressure, flow rate, and temperature limits. Properly matching these specifications to the application ensures efficient and safe operation.
Operational tips include regularly checking air supply quality to prevent moisture and contaminants from damaging the pump. Using air dryers and filters can extend pump life. Additionally, monitoring pump performance through pressure and flow sensors can help detect issues early and maintain optimal operation.
The future of air motor type vane pumps looks promising with ongoing research focused on enhancing efficiency, reducing noise, and improving materials for longer service life. Innovations such as smart sensors and IoT integration are expected to enable real-time monitoring and predictive maintenance, further reducing downtime and operational costs. Additionally, developments in eco-friendly materials and designs will contribute to more sustainable pumping solutions.
In summary, the air motor type vane pump is a versatile and reliable choice for feeding applications across various industries. Its unique features and operational benefits make it an indispensable tool for efficient fluid handling. Continued advancements and proper maintenance will ensure its relevance and effectiveness in the future.
As industries evolve and demand more sustainable and efficient solutions, the air motor type vane pump is well-positioned to meet these challenges, providing a dependable and innovative pumping technology for years to come.
Air motor type vane pumps offer explosion-proof performance, overload protection, high starting torque, easy control, and a compact size. They are also self-priming and can run dry for short periods, providing a consistent flow even with varying feed pressure.
These pumps are used in the chemical, food and beverage, oil and gas, automotive, aviation, printing, agriculture, and pharmaceutical industries. They are suitable for transferring acids, solvents, liquid food products, fuels, and other sensitive fluids.
Their adaptability to handle a wide range of fluids with varying viscosities and chemical properties makes them a preferred choice in many industrial processes.
A vane pump uses a set of vanes mounted on a rotor to create compartments. As the rotor turns, the volume between adjacent vanes changes, creating suction and drawing in fluid at the inlet, and compressing and discharging the fluid at the outlet.
This mechanism allows for smooth and continuous fluid flow, making vane pumps ideal for applications requiring consistent pressure and minimal pulsation.
Consider the fluid type and viscosity, flow rate and pressure requirements, operating environment, motor performance, pump materials, maintenance requirements, and necessary certifications.
It is also important to consult with pump manufacturers or experts to ensure the selected pump meets all specific application needs and complies with industry standards.
Regular inspection, proper lubrication, vane replacement as needed, filter cleaning, and air motor maintenance according to the manufacturer's guidelines are important for ensuring long-term reliability and optimal performance.
Additionally, keeping detailed maintenance records and scheduling preventive maintenance can help identify potential issues before they become serious problems, thereby extending the pump's operational life.
