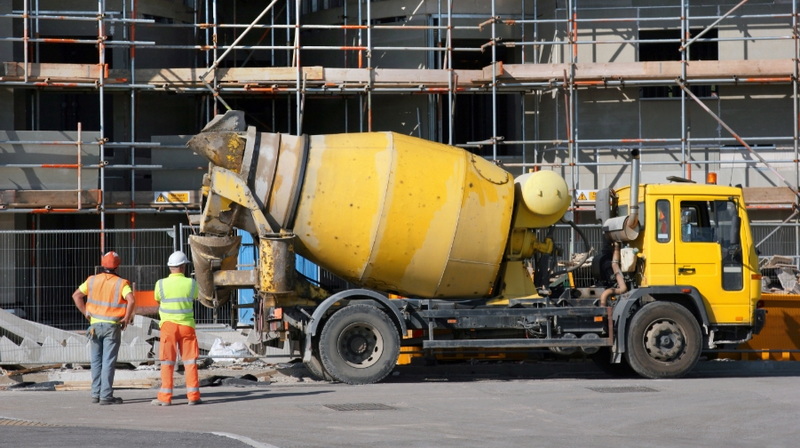

A truck mixer, commonly known as a concrete mixer truck, is a specialized vehicle designed to mix and transport concrete to construction sites. It plays a critical role in the construction industry by ensuring that concrete remains in a workable, homogenous state during transit, enabling efficient and timely delivery for various building projects. This article provides a comprehensive overview of truck mixers, including their components, working principles, types, applications, and maintenance, supported by visual explanations and videos to enhance understanding.

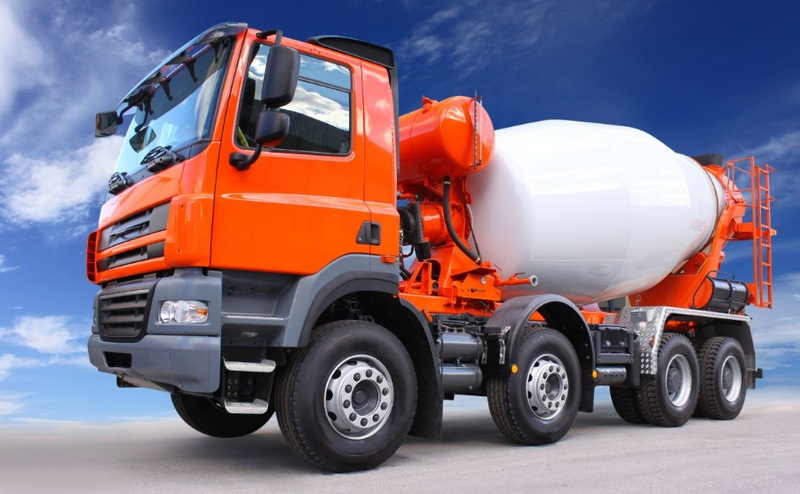

A truck mixer is a heavy-duty vehicle equipped with a rotating drum that mixes cement, aggregates (such as sand and gravel), and water to produce concrete. The drum continuously rotates during transit to keep the concrete mixture fluid and prevent premature setting, ensuring it arrives ready for immediate use at the construction site. This mobility and mixing capability make truck mixers indispensable for construction projects ranging from residential buildings to large infrastructure developments.
- Chassis: The truck's structural frame that supports the drum and other equipment. It is designed to handle heavy loads and rough terrain.
- Mixing Drum: A large, steel cylindrical container mounted on the chassis that rotates to mix and agitate the concrete.
- Hydraulic System: Powers the rotation of the drum, converting mechanical energy from the truck's engine into hydraulic energy to drive the mixing process.
- Power Take-Off (PTO): A mechanism that transfers power from the truck's engine to the hydraulic system.
- Blades Inside the Drum: Spiral-shaped blades inside the drum lift and mix the concrete ingredients as the drum rotates.
- Control System: Allows operators to control the drum's rotation direction and speed for mixing and discharging concrete.
- Water Tank: Some trucks have onboard water tanks to add water during transit to adjust the concrete's consistency.
- Discharge Chute: A movable chute that directs the concrete flow to the desired location during unloading.
The truck mixer operates by continuously rotating its drum while transporting the concrete mixture. The rotation keeps the concrete agitated, preventing it from hardening prematurely. The blades inside the drum lift and fold the mixture to ensure homogeneous mixing.
- Mixing: When the drum rotates in the forward direction, it mixes the concrete ingredients by pushing them inward along the blades.
- Transport: The continuous rotation maintains the concrete's fluidity during transit.
- Discharging: The drum rotates in the reverse direction to push the concrete outward along the blades and out through the discharge chute, allowing precise pouring at the construction site.
- Cleaning: After unloading, the drum and chute are cleaned thoroughly to prevent hardened concrete residue, which can damage the equipment or affect future batches.
This process is akin to a giant mobile blender on wheels, ensuring the concrete remains in optimal condition from the batching plant to the job site.
The most common type, standard transit mixers transport ready-mixed concrete from batching plants to construction sites. They have a fixed drum that rotates continuously to keep the concrete mixed and workable.
Volumetric mixers carry the raw materials (cement, water, sand, and aggregates) separately and mix them on-site as needed. This allows for precise control over the mix proportions and reduces waste. Volumetric mixers are especially useful for projects requiring variable concrete quantities or specific mix designs.
Self-loading mixers combine the functions of loading, mixing, transporting, and discharging concrete in one vehicle. They are ideal for small to medium projects and remote locations where batching plants are unavailable. Operators can load raw materials directly into the mixer, mix the concrete, and deliver it without additional equipment.
The truck mixer's operation relies on a combination of mechanical and hydraulic systems:
- Power Take-Off Device: Engages the truck engine's power to drive the hydraulic pump.
- Hydraulic System: Converts engine power into hydraulic energy, driving the motor connected to the drum.
- Speed Reducer: Adjusts the motor's speed to an optimal rate for drum rotation.
- Control Mechanism: Regulates drum rotation direction and speed for mixing and discharging.
- Mixing Blades: Spiral blades inside the drum lift and fold the concrete to ensure uniform mixing and prevent segregation.
The drum's design is crucial for efficient mixing. It is usually mounted at an angle to facilitate the lifting and folding action of the blades. The spiral blades are arranged in a helical pattern, with some oriented to push the mix towards the center during mixing and others designed to push the mix outward during discharge.
Truck mixers are essential in various construction scenarios:
- Residential and Commercial Building: Delivering concrete for foundations, walls, and floors. The mobility of truck mixers allows them to reach urban and suburban construction sites efficiently.
- Infrastructure Projects: Supplying concrete for bridges, roads, dams, and tunnels where large volumes of concrete are required continuously.
- Large-Scale Industrial Projects: Ensuring continuous concrete supply for factories and warehouses, where quality and timing are critical.
- Remote or Difficult-to-Access Sites: Self-loading mixers provide on-demand mixing where batching plants are not feasible, such as rural construction or temporary sites.
The versatility of truck mixers makes them suitable for a wide range of concrete applications, including precast concrete production, ready-mix concrete delivery, and specialty concrete mixes like fiber-reinforced or high-strength concrete.
- Efficiency: Rapid mixing and delivery reduce construction time, allowing projects to stay on schedule.
- Quality Control: Continuous mixing ensures uniform concrete quality, reducing the risk of weak spots or segregation.
- Flexibility: Various sizes and types cater to different project needs, from small residential jobs to large infrastructure projects.
- Cost-Effectiveness: Reduces labor and material waste by delivering precise quantities of concrete.
- Safety: Minimizes manual handling of raw concrete materials, reducing the risk of injury and exposure to dust or chemicals.
Additionally, truck mixers help reduce environmental impact by minimizing concrete waste and optimizing water usage during mixing.
Proper maintenance and operation are vital to ensure the longevity and reliability of truck mixers:
- Regular Inspection: Check the drum, blades, and hydraulic system for wear, cracks, or damage.
- Cleaning: Thoroughly clean the drum and discharge chute after each use to prevent hardened concrete buildup, which can impair mixing efficiency.
- Hydraulic Fluid: Monitor and maintain hydraulic fluid levels and quality to ensure smooth drum rotation.
- Engine and PTO: Regularly service the truck engine and power take-off mechanism to prevent mechanical failures.
- Drum Rotation Control: Adjust rotation speed according to the type of concrete and distance to the site to maintain optimal mixing without overworking the motor.
- Water Addition: Use onboard water tanks judiciously to adjust concrete consistency during transit, avoiding excessive water that can weaken the mix.
Operators should also be trained in safe handling and emergency procedures to prevent accidents during loading, mixing, and discharging.
The concrete industry is evolving with new technologies aimed at improving truck mixer efficiency, sustainability, and automation:
- Electric and Hybrid Truck Mixers: Reducing emissions and fuel consumption by integrating electric motors or hybrid powertrains.
- Telematics and GPS Tracking: Allowing real-time monitoring of truck location, drum speed, and concrete temperature to optimize delivery schedules and quality control.
- Automated Mixing Controls: Using sensors and software to adjust mix proportions and drum rotation automatically based on concrete properties and environmental conditions.
- Lightweight Materials: Incorporating advanced materials in drum and chassis design to reduce vehicle weight and increase payload capacity.
- Eco-Friendly Mix Designs: Supporting the use of recycled aggregates and supplementary cementitious materials to lower the carbon footprint of concrete production.
These innovations contribute to more sustainable construction practices and improved operational efficiency.
A truck mixer is a vital vehicle in the construction industry, combining the functions of mixing and transporting concrete efficiently. Its rotating drum and hydraulic system ensure that concrete remains homogeneous and workable from the batching plant to the construction site. Various types of truck mixers, including standard transit, volumetric, and self-loading mixers, cater to diverse project requirements. Proper operation and maintenance of truck mixers enhance construction productivity, quality, and safety. As technology advances, truck mixers continue to evolve, offering greener, smarter, and more efficient solutions for concrete delivery worldwide.
A truck mixer's primary function is to mix concrete ingredients and transport the mixture to construction sites while keeping it in a workable state through continuous drum rotation.
The mixing drum rotates continuously, with internal spiral blades lifting and folding the concrete ingredients to ensure a uniform mix and prevent premature setting.
Common types include standard transit mixers, volumetric mixers that mix on-site, and self-loading mixers that load, mix, transport, and discharge concrete independently.
Continuous rotation prevents the concrete from hardening inside the drum, maintaining its fluidity and workability until it reaches the construction site.
The drum rotates in reverse, pushing the concrete outward along the blades and down the discharge chute, allowing controlled pouring at the desired location.
