Vane motors have played a significant role in engineering by providing efficient rotary motion through innovative mechanical designs. This article explores the history, evolution, working principles, types, applications, and future trends of vane motors, with detailed explanations and multimedia aids to enhance understanding.
Vane motors are rotary devices that convert fluid power-whether hydraulic, pneumatic, or air-into mechanical rotational energy. They consist primarily of a rotor with multiple vanes sliding in and out of slots, housed eccentrically within a cylinder. The vanes maintain contact with the cylinder wall, creating variable volume chambers that expand and contract to produce torque.
The simplicity and efficiency of vane motors have made them a preferred choice in many engineering applications. Their ability to provide smooth torque and variable speed control has led to widespread use in industries ranging from manufacturing to automotive and marine engineering.
The concept of rotary vane mechanisms dates back several centuries. Early designs resembling vane pumps appear in Agostino Ramelli's 1588 book, which illustrated various rotary pumps with sliding blades inside eccentric cavities. These early mechanisms laid the groundwork for modern vane motors by demonstrating the principle of converting fluid pressure into rotary motion through sliding vanes.
Throughout the 19th century, inventors and engineers refined these designs. Patents such as W. Pierce's 1858 rotary pump improvement and Charles C. Barnes's 1874 Canadian patent contributed to the development of more efficient and reliable vane motor designs. These improvements included better sealing methods, vane materials, and rotor balancing techniques.
By the early 20th century, vane motors became more refined, including the development of variable-displacement vane pumps around 1909. These advancements allowed for adjustable flow and torque, expanding their industrial applicability and improving energy efficiency.
Initial vane motors were simple in construction but faced challenges such as wear, lubrication, and sealing. Early vanes were often made from wood or basic metals, which wore quickly under high pressure and friction. The choice of materials was critical, especially for hydraulic vane motors operating in harsh environments like seawater, which causes corrosion and poor lubrication. Innovations in corrosion-resistant materials such as stainless steel, bronze alloys, and advanced polymers helped extend motor life and performance.
Flexible sideplates and improved sealing techniques were introduced to maintain tight tolerances and reduce internal leakage. These design improvements enhanced efficiency and reliability, allowing vane motors to operate at higher pressures and speeds.
Pneumatic vane motors use compressed air to drive the rotor, with vanes forced outward by springs or air pressure. These motors gained popularity in industrial tools due to their compact size, high starting torque, and variable speed capabilities. Pneumatic vane motors are especially valued in hazardous environments where electric motors pose risks, such as in explosive atmospheres.

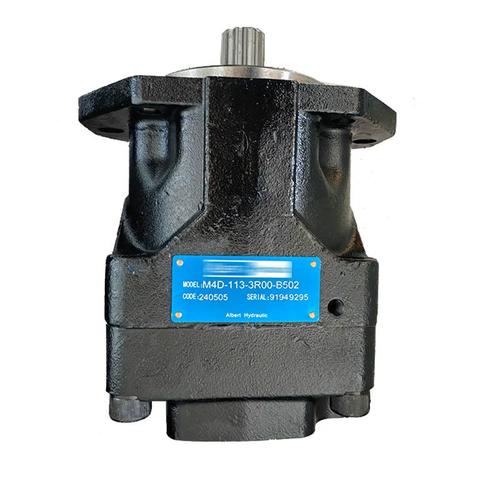

Hydraulic vane motors operate on Pascal's law, using pressurized fluid to push the vanes and generate torque. Modern hydraulic vane motors are balanced and capable of high efficiency, wide speed regulation, and reliable reversal of rotation. The balanced design minimizes side loads on the rotor shaft, reducing wear and extending service life.
A significant milestone in vane motor evolution is the variable-displacement design, where the eccentricity between the rotor and housing can be adjusted. This allows the motor to vary its displacement, enabling energy-saving operation and adaptability in applications such as automotive transmissions, industrial drives, and mobile machinery.
Variable-displacement vane motors can adjust flow output without changing input speed, providing precise control over torque and speed. This adaptability reduces energy consumption and improves system responsiveness, making these motors highly efficient for modern engineering demands.

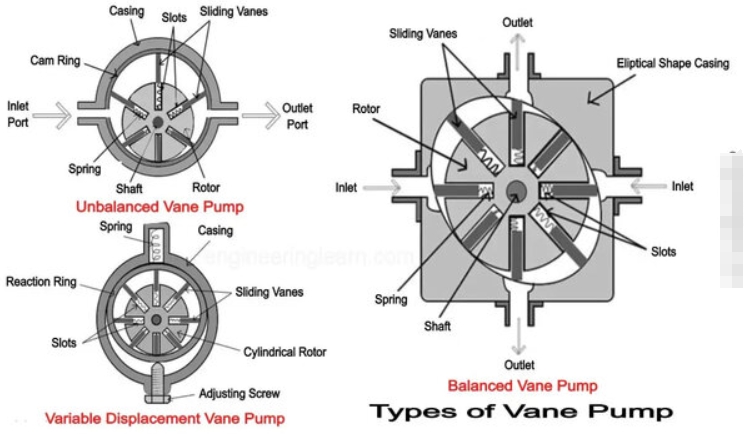

The fundamental components of a vane motor include:
- Rotor: Mounted eccentrically within the stator, the rotor contains multiple slots where vanes slide in and out.
- Vanes: Rectangular blades that slide radially, maintaining contact with the cylinder wall to create sealed chambers.
- Cylinder/Stator: The stationary outer housing that encases the rotor and vanes.
- End Plates and Bearings: Support the rotor and maintain alignment, ensuring smooth rotation.
- Springs or Air Pressure: Push vanes outward to maintain sealing against the cylinder wall.
As the rotor spins inside the eccentric cylinder, the volume between adjacent vanes changes. Compressed fluid enters the expanding chamber, pushing the vane outward and causing rotation. On the contracting side, fluid is expelled. This cycle converts fluid energy into mechanical rotation with high torque and smooth operation.
The sliding vanes create sealed chambers that expand and contract as the rotor turns, allowing fluid to enter and exit at different points. This process generates continuous rotational force. The design ensures minimal leakage and smooth torque delivery, making vane motors efficient and reliable.
| Type | Medium | Key Features | Typical Applications |
|---|---|---|---|
| Hydraulic Vane Motor | Hydraulic fluid | High torque at low speeds, balanced design | Industrial machinery, heavy equipment |
| Pneumatic Vane Motor | Compressed air | Lightweight, high starting torque, variable speed | Power tools, air starters for engines |
| Seawater Hydraulic Vane Motor | Seawater | Corrosion-resistant materials, specialized design | Underwater tools, marine applications |
Each type is engineered to optimize performance for its operating environment. For example, seawater hydraulic vane motors use special materials and coatings to resist corrosion and biofouling, ensuring durability in marine conditions.
Vane motors have found diverse applications across many engineering sectors due to their versatility and efficiency.
- Industrial Automation: Vane motors provide precise control of rotary motion in assembly lines, packaging machines, and conveyor systems. Their ability to maintain consistent torque and speed makes them ideal for repetitive processes.
- Hydraulic Systems: In heavy machinery such as excavators, loaders, and agricultural equipment, hydraulic vane motors drive pumps, conveyors, and other components requiring reliable rotary power.
- Pneumatic Tools: Air-powered drills, grinders, and starters commonly use pneumatic vane motors for their compact size, high torque, and ability to operate in explosive or wet environments safely.
- Marine Technology: Seawater hydraulic vane motors power diver tools, underwater manipulators, and remotely operated vehicles (ROVs). Their corrosion resistance and reliability under pressure make them indispensable in marine engineering.
- Automotive: Variable-displacement vane pumps are used in automotive transmissions and power steering systems to improve energy efficiency and provide smooth operation.
Proper installation and maintenance are crucial for vane motor longevity and performance. Key practices include:
- Inspection and Cleaning: Before installation, inspect shafts and motor components for debris and damage. Clean thoroughly to prevent premature wear.
- Deburring: Remove burrs from motor connection surfaces to avoid damage during assembly.
- Alignment: Ensure precise alignment of motor and pump shafts to prevent uneven wear and vibration.
- Bolt Tightening: Tighten bolts diagonally and evenly to distribute force and maintain proper sealing.
- Vane Condition Monitoring: Regularly check vanes for wear, cracks, or deformation. Replace worn vanes promptly to maintain efficiency.
- Lubrication: Use recommended lubricants to minimize friction and corrosion, especially in hydraulic vane motors.
- Sealing Checks: Inspect seals and sideplates for leaks and replace as necessary to avoid fluid loss and contamination.
Adhering to these guidelines reduces wear, prevents leaks, and maintains performance, ensuring the vane motor wiki systems operate reliably over extended periods.
The evolution of vane motors continues as engineers seek to improve efficiency, durability, and adaptability. Emerging trends include:
- Smart Vane Motors: Integration of sensors and IoT technology for real-time monitoring of temperature, pressure, and wear, enabling predictive maintenance.
- Advanced Materials: Use of composites, ceramics, and nanomaterials to enhance corrosion resistance, reduce weight, and improve wear characteristics.
- Energy Efficiency Improvements: Development of low-friction coatings and optimized geometries to reduce energy losses.
- Hybrid Systems: Combining vane motors with electric drives and variable frequency controls for enhanced performance and flexibility.
- Environmental Adaptations: Designing vane motors for renewable energy applications, such as wind and hydrokinetic power generation.
These innovations will further expand the capabilities of vane motors, making them integral components in next-generation engineering solutions.
The history and evolution of vane motors reflect a journey of continuous innovation from rudimentary rotary pumps to sophisticated hydraulic and pneumatic motors. Their compact design, high efficiency, and versatility have made them indispensable in various engineering fields. Advances in materials, variable displacement technology, and specialized designs for challenging environments have expanded their applications. As industries demand more efficient and reliable rotary power sources, vane motors will continue evolving, integrating smarter controls and sustainable materials to meet future engineering challenges.
Vane motor wiki resources and ongoing research ensure that these motors remain at the forefront of mechanical engineering, powering machines and tools that drive modern industry.
A vane motor is a rotary device that converts fluid energy into mechanical rotation using a rotor with sliding vanes inside an eccentric cylinder. As fluid pressure acts on the vanes, they push against the cylinder wall, causing the rotor to spin and produce torque.
The main types include hydraulic vane motors, pneumatic (air) vane motors, and specialized seawater hydraulic vane motors. Each type is designed for specific fluids and applications, such as industrial machinery, air tools, or marine environments.
Design evolution includes improvements in materials to resist wear and corrosion, the introduction of variable-displacement mechanisms for adjustable flow and torque, and enhancements in sealing and balance to increase efficiency and durability.
Vane motors offer high starting torque, compact size, smooth operation, wide speed regulation, and the ability to reverse rotation. They are reliable, efficient, and suitable for both low and high-speed applications.
Regular inspection of vanes and seals, proper installation with shaft alignment, cleaning and deburring components, and timely replacement of worn parts are essential maintenance practices to ensure long-term efficiency and prevent failures.
