Vane motors, whether pneumatic or hydraulic, are versatile and efficient devices used across various industries for their ability to convert fluid energy into rotational motion. This article will delve into the design, working principle, applications, and benefits of vane motors, providing insights into why they are crucial components in many industrial and mechanical systems.

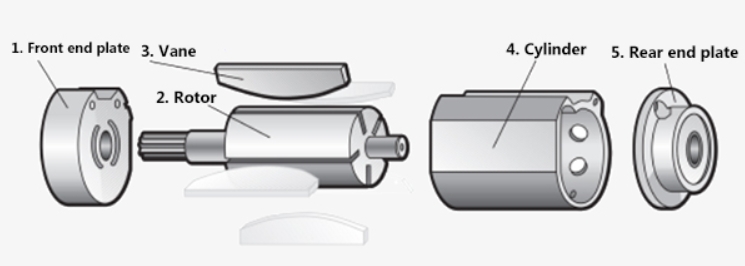

Vane motors are characterized by their simple yet effective design, which typically includes a rotor, vanes, and a housing. The rotor is eccentrically positioned within the housing, creating a crescent-shaped chamber that is divided into separate working chambers by the vanes. These chambers expand and contract as the rotor rotates, allowing fluid (air or hydraulic oil) to enter and exit, thereby generating torque.
Pneumatic vane motors use compressed air to produce rotational motion. They are widely used in applications requiring high starting torque and compact size, such as handheld tools and industrial machinery.
Design and Working Principle:
1. Compressed Air Entry: Air enters the motor through an inlet, creating pressure that pushes the vanes against the cylinder wall.
2. Rotation and Expansion: As the rotor rotates, the vanes move, creating chambers that expand and contract. This expansion reduces pressure, allowing the vanes to move further and generate torque.
3. Exhaust: The air is expelled through an outlet, completing the cycle.
Hydraulic vane motors operate similarly but use hydraulic fluid instead of air. They are based on Pascal's law, where the pressure applied to the fluid is transmitted equally in all directions, causing the vanes to rotate and produce torque.
Design and Working Principle:
1. High-Pressure Fluid Entry: Hydraulic fluid enters the motor, applying pressure to the vanes.
2. Rotation and Energy Transfer: The vanes rotate due to the pressure difference, converting fluid energy into mechanical energy.
3. Fluid Circulation: The fluid circulates back to the system, ready for another cycle.
Vane motors are versatile and find applications across multiple industries due to their compact size, high starting torque, and ability to operate in hazardous environments.
- Automotive: Used for tasks like tightening bolts or screws.
- Construction: Powers handheld tools like drills and jackhammers.
- Food and Beverage: Used in mixing and blending equipment.
- Industrial Cleaning: Powers heavy-duty cleaning equipment.
- Agriculture: Used in machinery for spraying pesticides and harvesting.
- Construction: Found in road pavers, steer loaders, and excavators.
- Industrial Settings: Used in mixers, conveyor systems, and agitators.
- Aircraft Machinery: Used for cargo handling and landing gear deployment.
Vane motors offer several advantages that make them preferred choices in many applications:
- High Starting Torque: Enables them to start under load.
- Compact and Lightweight: Suitable for installation in tight spaces.
- Versatility: Can be reversible or non-reversible, depending on the application.
- Low Maintenance: Some models are lubrication-free, reducing maintenance needs.
Modern vane motors come with various design improvements and innovations:
- Lubrication-Free Designs: Use special materials to reduce wear and extend lifespan.
- Stainless Steel Construction: Ideal for hygiene-sensitive applications like food processing.
- Bi-Directional Operation: Enhances versatility in applications requiring reversible motion.
Vane motors, particularly pneumatic ones, are often preferred in environments where energy efficiency and environmental considerations are crucial. They do not produce electrical noise or heat, making them suitable for use in sensitive electronic environments. Additionally, pneumatic systems can be more energy-efficient when used in applications where compressed air is already available.
- Compressed Air Utilization: Pneumatic vane motors can utilize existing compressed air systems, reducing the need for additional power sources.
- Low Heat Generation: Unlike electric motors, vane motors generate minimal heat, which can be beneficial in applications where overheating is a concern.
- Noise Reduction: Vane motors operate more quietly than many other types of motors, reducing noise pollution.
- Non-Electrical Operation: Suitable for use in hazardous environments where electrical sparks could pose a risk.
Maintaining vane motors is relatively straightforward, with most issues being related to wear and tear on moving parts. Regular inspection and replacement of worn components can extend the motor's lifespan.
- Vane Wear: Regularly inspect and replace vanes to prevent motor failure.
- Seal Leaks: Check for leaks in pneumatic or hydraulic seals and replace them as needed.
- Motor Stalling: Check for blockages or improper fluid flow.
Vane motors can offer significant cost savings over their lifespan. Their low maintenance requirements and long operational life reduce the need for frequent replacements or repairs, making them a cost-effective choice for many industries.
- Reduced Maintenance Costs: Lubrication-free designs and durable materials minimize maintenance needs.
- Extended Operational Life: Proper maintenance can extend the motor's lifespan, reducing replacement costs.
As technology advances, vane motors are likely to see further innovations in materials and design. The use of advanced materials could lead to even more efficient and durable motors, while advancements in control systems could enhance precision and versatility.
- Advanced Materials: New materials could improve efficiency and lifespan.
- Smart Control Systems: Integration with IoT and automation technologies for enhanced control and monitoring.
Several industries have successfully integrated vane motors into their operations, showcasing their effectiveness in real-world scenarios.
- Application: Pneumatic vane motors are used in assembly lines for tasks like tightening bolts and screws.
- Benefits: High starting torque and compact size allow for efficient operation in tight spaces.
- Application: Hydraulic vane motors power machinery for spraying pesticides and harvesting.
- Benefits: High torque output and reliability in demanding outdoor conditions.
Vane motors are essential components in many industrial and mechanical systems due to their efficiency, versatility, and reliability. Whether pneumatic or hydraulic, these motors offer high starting torque, compact designs, and low maintenance requirements, making them ideal for a wide range of applications.
Pneumatic vane motors offer high starting torque and are compact, making them suitable for handheld tools and applications where space is limited.
Hydraulic vane motors use hydraulic fluid instead of compressed air, providing higher torque and efficiency in applications requiring more power.
Hydraulic vane motors are used in agriculture, construction, industrial settings, and aircraft machinery for their reliability and efficiency.
Lubrication-free vane motors reduce maintenance needs by using special materials that minimize wear, extending the motor's lifespan.
Yes, pneumatic vane motors are particularly suitable for environments where electrical motors are hazardous due to their non-electrical operation.
