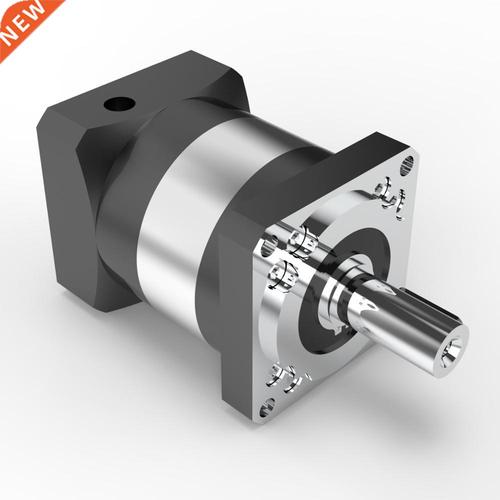

Industrial planetary gearboxes are engineering marvels that combine compactness, durability, and high torque transmission. Their design directly impacts performance in applications ranging from robotics to heavy machinery. This article explores the critical elements of exceptional planetary gearbox design, emphasizing how gear companies optimize these systems for industrial use.
A hallmark of superior planetary gearbox design lies in its ability to distribute loads evenly across multiple planet gears. By splitting torque among three or more planetary gears, stress on individual components is minimized, enabling higher torque density without sacrificing longevity. Gear companies achieve this through precision alignment of the sun gear, planet gears, and ring gear, ensuring uniform contact patterns and reduced wear.
Industrial applications demand space-efficient solutions. Leading gear companies design planetary systems with modular stages, allowing customization of reduction ratios (e.g., 3:1 to 2687:1) while maintaining a compact footprint. Multi-stage configurations stack planetary sets to achieve extreme speed reductions without drastically increasing size-a key advantage over traditional gear systems.
High-performance planetary gearboxes rely on advanced materials:
- Case-hardened alloy steels for sun and planet gears to withstand cyclic loading.
- Nitrided or carburized surfaces to enhance wear resistance and fatigue strength.
- Ductile iron or hardened steel housings for rigidity and vibration damping.
Post-machining processes like grinding and honing ensure micron-level accuracy in gear tooth profiles, critical for minimizing noise and backlash.
Effective lubrication is non-negotiable in industrial planetary gearbox design:
- Oil-bath systems for high-speed applications.
- Grease-packed bearings in sealed environments.
- Cooling fins or forced-air systems to dissipate heat in continuous-duty operations.
While spur gears simplify manufacturing, helical gears dominate premium industrial planetary gearboxes due to:
- Smoother engagement from gradual tooth contact.
- Higher load capacity through increased surface overlap.
- Reduced operational noise-critical for precision applications.
Top gear companies implement innovative backlash reduction techniques:
- Preloaded tapered roller bearings to maintain gear alignment.
- Adjustable carrier assemblies for fine-tuning mesh clearances.
- Anti-backlash split gears in high-precision robotics applications.
Leading manufacturers offer versatile mounting options to adapt to diverse industrial layouts:
| Mounting Type | Applications |
|---|---|
| Flange-mounted | Conveyor systems, mixers |
| Foot-mounted | Heavy machinery bases |
| Shrink-disc-coupled | High-torque drives |
| Right-angle | Space-constrained installations |
Progressive gear companies now embed:
- Vibration sensors for predictive maintenance.
- Thermal probes to prevent overheating.
- IoT-enabled interfaces for real-time performance monitoring.
A prominent gear company redesigned its industrial planetary gearbox for offshore wind turbines by:
1. Implementing corrosion-resistant coatings for saltwater exposure.
2. Upgrading to hybrid ceramic bearings for reduced lubrication needs.
3. Adding shock-absorbing carrier mounts to handle tidal forces.
This resulted in a 40% longer service interval and 18% higher torque density.
Exceptional industrial planetary gearbox design balances mechanical ingenuity with application-specific customization. By prioritizing load distribution, material science, and adaptive mounting solutions, gear companies create systems that outperform traditional reducers in efficiency, compactness, and durability. As industries demand higher power densities and smarter integration, planetary gearbox innovation remains pivotal to modern mechanical systems.
Through hardened gear materials, precision grinding, and multi-planet configurations that distribute loads across 3-7 gears, reducing individual component stress.
Concentric power transmission paths and simultaneous tooth engagement across multiple gears minimize energy loss, achieving up to 97% efficiency in single-stage designs.
Yes, advanced designs incorporate angular contact bearings and reinforced carriers to manage combined loads, making them ideal for screw conveyors and crane drives.
Through embedded sensors for condition monitoring, IoT compatibility for data analytics, and modular designs that simplify integration with automated systems.
Required reduction ratio, available space, and efficiency targets. Single-stage handles up to 10:1 reduction, while four-stage configurations exceed 2000:1.
