Vane air motors are a cornerstone of modern industry, prized for their reliability, compactness, and ability to deliver high torque in challenging environments. But what truly determines their performance and longevity? The answer lies in the careful selection of materials for each component. This comprehensive guide explores the best materials for vane air motor design, complete with technical explanations, visual diagrams, and video resources to deepen your understanding.
Vane air motors convert compressed air into rotational mechanical energy. Their simple yet robust construction consists of a slotted rotor fitted with vanes, all housed within a cylindrical chamber. As compressed air enters, it pushes the vanes outward, causing the rotor to spin and generate torque. This unique design makes vane air motors ideal for applications where explosion-proof operation, variable speed, and high reliability are essential[2][5][10].

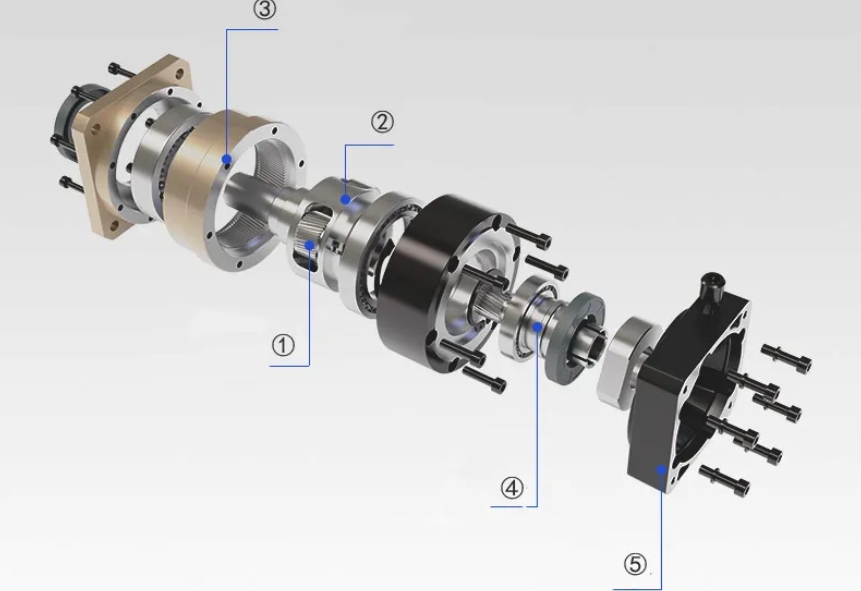

Each part of a vane air motor faces distinct mechanical and environmental stresses. Selecting the right material for each component is critical for maximizing efficiency, minimizing wear, and ensuring safe operation.
- Motor Housing
- Rotor
- Vanes
- Bearings and Seals
- End Plates and Gaskets
The housing is the motor's protective shell, exposed to both internal pressures and external environmental conditions. The ideal material must offer strength, corrosion resistance, and, in some cases, compliance with explosion-proof standards.
| Material | Properties & Applications |
|---|---|
| Cast Iron | High strength, cost-effective, good for general industrial use7. |
| Stainless Steel | Superior corrosion resistance, essential for food, chemical, or underwater applications1. |
| Aluminum Alloy | Lightweight, moderate strength, used where weight is a concern. |
| Painted Steel | Provides some corrosion resistance, cost-effective for less aggressive environments. |
Key Considerations:
- Chemical and Food Industries: Stainless steel is preferred for its corrosion resistance and compliance with hygiene standards[1].
- Explosion-Proof Environments: Stainless steel or specially treated housings are required to meet ATEX norms[1][7].
- General Industry: Cast iron offers a good balance of strength and cost, while aluminum is used for portable or hand-held tools.
The rotor is the heart of the vane air motor, transmitting the force from the vanes to the output shaft. It must be strong, wear-resistant, and precisely machined.
- Alloy Steel: Offers high strength and excellent machinability, commonly used in industrial-grade motors.
- Hardened Steel: Provides superior wear resistance, especially at high speeds or under heavy loads.
- Stainless Steel: Used in applications where corrosion resistance is paramount, such as food processing or chemical plants[1][16].
Why Material Matters:
- Hardness ensures the rotor resists abrasion from the sliding vanes[16].
- Toughness prevents cracking or catastrophic failure under load[16].
The vanes are subject to constant friction against the cylinder wall and must maintain a tight seal while being lightweight and durable.
| Material | Properties & Applications |
|---|---|
| Carbon Graphite | Self-lubricating, low friction, excellent for oil-less or lubrication-free motors8. |
| Advanced Composites | High wear resistance, low weight, tailored for specific operating conditions. |
| Phenolic Resin Laminates | Good wear resistance, used in less demanding environments. |
| Metal (Steel/Aluminum) | Rarely used due to weight and wear issues. |
Key Factors:
- Lubrication-Free Operation: Composite or carbon vanes are essential for motors that must run without added oil[8].
- Longevity: Harder vanes last longer but may increase wear on the cylinder wall.
- Operating Temperature: Some composites are better for high-temperature applications.
Bearings and seals are critical for smooth rotation and preventing air leakage.
- Steel Ball Bearings: Standard for most applications, offering good load capacity and longevity.
- Stainless Steel Bearings: Used in corrosive or wet environments.
- Ceramic Bearings: Sometimes used for high-speed or specialty applications.
- Nitrile Rubber (NBR): Common for general use, resistant to oil and moderate chemicals.
- Viton (FKM): Superior chemical and temperature resistance, used in harsh environments.
- PTFE (Teflon): Extremely low friction, high chemical resistance, used in specialty designs.
Seal Design: All seals must be made from materials compatible with the operating environment, especially when exposure to aggressive chemicals or extreme temperatures is expected[1].
- Requirement: Resistance to aggressive chemicals and explosion-proof operation.
- Material Choice: Stainless steel for housings and rotors, Viton or PTFE for seals[1].
- Requirement: Hygiene, corrosion resistance, and easy cleaning.
- Material Choice: Stainless steel throughout, FDA-approved seal materials[1].
- Requirement: Resistance to corrosion and water ingress.
- Material Choice: Stainless steel housings and rotors, waterproof seals[1].
- Requirement: Materials must withstand elevated temperatures without degradation.
- Material Choice: High-grade alloys for rotors and vanes, high-temperature elastomers for seals.
Material selection directly impacts maintenance intervals and operational lifespan.
- Vane Replacement: Composite and carbon vanes typically last 1,000–2,000 hours under normal conditions, but must be checked more frequently in lubrication-free motors[12].
- Seal and Bearing Inspection: Regular checks and replacements are necessary, especially in harsh or dirty environments.
- Lubrication: Proper lubrication extends the life of both vanes and bearings, but lubrication-free designs require advanced materials to compensate[12].
Material selection is fundamental to the performance, durability, and safety of vane air motor design. The best materials for each component depend on the specific application, environmental conditions, and operational requirements:
- Stainless steel is ideal for housings and rotors in corrosive, hygienic, or explosive environments.
- Alloy or hardened steel is commonly used for rotors in general industrial applications.
- Carbon graphite and advanced composites are the top choices for vanes, offering low friction and long life, especially in lubrication-free designs.
- High-quality seals and bearings ensure reliability and efficiency, with materials chosen based on chemical compatibility and temperature resistance.
By understanding the demands of your application and selecting materials accordingly, you can maximize the performance and lifespan of your vane air motor, reduce maintenance, and ensure safe operation in even the harshest environments.
Stainless steel is the preferred material for both the housing and rotor in explosive environments due to its strength, corrosion resistance, and compliance with ATEX explosion-proof standards[1][7].
Carbon graphite and composite vanes offer self-lubricating properties, low friction, and reduced wear, making them ideal for lubrication-free operation and extending service life compared to metal vanes[8][14].
Seal materials such as Viton, PTFE, or Nitrile Rubber must be selected based on chemical compatibility and temperature range. The right seal material prevents leaks and ensures efficient operation, especially in aggressive or high-temperature environments[1][16].
Stainless steel is essential for housings and rotors, while FDA-approved elastomers are used for seals to ensure hygiene and corrosion resistance in food processing applications[1].
Vane replacement intervals depend on material and operating conditions. Carbon graphite and advanced composite vanes typically last 1,000–2,000 hours in lubricated motors, but should be checked more frequently in lubrication-free designs[12].
