Vane type air motors have become a preferred choice in numerous industrial and commercial applications due to their unique design, efficiency, and versatility. This comprehensive article explores the reasons why vane air motors stand out compared to other types of air motors, detailing their working principles, advantages, applications, maintenance, and answering frequently asked questions.

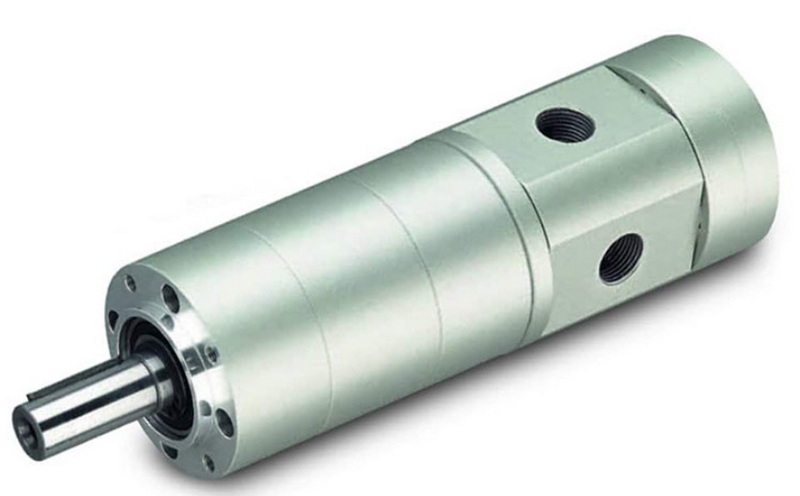

A vane air motor is a type of pneumatic motor that converts compressed air energy into rotary mechanical motion using vanes mounted on a rotor inside a cylindrical housing. These vanes slide in and out of rotor slots and are forced against the motor housing by centrifugal force and air pressure, creating sealed chambers that expand and contract, causing the rotor to spin. This rotary motion is then transferred to an output shaft to perform mechanical work.
The rotor is eccentrically mounted within the stator, and as compressed air enters the motor, it pushes against the vanes, causing rotation. The number of vanes can vary, typically between three and ten, affecting the motor's torque, speed, and efficiency characteristics. The design is compact, lightweight, and simple, making it suitable for various applications ranging from hand tools to industrial machinery.
Compressed air enters the motor's inlet chamber, exerting pressure on the vanes. As the rotor turns, the volume of the working chambers changes, causing the air to expand and push the vanes further, producing continuous rotation. The air exits through the outlet port after doing work on the vanes. By reversing the airflow direction, the motor can rotate in the opposite direction, making it instantly reversible.
Vane air motors are highly efficient, especially at higher speeds and lower torque levels. Their design allows for simple and inexpensive variable speed and torque control by adjusting the compressed air flow or pressure. This makes them ideal for applications requiring precise speed regulation.
Because vane air motors use compressed air as their power source and have no electrical components, they are inherently safe to use in explosive or hazardous environments such as oil rigs, chemical plants, and mining operations. The absence of sparks and electrical hazards makes them explosion-proof by design.
The simplicity of vane air motors-with fewer moving parts compared to other motor types-results in high reliability and minimal wear. The vanes and other wear parts are inexpensive and easy to replace. Additionally, they can run continuously at full capacity without overheating, as the expanding air naturally cools the motor during operation.
Vane air motors can operate efficiently in dusty, humid, or wet environments where electric motors might fail. They are resistant to temperature extremes and can be designed with stainless steel components for corrosion resistance, enabling use underwater or in chemically aggressive environments.
Compared to piston air motors or electric motors of similar power, vane air motors are more compact and lighter. This makes them ideal for hand-held pneumatic tools and applications where space and weight are critical factors.
Vane air motors can be reversed instantly by simply changing the air supply direction. They can also be stalled indefinitely under load without damage or overheating, which is a significant advantage over electric motors that risk burnout under stall conditions.
The initial cost, combined with low maintenance requirements and long service life, makes vane air motors a cost-effective solution for many industrial applications. Their ability to operate efficiently without complex control systems further reduces operational expenses.
Vane air motors are widely used across various industries due to their adaptability and performance characteristics:
- Pneumatic Hand Tools: Most pneumatic tools in manufacturing use vane air motors for their power-to-weight ratio and durability.
- Industrial Machinery: They power mixers, conveyors, hoists, winches, pumps, and packing machines.
- Automotive and Engine Starting: Vane air motors serve as starters for large diesel or natural gas engines.
- Food, Agricultural, Petrochemical, and Nuclear Industries: Their explosion-proof and hygienic design make them suitable for sensitive environments.
- Ventilators and After Coolers: Used where reliable, variable-speed rotary motion is needed.
Proper maintenance ensures the longevity and optimal performance of vane air motors:
- Lubrication: Most vane air motors require lubrication, typically provided by oil mixed with compressed air. Some models are designed to operate without lubrication but need dry, clean air and regular vane inspections.
- Vane Inspection and Replacement: Vanes should be checked after 80 hours in lubrication-free motors and after 1,000 to 2,000 hours in lubricated models. Worn vanes reduce efficiency and can cause motor failure.
- Air Filtration: Clean, dry air is critical. Filters must be regularly checked and replaced to prevent dust and moisture from entering and damaging the motor.
- Gearbox Maintenance: For motors with gear reduction, grease levels should be monitored and replenished approximately every 1,000 hours.
- Environmental Considerations: In humid or tropical environments, additional lubrication and corrosion protection may be necessary. In cold climates, precautions must be taken to prevent freezing of moisture in the air supply and motor exhaust.
Vane air motors have evolved with innovative design features to enhance their performance and adaptability:
- Multi-Vane Configurations: Increasing the number of vanes improves torque smoothness and reduces vibration, making the motor suitable for precision applications.
- Composite and Ceramic Vanes: Advanced materials reduce wear and extend service life, especially in harsh environments.
- Integrated Speed Controllers: Some vane air motors come with built-in flow control valves, enabling precise speed regulation without external components.
- Modular Designs: Allowing easy replacement of vanes, rotors, and housings reduces downtime and maintenance costs.
- Noise Reduction Features: Special mufflers and housing designs minimize operational noise, improving workplace comfort.
Vane air motors contribute positively to sustainability efforts in industrial environments:
- Clean Energy Use: Powered by compressed air, they avoid the use of fossil fuels or electrical energy, reducing carbon footprints when compressed air is generated from renewable sources.
- Long Service Life: Durable components reduce waste and the need for frequent replacements.
- Non-Toxic Operation: No hazardous fluids or emissions are produced during operation.
- Recyclable Materials: Many vane air motor components are made from recyclable metals and plastics.
For optimal performance, proper installation and integration of vane air motors are essential:
- Air Supply Quality: Ensure the compressed air is clean, dry, and adequately filtered to prevent premature wear.
- Correct Sizing: Select a motor size that matches the load requirements to maximize efficiency.
- Mounting Orientation: Most vane air motors can be mounted in any orientation, but follow manufacturer guidelines to avoid vane wear.
- Exhaust Management: Direct exhaust air away from operators and sensitive equipment to maintain safety and comfort.
- Control Systems: Integrate simple pneumatic or electronic controls for speed and direction adjustments as needed.
Even with their robust design, vane air motors can encounter operational issues. Understanding common problems and their solutions can minimize downtime:
- Reduced Speed or Torque: Often caused by worn vanes, insufficient air pressure, or clogged air filters. Regular maintenance and air quality checks prevent this.
- Excessive Noise or Vibration: May indicate damaged vanes, rotor imbalance, or loose mounting. Inspect and replace damaged parts and ensure secure installation.
- Overheating: Usually due to inadequate lubrication or excessive load. Verify lubrication levels and ensure the motor is correctly sized for the application.
- Air Leaks: Can result from worn seals or damaged housing. Regular inspection and timely replacement of seals maintain air tightness.
- Failure to Reverse: Check for blockages in air supply lines or malfunctioning directional control valves.
To maximize the capabilities of vane air motors, various accessories can be employed:
- Air Regulators and Flow Controls: Provide precise speed and torque adjustments.
- Lubricators: Ensure consistent lubrication in motors requiring oil-mist lubrication.
- Filters and Dryers: Maintain air quality by removing moisture and particulates.
- Silencers and Mufflers: Reduce exhaust noise for a safer and quieter work environment.
- Gearboxes and Speed Reducers: Adapt motor output to specific application requirements.
Vane type air motors offer a compelling combination of efficiency, safety, durability, and versatility that makes them preferable over other air motor types in many applications. Their explosion-proof nature, ease of speed control, compact design, and minimal maintenance requirements make them ideal for industrial, commercial, and hazardous environment uses. Whether powering handheld pneumatic tools or large industrial machinery, vane air motors provide reliable, cost-effective performance with a proven track record across diverse sectors.
Vane air motors achieve higher efficiency through their simple design that minimizes internal leakage and friction. The sliding vanes create sealed chambers that convert compressed air pressure into rotary motion effectively, especially at higher speeds and lower torque levels. Additionally, variable speed control through air pressure adjustment enhances operational efficiency.
Yes, some vane air motors are designed to operate without lubrication by using special low-friction vanes and permanently lubricated bearings. However, these require very clean and dry air to prevent wear. Regular inspection of vanes is necessary, typically after about 80 hours of use, to maintain performance.
Because vane air motors use compressed air and have no electrical components, they do not generate sparks and are inherently explosion-proof. This makes them safe for use in hazardous environments such as oil rigs, chemical plants, and mining operations where electrical motors pose risks.
Maintenance primarily involves ensuring proper lubrication (if applicable), regular inspection and replacement of vanes, cleaning or replacing air filters, and checking gearbox grease levels. In harsh environments, additional corrosion protection and moisture control are necessary to prolong motor life.
Speed and torque are controlled by regulating the compressed air supply pressure and flow. By adjusting these parameters with valves or pressure regulators, operators can achieve variable speed and torque outputs suitable for different applications without complex electronic controls.
