Views: 222 Author: Ella Publish Time: 2025-04-25 Origin: Site
Content Menu
● Understanding Hydraulic Rotary Actuators
● Advantages of Rotary Actuators in Hydraulic Systems
>> 1. High Torque Output in Compact Size
>> 2. Precise and Easy Control
>> 3. Versatility Across Applications and Industries
>> 4. Robustness and Reliability in Harsh Environments
>> 5. Smooth and Balanced Torque Delivery
>> 6. Energy Efficiency and Load Holding
>> 7. Space and Weight Savings
● Types of Hydraulic Rotary Actuators
● Visual and Video Demonstrations
>> How a Single Vane Rotary Actuator Works
>> Hydraulic Rotary Actuator Operation Overview
● Maintenance and Troubleshooting
● FAQ
>> 1. What is a hydraulic rotary actuator, and how does it work?
>> 2. What are the main types of hydraulic rotary actuators?
>> 3. Why choose hydraulic rotary actuators over electric or pneumatic types?
>> 4. How do I maintain a hydraulic rotary actuator?
>> 5. What are common applications of hydraulic rotary actuators?
Rotary actuators are essential components in hydraulic systems, converting hydraulic energy into controlled rotary motion. Their unique capabilities make them invaluable in numerous industrial, aerospace, automotive, and construction applications. This article explores the advantages of rotary actuators in hydraulic systems, focusing on their design, performance, and versatility, supported by detailed explanations, images, and videos to enhance understanding.
A hydraulic rotary actuator converts the linear motion of a piston into rotary motion using hydraulic fluid pressure. This conversion is achieved through mechanisms such as helical splines, rack and pinion, or vane designs. The actuator's output shaft rotates within a limited arc or continuously, depending on the design, providing torque to drive mechanical components.
Hydraulic fluid under pressure moves a piston inside the actuator. The piston's linear movement engages internal gears or vanes, causing the output shaft to rotate. For example, in a helical spline actuator, the piston has helical teeth that mesh with matching splines on the shaft, converting axial motion into rotation. The rotation angle depends on the piston's stroke length, allowing precise control over the output angle[1][5][9].
Hydraulic rotary actuators are renowned for their ability to generate high torque relative to their size. They can produce torque outputs up to 2,200,000 lbs-in (250,000 Nm) or more, especially in helical spline and rack-and-pinion designs[2][17]. This high torque capability allows them to perform heavy-duty tasks such as valve operation, crane rotation, and heavy machinery articulation without requiring large, bulky components.
Compactness is another critical advantage. The helical hydraulic rotary actuator, for example, is compact and lightweight yet capable of delivering powerful torque within a small footprint, making it ideal for applications with limited space[1][19].
Hydraulic rotary actuators offer precise control over rotation angle and speed. By regulating hydraulic fluid flow and pressure, operators can achieve smooth, accurate positioning, essential in applications like valve control, robotic arms, and aerospace mechanisms[1][4][11].
The ability to hold a position firmly without continuous power input is another benefit. When hydraulic fluid is trapped inside the actuator, the shaft locks in place, preventing unintended movement under load[14].
Hydraulic rotary actuators are highly versatile and used in various sectors, including:
- Construction and Engineering Machinery: For boom rotation, crane articulation, and earth-moving equipment control[1][3].
- Aerospace: Operating flaps, landing gear, and brake systems where reliability under extreme conditions is critical[3][17].
- Marine: Steering systems, rudder control, and offshore drilling equipment that require robust, corrosion-resistant actuators[3][14].
- Industrial Automation: Positioning tools, clamps, and machinery parts with high torque and precision[3][17].
Their adaptability to different rotation ranges (90°, 180°, 360°, or more) and ability to operate under high pressure make them suitable for a broad spectrum of tasks[9][17].
Hydraulic rotary actuators are designed to operate reliably under harsh conditions, including dust, moisture, and extreme temperatures. Their sealed construction protects internal components, ensuring durability and long service life even in demanding environments such as underground work, offshore platforms, and food processing industries[1][3].
Certain designs, like double-vane rotary actuators, provide balanced torque by applying hydraulic pressure on opposing sides of the vane. This balance reduces bearing wear and vibration, resulting in smoother operation and longer actuator life[6][8].
Due to the incompressibility of hydraulic fluids, hydraulic rotary actuators maintain constant torque and force without continuous energy consumption. They can hold loads securely without power, reducing energy waste and enhancing system efficiency[14].
Compared to linear actuators or custom rotary mechanisms, hydraulic rotary actuators save space and reduce system weight. This advantage is crucial in aerospace, automotive, and portable machinery applications where compactness and weight reduction improve performance and fuel efficiency[1][19].

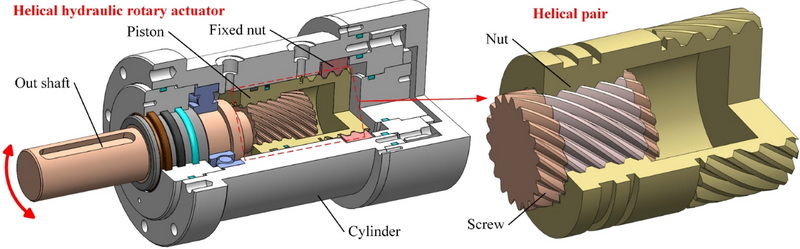

These use helical gears to convert piston linear motion into rotation. They offer high torque and compact design, suitable for precise positioning and continuous rotation up to 360° or more[1][17].
Hydraulic pressure moves pistons attached to racks, which rotate a pinion gear connected to the output shaft. This design provides high torque and is commonly used in heavy machinery requiring robust rotational force[3][5].
A rotor with attached vanes rotates inside a cylinder divided into chambers. Hydraulic fluid pressure causes the vane to rotate, typically offering smooth, low-speed motion and continuous rotation within limited arcs (up to ~280°)[3][5][7].
Hydraulic rotary actuators require regular maintenance to ensure optimal performance and longevity:
- Fluid Quality: Maintaining clean hydraulic fluid prevents contamination that can cause erratic movement or damage.
- Seal Inspection: Regularly check and replace seals to prevent leaks.
- Lubrication: Proper lubrication reduces wear on moving parts.
- Pressure Monitoring: Ensure system pressure is within specifications to maintain torque output.
- Temperature Control: Avoid overheating by monitoring actuator and fluid temperature[10][14].
Common troubleshooting issues include slow or erratic movement, leaking seals, loss of torque, overheating, noise, and binding. Systematic inspection and maintenance can resolve most problems efficiently[10][16].
Hydraulic rotary actuators offer numerous advantages that make them indispensable in modern hydraulic systems. Their ability to deliver high torque in a compact, reliable, and precise manner enables their use across diverse industries such as construction, aerospace, marine, and automation. Their robustness, energy efficiency, and ease of control further enhance their appeal.
By understanding the types, working principles, and maintenance requirements of hydraulic rotary actuators, engineers and operators can optimize system performance and reliability. Their versatility and power make them a superior choice for applications demanding controlled rotary motion under heavy loads and challenging conditions.
A hydraulic rotary actuator converts hydraulic fluid pressure into rotary motion by moving a piston inside the actuator, which engages gears or vanes to rotate the output shaft. It provides controlled torque and rotation angles, useful for valve control, machinery positioning, and more[1][9][11].
The main types include helical spline actuators (using helical gears), rack and pinion actuators (using piston-driven racks and gears), and vane-type actuators (using rotating vanes inside a cylinder)[1][3][5].
Hydraulic rotary actuators provide higher torque, better load-holding capability, and more precise control under heavy loads and harsh environments compared to electric or pneumatic actuators. They are also more compact for the torque they deliver[2][17][19].
Regular maintenance includes checking and replacing hydraulic fluid, inspecting and replacing seals, lubricating moving parts, monitoring system pressure and temperature, and performing regular operational tests to detect issues early[10][14][16].
They are used in construction machinery (cranes, booms), aerospace (flaps, landing gear), marine (rudder control), industrial automation (tool positioning), and valve control in oil, gas, and chemical industries[1][3][17].
