Gast rotary vane air motors are a specialized type of pneumatic motor widely used in industrial, medical, environmental, and various other applications. Known for their reliability, efficiency, and compact design, these motors convert compressed air into rotational mechanical energy using a unique rotary vane mechanism. This article explores what a Gast rotary vane air motor is, how it works, its advantages, applications, maintenance, and answers frequently asked questions.
A Gast rotary vane air motor is a pneumatic device that uses compressed air to generate rotary motion. Unlike electric motors, it operates without electricity, making it ideal for hazardous environments or applications requiring spark-free operation. The motor consists of a rotor with multiple flat vanes that slide in and out of slots as the rotor turns inside a cylindrical housing. This design allows the motor to produce smooth, continuous torque and speed with minimal pulsation.

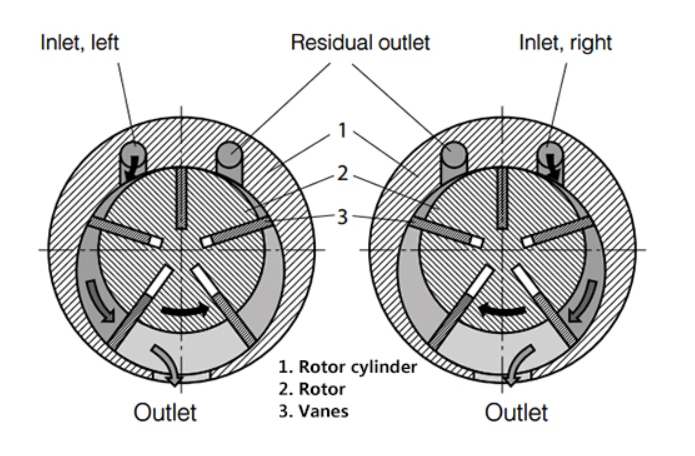

The core of the Gast rotary vane air motor is an eccentrically mounted rotor inside a cylindrical housing. The rotor has several axial slots, each fitted with a flat vane that can slide radially. These vanes maintain contact with the housing bore through centrifugal force, springs, or air pressure, creating sealed compartments of varying volume as the rotor turns.
1. Compressed Air Intake: Compressed air enters the motor housing through an inlet port.
2. Expansion and Rotation: The air pressure acts on one side of the vanes, pushing them outward and causing the rotor to rotate.
3. Volume Change: As the rotor turns eccentrically, the volume of the compartments between the vanes and housing changes. The compartments expand on the intake side, drawing in air, and contract on the exhaust side, expelling air.
4. Continuous Motion: This continuous expansion and contraction produce smooth rotary motion without pulsation because the inlet and exhaust ports do not have valves, and air flow is continuous rather than intermittent.
- Oil-less Operation: Many Gast rotary vane motors operate without lubrication, ensuring the exhaust air is clean and free of contaminants.
- Smooth, Pulse-Free Air Flow: The design eliminates pulsation, making them ideal for applications requiring consistent air pressure and flow.
- Compact and Lightweight: High power density allows for smaller, lighter motors compared to electric counterparts.
- Variable Speed and Torque: Speed and power output can be easily controlled by adjusting air pressure or flow, offering simple and cost-effective control.
- Reversible Operation: These motors can be reversed easily, providing flexibility in applications.
- Safe for Hazardous Environments: Non-electrical operation eliminates sparking risks, suitable for explosive atmospheres.
- Low Noise and Vibration: Quiet operation with minimal vibration enhances workplace safety and comfort.
- Durability and Easy Maintenance: Designed for long service life with simple maintenance procedures, including vane replacement.
Gast rotary vane air motors are versatile and used in many industries:
- Environmental: Pond aeration, soil sparging, sewage aeration.
- Medical: Dental surgical suction, medical aspiration, vacuum mixers.
- Industrial: Envelope openers, collating inserters, vacuum forming, air bearings.
- Food Processing: Oil atomization, air sampling, milking equipment.
- Liquid Pump Drives: Powering liquid pumps in process, energy, and food/beverage industries.
Beyond the common uses, Gast rotary vane air motors have found roles in advanced and specialized applications due to their unique characteristics:
- Robotics and Automation: Their compact size and precise speed control make them suitable for robotic arms and automated assembly lines where electric motors might pose risks or require complex controls.
- Hazardous Material Handling: In chemical plants or explosive environments, Gast air motors provide safe, spark-free operation for pumps and mixers.
- Aerospace and Defense: Used in ground support equipment and testing rigs where reliability and non-electrical operation are critical.
- Marine Applications: Their corrosion resistance and oil-less operation make them ideal for underwater or marine environments.
- Cleanroom and Pharmaceutical Manufacturing: Oil-less exhaust and low contamination risk suit sterile environments.
| Feature | Gast Rotary Vane Air Motor | Electric Motor |
|---|---|---|
| Power Source | Compressed air | Electricity |
| Spark Risk | None (safe for hazardous environments) | Possible sparking, not ideal for explosive atmospheres |
| Maintenance | Simple vane replacement, oil-less options | Requires electrical maintenance, bearings lubrication |
| Speed Control | Easy via air pressure regulation | Requires electronic controllers |
| Noise Level | Low to moderate | Varies, often higher noise and vibration |
| Size and Weight | Compact and lightweight | Generally heavier and bulkier |
| Environmental Impact | No electrical emissions, clean exhaust air | Electrical consumption, possible emissions |
| Initial Cost | Moderate | Varies, often higher for explosion-proof models |
Gast rotary vane air motors excel in environments where safety, cleanliness, and simplicity are paramount, while electric motors dominate where precise electronic control and high efficiency are required.
- Vane Replacement: Vanes wear over time and can break; replacing them restores motor performance.
- Lubrication: For lubricated models, use Gast AD220 10 wt detergent oil, typically one drop per 50 cfm of air consumed.
- Air Filtration: Install filters, regulators, and lubricators within 20 inches of the motor to ensure clean air supply and prolong motor life.
- Inspection: Regularly check for air leaks, vane wear, and rotor condition.
- Motor Running Backwards: Can cause loss of pumping function; ensure correct assembly and check start switches if applicable.
- Air Flow Issues: Check for clogged filters or damaged vanes.
- Noise or Vibration: May indicate vane wear or rotor damage.
A wastewater treatment plant implemented Gast rotary vane air motors to power aeration blowers. The oil-less operation prevented contamination of water, and the motors' durability reduced downtime. The plant reported a 20% reduction in maintenance costs and improved aeration efficiency.
A dental equipment manufacturer integrated Gast rotary vane air motors into their suction devices. The motors' quiet operation and oil-less exhaust improved patient comfort and device reliability, leading to increased customer satisfaction.
A dairy processing facility used Gast air motors to drive milking equipment and oil atomizers. The motors' clean operation and easy maintenance helped meet strict hygiene standards and reduced operational costs.
| Feature | Description |
|---|---|
| Power Range | 1/10 to 10 hp (varies by model) |
| Max Operating Pressure | Up to 100 psi (7 bar) |
| Speed Range | 300 to 15,000 rpm (depending on model) |
| Number of Vanes | Typically 4 or 8 vanes |
| Mounting | Can be mounted in any position |
| Lubrication | Oil-less or lubricated (Gast AD220 oil) |
| Noise Level | Low noise, typically under 105 dB(A) |
| Reversibility | Yes, reversible operation |
| Certifications | CE, ATEX (for hazardous environments) |
Gast rotary vane air motors are robust, efficient, and versatile pneumatic motors that convert compressed air into smooth rotary motion. Their unique vane design provides pulse-free operation, variable speed control, and reliable performance in a compact, oil-less package. These motors are ideal for applications requiring clean, safe, and maintenance-friendly power sources, especially in hazardous or sensitive environments. With easy maintenance and a broad range of models, Gast rotary vane air motors continue to be a preferred choice across many industries.
Gast air motors require a 10 wt detergent oil, specifically Gast AD220. If unavailable, 10w30 detergent oil may be substituted.
Typically, one drop of oil is recommended for every 50 cfm of air consumed by the motor.
Yes, Gast air motors are designed to be mounted in any position without affecting performance.
Four-vane motors meet most requirements, but eight-vane motors are used for applications requiring minimum speed, precise inching control, or low-speed operation with minimal blow-by.
Yes, many Gast models are non-electrical, spark-free, and ATEX approved, making them safe for use in hazardous atmospheres.
