Concrete mixer trucks are indispensable vehicles in the construction industry, designed to transport and mix concrete efficiently from batching plants to construction sites. Understanding their dimensions, especially height, is crucial for logistics, safety, and operational planning. This comprehensive article explores the height of concrete mixer trucks, factors influencing their size, and related technical details, supported by visuals and videos to provide a clear understanding.

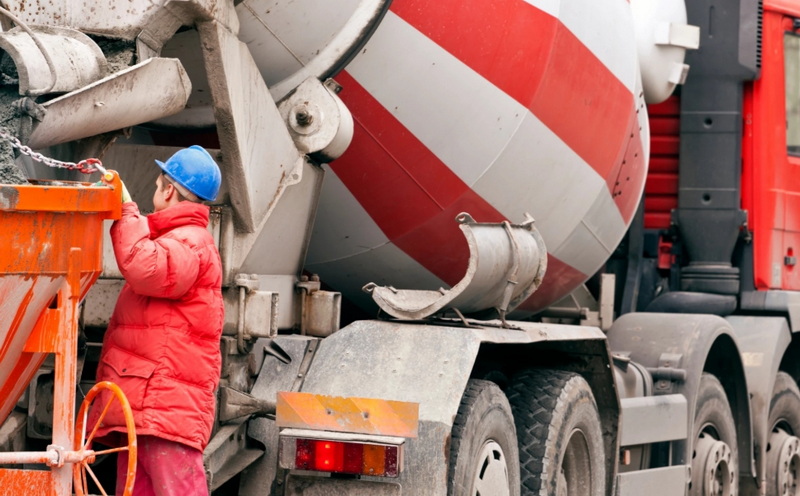

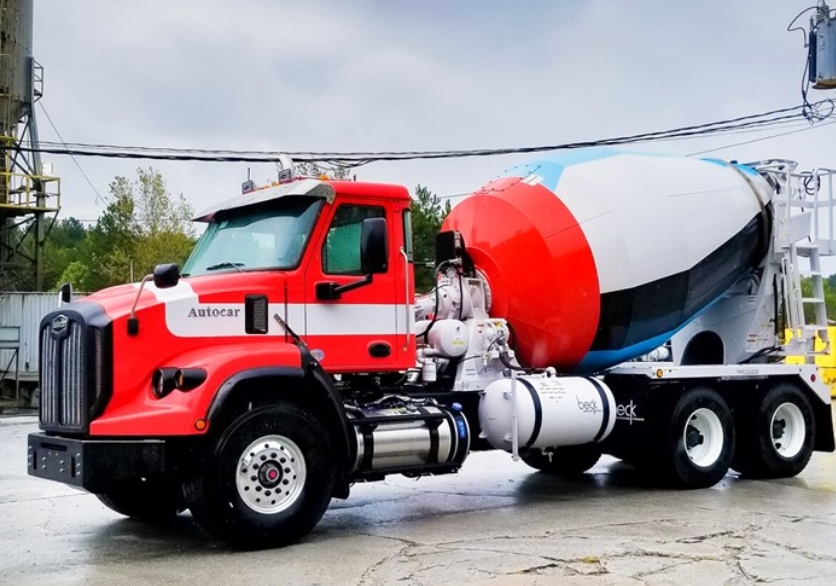

Concrete mixer trucks, also known as cement trucks, are specialized vehicles equipped with a rotating drum that mixes concrete during transport. This rotation prevents the concrete from setting prematurely, ensuring it arrives at the site ready to pour.
- Mixing Drum: The large rotating drum that mixes the concrete.
- Chassis: The truck's frame supporting the drum and other components.
- Chutes: Used to direct the concrete from the drum to the desired location on-site.
- Axles: Typically 4 to 6 axles to support heavy loads and comply with road regulations.
The design of these trucks is a balance between maximizing concrete capacity and maintaining maneuverability and safety on public roads and construction sites.
The height of concrete mixer trucks varies depending on the model, capacity, and manufacturer. However, most standard ready-mix concrete trucks fall within a specific range.
- For trucks with a capacity of 3 to 4 cubic meters, the typical height ranges from 11.5 to 12 feet (approximately 3.5 to 3.7 meters).
- Trucks with capacities of 6 to 8 cubic meters usually stand between 12 and 12.5 feet tall (about 3.7 to 3.8 meters).
- Larger trucks with capacities exceeding 10 cubic meters can reach heights up to 13 feet (around 4 meters).
For example, a Kenworth 10-yard concrete mixer truck typically stands about 12 feet 3 inches tall at the hopper, which is approximately 3.73 meters. Similarly, many 6 to 8 cubic meter trucks have heights around 3.75 meters (12.3 feet).
Several factors influence the overall height of a concrete mixer truck:
- Drum Size: Larger drums naturally increase the overall height of the vehicle.
- Chute Position: The height at the hopper or chute can add to the total height, especially when the chute is mounted higher for discharge purposes.
- Truck Design: Different manufacturers have variations in cab design, drum mounting, and frame structure, all impacting height.
- Regulatory Limits: Road height restrictions influence the maximum allowed height, often capping trucks around 13.1 to 13.5 feet (4 to 4.1 meters) on highways.
Understanding these factors helps operators select the right truck for their needs and ensures compliance with transportation laws.
To gain a clearer picture, here are example dimensions of common concrete mixer trucks:
- A Kenworth 10 Yard Mixer is approximately 35 feet 3 inches long, 9 feet 7 inches wide (including mirrors), and 12 feet 3 inches tall. When fully loaded, it can weigh up to 72,000 pounds.
- A 6 cubic meter ready mix truck typically measures 28 feet in length, 9 to 10 feet in width, and about 12.5 feet in height, with a loaded weight around 26 tonnes.
- An 8 cubic meter ready mix truck is usually about 32 feet long, 9 to 10 feet wide, and 12.5 feet tall, weighing approximately 32 tonnes when loaded.
These dimensions are carefully engineered to balance concrete capacity with road safety and maneuverability.
Height is a critical dimension for concrete mixer trucks because it impacts several operational factors:
- Site Access: Construction sites often have height restrictions due to overhead cables, bridges, or entry gates. A truck that is too tall may not be able to enter certain sites.
- Transport Regulations: Many regions limit vehicle height to around 13.1 to 13.5 feet (4 to 4.1 meters) on highways to ensure safety under bridges and overpasses.
- Safety: Ensuring the truck can safely pass under obstacles is critical to avoid accidents, damage to infrastructure, and costly delays.
Knowing the height of concrete mixer trucks allows project managers and logistics coordinators to:
- Confirm site entry clearance and avoid last-minute access issues.
- Plan routes that avoid low bridges, tunnels, or other height-restricted areas.
- Ensure compliance with local transportation laws and avoid fines or permits delays.
Proper planning based on truck height helps maintain project timelines and reduces risks during concrete delivery.
Mini concrete mixers designed for small loads, typically ranging from 0.5 to 4 cubic meters, are shorter, usually around 11.5 feet (3.5 meters) tall. These smaller trucks are ideal for tight urban sites, indoor deliveries, or projects with limited access, where maneuverability and lower height are essential.

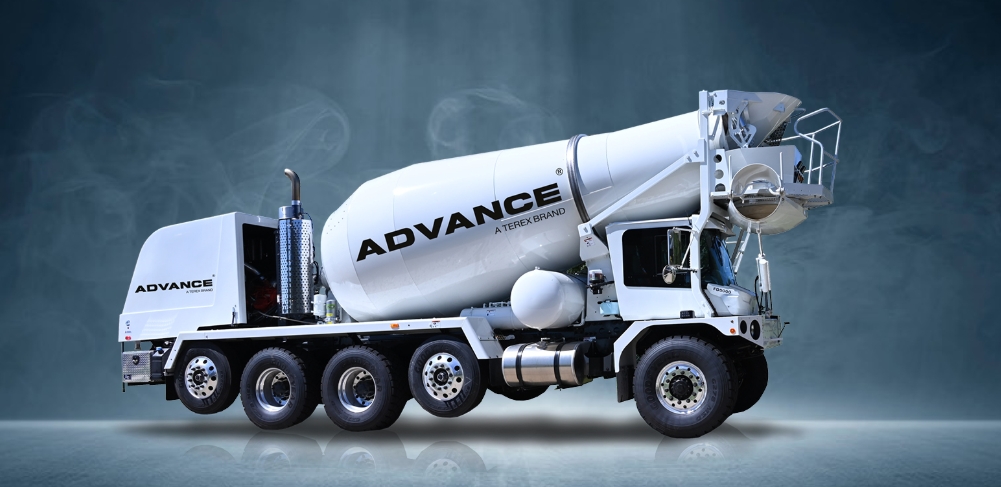

Heavy-duty trucks with drum capacities above 10 cubic meters can reach heights close to or slightly above 13 feet (4 meters). These trucks require special permits and careful route planning due to their size. They are commonly used in large-scale projects where high volume concrete delivery is necessary.
The height of a concrete mixer truck is not only a logistical concern but also a key design parameter affecting functionality:
- Center of Gravity: Taller trucks with larger drums have a higher center of gravity, which can affect stability during transport, especially on uneven or inclined surfaces.
- Drum Rotation Efficiency: The drum must be mounted at an optimal angle and height to ensure effective mixing and discharge. Height adjustments can improve mixing quality and reduce concrete waste.
- Driver Visibility: The cab height and overall truck height influence driver visibility, which is crucial for safe maneuvering on busy construction sites and public roads.
Manufacturers continuously innovate to optimize these factors, balancing height with safety and performance.
Regular maintenance of concrete mixer trucks also ties into height considerations:
- Drum Wear and Replacement: Over time, drums may need replacement or repair, which can affect the truck's height if a different drum model is installed.
- Chute Adjustments: Chutes can be adjusted or extended for better concrete placement, potentially increasing the effective height during operation.
- Safety Inspections: Height measurements are part of safety inspections to ensure trucks comply with legal limits and are safe to operate on roads and construction sites.
Maintenance teams must be aware of these factors to keep trucks both functional and compliant.
Environmental regulations and local laws also influence concrete mixer truck design, including height:
- Emissions Control Equipment: Installation of exhaust treatment systems or additional tanks can add to the truck's height.
- Noise Reduction Features: Some trucks include noise-reducing enclosures or shields that may increase height marginally.
- Road Safety Regulations: Authorities often set strict limits on vehicle dimensions to protect infrastructure and ensure public safety.
Manufacturers and operators must navigate these regulations while optimizing truck performance and size.
The height of a concrete mixer truck typically ranges from about 11.5 feet (3.5 meters) for smaller models to around 12.5 feet (3.8 meters) for standard 6 to 8 cubic meter trucks, with larger models reaching up to 13 feet (4 meters). This dimension is influenced by drum size, truck design, regulatory requirements, and operational needs. Understanding these height specifications is essential for safe and efficient concrete delivery, ensuring trucks can access construction sites without issues. Proper planning around truck dimensions helps avoid delays and accidents, making concrete mixer trucks reliable partners in construction projects.
By considering height alongside other dimensions such as length and width, construction professionals can optimize logistics, comply with regulations, and maintain safety standards. Whether working with mini mixers in tight urban environments or large capacity trucks on major infrastructure projects, knowing the height details is key to successful concrete delivery.
The average height of a standard concrete mixer truck is approximately 12 to 12.5 feet (3.7 to 3.8 meters), depending on the drum size and truck model.
Yes, mini concrete mixer trucks with capacities from 0.5 to 4 cubic meters typically have a height around 11.5 feet (3.5 meters), designed for easier access to confined or urban sites.
Height affects route planning since many roads and bridges have clearance limits, usually around 13.1 feet (4 meters). Trucks exceeding this require special permits or alternate routes.
Concrete mixer trucks generally have widths around 8.75 to 10 feet (2.55 to 3 meters) including mirrors, and lengths ranging from 21 to 35 feet (6.5 to 10.5 meters) depending on capacity.
Concrete is discharged by reversing the rotation of the drum, allowing the mixture to flow down the chute with precise control over placement on-site.
