Gear reducers are essential components in mechanical systems, used to adjust the speed and torque of motors to match the requirements of various machinery. Among these, double reduction spur gear reducers are particularly versatile, offering significant speed reduction and torque multiplication. This article will delve into the design, functionality, applications, and benefits of double reduction spur gear reducers, along with detailed explanations and visual aids.

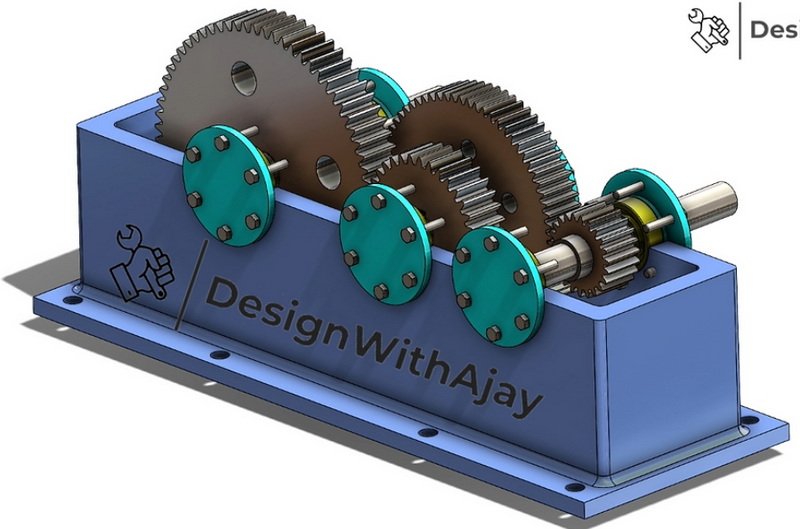

A double reduction spur gear reducer is a type of gearbox that uses two sets of spur gears to achieve a higher reduction ratio compared to single-stage reducers. This setup allows for a substantial decrease in output speed while increasing the torque output, making it suitable for applications requiring high torque at lower speeds.
The operation of a double reduction spur gear reducer involves two stages of gear reduction. Each stage consists of a smaller driver gear and a larger driven gear. The ratio of the number of teeth on the driven gear to the number on the driver gear determines the reduction ratio for that stage. By combining two stages, the overall reduction ratio is the product of the ratios of each stage.
When designing a double reduction spur gear reducer, several factors must be considered:
1. Gear Ratio: The choice of gear ratio affects the output speed and torque. Higher ratios result in lower output speeds but higher torques.
2. Material Selection: The materials used for the gears and other components must be durable enough to withstand the stresses involved.
3. Lubrication: Proper lubrication is crucial to reduce friction and prevent overheating.
4. Mounting and Alignment: Correct mounting and alignment of the reducer are essential to prevent vibration and ensure smooth operation.
The layout of a double reduction spur gear reducer can significantly impact its performance and efficiency. Different layouts may offer advantages in terms of space savings or reduced load on driving gears. For instance, some designs may utilize additional gear pairs to distribute the load more evenly, potentially extending the lifespan of the gears[1].
Double reduction spur gear reducers are used in various industries due to their versatility and efficiency:
1. Industrial Machinery: They are commonly found in cranes, conveyors, and other heavy-duty equipment where high torque is required.
2. Automotive Industry: Used in transmissions to provide smooth gear shifting and enhance vehicle performance.
3. Agricultural Machinery: Essential for tractors and harvesters, providing the necessary torque and speed reduction for different tasks.
4. Renewable Energy: Used in wind turbines to convert low rotational speeds into higher speeds required by generators.
5. Marine Industry: Employed in ship propulsion systems to ensure efficient power distribution.
6. Aerospace: Utilized in aircraft engines to transmit power efficiently.
- High Torque Output: Double reduction spur gear reducers can provide significantly higher torque compared to single-stage reducers.
- Compact Design: Despite their functionality, they can be designed to be compact, making them suitable for space-constrained applications.
- Efficiency: While not as efficient as some other types of gearboxes, they offer reliable performance in demanding conditions.
- Complexity: The double-stage design can increase complexity and maintenance requirements.
- Cost: Generally more expensive than single-stage reducers due to the additional components.
Regular maintenance is essential for extending the life of a double reduction spur gear reducer. This includes:
1. Proper Lubrication: Regular lubrication checks to ensure that gears are well-oiled and functioning smoothly.
2. Alignment Checks: Periodic checks to ensure that the input and output shafts are properly aligned to prevent vibration and wear.
3. Wear Inspection: Regular inspections for signs of wear on gears and bearings, replacing components as needed.
Optimizing the design of a double reduction spur gear reducer involves considering factors such as gear mesh parameters, bearing selection, and shaft proportions. The goal is to achieve a compact design with long system life while minimizing weight and volume. This can be achieved through computational optimization techniques that analyze various design configurations to find the most efficient setup[5].
As technology advances, there is a growing focus on optimizing gearbox designs for improved efficiency and reduced environmental impact. This includes developing more efficient lubrication systems and using materials that are both durable and sustainable. Additionally, advancements in digital technology and smart sensors are being integrated into gearboxes to enhance performance monitoring and predictive maintenance[8].
1. Aerospace: In aerospace, double reduction spur gear reducers are used in aircraft engines to transmit power efficiently. Their compact design and high torque output make them suitable for these applications.
2. Marine Industry: In marine propulsion systems, these gearboxes ensure efficient power distribution from the engine to the propeller, enhancing vessel maneuverability.
3. Renewable Energy: Used in wind turbines and solar tracking systems to optimize energy production by converting low rotational speeds into higher speeds required by generators.
Double reduction spur gear reducers are vital components in many mechanical systems, offering substantial speed reduction and torque multiplication. Their applications span multiple industries, from automotive to renewable energy. While they present some challenges in terms of complexity and cost, their benefits make them a preferred choice for applications requiring high torque at lower speeds.
A double reduction spur gear reducer primarily functions to reduce the speed of an input rotation while increasing the output torque. This is achieved through two stages of gear reduction, allowing for a higher overall reduction ratio compared to single-stage reducers.
Double reduction spur gear reducers differ from single-stage reducers by using two sets of gears instead of one. This setup allows for a greater reduction in speed and an increase in torque output, making them suitable for applications requiring higher torque at lower speeds.
Double reduction spur gear reducers are commonly used in industrial machinery, the automotive industry, agricultural machinery, and renewable energy applications. They are particularly useful in situations where high torque is required at lower speeds.
The advantages include high torque output, compact design, and reliable performance in demanding conditions. However, they can be more complex and expensive than single-stage reducers.
While double reduction spur gear reducers are generally efficient, they may not match the efficiency of some other types of gearboxes, such as planetary gearboxes. However, their ability to provide high torque at lower speeds makes them suitable for specific applications where efficiency is not the primary concern.
