Views: 222 Author: Ella Publish Time: 2025-05-15 Origin: Site
Content Menu
● Understanding Hand Crank Gear Reducers and Cone Drive Gear Reducers
>> What Is a Hand Crank Gear Reducer?
>> What Makes Cone Drive Gear Reducers Unique?
● Top Industrial Uses of Hand Crank Gear Reducers
>> 3. Lifting and Hoisting Equipment
>> 7. Renewable Energy Systems
>> 8. Marine and Offshore Equipment
>> 9. Mining and Heavy Industry
● Advantages of Cone Drive Gear Reducers in Industrial Applications
● Maintenance and Best Practices for Hand Crank Gear Reducers
● FAQ
>> 1. What is the main advantage of a cone drive gear reducer over conventional worm gear reducers?
>> 2. Can hand crank gear reducers be used for automated systems?
>> 3. How do I choose the right gear reducer for my industrial application?
>> 4. What maintenance is required for cone drive gear reducers?
>> 5. Are cone drive gear reducers repairable?
Hand crank gear reducers are essential mechanical devices widely used across various industries to control speed, increase torque, and improve operational efficiency. Among the many types available, the cone drive gear reducer stands out for its unique double enveloping worm gear design, offering superior torque capacity, durability, and precision. This article explores the top industrial uses of hand crank gear reducers, highlighting the advantages of cone drive gear reducers, and providing detailed insights into their applications, benefits, and maintenance.

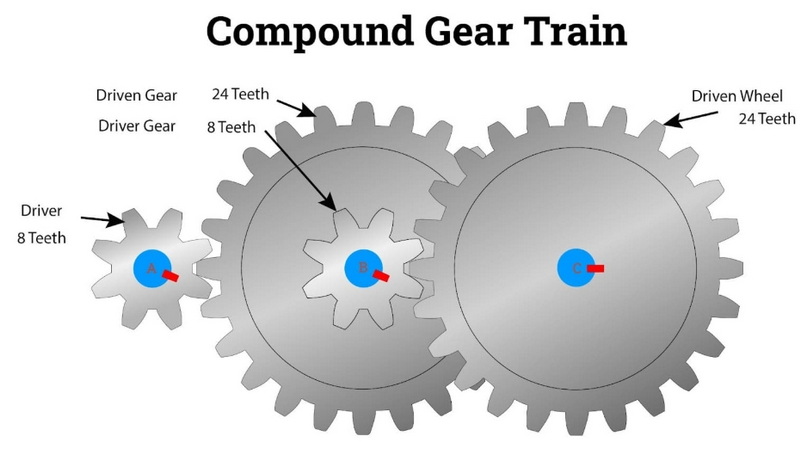

A hand crank gear reducer is a mechanical device that reduces the speed of an input shaft while increasing the torque output. It typically consists of a system of gears arranged to convert high-speed, low-torque input into low-speed, high-torque output, which is crucial for controlling machinery and equipment manually or semi-automatically. These devices are often manually operated via a hand crank, allowing precise control over the motion and force applied to the driven equipment.
Cone Drive gear reducers feature a patented double enveloping worm gear design where the worm and gear wrap around each other, increasing tooth contact area significantly. This design results in:
- Higher torque capacity without increasing size
- Enhanced shock resistance for heavy starting and stopping loads
- Low backlash for precise motion control
- Increased durability and longer gear life
- Compact and lightweight construction for design flexibility
This technology allows Cone Drive gear reducers to perform the work of much larger gearboxes in a smaller footprint, making them ideal for demanding industrial applications. Unlike traditional worm gear reducers, which have limited tooth engagement, the cone drive's design ensures multiple teeth are always engaged, distributing loads more evenly and reducing wear.
Conveyor systems are the backbone of material handling in manufacturing, warehousing, and distribution centers. Hand crank gear reducers are extensively used in conveyor systems to regulate speed and torque, ensuring smooth and controlled material handling. The high torque output helps move heavy loads efficiently, while the gear reducer's durability withstands continuous operation in harsh industrial environments.
In many conveyor applications, manual adjustment of speed or emergency manual operation is necessary, especially during maintenance or power outages. The ergonomic design of hand crank gear reducers allows operators to easily control conveyors without complex electronic controls. Cone Drive gear reducers, with their robust double enveloping design, provide reliable performance and long service life in these applications, minimizing downtime and maintenance costs.
Packaging machinery requires precise speed control and torque to handle delicate products and maintain high throughput. In operations such as filling, sealing, labeling, and palletizing, even slight variations in speed or torque can lead to product defects or jams.
Hand crank gear reducers enable operators to manually adjust speeds or provide backup manual operation during power failures. The low backlash feature of cone drive gear reducers ensures smooth, accurate movements, which is essential for maintaining product quality and consistency. Furthermore, their compact size allows integration into tight packaging lines without sacrificing performance.
Lifting devices require gear reducers that can handle high torque and shock loads safely. Hand crank gear reducers are used in winches, hoists, and lifting platforms to provide controlled, powerful manual operation. The shock resistance and high load capacity of cone drive gear reducers make them ideal for these safety-critical applications.
In construction, maintenance, and industrial settings, hand crank gear reducers allow operators to precisely position heavy loads, ensuring safety and efficiency. The ability of cone drive gear reducers to absorb shock loads without damage extends the life of lifting equipment and reduces the risk of mechanical failure.
Automotive manufacturing and testing equipment often incorporate hand crank gear reducers to simulate loads or control movement manually. The precision and durability of cone drive reducers support repetitive, high-load cycles typical in automotive assembly lines and testing rigs.
For example, in engine testing or chassis alignment, hand crank gear reducers allow technicians to apply controlled torque and speed adjustments. Their ability to maintain low backlash ensures that measurements and adjustments are accurate, improving product quality and reducing rework.
Agricultural environments are challenging for mechanical equipment due to dust, dirt, moisture, and variable loads. Hand crank gear reducers are used in equipment like seeders, sprayers, and conveyors to adjust operation speeds and torque manually.
The rugged design of cone drive gear reducers ensures reliable performance in dusty, dirty environments common in farming. Their compact size and high torque capacity allow integration into various agricultural machines, improving efficiency and reducing operator fatigue during manual adjustments.
Although primarily automated, many robotic systems integrate hand crank gear reducers for manual positioning or emergency overrides. Cone Drive's low backlash and zero backlash options provide the precision needed for cyclic positioning and smooth motion in robotic arms and automated machinery.
In scenarios where precise manual intervention is necessary-such as setup, calibration, or troubleshooting-hand crank gear reducers enable operators to make fine adjustments without disrupting automated processes. This flexibility enhances system reliability and reduces downtime.
Wind turbines and solar tracking systems sometimes use hand crank gear reducers for manual adjustment and maintenance. The compact size and high torque density of cone drive gear reducers make them suitable for these applications where space and reliability are critical.
For instance, solar panels require precise orientation to maximize energy capture. Hand crank gear reducers allow technicians to manually adjust panel angles during installation or maintenance. In wind turbines, they facilitate manual blade pitch adjustments or yaw control in case of electronic system failures.
Marine applications demand gear reducers that withstand harsh environments, including saltwater corrosion and heavy loads. Hand crank gear reducers are used in anchor winches, steering mechanisms, and hatch covers to provide reliable manual control.
Cone Drive gear reducers' robust construction and corrosion-resistant materials make them suitable for marine and offshore use. Their ability to handle shock loads and provide precise control enhances safety and operational efficiency in challenging conditions.
Mining equipment often requires gear reducers capable of handling extreme loads and abrasive conditions. Hand crank gear reducers are used in ore conveyors, crushers, and drilling rigs to provide manual control for maintenance and emergency operations.
The durability and high torque capacity of cone drive gear reducers make them ideal for these demanding environments. Their design minimizes downtime and maintenance costs, increasing overall productivity in mining operations.
| Feature | Benefit |
|---|---|
| Double Enveloping Worm Gear | Increased tooth contact area for higher torque and durability |
| High Shock Resistance | Withstands heavy starting/stopping loads without damage |
| Low Backlash | Ensures precise, smooth motion ideal for positioning and automation |
| Compact and Lightweight | Saves space and allows flexible design configurations |
| Long Gear Life | Reduces maintenance frequency and downtime |
| High Load Capacity | Enables downsizing gearboxes while maintaining power |
| Quiet and Efficient Operation | Reduces noise pollution and energy consumption |
These advantages translate to cost savings, improved reliability, and enhanced performance across industries. The ability to deliver high torque in a compact package allows engineers to design smaller, lighter machinery without compromising power or precision.
- How Gear Reducers Work
A detailed animation explaining gear reducer function, speed reduction, and torque increase.
- Cone Drive Double Enveloping Worm Gear Explained
Product manager explains the technology and benefits of Cone Drive's unique gear design.
Proper maintenance is crucial to maximize the lifespan and performance of hand crank gear reducers, especially those using the advanced cone drive gear reducer technology.
- Lubrication: Use manufacturer-approved synthetic lubricants to ensure smooth operation and longevity. Synthetic oils reduce friction and wear, especially important in double enveloping worm gears where tooth contact is extensive.
- Temperature Monitoring: Keep gearbox operating temperatures below recommended limits (typically 100°F above ambient). Excess heat accelerates lubricant breakdown and gear wear.
- Backlash Adjustment: Regularly check and adjust backlash for precision applications, especially in low-backlash or zero-backlash models. Proper backlash ensures accurate positioning and reduces mechanical noise.
- Load Monitoring: Avoid overloading the gear reducer to prevent premature wear or failure. Operating within specified torque limits prolongs gear life.
- Cleaning: In dusty or abrasive environments, protect gearboxes from contamination to maintain lubricant integrity. Use seals and covers where possible.
- Professional Servicing: Utilize manufacturer repair and rebuild centers for servicing to maintain warranty and performance. Cone Drive offers specialized repair services to restore gearboxes to original specifications.
- Regular Inspections: Periodically inspect for signs of wear, unusual noise, or vibration. Early detection of issues can prevent costly downtime.
Hand crank gear reducers are indispensable in numerous industrial sectors, providing essential speed control and torque amplification for manual and semi-automated operations. Among these, the cone drive gear reducer stands out due to its innovative double enveloping worm gear design, delivering superior torque capacity, durability, and precision in a compact form. Their applications span conveyor systems, packaging machinery, lifting equipment, automotive manufacturing, agriculture, robotics, renewable energy, marine, and mining industries, proving their versatility and reliability.
The unique design of cone drive gear reducers allows them to handle higher loads and shock forces than traditional worm gearboxes, while maintaining low backlash and smooth operation. This translates into improved operational efficiency, reduced maintenance costs, and longer service life. Proper maintenance and selection tailored to specific industrial needs ensure these gear reducers deliver optimal performance and long service life, making them a smart investment for industrial efficiency and productivity.
Cone Drive gear reducers use a double enveloping worm gear design that increases tooth contact area, resulting in higher torque capacity, lower backlash, improved shock resistance, and longer gear life compared to conventional worm gears.
Yes, hand crank gear reducers are often used for manual overrides, emergency positioning, or low-speed adjustments in automated systems, especially when precision and low backlash are required.
Consider factors such as required torque, speed reduction ratio, mounting style, physical size constraints, duty cycle, and environmental conditions. Consulting with manufacturers or application engineers can help select the most suitable gear reducer.
Regular lubrication with approved synthetic oils, temperature monitoring, backlash checks, load management, and protection from contamination are essential to maintain performance and longevity.
Yes, Cone Drive offers repair and rebuild services through their specialized centers, ensuring that gear reducers can be serviced and returned to optimal condition.
