NEMA 17 gear reducers are essential components widely used in robotics, 3D printing, CNC machines, and automation systems to enhance the torque and precision of NEMA 17 stepper motors. By integrating a gear reducer, these motors can achieve higher torque output and finer speed control, making them suitable for demanding applications requiring compact size and efficiency.
This comprehensive article explores the top brands offering NEMA 17 gear reducers, focusing on their features, benefits, and popular models. We will also cover the types of gear reducers available, their applications, maintenance tips, selection criteria, and future trends. Visual aids including images and videos are embedded throughout for a better understanding.
Before diving into the top brands, it's important to understand what a NEMA 17 gear reducer is and why it is critical in many electromechanical systems.

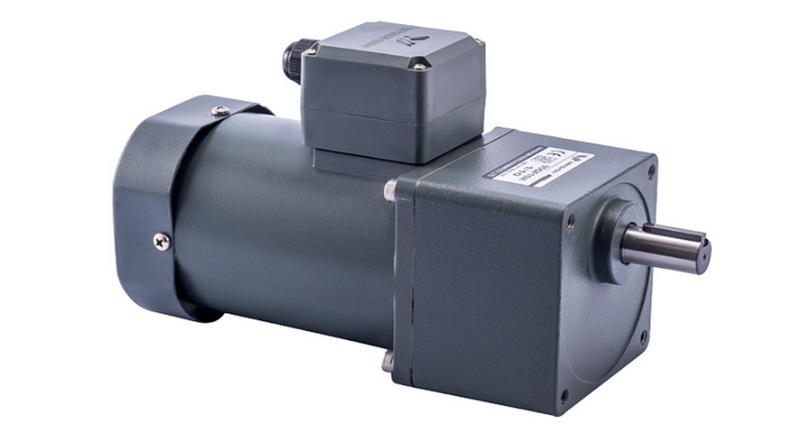

A NEMA 17 gear reducer is a mechanical device designed to reduce the rotational speed of a NEMA 17 stepper motor while increasing its output torque. The term "NEMA 17" refers to the motor's standardized faceplate size of 1.7 x 1.7 inches (43.2 x 43.2 mm). Gear reducers for these motors typically come in planetary, worm, or spur gear configurations.
Key Features:
- Gear Ratios: Typically range from 3:1 up to 100:1 or more, depending on the application.
- Torque Amplification: Enables the motor to handle heavier loads.
- Precision: Low backlash planetary gearboxes provide precise positioning.
- Compact Size: Maintains a small footprint ideal for space-constrained applications.

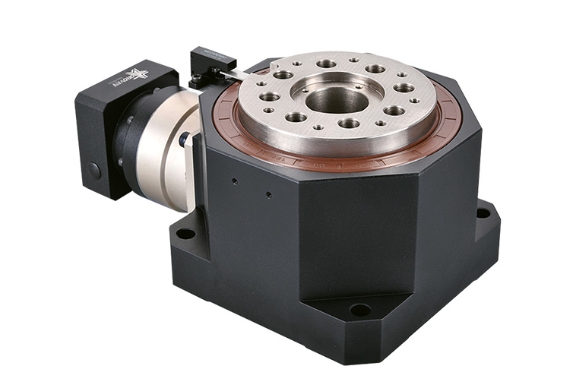

- Planetary Gear Reducers: Compact, high torque, low backlash, and efficient.
- Worm Gear Reducers: High reduction ratios, self-locking, ideal for holding torque.
- Spur Gear Reducers: Simpler design, suitable for low ratios and high speeds.
Applied Motion Products is renowned for its high-quality planetary gearboxes designed to complement NEMA 17 motors. Their gear reducers offer:
- Gear ratios ranging from 4:1 to 1024:1.
- Galvanized steel frames with hardened steel and Delrin gears.
- Maximum input speeds up to 5000 RPM.
- Compatibility with both NEMA 17 and NEMA 23 motors.
These gear reducers are known for durability and precision, making them a preferred choice in industrial automation and robotics.

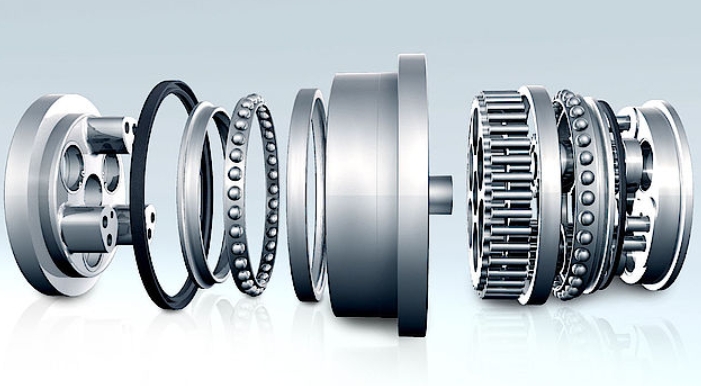

SPINEA specializes in high-precision TwinSpin planetary gear reducers. Their products feature:
- Cylindrical and flange-shaped cases for various mounting options.
- High-capacity radial and axial cylindrical roller bearings.
- Gear ratios typically around 16:1 to 256:1.
- Compact designs suitable for miniaturized applications.
SPINEA's gear reducers are appreciated for their accuracy and robustness in precision machinery.
Jkongmotor offers a versatile lineup of geared stepper motors including:
- Precision Planetary Gearboxes.
- Economy Planetary Gearboxes.
- Worm Gearboxes with ratios from 3:1 to 1050:1.
- Spur Gearboxes for low-ratio, high-speed applications.
Their worm gearbox models are especially notable for self-locking capability, low noise, and stable operation, making them ideal for applications requiring high torque and position holding.
Holry Motor manufactures NEMA 17 two-stage planetary reducers with:
- Reduction ratios such as 16:1, 20:1, 25:1, 40:1, and 50:1.
- Max output torque up to 6 Nm.
- Low backlash (less than 15 arcmin).
- High transmission efficiency (~95%).
These gearboxes are widely used in lifting, excavation, and transportation industries due to their reliability and torque enhancement.
StepperOnline is a popular brand among hobbyists and professionals for their NEMA 17 stepper motors equipped with planetary gearboxes. Features include:
- Gear ratios like 50:1.
- High precision gearboxes with minimal backlash.
- Compact and lightweight designs.
- Suitable for 3D printers, CNC machines, and robotics.
They provide a balance of performance and affordability.
Phidgets offers NEMA 17 stepper motors with integrated planetary gearboxes, delivering:
- Gearbox ratios around 5.18:1.
- Step angle reduction for finer motion control (0.35° step angle).
- Continuous torque rating of 18 kg-cm.
- Rear shaft for mounting encoders or couplers.
Their products are well-suited for precision automation tasks requiring smooth and controlled motion.
Lin Engineering's Slim Planetary Gearboxes are designed for NEMA 17 motors with features such as:
- High efficiency (up to 90%).
- Compact and short gearbox length.
- Gear ratio of 5:1.
- Torque rating of 1 N-m continuous.
- Low backlash (~25 arcminutes).
These gearboxes are cost-effective and ideal for applications where space and efficiency are critical.
Proper maintenance of NEMA 17 gear reducers is essential to ensure long-lasting performance and reliability. Regular inspection and lubrication can prevent premature wear and reduce noise levels. It is recommended to use manufacturer-specified lubricants and avoid contamination by dust or moisture.
Lubricate the gear reducer periodically based on the operating environment and usage frequency. Over-lubrication can cause overheating, while under-lubrication leads to increased friction and wear.
Check for signs of wear, backlash increase, or unusual noises during operation. Early detection of issues can prevent costly repairs or replacements.
Keep the gear reducer clean from dust and debris. Use compressed air or soft brushes to remove contaminants without damaging the components.
Choosing the appropriate gear reducer involves considering several factors:
- Torque Requirements: Determine the load torque and select a gear reducer that can handle the maximum expected torque.
- Gear Ratio: Choose a gear ratio that balances speed reduction and torque amplification for your application.
- Backlash: For precision applications, select gear reducers with low backlash to ensure accurate positioning.
- Size and Weight: Consider the available space and weight constraints in your design.
- Noise Level: Some gear types operate more quietly, which may be important in noise-sensitive environments.
- Durability and Material: Select gear reducers made from materials suitable for the operating conditions (e.g., steel gears for heavy-duty use).
Advancements in materials and manufacturing technologies are driving innovations in gear reducer design. Some emerging trends include:
- Additive Manufacturing: 3D printing allows for custom gear reducer designs with complex geometries and lightweight structures.
- Smart Gearboxes: Integration of sensors for real-time monitoring of temperature, vibration, and wear to predict maintenance needs.
- Improved Materials: Use of advanced composites and coatings to enhance durability and reduce friction.
- Miniaturization: Development of smaller, more efficient gear reducers for compact applications.
These trends aim to improve the performance, reliability, and versatility of NEMA 17 gear reducers in various industries.
NEMA 17 gear reducers significantly enhance the capability of standard NEMA 17 stepper motors by increasing torque and improving precision without increasing the motor size. Among the top brands, Applied Motion Products, SPINEA, Jkongmotor, Holry Motor, StepperOnline, Phidgets, and Lin Engineering stand out for their quality, variety of gear ratios, and specialized gearbox designs.
Choosing the right NEMA 17 gear reducer depends on the specific application requirements such as torque, speed, backlash tolerance, and size constraints. Planetary gearboxes dominate the market for their compactness and precision, while worm gearboxes offer high reduction ratios and self-locking features.
With the availability of detailed technical specifications, videos, and DIY resources, users can select or even build the ideal NEMA 17 gear reducer for their projects.
NEMA 17 gear reducers commonly offer gear ratios from 3:1 up to 100:1 or even higher, depending on the type of gearbox (planetary, worm, or spur) and the application needs.
A planetary gear reducer increases torque output and reduces speed while maintaining high precision and low backlash, enabling the motor to handle heavier loads with better control.
Yes, NEMA 17 gear reducers, especially planetary gearboxes, are widely used in 3D printers to provide higher torque for direct drive extruders and improve print quality.
Worm gearboxes offer high reduction ratios, self-locking capability (holding position without power), low noise, and stable operation, making them suitable for applications needing high torque at low speeds.
Consider factors such as required torque, speed reduction, backlash tolerance, size constraints, and noise levels. Planetary gearboxes are best for precision and compactness, while worm gearboxes excel in high torque and self-locking needs.
