A gear reducer box is a fundamental mechanical device widely used in various industries to optimize the performance of motors and machinery. By adjusting the speed and torque of a motor's output, it enables machines to operate efficiently under different load conditions. This article explores how a gear reducer box enhances torque and speed control, its working principles, types, applications, and maintenance tips, supported by illustrative diagrams and videos for better understanding.
A gear reducer box, also called a gearbox or speed reducer, is designed to reduce the input speed from a motor while increasing the output torque. It achieves this by using a set of gears with different sizes and teeth counts arranged inside a compact housing. The smaller gear on the input shaft drives a larger gear on the output shaft, resulting in a slower output speed but greater torque.
The gear reducer box works on the principle of gear ratios. The gear ratio is the ratio of the number of teeth on the output gear to the number of teeth on the input gear. For example, if the input gear has 10 teeth and the output gear has 50 teeth, the gear ratio is 5:1. This means the output shaft rotates at one-fifth the speed of the input shaft but with five times the torque.
The motor sends energy to the input shaft, which transfers it through the gear teeth inside the reducer. The gear teeth are designed to reduce the number of revolutions, thereby decreasing speed and increasing torque. The output shaft then delivers this adjusted energy to the connected machinery, such as conveyor belts or manufacturing equipment.
Torque is the rotational force that drives machinery. Motors often produce high-speed but low-torque output, which may not be suitable for heavy-duty applications. The gear reducer box multiplies the torque by slowing down the speed through gear reduction. This torque multiplication allows machines to handle heavier loads without overloading the motor.
The ability to increase torque is especially critical in applications where machinery must start under heavy loads or maintain high torque at low speeds. For example, in conveyor systems transporting heavy materials, the gear reducer box ensures that the motor can deliver the necessary force without stalling or overheating.
Many industrial applications require precise speed control for optimal performance and safety. The gear reducer box reduces the motor's high speed to a more usable level, matching the speed requirements of the driven equipment. This controlled speed enhances operational accuracy and efficiency.
Speed control is vital in processes like packaging, printing, and robotics, where even minor speed fluctuations can affect product quality or cause mechanical damage. By providing a stable and adjustable output speed, the gear reducer box helps maintain consistent production rates and reduces wear on machinery components.
The gear teeth in a gear reducer box are engineered for smooth engagement, minimizing energy loss and mechanical wear. This design ensures efficient power transmission and extends the lifespan of both the reducer and the motor.
Moreover, advanced gear reducer boxes often incorporate features such as precision machining, optimized tooth profiles, and high-quality materials to reduce friction and noise. These improvements contribute to quieter operation and lower maintenance costs, making gear reducer boxes ideal for environments where noise reduction is important.
Understanding the different types of gear reducer boxes helps in selecting the right one for specific applications. Each type offers unique advantages in terms of torque capacity, size, efficiency, and cost.

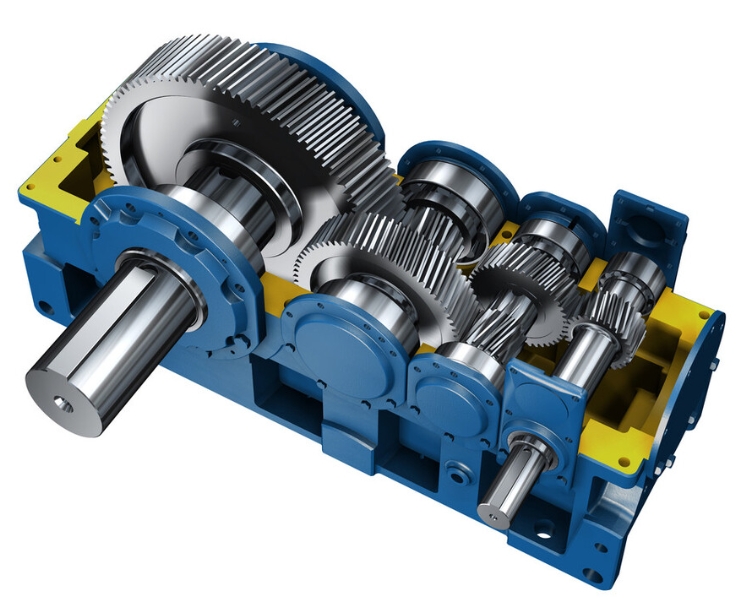

This type uses gears mounted parallel to each other. It is common in applications requiring moderate speed reduction and torque increase. Parallel shaft gear reducers are relatively simple in design, easy to maintain, and cost-effective, making them suitable for general-purpose machinery.
They are often found in conveyor drives, mixers, and pumps where the load and speed requirements are moderate. The parallel arrangement allows for compact construction and straightforward installation.

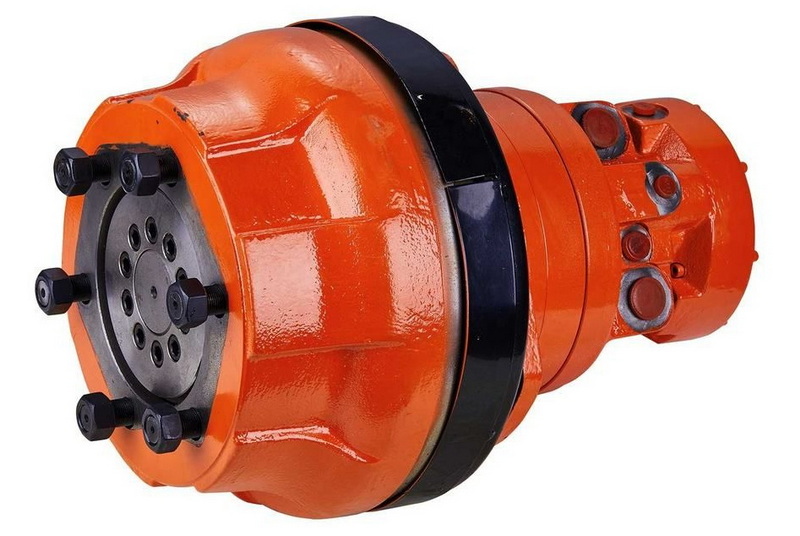

Planetary gearboxes have a central sun gear, planet gears, and a ring gear. They offer high torque density and compact size, suitable for precision applications. The load is distributed among multiple planet gears, which enhances torque capacity and reduces wear.
Planetary gear reducers are widely used in robotics, aerospace, and automotive industries where space constraints and high performance are critical. Their design allows for high efficiency and smooth operation even under heavy loads.

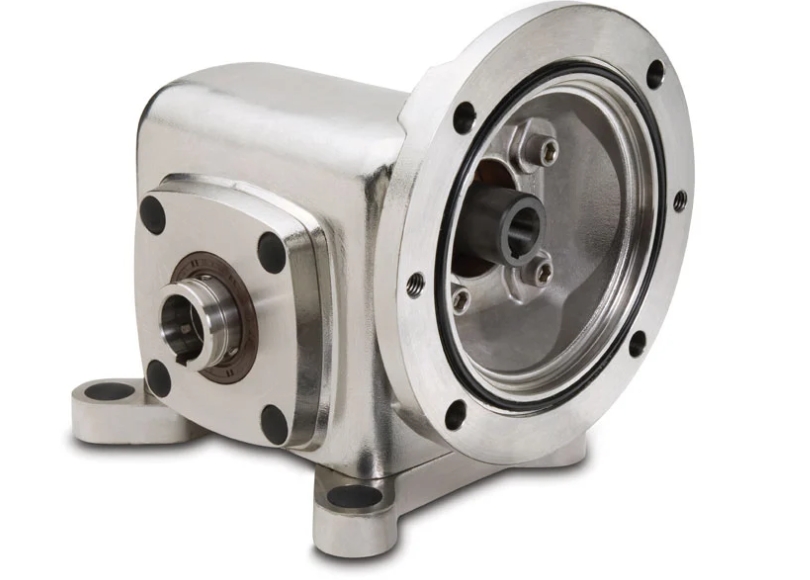

Worm gears consist of a worm (screw) meshing with a worm wheel. They provide high reduction ratios and torque but are less efficient due to sliding contact. Worm gear reducers are self-locking, meaning they can hold a load without back-driving, which is useful in lifting and positioning applications.
They are commonly used in elevators, hoists, and conveyor systems where high torque and load-holding capability are necessary. Despite lower efficiency, their compactness and simplicity make them popular in many industrial settings.
Helical gears have angled teeth, providing smoother and quieter operation compared to spur gears. They are used in high-speed and high-torque applications. The angled teeth engage gradually, reducing noise and vibration while increasing load capacity.
Helical gear reducers are preferred in automotive transmissions, machine tools, and printing presses where precision and noise reduction are important. Their higher manufacturing complexity is offset by improved performance and durability.
The versatility of gear reducer boxes makes them indispensable across a wide range of industries. Their ability to tailor torque and speed to specific needs enhances machine performance and reliability.
- Conveyor Systems: To control belt speed and increase torque for material handling. Gear reducer boxes ensure smooth transport of goods, even under heavy loads or variable speeds.
- Manufacturing Machinery: For precise speed control and torque adjustment in production lines. This includes CNC machines, packaging equipment, and assembly robots where accuracy is paramount.
- Automotive: In vehicles for power transmission and speed reduction. Gear reducers are integral to transmissions, differential systems, and electric vehicle drivetrains.
- Robotics: To achieve accurate motion control and torque multiplication. Compact planetary gear reducers are often used to enhance robot arm movement and precision.
- Wind Turbines: To convert high-speed rotation into usable torque for generators. Gear reducer boxes help maximize energy extraction from wind by adjusting rotor speed.
- Agricultural Equipment: Tractors and harvesters use gear reducers to manage power delivery for various implements and attachments.
- Mining and Construction: Heavy machinery such as crushers, excavators, and conveyors rely on gear reducer boxes for torque multiplication and speed control under harsh conditions.
Proper maintenance is crucial for the longevity and efficiency of a gear reducer box. Neglecting maintenance can lead to premature failure, costly downtime, and safety hazards.
Using the correct lubricant is essential to reduce friction and wear between gear teeth and bearings. Follow the manufacturer's recommendations for lubricant type and change intervals. Synthetic oils often provide better performance under high loads and temperatures.
Regularly inspect the gear reducer box for signs of oil leaks, corrosion, cracks, or unusual noises. Early detection of issues can prevent major breakdowns.
Overheating is a common sign of lubrication failure or mechanical problems. Installing temperature sensors or infrared thermometers can help monitor operating conditions and trigger maintenance actions.
Keep the gear reducer box and its surroundings clean to prevent dust and debris from entering the housing. Contaminants can accelerate wear and cause gear damage.
Depending on usage, periodically disassemble the gear reducer box for thorough inspection and replacement of worn parts such as gears, bearings, and seals. This proactive approach extends service life and maintains performance.
Ensure that the gear reducer box is properly aligned with the motor and driven equipment. Misalignment can cause excessive vibration, noise, and premature wear. Secure mounting reduces mechanical stress and improves reliability.
A detailed step-by-step guide showing how to disassemble and inspect a gear reducer box.
Expert advice on choosing the right gear reducer box based on application needs.
A gear reducer box plays a vital role in enhancing torque and speed control in mechanical systems. By reducing the motor speed and increasing torque, it ensures machinery operates efficiently and reliably under various load conditions. Understanding the types, working principles, and maintenance of gear reducer boxes helps industries optimize their operations and extend equipment life. Whether for heavy-duty industrial use or precision applications, the gear reducer box remains an indispensable component in power transmission systems.
Proper selection and maintenance of a gear reducer box not only improve machine performance but also reduce energy consumption and operational costs. As technology advances, gear reducer boxes continue to evolve, offering higher efficiency, compactness, and integration with electronic controls for smarter industrial solutions.
The main purpose of a gear reducer box is to reduce the input speed from a motor while increasing the output torque to match the requirements of the driven machinery.
It increases torque by using a larger output gear driven by a smaller input gear, which slows down the speed and multiplies the torque proportionally to the gear ratio.
Common types include parallel shaft, planetary, worm, and helical gear reducers, each suited for different applications based on speed reduction and torque needs.
Maintenance frequency depends on the application but generally includes regular lubrication, visual inspection, and temperature monitoring to prevent failures.
Yes, gear reducer boxes are designed to be compatible with various types of motors, but the selection should consider torque, speed, and load requirements for optimal performance.
