A hand crank gear reducer is a mechanical device designed to reduce the input speed from a hand crank while increasing the torque output, enabling the user to perform heavy-duty tasks with less effort. This article explores the working principles of hand crank gear reducers, their components, and the special role of harmonic gear reducers in enhancing performance. We will also include detailed illustrations, videos, and a comprehensive FAQ section to deepen your understanding.
A hand crank gear reducer combines a manual crank handle with a system of gears to reduce rotational speed and increase torque output. It is commonly used in applications where manual operation is necessary but the load requires more force than direct hand power can provide. The gear reducer translates the high-speed, low-torque input from the hand crank into a low-speed, high-torque output to drive machinery or equipment effectively.
- Hand Crank: The manual input device that the user turns.
- Gearbox: Contains the gears that reduce speed and increase torque.
- Output Shaft: The shaft that delivers the reduced speed and increased torque to the load.

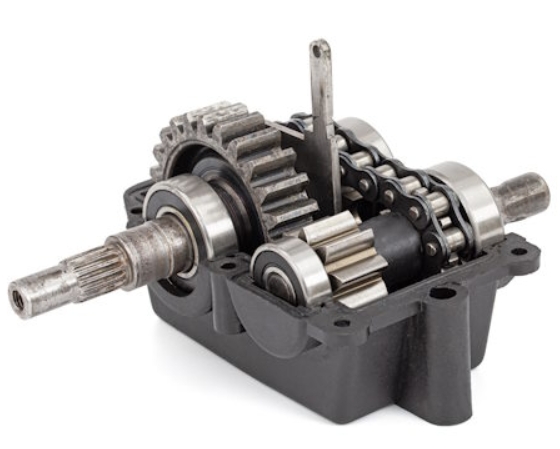

The working principle of a hand crank gear reducer involves the transmission of mechanical power through a series of gears that alter the speed and torque characteristics of the input.
1. Input from Hand Crank: When the user turns the hand crank, it rotates the input shaft.
2. Gear Reduction: Inside the gearbox, the input shaft drives a smaller gear (driver gear) that meshes with a larger gear (driven gear). The larger gear rotates slower but with greater torque.
3. Output Transmission: The output shaft connected to the driven gear delivers the reduced speed and amplified torque to the load.
The gear ratio, which is the ratio of the number of teeth on the driven gear to the driver gear, determines the amount of speed reduction and torque increase. For example, a gear ratio of 3:1 means the input shaft must turn three times to rotate the output shaft once, tripling the torque output.
Hand crank gear reducers can use various types of gears depending on the application:
- Spur Gears: Simple, straight-toothed gears used for parallel shafts.
- Helical Gears: Angled teeth for smoother and quieter operation.
- Worm Gears: Provide high reduction ratios and self-locking features.
- Harmonic Gear Reducers: Specialized gear systems offering high precision and compactness.
Each gear type has distinct characteristics influencing efficiency, noise, size, and torque capacity. For example, spur gears are straightforward and cost-effective but can be noisy at high speeds, while helical gears offer quieter operation with smoother meshing due to their angled teeth. Worm gears excel in achieving high reduction ratios in a compact form and provide self-locking, preventing the load from driving the input shaft backward. Harmonic gear reducers, however, are a more advanced technology that combines compactness, precision, and high torque capacity, making them increasingly popular in precision hand crank applications.
A harmonic gear reducer is a unique type of gear system that uses the elastic deformation of a flexible gear to achieve high reduction ratios with minimal backlash and high precision.
- Wave Generator: An elliptical cam that deforms the flexible gear.
- Flexspline: A thin, flexible cylindrical gear that changes shape.
- Circular Spline: A rigid gear with internal teeth that mesh with the flexspline.
The wave generator is inserted into the flexspline, forcing it into an elliptical shape. This deformation causes the flexspline teeth to engage with the circular spline teeth at two opposite points, creating a smooth, backlash-free motion transmission. As the wave generator rotates, the flexspline gradually moves relative to the circular spline, resulting in a high reduction ratio.
The harmonic gear reducer's unique design allows it to achieve reduction ratios as high as 320:1 in a single stage, which would typically require multiple stages in conventional gearboxes. This compactness is particularly valuable in applications where space and weight are at a premium.
Harmonic gear reducers bring several advantages to hand crank systems that make them highly desirable for precision and heavy-duty manual operations:
- High Reduction Ratios: Achieve ratios from 30:1 up to 320:1 in a single stage, allowing significant torque multiplication.
- Minimal Backlash: Essential for precise control in applications like robotics and instrumentation.
- Compact and Lightweight: Smaller and lighter than traditional gearboxes with the same torque capacity, enabling ergonomic hand crank designs.
- High Torque Capacity: Multiple teeth engage simultaneously, distributing load evenly across the gear teeth and increasing durability.
- High Efficiency and Low Noise: Reduced friction and smooth engagement reduce energy loss and noise, improving user comfort and system longevity.
- Zero Backlash: This feature eliminates play between gears, which is critical in applications requiring precise positioning.
These features make harmonic gear reducers ideal for hand crank applications requiring precision and durability, such as robotics, aerospace, medical devices, and high-precision machinery.

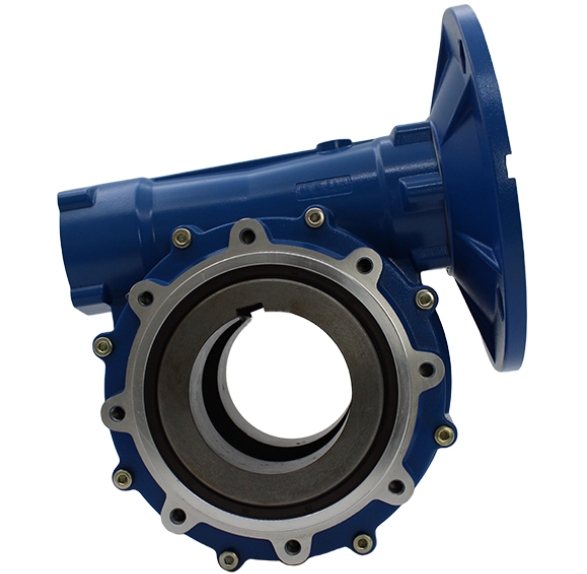

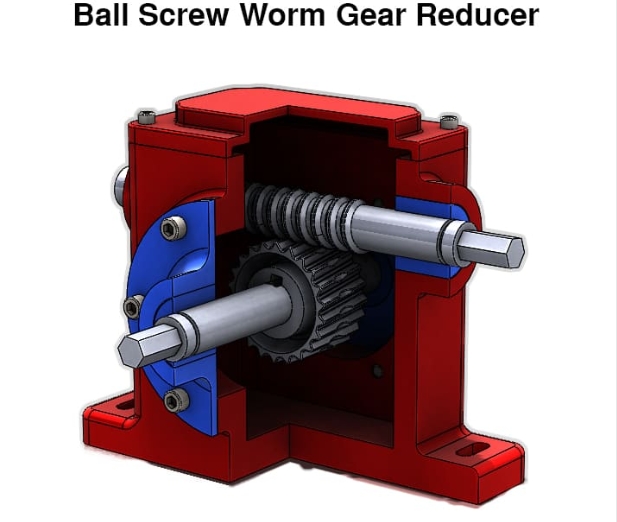

A common variant of hand crank gear reducers is the hand crank worm gearbox, which uses a worm and worm wheel to achieve high reduction ratios and self-locking properties.
- The hand crank turns the worm (a screw-like gear).
- The worm meshes with the worm wheel, a larger gear.
- Due to the worm's screw action, the worm wheel turns slowly with high torque.
- The self-locking feature prevents the load from driving the worm backward, enhancing safety.
This mechanism is widely used where controlled, safe manual operation is necessary, such as in winches, hoists, and jacks. The worm gear's ability to hold the load in place without additional braking mechanisms makes it invaluable in applications where safety is critical.
- High Reduction Ratios in Compact Size: Worm gearboxes can achieve large speed reductions in a single stage.
- Self-Locking: Prevents the output from back-driving the input, which is useful for holding loads securely.
- Smooth and Quiet Operation: The sliding contact between worm and wheel teeth reduces noise.
- Simple Construction: Easy to manufacture and maintain.
However, worm gears typically have lower efficiency due to sliding friction, leading to heat generation and wear, which requires periodic lubrication and maintenance.
Hand crank gear reducers find application across a broad spectrum of industries and tasks where manual control with enhanced torque is necessary.
In manual winches, hand crank gear reducers enable operators to lift or pull heavy loads with less physical effort. The gear reducer increases torque, allowing the crank to turn under load without excessive strain.
Hand crank gear reducers are used in inertia starters, where the crank spins a flywheel at high speed. The stored kinetic energy in the flywheel then starts an engine. The gear reducer ensures the crank can be turned comfortably while building up sufficient flywheel speed.
In robotics, harmonic gear reducers integrated with hand cranks or servo motors provide precise control of robotic arms and joints. Their zero backlash and high torque density improve accuracy and responsiveness in motion control.
Compact and precise harmonic gear reducers are used in medical devices such as surgical robots and diagnostic machines, where smooth, accurate manual adjustments are critical.
Hand crank gear reducers help control the speed and torque of various machinery components, ensuring smooth operation and precise adjustments.
Proper maintenance and safety practices are essential to ensure the longevity and safe operation of hand crank gear reducers.
Lubricate gears and bearings according to manufacturer recommendations to reduce friction and wear. For harmonic gear reducers, use specialized lubricants to maintain the flexible components.
Periodically inspect gears, shafts, and housings for signs of wear, cracks, or damage. Early detection prevents catastrophic failures.
Avoid exceeding the rated torque and speed limits of the gear reducer. Overloading can cause permanent damage.
- Use protective gloves and eyewear when operating or servicing hand crank gear reducers.
- Follow lockout/tagout procedures to ensure the system is de-energized before maintenance.
- Ensure the hand crank is securely attached to prevent accidental slippage.
Hand crank gear reducers are essential mechanical devices that enable manual operation of machinery with enhanced torque and controlled speed. Their operation relies on gear reduction principles, where input speed is decreased and torque increased through gear trains. Among various types, harmonic gear reducers stand out due to their high precision, compact size, minimal backlash, and efficiency, making them suitable for advanced applications requiring accuracy and durability.
The integration of harmonic gear reducers into hand crank systems elevates their performance, especially in robotics and aerospace, where precision is paramount. Understanding the components, working principles, and advantages of these gear reducers allows for better selection and application in diverse industrial and mechanical fields.
With proper maintenance and safety practices, hand crank gear reducers, including those using harmonic gear technology, offer reliable and efficient solutions for manual torque multiplication and precise control.
A hand crank gear reducer reduces the rotational speed from the hand crank while increasing the torque output, making it easier to operate heavy machinery manually.
Harmonic gear reducers use a flexible gear deformed by a wave generator, providing high reduction ratios with zero backlash, compact size, and high precision, unlike traditional gear systems that rely on rigid gear meshes.
Yes, especially those with harmonic gear reducers or worm gearboxes, which can handle high torque loads efficiently while maintaining compactness and control.
Regular lubrication, inspection for wear or damage, and following manufacturer guidelines ensure longevity and reliable operation.
Absolutely. Their high precision, low backlash, and compact design make harmonic gear reducers ideal for robotic arms and servo systems requiring accurate motion control.
