Gear reducers are mechanical devices used to reduce the speed of rotation from a power source while increasing the torque. They are widely used in various applications, including industrial machinery, robotics, and automotive systems. The question of whether gear reducer inputs are reversible is crucial for understanding their functionality and limitations. In this article, we will delve into the mechanics of gear reducers, explore their reversibility, and discuss relevant examples and applications.
Gear reducers, also known as speed reducers, are designed to adjust the rotational speed and torque of a motor or engine. They typically consist of a set of interlocking gears of different sizes mounted on shafts. The gear ratio, determined by the number of teeth on the drive and driven gears, dictates the amount of speed reduction and torque increase.
A basic gear reducer setup involves a small drive gear engaging with a larger driven gear. Due to the size difference, the drive gear must rotate multiple times to turn the driven gear once, resulting in a step-down of speed and an increase in torque. For example, if the drive gear has 10 teeth and the driven gear has 40 teeth, the ratio would be 1:4. This means for every 1 rotation of the drive gear, the driven gear only rotates 0.25 times, reducing the output speed by 75% but multiplying the torque by 4 times.
There are several types of gear reducers, including:

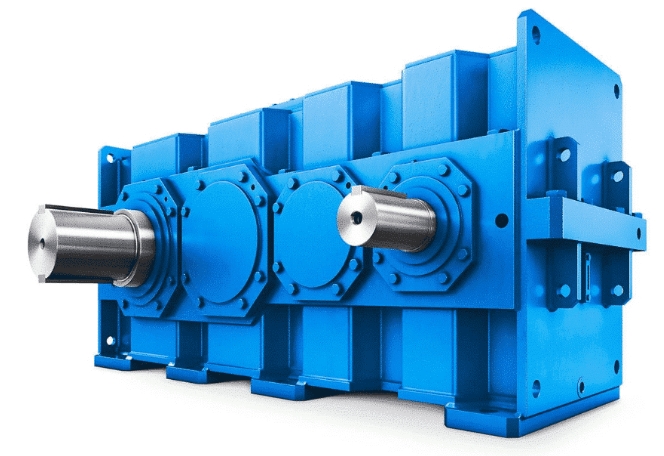

- Parallel Axis Gear Trains: Utilize spur, helical, or herringbone gears for speed reduction and torque increase. They are simple in design but relatively large and suitable for low gear ratio applications.

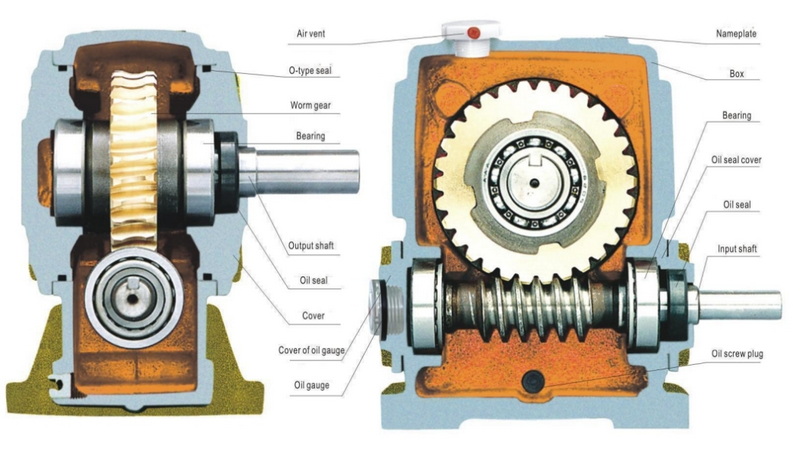

- Perpendicular Axis Worm Gear Reducers: Commonly used in material handling and conveyor systems, these reducers are non-reversible, meaning the worm wheel cannot drive the worm. They offer high transmission ratios, low vibrations, and low noise but tend to heat up quickly.
- Perpendicular Axis Bevel Gear Reducers: Robust in design, compact, and low in noise and vibrations. They are used in synchronous and asynchronous motors and high-torque applications.
- Planetary Gearboxes: Compact and efficient, they are used in robotic motors and applications requiring high torque and low speed. However, they are complex and expensive to manufacture and maintain.
The reversibility of gear reducers depends on their design and type. Most gear reducers are not designed to be reversible, especially worm gear reducers, which are inherently self-locking. This means that once the worm gear is engaged, it cannot be driven in reverse by the worm wheel due to the geometry of the worm and gear teeth.
Worm gear reducers are non-reversible because the worm wheel cannot drive the worm. This is due to the self-locking nature of the worm gear mechanism, which enhances system security but limits reversibility. However, certain designs like multiple-start worms can be reversible under specific conditions.
Cycloidal gear reducers are not reversible because their input and output shafts cannot function properly in reverse. They provide high precision and accuracy, making them ideal for robotic applications and machine tools.
Planetary gearboxes can be reversible but often suffer from low efficiency when operated in reverse. They are compact and efficient but complex and expensive.
Gear reducers are used in various applications, including industrial machinery, pumps, and automotive systems. When selecting a gear reducer, it's essential to consider factors such as gear ratio, reversibility, and efficiency.
In industrial settings, gear reducers are used to adjust the speed and torque of motors to match the requirements of machinery. For instance, in conveyor systems, gear reducers help manage the speed and torque of motors to ensure smooth and efficient operation. Companies like Cotta specialize in designing gearboxes for industrial applications, including oil and gas, construction, and mining, where gear reducers must handle massive torque loads and operate in extreme environments.
In pump applications, gear reducers convert high-speed, low-torque inputs from motors into low-speed, high-torque outputs, which are necessary for handling viscous or abrasive liquids. The choice of gear reducer type depends on the specific pump requirements, such as pressure and flow rate.
In construction and mining, gear reducers are used in heavy-duty machinery like excavators and cranes. These gearboxes must handle high torque at relatively low speeds and withstand the rigors of construction sites, including frequent start-stop operations and sudden load changes.
In the oil and gas industry, gear reducers are critical for drilling operations. They convert slow, powerful rotations from drilling rigs into high-speed rotations needed for efficient drilling. These gearboxes must be designed to withstand extreme environments and corrosive conditions.Maintenance and Repair of Gear Reducers
Regular maintenance is crucial for extending the lifespan of gear reducers. This includes checking for wear on gears, ensuring proper lubrication, and monitoring temperature levels. Preventive maintenance involves tasks such as cleaning the environment and gearbox to prevent contamination, using the correct lubricants, and performing regular oil changes.
- Cleaning: Ensure the workspace and gearbox are free from dust, moisture, and other contaminants that can harm the gearing or degrade lubricants[4].
- Lubrication: Follow the manufacturer's guidelines for lubricant type and quantity. Regularly renew lubricants to prevent bearing fatigue and improve efficiency[4].
- Oil Changes: Change oil after initial operation periods (e.g., 24 hours for worm gears) and then at regular intervals (e.g., every six months or 2,500 operating hours)[8].
Flushing Gear Reducers:
Flushing involves circulating clean fluid through the gearbox to remove contaminants and wear particles. This can be done using flushing oil or clean operating oil. It's essential to follow the manufacturer's guidelines for flushing procedures to ensure the gear reducer remains in optimal condition[1].
As machinery becomes more complex, so do the techniques used in gear reduction. One approach is multi-stage reduction, where a series of smaller reductions are used instead of a single large reduction. This method allows for achieving high gear ratios while minimizing stress on individual components.
The use of high-strength alloys and advanced coatings is becoming more prevalent in gear reducer design. These materials improve performance by reducing friction and wear, extending the life of critical components.
Advanced materials like carbon fiber reinforced polymers (CFRP) and graphene are increasingly used in gear systems. CFRP offers exceptional strength-to-weight ratios, making it ideal for high-performance applications, while graphene reduces friction and enhances durability[3].
The future of gearbox technology is poised for significant transformation, driven by digitalization, advanced materials, and energy efficiency. Smart gearboxes equipped with sensors and IoT connectivity are revolutionizing the industry by enabling real-time monitoring and predictive maintenance[5].
AI-Integrated Gear Systems:
Artificial Intelligence (AI) is set to play a significant role in the next generation of automated gear systems. AI-driven gearboxes can optimize performance, detect potential issues before they arise, and self-correct to ensure maximum efficiency[2].
3D-Printed Gears:
Additive manufacturing allows for the creation of complex gear designs that were previously impossible or expensive to produce. 3D-printed gears are lighter, stronger, and more efficient, opening new possibilities for automation systems[2].
Planetary gear reducers are widely used in industrial applications due to their high efficiency, compact size, and ability to handle high torque loads. They are particularly useful in robotics, manufacturing, and transportation, where precise motion control is essential.
Compact planetary gear reducers are designed for applications where space is limited, such as in medical equipment and packaging machines. They offer the same efficiency and precision as standard planetary gear reducers but in a smaller footprint.
Right angle planetary gear reducers are used in applications requiring a 90-degree angle between the input and output shafts. They are commonly used in printing presses and machine tools.
Gear reducers are essential components in mechanical systems, providing speed reduction and torque increase. However, their reversibility is limited by design, with most types not being reversible, especially worm gear reducers. Understanding these limitations is crucial for selecting the appropriate gear reducer for specific applications.
A gear reducer is a mechanical device that reduces the speed of rotation from a power source while increasing the torque. It works by using a set of interlocking gears of different sizes, where a smaller drive gear engages with a larger driven gear to achieve speed reduction and torque increase.
No, not all gear reducers are reversible. Worm gear reducers, for example, are inherently non-reversible due to their self-locking mechanism. However, some designs like multiple-start worms can be reversible under specific conditions.
Worm gear reducers offer high transmission ratios, low vibrations, and low noise. They are also less expensive compared to planetary gearboxes. However, they tend to heat up quickly and are not reversible.
Cycloidal gear reducers provide high precision and accuracy, making them ideal for robotic applications and machine tools. However, their input and output shafts cannot function properly in reverse.
When selecting a gear reducer, factors such as gear ratio, reversibility, efficiency, and application requirements should be considered. The type of gear reducer (e.g., worm, planetary, cycloidal) and its compatibility with the system's operational conditions are also important.
