Dayton gear reducers are widely used in industrial applications for their ability to provide high torque at low speeds, making them ideal for space-constrained environments. One common question users have is whether it's possible to change the direction of rotation on these gear reducers. In this article, we'll explore the mechanics of Dayton gear reducers, how to reverse their output direction, and provide insights into their maintenance and application.

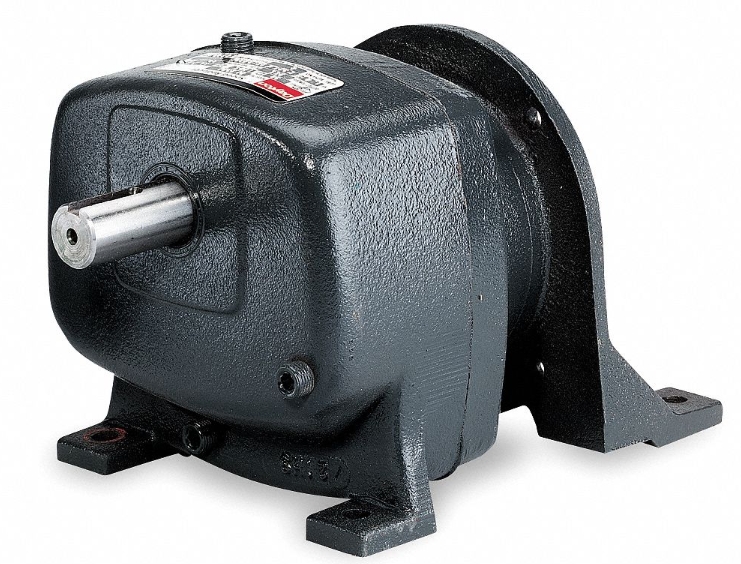

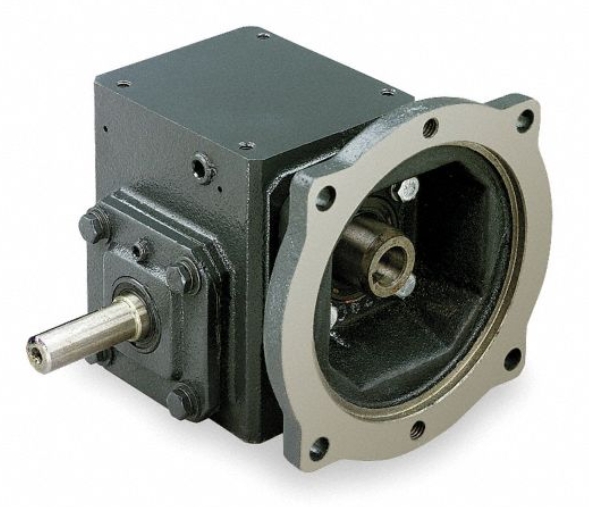

Dayton gear reducers are typically designed with a cast iron housing, steel input and output shafts, and utilize tapered roller bearings on the output shaft and ball bearings on the input shaft. They are often used with NEMA C-face motors, which are not included with the reducer itself.

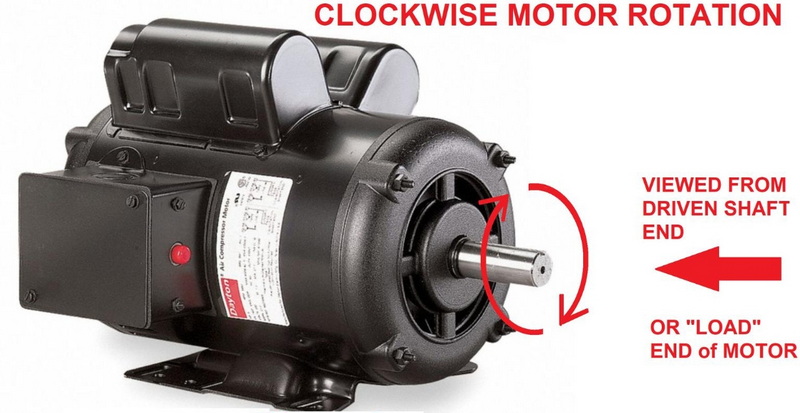

To change the output direction of a Dayton gear reducer, you generally need to reverse the motor leads rather than modifying the reducer itself. Here's how you can do it:
1. Refer to the Motor Nameplate: Before making any changes, consult the motor's nameplate for the correct lead connections. This will help you identify which leads control clockwise and counterclockwise rotation.
2. Reverse Motor Leads: Swap the leads of the motor to reverse its rotation direction. This is typically done by interchanging the wires connected to the motor terminals. For example, if you have a wiring diagram that shows which leads control clockwise and counterclockwise rotation, you can swap those leads to change the direction.
If you need to physically reverse the gear reducer's output direction (e.g., from left-hand to right-hand), you'll need to disassemble and reassemble parts of the reducer. Here are the steps:
1. Drain Oil: Remove the drain plug and drain the oil from the unit. This is crucial to prevent any spills or contamination during the process.
2. Remove End Cover: Take off the end cover and seal cage capscrews. Be careful not to damage any components.
3. Remove Output Shaft: Support the output shaft and remove it along with the seal cage from the extension side.
4. Reassemble: Insert the sub-assembly, shims, and seal cage into the housing from the opposite side, then reattach the end cover and tighten the capscrews lightly.
Proper maintenance is crucial for extending the lifespan of your gear reducer. Here are some tips:
- Lubrication: Ensure that the gear reducer is properly lubricated. Use the recommended type of oil and check its level regularly. Avoid running the gearbox dry, as this can lead to premature wear and failure.
- Temperature Checks: Regularly check the temperature of the gearbox. High temperatures can indicate issues such as inadequate lubrication or excessive load.
- Noise and Vibration Monitoring: Monitor for unusual noises or vibrations, which can signal misalignment or worn-out components.
Dayton gear reducers are versatile and can be used in various applications, including those requiring different gear ratios. Joyce Dayton, for example, offers gear reducers with ratios ranging from 5:1 to 20:1, catering to specific system needs.
Joyce Dayton provides a range of gear reducers designed to fit into complete systems, offering flexibility in terms of gear ratios and capacities. These reducers are particularly important in jack and actuator systems, where selecting the right gear ratio based on torque requirements is crucial.
For specialized applications, Dayton gear reducers can be customized with additional features such as:
- Special Mounting Configurations: Some applications may require unique mounting arrangements to fit into existing machinery.
- High-Temperature Lubricants: For environments with extreme temperatures, specialized lubricants can be used to maintain performance.
- Corrosion Resistance: In environments prone to corrosion, gear reducers can be coated or made from materials resistant to rust and chemical damage.
When troubleshooting issues with Dayton gear reducers, consider the following common problems:
- Overheating: Check lubrication levels and ensure proper cooling.
- Noise: Inspect for misalignment or worn components.
- Leakage: Check seals and gaskets for damage.
For more advanced maintenance, consider the following techniques:
- Predictive Maintenance: Use vibration analysis or thermal imaging to detect potential issues before they become major problems.
- Scheduled Overhauls: Plan regular overhauls to replace worn parts and ensure optimal performance.
Predictive maintenance involves using specialized tools to monitor the condition of your gear reducer. Common tools include:
- Vibration Analyzers: These devices measure the vibration levels of the gearbox, helping identify misalignment or worn bearings.
- Thermal Imaging Cameras: These cameras detect temperature anomalies, which can indicate overheating or lubrication issues.
Creating a maintenance schedule is essential for ensuring that your gear reducers operate efficiently and last longer. Here are some steps to implement a maintenance schedule:
1. Identify Critical Components: Determine which parts of the gear reducer are most prone to wear and require regular inspection.
2. Set Inspection Intervals: Schedule regular inspections based on usage and manufacturer recommendations.
3. Document Maintenance Activities: Keep a record of all maintenance activities to track the history of your gear reducers.
In addition to mechanical maintenance, environmental factors can impact the performance of Dayton gear reducers. Consider the following:
- Temperature Extremes: Ensure that the gear reducer is not exposed to temperatures beyond its recommended range.
- Humidity and Moisture: Protect the gearbox from excessive moisture, which can lead to corrosion or lubrication issues.
To protect your gear reducer from environmental stressors, consider implementing the following measures:
- Enclosures: Use protective enclosures to shield the gearbox from dust, moisture, and extreme temperatures.
- Coatings: Apply corrosion-resistant coatings to components exposed to harsh environments.
Changing the direction of a Dayton gear reducer typically involves reversing the motor leads rather than altering the reducer itself. However, if physical reorientation is needed, disassembly and reassembly are required. Proper maintenance, including lubrication and temperature monitoring, is essential for optimal performance and longevity. Whether you're using Dayton or Joyce Dayton gear reducers, understanding their operation and maintenance can significantly enhance their utility in industrial applications.
To reverse the output direction, you generally need to reverse the motor leads. However, if you need to physically change the orientation of the gear reducer, you must disassemble and reassemble it according to the manufacturer's instructions.
Regular maintenance includes ensuring proper lubrication, checking oil levels, and monitoring temperatures to prevent overheating and premature wear.
While Dayton gear reducers come with specific gear ratios, Joyce Dayton offers a variety of ratios (e.g., 5:1 to 20:1) to fit different system requirements.
Lubrication should be checked regularly, ideally during routine maintenance sessions. It's also important to perform oil analysis periodically, especially if the gearbox has been in operation for an extended period.
Dayton gear reducers are generally designed for low-speed, high-torque applications. They are not typically used for high-speed applications, as they are optimized for providing significant torque at reduced speeds.
