Hydraulic systems are the backbone of countless industrial, mobile, and heavy machinery applications. At their core, these systems excel at converting hydraulic power—energy transmitted via pressurized fluid—into mechanical motion. But just how efficient is this conversion? Can hydraulic power be harnessed and transformed into mechanical motion with minimal loss, and what are the technologies and components that make this possible? This comprehensive guide explores the science, engineering, and practical realities of hydraulic-to-mechanical power conversion, with a special focus on the hydraulic motor.
Hydraulic power is everywhere—from the excavators shaping our cities to the manufacturing lines that build our cars. The ability to convert hydraulic energy into mechanical motion efficiently is fundamental to modern industry. At the heart of this process is the hydraulic motor, a device designed to turn the force of pressurized fluid into rotary or linear motion, driving everything from wheels to conveyor belts[1][2][12].
Hydraulic systems operate on the principle of transmitting energy via pressurized fluid. The process typically involves three main steps:
1. Mechanical Power to Hydraulic Power: An engine or electric motor drives a hydraulic pump, converting mechanical energy into hydraulic energy by pressurizing fluid[1][9].
2. Hydraulic Power Transmission: The pressurized fluid is directed through hoses and valves to various actuators.
3. Hydraulic Power to Mechanical Motion: Actuators—either hydraulic cylinders (for linear motion) or hydraulic motors (for rotary motion)—convert the fluid power back into mechanical motion[1][9][12].
- Hydraulic Pump: Converts mechanical energy to hydraulic energy.
- Hydraulic Fluid: Transmits energy through the system.
- Valves: Control flow and direction.
- Hydraulic Motor: Converts hydraulic energy back to mechanical motion[13].
- Reservoir: Stores and cools hydraulic fluid.

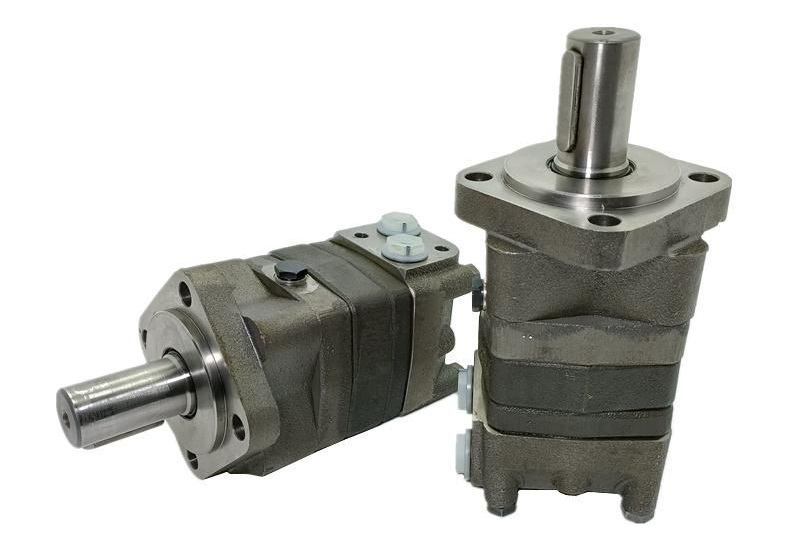

A hydraulic motor is a rotary actuator that transforms hydraulic energy (fluid pressure and flow) into mechanical energy (torque and rotational speed). In essence, it is the reverse of a hydraulic pump[1][2][12].
- Pressurized fluid enters the motor, applying force to internal components (gears, vanes, or pistons).
- This force causes rotation of the output shaft, producing torque and speed.
- The spent fluid exits the motor and returns to the reservoir[3][6][12].
| Feature | Hydraulic Motor | Hydraulic Pump |
|---|---|---|
| Function | Converts fluid power to rotary mechanical power | Converts mechanical power to fluid power |
| Main Focus | Torque and mechanical efficiency | Flow and volumetric efficiency |
| Operation | Wide speed range, bidirectional | Usually unidirectional, high RPM |
| Typical Use | Drives, actuators, mobile equipment | Power source for hydraulic systems |
Hydraulic motors come in several designs, each with unique characteristics and efficiency profiles[12][10].
- Operation: Fluid pressure acts on gears, causing them to rotate.
- Advantages: Simple, robust, low cost, suitable for high-speed, low-torque applications.
- Efficiency: Moderate; internal leakage can reduce efficiency at low speeds[12].
- Operation: Fluid pushes vanes outward against the housing, creating rotation.
- Advantages: Smooth operation, good for moderate speed and torque, relatively quiet.
- Efficiency: High at low to moderate speeds, less leakage than gear motors[12].

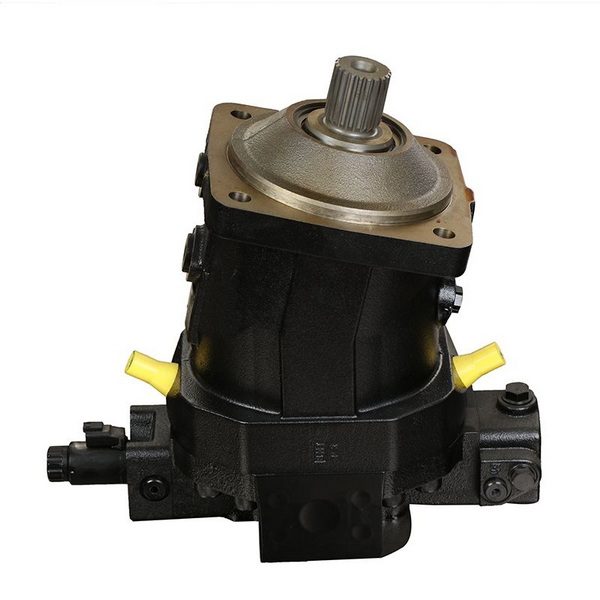

- Operation: Fluid pressure acts on pistons arranged radially or axially, driving a shaft.
- Advantages: High efficiency, excellent for high-torque, low-speed applications.
- Efficiency: Highest among hydraulic motors, especially at high pressures[12].
The efficiency of converting hydraulic power to mechanical motion depends on several factors:
- Definition: Ratio of output mechanical power to input hydraulic power.
- Losses: Friction, internal leakage, and fluid turbulence[1][10].
- Definition: Ratio of actual output flow to theoretical output flow.
- Losses: Internal leakage past seals and moving parts[10][12].
- Impact: Contaminated or degraded fluid increases wear and reduces efficiency[8][13].
- Impact: Proper sizing of pumps, motors, and piping minimizes pressure drops and energy loss[1][9].
- Temperature: Excessive heat reduces fluid viscosity and increases leakage[8].
- Pressure and Flow: Motors are most efficient near their rated pressure and flow[12].
Hydraulic motors are used wherever high power density, controllability, and reliability are needed:

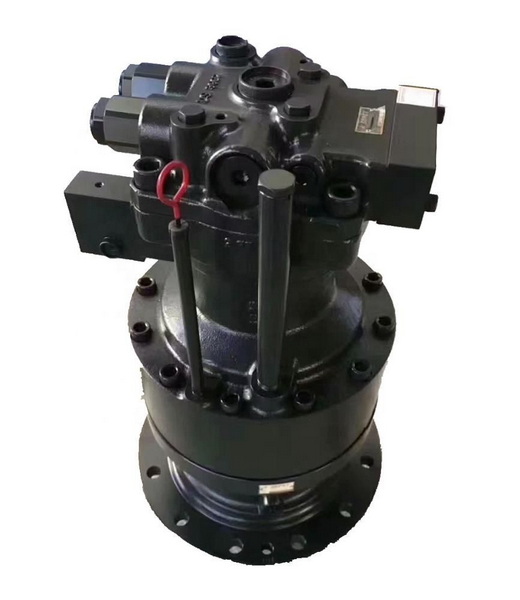

- Construction Equipment: Excavators, loaders, cranes (swing and drive functions)[2][9].
- Industrial Machinery: Conveyor drives, mixers, presses.
- Marine: Winches, propulsion systems[2].
- Agriculture: Harvesters, sprayers, augers.
- Material Handling: Forklifts, automated guided vehicles.
Modern hydraulic motors increasingly feature:
- Integrated sensors for temperature, pressure, and flow.
- Smart controls for real-time monitoring and predictive maintenance.
- Remote diagnostics and operation via IoT platforms[2].
- Advanced materials reduce friction and wear.
- Optimized designs for higher pressure and flow.
- Hybrid systems combine hydraulic and electric drives for maximum efficiency[2].
Hydraulic power can be converted to mechanical motion with high efficiency—often exceeding 80%—when systems are properly designed, maintained, and operated within their optimal ranges. The hydraulic motor is the key component enabling this conversion, offering a unique combination of power density, controllability, and robustness that is unmatched by many other technologies.
Advancements in materials, design, and intelligent control are further improving the efficiency and reliability of hydraulic motors, ensuring their continued relevance in modern industry. Whether in construction, manufacturing, or mobile machinery, hydraulic motors remain a cornerstone of efficient power transmission.
A hydraulic motor converts hydraulic energy (fluid pressure and flow) into rotary mechanical motion, while a hydraulic pump does the opposite—converting mechanical energy into hydraulic energy. Motors focus on delivering torque and mechanical efficiency, while pumps focus on generating flow and pressure[10][12].
The main types are gear motors, vane motors, and piston motors. Each type has unique characteristics: gear motors are simple and robust, vane motors offer smooth operation, and piston motors provide high efficiency and torque for demanding applications[12].
Hydraulic motors can achieve mechanical efficiencies above 80%, with piston motors generally being the most efficient. Efficiency depends on the type of motor, operating conditions, fluid quality, and system design[1][10][12].
Common causes include seal failure, contaminated or degraded hydraulic fluid, excessive heat, and clogged case drain filters. Regular maintenance and monitoring are essential for reliability[7][8].
Consider required speed, torque, operating pressure, physical size, noise levels, and compatibility with your hydraulic system. Consult manufacturer specifications and, if necessary, seek expert advice for optimal selection[12].
