Refilling hydraulic fluid in an inboard boat motor is a crucial maintenance task to ensure smooth and efficient steering. Hydraulic systems rely on fluid to transmit pressure and facilitate movement, so maintaining the correct fluid level is essential. In this article, we will guide you through the process of refilling hydraulic fluid in your inboard boat motor, including necessary precautions and troubleshooting tips.

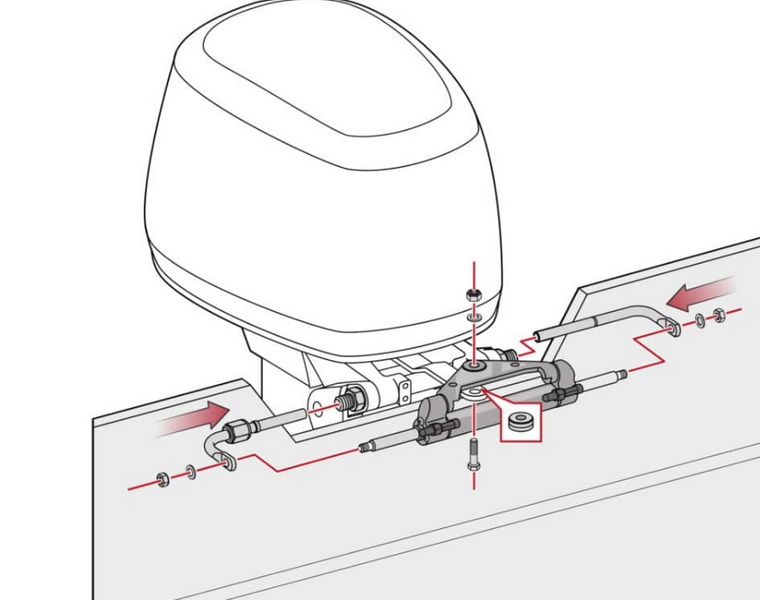

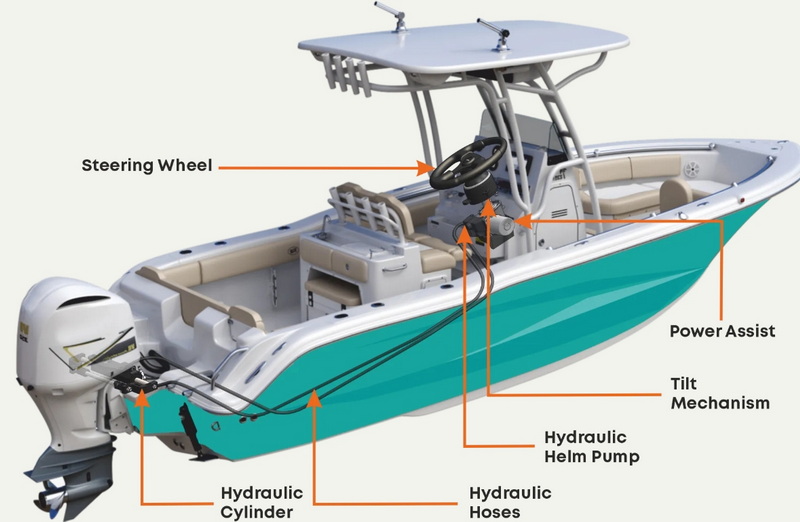

Hydraulic steering systems are widely used in boats with inboard motors due to their reliability and efficiency. These systems consist of a helm pump, hydraulic lines, and a cylinder that connects to the rudder or drive unit. When the steering wheel is turned, the helm pump pushes hydraulic fluid through the lines to the cylinder, which then moves the rudder or drive unit, steering the boat.
- Helm Pump: This is the heart of the system, converting mechanical energy from the steering wheel into hydraulic pressure.
- Hydraulic Lines: These carry the pressurized fluid between the helm pump and the cylinder.
- Cylinder: This converts hydraulic pressure into mechanical movement, controlling the rudder or drive unit.
Before refilling hydraulic fluid, ensure you have the correct type of fluid and enough quantity. Most systems require hydraulic oil specifically designed for marine applications. It's also important to have a clean workspace and the necessary tools to avoid contamination and spills.
- Hydraulic Oil: Ensure it is compatible with your system.

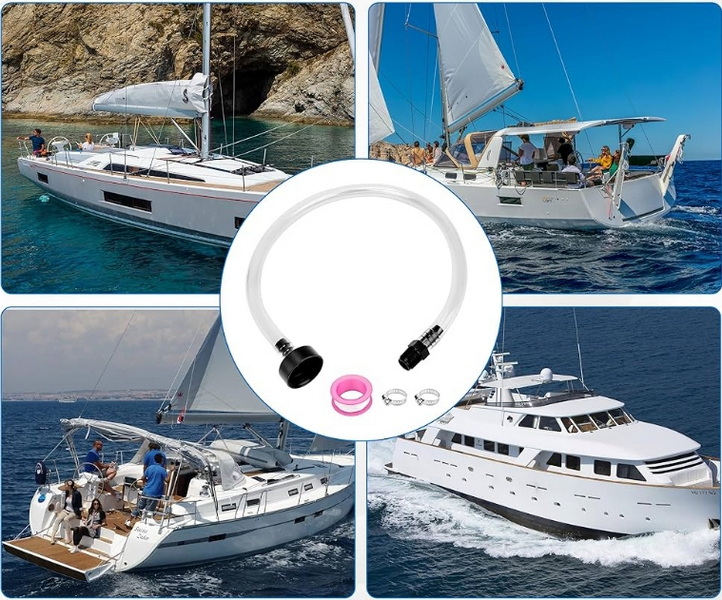

- Filling Tube: Used to connect the oil bottle to the helm pump.
- Bleeder Valves: For purging air from the system.
- Rags: For cleaning spills.
1. Attach the Filling Tube: Screw the threaded end of the filling tube into the helm filler port.
2. Prepare the Oil Bottle: Remove the cap from the oil bottle and screw it into the filler tube. Poke a hole in the bottom of the bottle to allow fluid to flow freely.
1. Fill with Oil: Ensure the helm pump is filled with hydraulic oil so that it is visible in the filler tube. Maintain this level throughout the process.
2. Use Additional Bottles as Needed: If the oil level drops, use another bottle to keep the helm pump full.
1. Turn the Steering Wheel: Rotate the steering wheel clockwise until the cylinder rod is fully extended on the right side.
2. Open the Right Side Bleeder: This allows air to escape as fluid enters the system.
1. Close the Right Side Bleeder: Once fluid starts coming out, close the bleeder.
2. Repeat for the Left Side: Turn the steering wheel counterclockwise and repeat the process for the left side bleeder.
- Spongy Steering: Indicates air in the system. Repeat the bleeding process.
- Leaks: Check all connections and replace any damaged hoses or seals.
- Overheating: Ensure proper fluid levels and check for blockages in the system.
For more complex issues, consider using specialized tools like pressure gauges to diagnose problems within the hydraulic circuit. This can help identify blockages or faulty components that may require professional attention.
Regular maintenance is key to extending the life of your hydraulic steering system. Here are some tips to keep in mind:
- Regular Fluid Checks: Always check the fluid level before use and refill as necessary.
- System Inspections: Regularly inspect the system for signs of wear or damage, such as leaks or corrosion.
- Filtering Fluid: If reusing old fluid, ensure it is properly filtered to remove contaminants.
Maintaining a clean workspace and ensuring all tools and parts are free from debris is crucial. Contamination can lead to premature wear and system failure.
Refilling hydraulic fluid in an inboard boat motor is a straightforward process that requires attention to detail and the right materials. By following these steps and maintaining your system regularly, you can ensure smooth and responsive steering for safe and enjoyable boating experiences.
Answer: Always use hydraulic oil specifically designed for marine applications to ensure compatibility and performance.
Answer: Check the fluid level regularly and refill as needed. Typically, this is done after each use or seasonally.
Answer: Bleeding removes air from the system, which can cause spongy or unresponsive steering. It ensures smooth operation and prevents damage.
Answer: Yes, if it is filtered properly. However, using new fluid is recommended for optimal performance and system longevity.
Answer: Low fluid levels can cause slow or difficult steering. Always check the fluid level before use and refill as necessary.
