Hydraulic motors rely on precise fluid dynamics to operate efficiently. A critical yet often overlooked component in these systems is the case drain — a dedicated line designed to manage internal leakage, regulate pressure, and extend equipment longevity. This article explores its mechanics, applications, and maintenance best practices.

What Is a Hydraulic Motor Case Drain?

A case drain is a specialized port on hydraulic motors that redirects internal leakage fluid back to the reservoir. Key functions include:

1. Pressure Relief: Prevents seal damage from trapped fluid pressure

2. Contaminant Removal: Flushes wear particles and degraded oil

3. Thermal Management: Dissipates heat from motor internals

4. Diagnostic Access: Enables monitoring of motor health

Hydraulic Motor Types and Case Drain Requirements

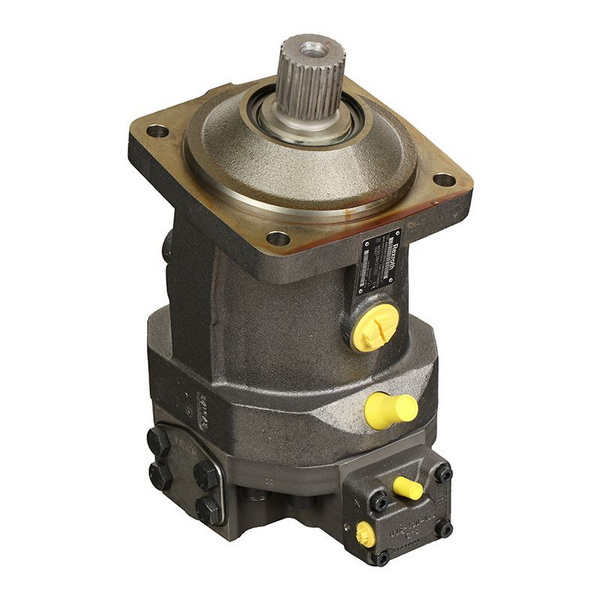

1. Piston Motors

Mandatory case drain due to:

- High internal leakage (2-10% of flow)

- Axial/radial designs requiring constant lubrication

2. Gear Motors

Case drains optional when:

- Return line pressure < seal rating (typically <200 psi)

- Check valves redirect leakage to low-pressure port

Comparison Table

Motor Type	Case Drain Necessity	Max Pressure Tolerance
Piston	Required	25-50 psi
Gear	Situational	200 psi

Case Drain Installation Best Practices

1. Plumbing Requirements

- Use dedicated line ≥ drain port size

- Maintain <25 psi backpressure

- Terminate above reservoir fluid level

2. Filter Integration

- Install 10μm filter with bypass valve

- Avoid combining with main return lines

Diagnostic Techniques

1. Flow Rate Monitoring

- Normal: 1-5% of motor displacement

- Critical threshold: >10% indicates wear

2. Pressure Testing

- Procedure:

1. Isolate case drain line

2. Install pressure gauge

3. Measure under load

- Acceptable range: 3-15 psi

Failure Scenarios and Prevention

Common Issues

- Clogged filters → Seal blowout

- Improper routing → Aeration/foaming

- Missing check valves → Contamination reflux

Conclusion

Case drains serve as hydraulic motors' first line of defense against premature failure. While piston motors demand strict adherence to case drain protocols, gear motors allow flexibility under controlled conditions. Regular monitoring through flow measurement and pressure checks can prevent 80% of hydraulic failures according to industry data.

FAQ

1. Can I operate a piston motor without a case drain?

No. Unvented internal pressure will destroy shaft seals within minutes.

2. How often should case drain filters be replaced?

Every 500 operating hours or per manufacturer guidelines.

3. What flow rate indicates motor wear?

Sustained case drain flow exceeding 7% of rated displacement requires inspection.

4. Can multiple motors share a case drain line?

Not recommended. Use individual lines to prevent cross-contamination.

5. Why does my case drain fluid appear milky?

Indicates water contamination. Check reservoir breathers and conduct oil analysis.
