The hydraulic lift, or trim and tilt system, on an outboard motor is essential for adjusting the boat's angle relative to the water, optimizing performance, and navigating various water conditions. A malfunctioning hydraulic lift can lead to poor handling, reduced fuel efficiency, and potential damage to the motor. Addressing issues promptly can prevent further complications and ensure your boating experience remains enjoyable and safe. This article provides a comprehensive guide to troubleshooting and fixing common problems with outboard motor hydraulic lifts.

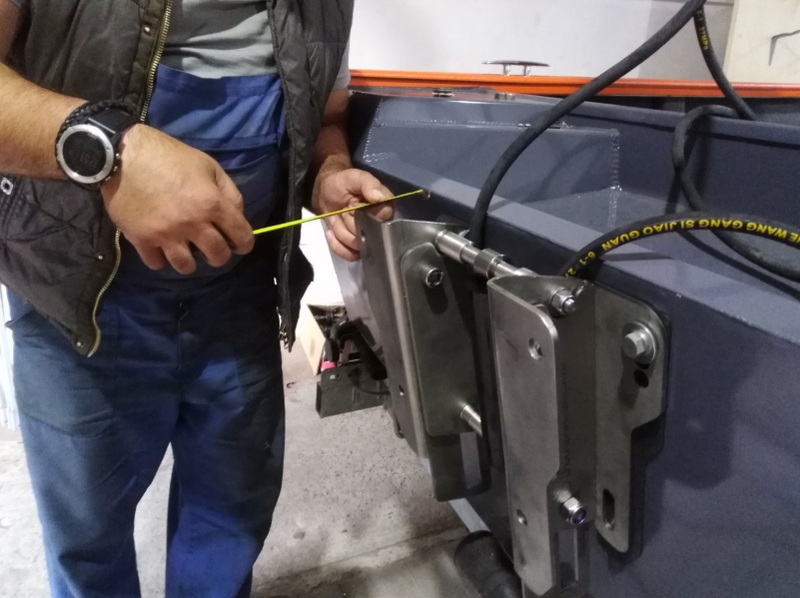

The trim and tilt system uses hydraulic pressure to raise and lower the outboard motor. This allows you to adjust the boat's running angle (trim) for optimal performance and fully raise the motor out of the water (tilt) for storage or shallow water navigation. The system consists of several key components:
- Hydraulic Pump: Creates the necessary pressure to move the hydraulic fluid.

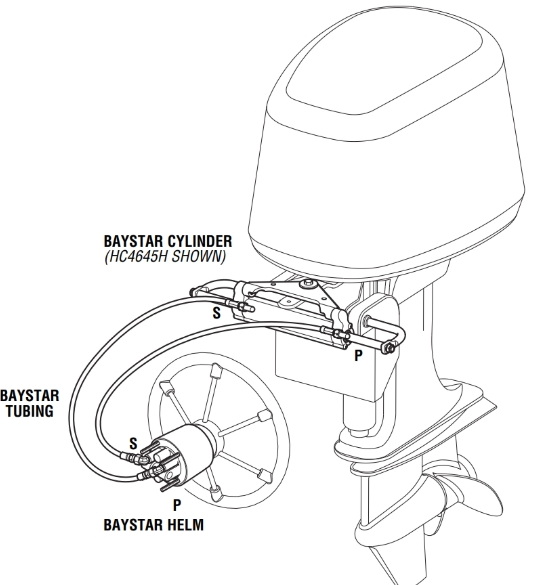

- Hydraulic Cylinder (Ram): Extends and retracts to move the motor.
- Reservoir: Holds the hydraulic fluid.
- Valves: Control the direction of fluid flow.
- Electrical Components: Including the motor, switches, and wiring.
Several issues can cause a hydraulic lift to fail. Here's a systematic approach to diagnosing the problem:
- Check the Fuse: A blown fuse is a common cause of complete failure. Replace the fuse with one of the correct amperage. Ensure that you're using a marine-grade fuse designed for the harsh environment. Standard automotive fuses might corrode more quickly.
- Inspect Wiring and Connections: Look for loose, corroded, or damaged wires. Saltwater is particularly corrosive, so pay close attention to connections near the water line. Clean and tighten connections using a wire brush or electrical contact cleaner, and apply dielectric grease to prevent future corrosion. Replace any damaged wiring with marine-grade wire, which is tinned to resist corrosion.
- Test the Motor: Use a multimeter to check if the motor is receiving power when the trim switch is activated. If not, the switch or wiring may be faulty. Begin by testing the switch itself; many multimeters have a continuity testing function that can help you determine if the switch is working correctly. If the motor receives power but doesn't run, the motor itself may be defective. Consider having the motor professionally tested before replacement, as internal components like brushes can sometimes be repaired.
- Low Hydraulic Fluid: Check the fluid level in the reservoir. The reservoir is often located on the side of the motor or within the trim and tilt unit itself. Add the appropriate hydraulic fluid until it is just overflowing. Always use the type of hydraulic fluid recommended by the motor manufacturer; using the wrong fluid can damage the seals and other components in the system.
- Air in the System: Air bubbles can cause erratic movement. Bleed the system by tilting the motor up and down multiple times. Make sure to perform this procedure in a safe area, as the motor can move suddenly as air is purged.
- Contamination: Old or contaminated fluid can cause sluggish performance. Drain the system and refill it with fresh, recommended hydraulic fluid. When draining, inspect the old fluid for signs of contamination, such as metal shavings or a milky appearance, which can indicate water intrusion.
- Internal Leaks: This often indicates worn seals in the hydraulic cylinders. Over time, seals can degrade due to age and exposure to hydraulic fluid. Rebuilding or replacing the cylinders may be necessary. Consider purchasing a seal kit for your specific cylinder model, as this is often more cost-effective than replacing the entire cylinder.
- Check Valves: Faulty check valves can allow fluid to leak back, causing the motor to slip. These valves are responsible for maintaining pressure within the system. They may need to be cleaned or replaced. Sometimes, debris can become lodged in the check valves, preventing them from sealing correctly.
- Screeching Sounds: May indicate lack of lubrication on the trim rams. Apply grease to the tips of the trim rams. Use a marine-grade grease that is water-resistant and designed to withstand the harsh marine environment.
- Grinding or Clicking: Could indicate a mechanical issue within the pump or motor. Further inspection is required. This might involve removing the pump and inspecting the gears and other internal components for wear or damage.
- New hydraulic fluid (check your outboard's manual for the correct type)
- Multimeter
- Wrenches (metric and standard sizes)
- Screwdrivers (Phillips and flathead)
- Grease gun with marine-grade grease
- Clean rags (lint-free)
- New fuses (marine-grade)
- Wire brush or electrical contact cleaner
- Dielectric grease
- Replacement parts (seals, valves, etc., as needed)
- Safety glasses
- Gloves
- Disconnect the battery to prevent electrical shock.
- Support the motor securely to prevent it from falling; use a motor support or sturdy blocks.
- Wear safety glasses to protect your eyes from hydraulic fluid and debris.
- Work in a well-ventilated area, especially when dealing with hydraulic fluid.
- Properly dispose of used hydraulic fluid according to local regulations.
1. Adding Hydraulic Fluid:
- Tilt the outboard motor all the way up and engage the tilt support bracket. This will prevent the motor from accidentally lowering while you're working.
- Locate the fill cap on the hydraulic reservoir. It's usually a small, screw-on cap.
- Clean around the fill cap to prevent dirt and debris from entering the reservoir.
- Remove the fill cap and check the fluid level. Use a clean dipstick or small rod to check if the reservoir is not easily visible.
- Add hydraulic fluid until it is just overflowing. Use a funnel to avoid spills.
- Tilt the engine up and down to bleed any air out of the system. Cycle the system several times.
- Recheck the fluid level and add more if needed. Air bubbles can cause the fluid level to drop after cycling the system.
- Replace the fill cap securely.
2. Replacing a Fuse:
- Locate the fuse panel, typically near the battery or engine. Consult your boat's wiring diagram for the exact location.
- Identify the fuse for the trim and tilt system. The fuse box should be labeled.
- Use a fuse puller or needle-nose pliers to remove the blown fuse. Avoid using your fingers, as this can damage the fuse box.
- Inspect the fuse to confirm it is blown. A blown fuse will have a broken filament.
- Replace the blown fuse with a new fuse of the correct amperage. Ensure that the new fuse is the same type and amperage as the old one.
3. Cleaning and Greasing Trim Rams:
- Tilt the motor up and support it securely. Use a motor support or blocks to prevent it from falling.
- Clean the trim rams with a clean rag to remove any dirt or corrosion. Use a solvent or cleaner to remove stubborn grime.
- Inspect the trim rams for any signs of damage, such as pitting or scratches.
- Apply a healthy amount of marine-grade grease to the tips of the trim rams.
- Cycle the trim system to distribute the grease. This will help protect the rams from corrosion and ensure smooth operation.
4. Replacing Trim/Tilt Motor:
- Disconnect the battery.
- Raise the engine and engage the tilt lock or support.
- Disconnect the hydraulic lines from the motor. Be prepared for some fluid spillage; have rags ready to catch any drips.
- Disconnect the electrical connections to the motor. Label the wires to ensure correct reconnection.
- Remove the bolts securing the motor to the trim/tilt assembly.
- Install the new motor, reversing the removal steps. Ensure that all connections are tight.
- Reconnect the hydraulic lines and electrical connections.
- Fill and bleed the hydraulic system.
- Test the operation of the trim/tilt system.
5. Replacing Hydraulic Cylinders (Rams):
Remove the Old Cylinder:
- Tilt the motor up and securely support it.
- Release the pressure from the hydraulic system by opening the manual release valve. This valve is typically located on the trim/tilt unit.
- Disconnect the hydraulic lines from the cylinder. Have rags ready to catch any fluid spillage.
- Remove the pins or bolts that secure the cylinder to the mounting brackets.
- Carefully remove the cylinder.
Install the New Cylinder:
- Install the new cylinder, aligning it with the mounting brackets.
- Secure the cylinder with the pins or bolts. Use new pins or bolts if necessary.
- Reconnect the hydraulic lines.
- Close the manual release valve.
Bleed the System:
- Fill the hydraulic reservoir with the recommended fluid.
- Cycle the trim and tilt system to bleed air from the new cylinder.
- Check the fluid level and top off as needed.
Regular maintenance is key to preventing hydraulic lift problems:
- Regularly Check Fluid Levels: Keep the hydraulic fluid at the correct level. Check the fluid level every month or before each boating trip.
- Inspect for Leaks: Look for any signs of leaks around the cylinders, hoses, and pump. Address any leaks promptly to prevent further damage.
- Grease Moving Parts: Lubricate the trim rams and tilt tube regularly. Grease these components at least every three months.
- Protect from Corrosion: Apply a corrosion protectant to electrical connections and metal parts. Use a marine-grade corrosion protectant.
- Use the Tilt Support: Always use the tilt support bracket when trailering or storing the boat. This will prevent stress on the hydraulic system.
- Flush the System: Periodically flush the entire hydraulic system to remove contaminants. This should be done every few years.
- Inspect Hoses and Fittings: Check the hydraulic hoses and fittings for cracks or damage. Replace any worn or damaged components.
While many hydraulic lift issues can be resolved with DIY methods, some situations require professional assistance:
- Extensive internal damage to the pump or cylinders.
- Complex electrical problems that you cannot diagnose.
- If you are not comfortable working on hydraulic systems.
- If you lack the necessary tools or expertise.
- If the problem persists after attempting DIY repairs.
Consulting a qualified marine mechanic can save you time and money in the long run by ensuring that the repairs are done correctly and preventing further damage to your outboard motor.
Maintaining your outboard motor's hydraulic lift system is crucial for ensuring optimal boat performance and longevity. By understanding the system's components, recognizing common problems, and following a consistent maintenance schedule, you can address many issues yourself. However, don't hesitate to seek professional help when the problem is beyond your expertise. Regular care will keep you on the water and ensure a safe and enjoyable boating experience.
There are several reasons why your outboard motor trim might not be working. The most common causes include a blown fuse, low hydraulic fluid, a faulty trim switch, or a malfunctioning motor. Start by checking the fuse and hydraulic fluid level. If those are okay, you may need to test the trim switch and motor with a multimeter.
To add hydraulic fluid, first, tilt the outboard motor all the way up and engage the tilt support bracket. Locate the fill cap on the hydraulic reservoir, remove it, and add hydraulic fluid until it is just overflowing. Then, tilt the engine up and down to bleed any air out of the system. Recheck the fluid level and add more if needed before replacing the fill cap securely.
The type of hydraulic fluid you should use depends on the manufacturer's recommendations. Consult your owner's manual for the specific type of fluid required. Generally, you should use a high-quality hydraulic fluid designed for marine applications.
If your trim and tilt system has air in it, you may notice slow or jerky movement. The motor might also make unusual noises. To bleed the air out of the system, tilt the motor up and down multiple times, checking the fluid level and adding more fluid as needed.
While you can technically use your boat if the trim and tilt system is not working, it is not recommended. A malfunctioning trim and tilt system can affect your boat's handling and performance, leading to reduced fuel efficiency and potential safety hazards. It's best to address the issue before using the boat.
