Gear reducers, commonly known as gearboxes or speed reducers, are mechanical devices used to adjust the speed and torque of a motor or engine. They are widely applied in various industries, including manufacturing, automotive, and aerospace, to optimize the performance of machinery by altering the rotational speed and torque output. In this article, we will delve into the mechanics of gear reducers, focusing on how they increase torque, and explore different types of gear reducers and their applications.
A gear reducer is essentially a set of gears that can be added to a motor to decrease its speed and increase its torque. This is achieved by using a smaller gear (pinion) to drive a larger gear, which results in a reduction in speed and an increase in torque. The gear ratio, calculated by dividing the number of teeth on the larger gear by the number of teeth on the smaller gear, determines the extent of speed reduction and torque increase.
To understand how gear reducers increase torque, let's consider the basic principle of levers. Gears can be thought of as circular levers, where the force applied to the smaller gear is amplified when transferred to the larger gear. This amplification is directly proportional to the gear ratio.
Example:
If a motor with a speed of 3,450 rpm and a torque of 10 lb-in is connected to a gearbox with a gear ratio of 5:1, the output speed will be reduced to 690 rpm, and the torque will be increased to 50 lb-in (before accounting for efficiency losses).
Gear reducers come in various configurations, each suited for different applications based on their design and functionality.
These are commonly used in applications where the input and output shafts need to be parallel. They often employ spur gears, helical gears, or herringbone gears.

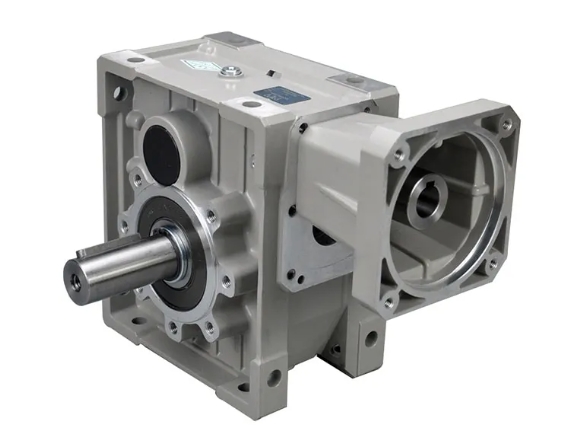

These are typically used when the input and output shafts need to be at a right angle. Worm gearing or bevel gearing is commonly used in these configurations.

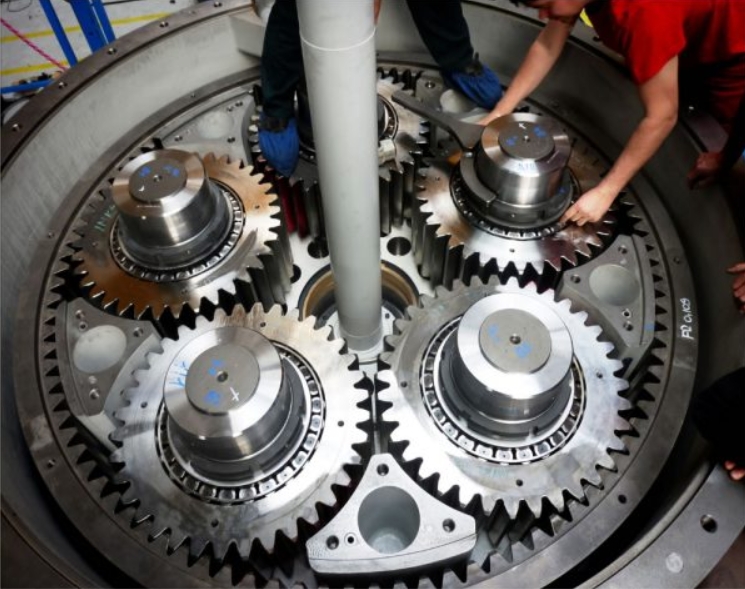

These offer high gear ratios in a compact design, making them ideal for applications requiring significant speed reduction and torque increase.
Gear reducers are versatile and are used across various industries to optimize machinery performance.
In manufacturing, gear reducers are used to power machinery that requires high torque at lower speeds, such as conveyor belts and mixers. For instance, in a production line, gear reducers can help ensure that heavy machinery operates efficiently by providing the necessary torque to handle large loads.
In vehicles, gear reducers are part of the transmission system, helping to adjust the speed and torque of the engine to match driving conditions. This allows vehicles to accelerate smoothly and maintain speed on different terrains.
In aerospace, gear reducers are used in aircraft engines and other systems where precise control over speed and torque is critical. They help ensure that engines operate efficiently and safely under various flight conditions.
When selecting a gear reducer for an application, several factors must be considered to ensure optimal performance.
The gear ratio should be chosen based on the specific speed and torque requirements of the application. A higher gear ratio results in greater speed reduction and torque increase.
Efficiency is crucial as it affects the overall performance and energy consumption of the system. Factors such as gear type, lubrication, and alignment can impact efficiency.
The durability of the gear reducer is important for long-term reliability. Materials and construction should be selected to withstand the stresses and loads of the application.

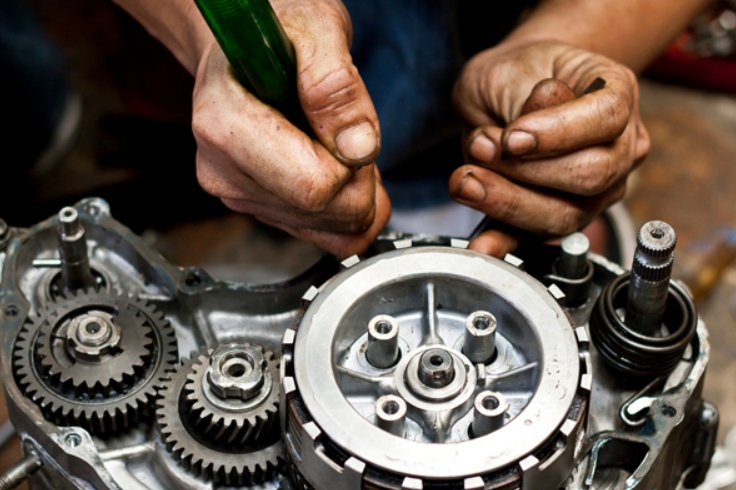

Regular maintenance is essential to ensure that gear reducers operate efficiently and last longer. Common issues include wear on gears, misalignment, and insufficient lubrication.
Proper lubrication is critical to reduce friction between gears and prevent overheating. Regular checks and maintenance of lubrication systems are necessary. Different types of lubricants, such as oils or greases, may be used depending on the application and environmental conditions.
Misalignment can lead to premature wear and reduced efficiency. Regular checks should be performed to ensure that the input and output shafts are properly aligned. This can often be done using alignment tools or by consulting the manufacturer's guidelines.
Regular inspections can help identify potential issues before they become major problems. This includes checking for signs of wear, noise levels, and vibration. Early detection of problems can prevent costly repairs and downtime.
Recent advancements in technology have led to the development of more efficient and compact gear reducers. These include the use of advanced materials and designs that improve durability and reduce maintenance needs.
New materials and coatings are being used to enhance the durability and efficiency of gear reducers. For example, some gearboxes now use ceramic or composite materials that offer better wear resistance and lower friction.
Some modern gear reducers come equipped with digital monitoring systems that allow for real-time tracking of performance metrics such as speed, torque, and temperature. This helps in predictive maintenance and optimizing system performance.
There is a growing focus on developing gear reducers that are more energy-efficient. This includes optimizing gear designs to minimize energy loss and using materials that reduce friction.
As technology continues to evolve, we can expect to see further innovations in gear reducer design and functionality. This may include the integration of smart technologies to enhance monitoring and control capabilities.
Future gear reducers may incorporate smart sensors and AI-driven systems to optimize performance in real-time. This could lead to significant improvements in efficiency and reliability.
Advances in manufacturing technologies, such as 3D printing, could allow for more customized gear reducer designs tailored to specific applications. This could enhance performance and reduce costs.
There will be a greater emphasis on developing gear reducers that are environmentally friendly, using sustainable materials and minimizing waste.
To illustrate the practical application of gear reducers, let's consider a few case studies:
In a manufacturing plant, gear reducers were used to optimize the operation of conveyor belts. By providing the necessary torque at lower speeds, they improved efficiency and reduced energy consumption.
In the development of a new aircraft engine, planetary gearboxes were used to achieve high gear ratios while maintaining compactness. This helped in achieving precise control over engine speed and torque.
Gear reducers are also used in wind turbines to adjust the speed of the turbine blades to match wind conditions, maximizing energy output.
Gear reducers play a crucial role in mechanical systems by adjusting the speed and torque output of motors or engines. By using a smaller gear to drive a larger one, they effectively reduce speed and increase torque, making them indispensable in various industrial applications. Understanding how gear reducers work and selecting the appropriate type for a specific application can significantly enhance the efficiency and performance of machinery.
A gear reducer increases torque by using a smaller gear to drive a larger gear. This setup amplifies the force applied to the smaller gear, resulting in higher torque output at the larger gear. The increase in torque is directly proportional to the gear ratio.
The main types include parallel shaft gearboxes, right angle gearboxes, and planetary gearboxes. Each type is suited for different applications based on shaft alignment and gear ratio requirements.
Gear reducers are used to adjust the speed and torque of motors or engines in various industries, including manufacturing, automotive, and aerospace. They help optimize machinery performance by providing the necessary speed and torque for specific tasks.
The gear ratio is calculated by dividing the number of teeth on the larger gear by the number of teeth on the smaller gear. For example, if a smaller gear has 13 teeth and a larger gear has 65 teeth, the gear ratio is 5:1 (65 / 13 = 5).
Efficiency in gear reducers can be affected by factors such as the type of gears used, lubrication, and alignment. Proper maintenance and selection of the right gear reducer for an application can help minimize efficiency losses.
