Gear reducers are mechanical devices designed to adjust the speed and torque of rotational motion. They are widely used in various applications, from industrial machinery to electric vehicles, to enhance performance by reducing speed and increasing torque. This article will delve into the concept of gear reducers, their functionality, and how they contribute to mechanical strength.
A gear reducer, also known as a speed reducer, is a device that modifies the rotational speed from a motor before it reaches the machinery. It consists of a gear train that reduces the high-speed rotation of the motor's shaft to a slower speed, thereby increasing the output torque. The gears in a speed reducer have more teeth compared to the input gear, allowing the output gear to turn more slowly while providing greater torque.
The basic principle of a gear reducer involves the interaction between gears of different sizes. In a simple setup, a larger gear drives a smaller gear. However, to increase torque, the opposite is true: a smaller gear drives a larger gear. This setup ensures that for every rotation of the smaller gear, the larger gear completes fewer rotations, resulting in increased torque but reduced speed.
Gear Ratio and Its Importance
The gear ratio is crucial in determining how much the speed is reduced and how much torque is increased. It is calculated by comparing the number of teeth on the input and output gears. For example, a gear ratio of 2:1 means that for every two rotations of the input gear, the output gear completes one rotation, effectively halving the speed and doubling the torque.
There are several types of gear reducers, each with its unique characteristics and applications.
Planetary gear reducers are highly versatile and offer a long service life, compact size, high load capacity, low noise, high output torque, and excellent efficiency. They consist of a central sun gear, orbiting planet gears, and a large ring gear. Power is transmitted through the sun gear, which drives the planetary gears to rotate around the inner ring gear, ultimately driving the output shaft.

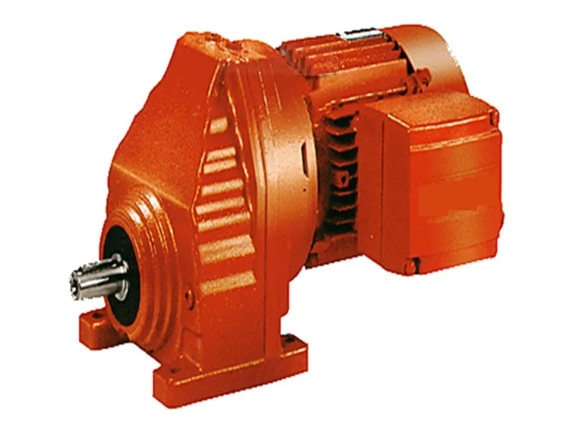

Helical gear reducers use helical gears to transmit power. They offer smoother operation and higher efficiency compared to spur gears but are more complex and expensive.

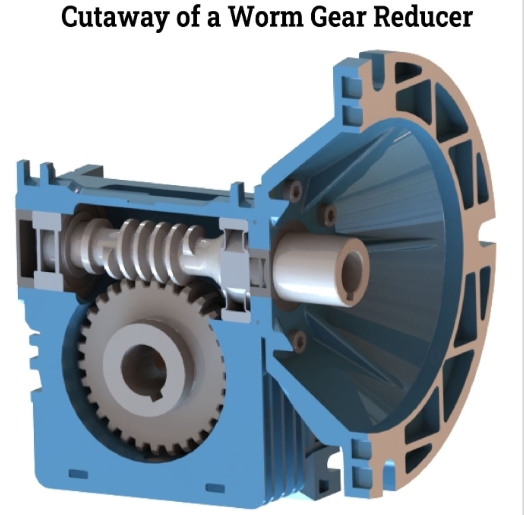

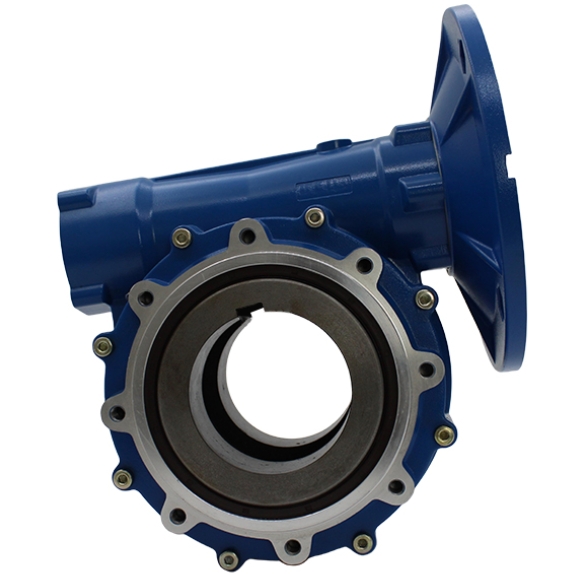

Worm gear reducers use a worm and a worm wheel to achieve high gear ratios. They are compact and provide high torque but have lower efficiency due to the sliding contact between the worm and the worm wheel.
Gear reducers are used in a wide range of applications where speed reduction and torque increase are necessary.
In industrial settings, gear reducers are used to adjust the speed of motors to match the requirements of machinery, ensuring efficient operation and reducing wear on the machinery. For instance, in conveyor systems, gear reducers help maintain a consistent speed that is optimal for material handling.
In electric vehicles, gear reducers are used to optimize the performance of electric motors by adjusting their speed and torque to suit different driving conditions. This allows for better acceleration and efficiency in various driving scenarios.
In robotics, gear reducers are essential for precise control of robotic arms and other mechanisms, allowing for smooth and powerful movements. They enable robots to perform tasks that require both precision and strength, such as assembly and material handling.
The concept of "strength" in mechanical systems often refers to the ability to withstand stress and load without failure. Gear reducers do not directly increase the strength of a system but rather modify its torque and speed characteristics.
By increasing torque, gear reducers enable machinery to handle heavier loads more effectively. However, the strength of the gears themselves depends on factors like material quality, design, and manufacturing process.
In a multistage gear reducer, the stress is not evenly distributed across all gears. The output stage, which typically operates at lower speeds and higher torques, experiences higher stress due to the increased load it handles.
When designing a gear reducer, several factors must be considered to ensure optimal performance and longevity.
The choice of material for the gears is critical. High-strength materials like steel and advanced alloys are commonly used to withstand the stresses involved in high-torque applications.
Proper lubrication is essential for reducing friction and wear on the gears. Regular maintenance and the use of high-quality lubricants can significantly extend the lifespan of a gear reducer.
In applications where noise is a concern, gear reducers can be designed with noise-reducing features. For example, planetary gear reducers are known for their low noise operation.
Regular maintenance is crucial for ensuring the longevity and efficiency of gear reducers. Common issues include wear on gears, misalignment, and lubrication problems.
- Gear Wear: Over time, gears can wear down, leading to reduced efficiency and increased noise. Regular inspection and replacement of worn gears are necessary.
- Misalignment: Misalignment can cause uneven wear and stress on the gears. Proper alignment during installation and periodic checks are important.
- Lubrication Problems: Insufficient lubrication can lead to overheating and premature wear. Regular lubrication checks and maintenance are essential.
To minimize downtime and extend the life of gear reducers, preventive measures should be taken:
- Regular Inspections: Regularly inspect the gear reducer for signs of wear or misalignment.
- Scheduled Maintenance: Perform maintenance tasks like lubrication and cleaning on a scheduled basis.
- Training: Ensure that personnel handling the gear reducers are well-trained to identify and address potential issues early.
Recent advancements in technology have led to the development of more efficient and durable gear reducers. For example, the use of advanced materials and computer-aided design (CAD) software allows for more precise engineering and optimization of gear reducer designs.
Modern gear reducers often incorporate smart technologies, such as sensors and control systems, to monitor performance and adjust settings in real-time. This can improve efficiency, reduce energy consumption, and predict maintenance needs.
Smart gear reducers can optimize energy usage by adjusting their operation based on real-time data. This not only reduces operational costs but also contributes to sustainability by minimizing energy waste.
As technology continues to evolve, gear reducers are expected to become even more sophisticated. Future developments may include:
- Integration with IoT: Gear reducers could be integrated with Internet of Things (IoT) devices to enable remote monitoring and predictive maintenance.
- Advanced Materials: The use of advanced materials like nanomaterials and composites could further enhance durability and efficiency.
- Sustainable Designs: There will be a focus on designing gear reducers with sustainability in mind, using recyclable materials and minimizing environmental impact.
Gear reducers play a crucial role in mechanical systems by adjusting speed and torque to enhance performance. While they do not directly increase the strength of a system, they enable machinery to operate more efficiently under heavy loads. Understanding the principles and applications of gear reducers is essential for designing and optimizing mechanical systems.
A gear reducer's primary function is to reduce the speed of an input rotation while increasing the torque output, allowing machinery to operate more efficiently under heavy loads.
A gear reducer increases torque by using a smaller input gear to drive a larger output gear, resulting in a higher torque output at the cost of reduced speed.
Planetary gear reducers offer a long service life, compact size, high load capacity, low noise, high output torque, and excellent efficiency, making them highly versatile for various applications.
In a multistage gear reducer, the output stage typically experiences higher stress due to its operation at lower speeds and higher torques, handling increased loads compared to the input stage.
Yes, gear reducers can help minimize motor stress by reducing the load on the motor. Greater gearing reduction can lead to lower stress on the motor, potentially increasing its longevity.
