Gear reducers are essential components in mechanical systems, used to adjust the speed and torque of rotational motion. They are widely applied in various industries, including manufacturing, automotive, and machinery, to ensure efficient operation and optimal performance. This article will delve into the mechanics of gear reducers, their types, applications, and how they work.
Gear reducers, also known as speed reducers, are mechanical devices designed to reduce the speed of a power source while increasing its torque. This is achieved through a system of gears where a smaller input gear drives a larger output gear. The ratio of the number of teeth on the output gear to the number on the input gear determines the reduction ratio. For example, if the output gear has 100 teeth and the input gear has 50 teeth, the reduction ratio is 2:1, meaning the output gear rotates at half the speed of the input gear but with twice the torque.
The basic mechanism involves a pair of gears: a smaller driver gear and a larger driven gear. The driver gear is connected to the power source, such as an electric motor, while the driven gear is connected to the load, such as a pump or machinery. The gear ratio is calculated by dividing the number of teeth on the driven gear by the number of teeth on the driver gear. This ratio determines how much the speed is reduced and how much the torque is increased.
- Input Gear Teeth: 50
- Output Gear Teeth: 100
- Reduction Ratio: 100 / 50 = 2:1
- Speed Reduction: The output gear rotates at half the speed of the input gear.
- Torque Increase: The output gear produces twice the torque of the input gear.
There are several types of gear reducers, each designed for specific applications:
1. Planetary Gear Reducers: These use a central sun gear surrounded by planetary gears within a ring gear. They offer high reduction ratios in compact designs.

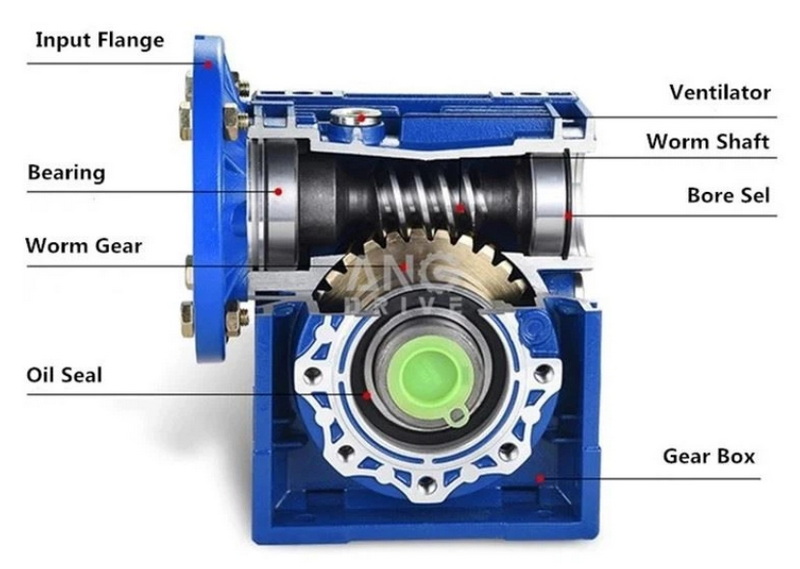

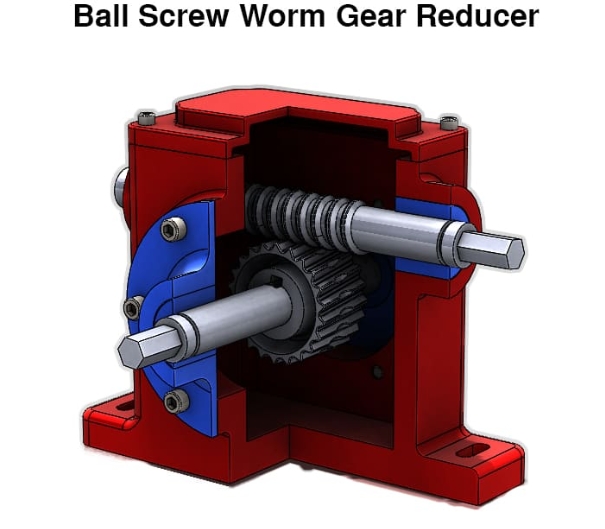

2. Worm Gear Reducers: These use a worm screw to drive a toothed wheel. They are known for their high reduction ratios and are often used in applications requiring low backlash.
3. Helical Gear Reducers: These use helical gears for smoother operation and are often used in high-speed applications.
4. Cycloidal Gear Reducers: These use a cycloidal disc and cam followers to achieve precise motion control with zero backlash, making them ideal for robotics and machine tools.
5. Bevel Gear Reducers: These are used to transmit power between intersecting shafts and are often found in applications requiring a change in shaft direction, such as vehicle differentials.
Gear reducers are used in a wide range of applications:
- Industrial Machinery: They are crucial in manufacturing processes to adjust the speed and torque of machinery to match the requirements of different tasks.

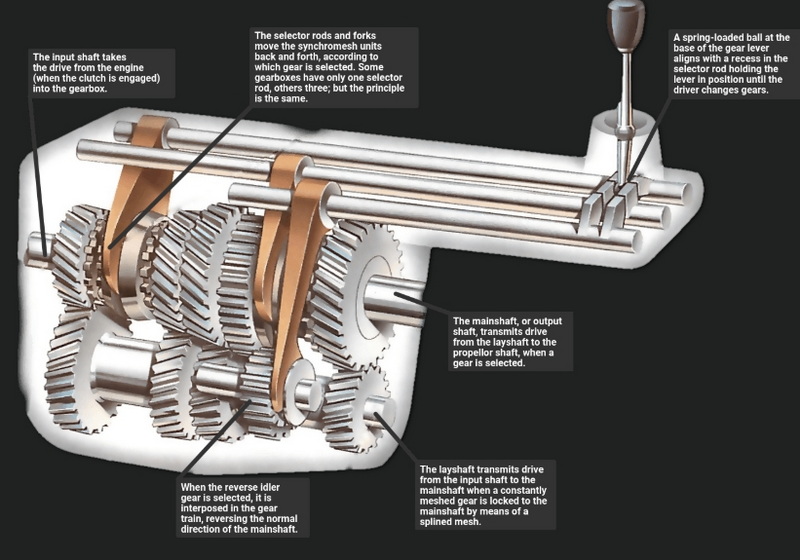

- Automotive: Gear reducers are used in vehicles to adjust the engine's high-speed output to a lower speed suitable for the wheels, ensuring efficient power transmission.
- Pumps: In pump systems, gear reducers convert the high-speed, low-torque output of motors into low-speed, high-torque output, which is more suitable for pumping fluids.
- Agriculture: Gear reducers are essential in agricultural machinery, providing the necessary torque and power for tasks like plowing and harvesting.
- Textile Industry: In textile manufacturing, gear reducers ensure precise speed and tension adjustments, crucial for maintaining fabric quality.
The operation of a gear reducer involves the following steps:
1. Input Power: The power source, typically an electric motor, rotates the input shaft.
2. Gear Engagement: The input gear engages with the output gear, transferring rotational motion.
3. Speed Reduction: The larger output gear rotates more slowly than the input gear due to the gear ratio.
4. Torque Increase: The output gear produces higher torque than the input gear, making it suitable for applications requiring more rotational force.
For a visual explanation, you can watch this video on how gear reducers work:
Gear reducers offer several advantages but also have some drawbacks:
- Efficient Power Transmission: They allow for efficient transmission of power by adjusting speed and torque according to the application.
- Versatility: Available in various types and sizes to suit different applications.
- Reliability: Generally reliable and require minimal maintenance.
- Additional Cost: Adds to the overall cost of the system.
- Space and Weight: Increases the size and weight of the system.
- Maintenance: Requires periodic lubrication and maintenance to ensure smooth operation.
Recent advancements in manufacturing techniques, such as precision machining and robotics, have significantly improved the accuracy and efficiency of gear reducers. These advancements enable the production of high-quality gear reducers with enhanced performance and longer service life[2].
Parallel shaft gear reducers are particularly notable for their robustness and versatility. They are widely used in industrial applications to provide high torque and precise speed control. Their design allows for efficient power transfer, making them essential in manufacturing, agriculture, and automation systems[2].
When selecting a gear reducer, several factors must be considered:
1. Application Requirements: Determine the required speed and torque output for the specific application.
2. Space Constraints: Choose a type that fits within the available space.
3. Efficiency and Noise: Consider the efficiency and noise level of the reducer.
4. Maintenance Needs: Assess the maintenance requirements of the reducer.
Gear reducers are indispensable components in mechanical systems, providing the necessary adjustments in speed and torque to ensure efficient operation. Understanding how they work and their applications can help in selecting the right type for specific needs. Whether in industrial machinery, automotive, or pump systems, gear reducers play a crucial role in optimizing performance.
A gear reducer's primary function is to reduce the speed of a power source while increasing its torque. This is achieved through a system of gears where a smaller input gear drives a larger output gear.
Gear reducers increase torque by using a larger output gear compared to the input gear. The ratio of the output gear's teeth to the input gear's teeth determines the amount of torque increase.
Common types include planetary gear reducers, worm gear reducers, helical gear reducers, cycloidal gear reducers, and bevel gear reducers. Each type is suited for different applications based on factors like space constraints and required reduction ratio.
In vehicles, gear reducers adjust the high-speed output of the engine to a lower speed suitable for the wheels, ensuring efficient power transmission and safe operation.
Gear reducers add to the initial cost of a system and require periodic maintenance, such as lubrication, to ensure smooth operation. However, they provide significant benefits in terms of efficiency and performance.
