Gear speed reducers, also known as gear reducers or gearboxes, are crucial components in mechanical systems, designed to decrease the rotational speed of a power source while increasing its torque. This article will delve into the working principles, types, and applications of gear speed reducers, providing a comprehensive understanding of their role in enhancing efficiency and power transmission.
Gear speed reducers are mechanical devices that utilize a system of gears to modify the rotational speed and torque of a motor or engine. By reducing speed, they amplify torque, allowing for more efficient power transmission and control in various applications. The primary functions of gear speed reducers include:
- Speed Reduction: Decreasing the rotational speed from the input source to the desired output speed.
- Torque Increase: Amplifying torque for enhanced power transmission.
- Direction Change: Changing the direction of rotation based on application requirements.
- Load Balancing: Distributing the load evenly across multiple gears for smooth operation and longevity.

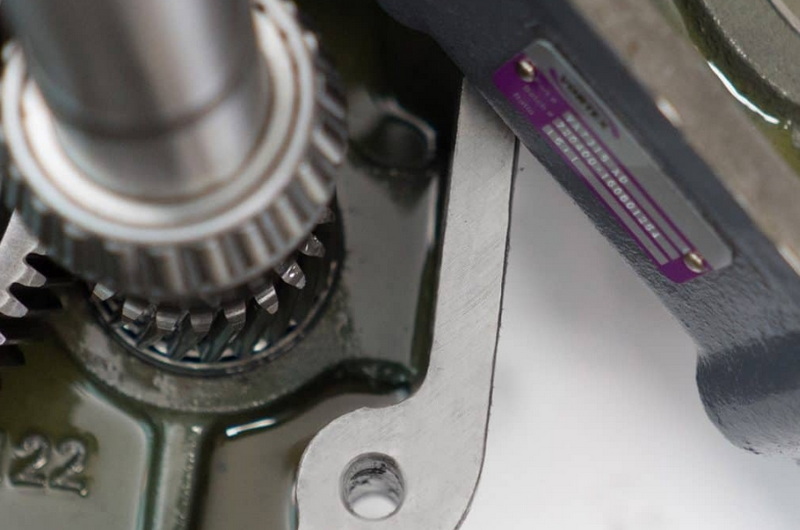

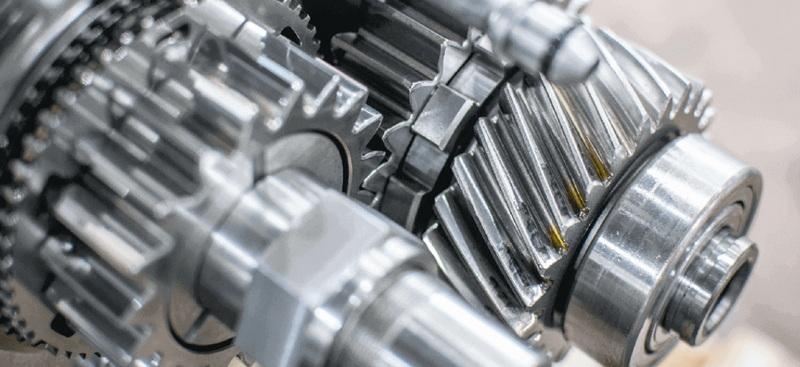

Gear speed reducers operate based on the principles of gear systems. Typically, they consist of two or more gears meshing together. The input gear, driven by the power source, engages with an output gear to transmit torque while reducing speed. The arrangement and type of gears determine the specific speed reduction ratio and torque amplification.
The gear ratio is calculated using the number of teeth on each gear. For a two-gear system, the ratio R is given by:
R=N2/N1
where N2 is the number of teeth on the output gear and N1 is the number of teeth on the input gear.
There are several types of gear speed reducers, each with unique characteristics:
1. Worm Gear Reducers: These consist of a worm screw and a worm gear, offering high gear ratios and compact designs.
2. Helical Gear Reducers: Featuring helical gears, these reducers provide high efficiency and low noise levels.
3. Planetary Gear Reducers: Employing a system of gears around a central sun gear, these offer high torque density and compactness.
4. Bevel Gear Reducers: Using bevel gears to transmit power between intersecting shafts at various angles.
5. Cycloidal Reducers: Utilizing eccentric motion, these reducers deliver high torque capacity and shock resistance.
Gear speed reducers are used in numerous industries and systems, including:
- Industrial Machinery: Conveyors, mixers, pumps, and packaging equipment.
- Automotive: Transmissions, steering systems, and powertrain components.
- Robotics: Robotic arms, manipulators, and automated systems.
- Renewable Energy: Wind turbines and solar tracking systems.
- Aerospace: Aircraft engines, landing gear, and control systems.
- Material Handling: Cranes, hoists, and lifts.
To ensure optimal performance and longevity of gear speed reducers, regular maintenance is essential. This includes:
- Lubrication: Regular lubrication helps reduce friction and wear on gears.
- Inspection: Regular inspections can identify potential issues before they become major problems.
- Alignment: Proper alignment of the reducer with the driven load is crucial for smooth operation.
When selecting a gear speed reducer, several factors should be considered:
- Load Requirements: The reducer must be capable of handling the maximum load and torque required by the application.
- Speed Ratio: The gear ratio should match the desired output speed.
- Space Constraints: The size and shape of the reducer must fit within the available space.
- Noise and Vibration: Consideration of noise and vibration levels is important for certain applications.
Advancements in technology are leading to more efficient and compact gear speed reducers. Trends include:
- High-Efficiency Designs: New materials and designs aim to reduce energy loss and increase efficiency.
- Compact Designs: Smaller reducers are being developed for applications where space is limited.
- Smart Reducers: Integration of sensors and control systems to optimize performance and predict maintenance needs.
As industries move towards more sustainable practices, gear speed reducers are being designed with environmental considerations in mind. This includes:
- Energy Efficiency: Reducing energy consumption through optimized gear designs.
- Material Selection: Using materials that are recyclable or have a lower environmental impact.
- Noise Reduction: Minimizing noise pollution in residential and industrial areas.
Several industries have seen significant improvements through the use of gear speed reducers:
- Wind Turbines: Gear speed reducers help optimize wind turbine efficiency by adjusting to varying wind speeds.
- Automotive Manufacturing: Reducers are used in assembly lines to improve precision and speed.
- Robotics: High-precision reducers enable precise movements in robotic arms.
When considering the use of gear speed reducers, a cost-benefit analysis is essential. While the initial cost may be higher, the long-term benefits include:
- Increased Efficiency: Reduced energy consumption and improved performance.
- Extended Lifespan: Proper maintenance and design can extend the lifespan of the reducer.
- Reduced Maintenance Costs: Regular maintenance can prevent costly repairs.
Gear speed reducers are indispensable components in mechanical systems, providing speed reduction, torque amplification, and directional control. Understanding their functions, types, working principles, and applications is crucial for selecting the right gear speed reducer for specific needs.
A gear speed reducer primarily functions to decrease the rotational speed of a power source while increasing its torque, allowing for efficient power transmission and control.
The gear ratio is calculated by dividing the number of teeth on the output gear by the number of teeth on the input gear. This ratio determines the speed reduction and torque amplification.
Common types include worm gear, helical gear, planetary gear, bevel gear, and cycloidal reducers, each suited for different applications based on their design and characteristics.
Gear speed reducers are frequently applied in industries such as industrial machinery, automotive, robotics, renewable energy, aerospace, and material handling.
Lubricants, such as grease, are important for gear speed reducers as they help reduce noise, increase efficiency, and extend the service life of the reducer by minimizing friction between gears.
