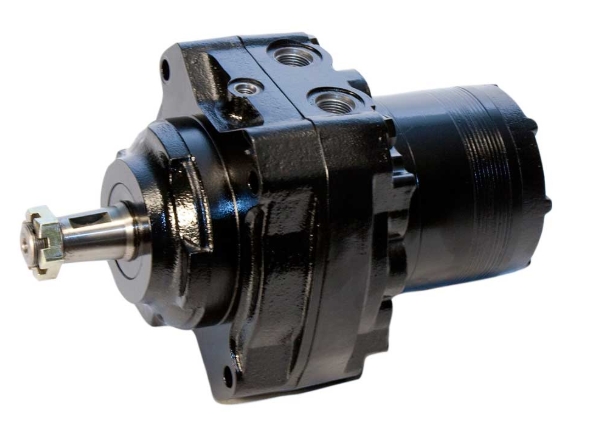

Hydraulic motor brakes are essential components in various applications, providing reliable and precise stopping power for hydraulic motors. These brakes are designed to hold a load or stop motion when hydraulic power is removed or intentionally applied. Understanding how hydraulic motor brakes work involves examining their components, operation, and different types.
Hydraulic motor brakes operate based on the principles of hydraulics and friction. They utilize hydraulic pressure to engage or disengage the braking mechanism. When hydraulic pressure is applied or removed, it controls the brake's ability to hold or stop the motor's rotation.
Key principles include:
- Hydraulic Pressure: The force exerted by a fluid in a closed system.
- Friction: The resistance encountered when two surfaces move against each other.
- Spring Force: Used in some brake designs to provide a default braking force when hydraulic pressure is absent.

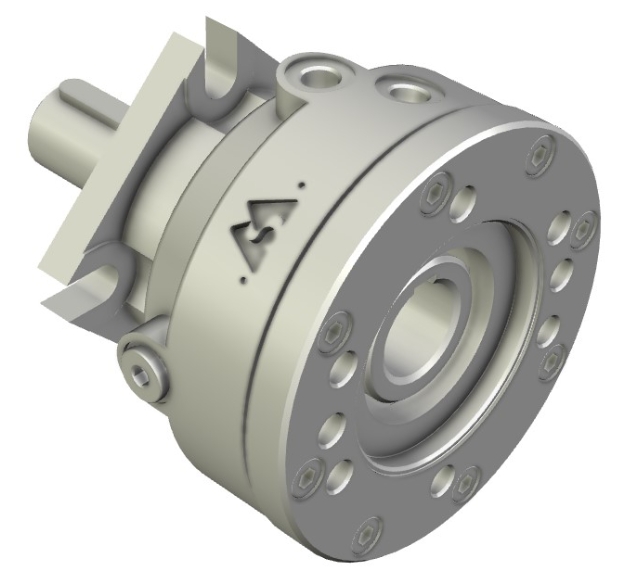

A typical hydraulic motor brake consists of several key components that work together to provide braking functionality:
1. Brake Housing: Encloses and protects the internal components of the brake.
2. Friction Discs/Pads: These are the surfaces that create friction to stop or hold the motor's rotation.
3. Pressure Plate: Applies pressure to the friction discs to engage the brake.
4. Piston: Moves in response to hydraulic pressure, actuating the pressure plate.
5. Springs: Provide a return force, disengaging the brake when hydraulic pressure is removed (in spring-applied brakes).
6. Hydraulic Ports: Connect to the hydraulic system, allowing fluid to enter and exit the brake.
Several types of hydraulic motor brakes are designed for different applications and requirements:
These brakes are engaged by default via spring force.
Hydraulic pressure is required to release the brake, allowing the motor to rotate.
If hydraulic pressure is lost, the brake automatically engages, providing a fail-safe mechanism.
Widely used in applications where safety is critical.
These brakes are engaged by applying hydraulic pressure.
When hydraulic pressure is removed, the brake disengages, typically via spring return.
Suitable for applications where controlled braking is needed.
Designed to hold a load in place when the motor is not running.
Typically spring-applied and hydraulically released.
Essential in applications such as cranes and winches to prevent uncontrolled movement.
Used to slow down or stop the motor during operation.
Can be either hydraulically applied or spring-applied.
Common in vehicles and industrial machinery requiring frequent braking.
The operation of a hydraulic motor brake depends on its type, but the general principles remain the same:
In the resting state, springs apply force to the pressure plate, clamping the friction discs together and preventing the motor shaft from rotating.
When hydraulic pressure is applied, it acts on the piston, compressing the springs and releasing the pressure on the friction discs.
The motor shaft is now free to rotate.
If hydraulic pressure is lost, the springs reassert their force, engaging the brake and stopping the motor.
In the resting state, the brake is disengaged.
When hydraulic pressure is applied, it moves the piston, which in turn presses the friction discs together, stopping the motor shaft.
When hydraulic pressure is removed, springs return the piston to its original position, disengaging the brake.
Hydraulic circuits for motor braking involve various components to control the brake's operation:
- Includes a hydraulic pump, control valve, hydraulic motor, and brake.
- The control valve directs hydraulic fluid to either the motor or the brake.
- Pressure sensors and switches can be added to monitor and control the system.
- Recovers energy during braking by using the motor as a pump to regenerate hydraulic pressure.
- This pressure can be stored in accumulators or used to assist in other functions.
- Enhances energy efficiency and reduces heat generation.
- Utilizes a brake valve (a modified sequence valve) to control braking force and manage negative workloads.
- Under normal conditions, system pressure holds the brake valve open, allowing free discharge from the motor.
- A negative load reduces pressure at the motor inlet, causing the brake valve to close and throttle motor discharge, creating backpressure.
Hydraulic motor brakes are used in a wide array of applications due to their reliability, precision, and safety features:
- Cranes: Holding brakes prevent loads from slipping when the crane is stationary.
- Excavators: Service brakes control the movement of the excavator arm and rotation of the cab.
- Loaders: Brakes ensure safe operation on uneven terrain.
- Harvesters: Brakes control the speed and stopping of harvesting equipment.
- Tractors: Brakes provide safety during field operations and transportation.
- Forklifts: Holding and service brakes ensure safe lifting and movement of materials.
- Conveyor Systems: Brakes prevent backsliding and ensure precise control of material flow.
- Drilling Rigs: Brakes control the rotation and positioning of drill heads.
- Haul Trucks: Brakes provide reliable stopping power for heavy loads on steep inclines.
Winches: Holding brakes secure mooring lines and prevent slippage.
Propulsion Systems: Brakes control the rotation of propellers and prevent freewheeling.
Regular maintenance is crucial to ensure the reliable operation of hydraulic motor brakes:
Regularly inspect brake components for wear, damage, and leaks.
Check friction discs/pads for wear and replace them as needed.
Examine hydraulic lines and fittings for leaks or damage.
Use the correct type of hydraulic fluid as specified by the manufacturer.
Change hydraulic fluid at recommended intervals to prevent contamination and maintain optimal performance.
Check fluid levels regularly and top off as needed.
Perform regular brake testing to ensure proper engagement and disengagement.
Check brake torque to verify it meets the required specifications.
Monitor hydraulic pressure to ensure it is within the specified range.
Cause: Worn friction discs/pads, low hydraulic pressure, contaminated fluid.
Solution: Replace friction discs/pads, check hydraulic pressure and adjust as needed, flush and replace hydraulic fluid.
Cause: Sticking piston, damaged springs, contaminated fluid.
Solution: Clean or replace piston, replace springs, flush and replace hydraulic fluid.
Cause: Loss of hydraulic pressure, damaged piston seals, broken springs.
Solution: Check hydraulic system for leaks and pressure, replace piston seals, replace springs.
Hydraulic motor brakes are vital for ensuring safety and control in numerous applications. Understanding their principles, components, operation, and maintenance is essential for engineers and technicians working with hydraulic systems. By selecting the appropriate type of brake and adhering to regular maintenance practices, it is possible to achieve reliable and efficient braking performance.
Holding brakes are designed to hold a load in place when the motor is not running, providing static holding force. Service brakes are used to slow down or stop the motor during operation, providing dynamic braking force.
Refer to the brake manufacturer's specifications for the recommended hydraulic fluid type. Using the correct fluid ensures optimal performance, prevents damage to seals and components, and maintains brake reliability.
Signs of worn friction discs include brake slippage, reduced braking torque, unusual noises during braking, and longer stopping distances. Regular inspection of the friction discs is essential to identify wear early.
The frequency of inspection and maintenance depends on the application and operating conditions. Generally, regular inspections should be conducted at least every 250 hours of operation, with more thorough maintenance performed annually or as recommended by the manufacturer.
Check the hydraulic pressure to ensure it is reaching the brake. Inspect the piston and springs for damage or corrosion that may be preventing movement. Also, ensure that the hydraulic fluid is clean and free of contaminants. If the problem persists, consult a qualified technician.
