Hydraulic motors are essential components in various applications, converting hydraulic energy into mechanical energy. From powering heavy machinery in construction to enabling precise movements in robotics, these motors play a vital role in numerous industries. This article explores the working principles, key components, types, and applications of hydraulic motor systems. Understanding these systems requires examining their fundamental aspects, which enable them to perform efficiently in diverse settings. We will also delve into the advantages, disadvantages, maintenance, and troubleshooting aspects of these systems to provide a comprehensive overview.

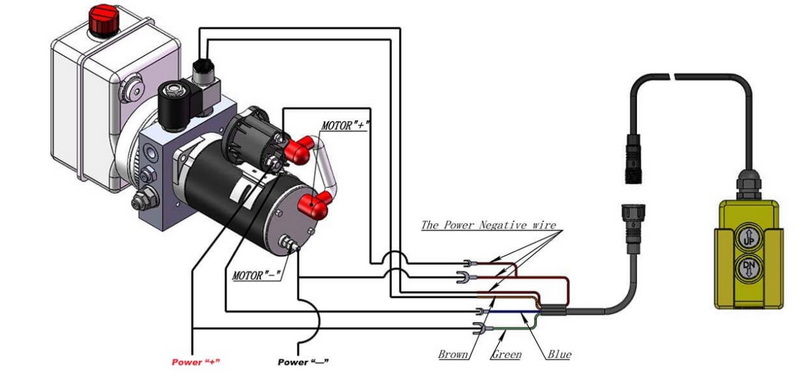

A hydraulic motor transforms the hydraulic energy of a fluid, typically oil, into mechanical energy, producing rotary motion to perform work. Unlike electric motors, which use electromagnetic forces, hydraulic motors rely on the power of pressurized fluid to generate movement. The basic design includes a reservoir for hydraulic fluid storage, a pump, valves, pistons, and a rotating component.
During operation, the pump forces hydraulic fluid from the reservoir, increasing its pressure and energy. This pressurized fluid flows through valves and strikes the piston inside the hydraulic motor. The motion is then transferred to the motor's rotating element and shaft, causing it to rotate. The hydraulic fluid is then returned to the reservoir, and the process repeats. This cycle allows the hydraulic motor to continuously convert hydraulic energy into mechanical work.
Several parts are critical to a hydraulic motor's function:
- Reservoir: The reservoir holds the hydraulic fluid. Its design often includes features to prevent contamination, such as filters and breathers.
- Pump: The pump is responsible for forcing the hydraulic fluid through the system, increasing its pressure. Different types of pumps, such as gear, vane, and piston pumps, are used depending on the application's requirements.
- Valves: Valves control the flow of hydraulic fluid, directing it to the appropriate parts of the motor and regulating its speed and direction. Valves can be manual, solenoid-operated, or electronically controlled.
- Pistons: Pistons convert fluid pressure into mechanical motion. They move linearly inside cylinders, and their movement is linked to the motor's rotating element.
- Rotating Component (Shaft): The rotating shaft is connected to the pistons and transfers the mechanical energy to perform work. The shaft's design and material depend on the torque and speed requirements of the application.
- Housing: The housing protects internal components from damage and contamination. It is typically made of cast iron or steel to withstand high pressures and harsh environments.
- Seals: Seals prevent fluid leakage between components, ensuring the system maintains pressure and operates efficiently. Different types of seals, such as O-rings and lip seals, are used depending on the specific requirements.
Hydraulic motors come in various designs, each suited for specific applications. The most common types include gear, vane, and piston motors.
Gear motors are simple and widely used, consisting of two gears: a driven gear and an idler gear. The driven gear is connected to the output shaft. High-pressure fluid enters the motor and pushes against the gear teeth, causing them to rotate. The rotary motion is then transmitted to the output shaft, which drives the connected machinery. Gear motors are known for their reliability and cost-effectiveness.
- External Gear Motors: These motors have gears with teeth cut on the outside circumference. Fluid enters at the mesh point, forcing the gears to rotate. External gear motors are commonly used in low-speed, high-torque applications.
- Internal Gear Motors: One gear is placed inside another, with fluid entering between the gears to generate rotational movement. Internal gear motors are typically quieter and more efficient than external gear motors.
Vane motors use vanes that slide in and out of a rotor. The rotor is placed inside a housing with a cam ring. As hydraulic fluid enters the motor, it pushes against the vanes, causing the rotor to turn. Springs or fluid pressure hold the vanes against the cam ring to maintain a tight seal. Vane motors offer a good balance of speed, torque, and efficiency.
Piston motors are more complex and efficient, using pistons within cylinders to convert hydraulic pressure into mechanical rotation. They are capable of operating at high pressures and providing precise control.
- Axial Piston Motors: Pistons are arranged parallel to the motor's axis of rotation. A swashplate converts the linear motion of the pistons into rotary motion. Axial piston motors are commonly used in applications requiring high speed and variable displacement.

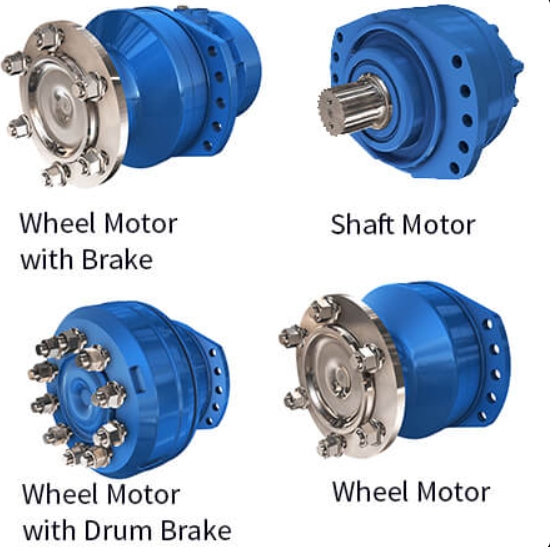

- Radial Piston Motors: Pistons are arranged radially around a central shaft. Hydraulic fluid pushes the pistons outward, causing the shaft to rotate. Radial piston motors are known for their high torque capabilities at low speeds.
Several factors can affect the performance of hydraulic motors, including fluid viscosity, temperature, pressure, and load.
- Fluid Viscosity: The viscosity of the hydraulic fluid affects the motor's efficiency and response time. High viscosity can cause increased friction and energy losses, while low viscosity can lead to increased leakage and reduced lubrication.
- Temperature: Temperature changes can affect the fluid's viscosity and the motor's performance. High temperatures can cause the fluid to thin out, leading to increased leakage and reduced efficiency.
- Pressure: The pressure of the hydraulic fluid directly affects the motor's torque output. Higher pressure results in higher torque, but it also increases the stress on the motor's components.
- Load: The load on the motor affects its speed and efficiency. High loads can cause the motor to slow down and consume more energy, while low loads can cause it to run faster but with less torque.
Hydraulic motors are employed across various industries due to their high power density and ability to provide precise control. Their robust design and ability to operate in harsh environments make them ideal for demanding applications.
- Construction Equipment: Used in excavators, loaders, and bulldozers for driving wheels, tracks, and hydraulic functions. These motors provide the power and control needed for heavy lifting, digging, and moving materials.
- Manufacturing: Powers machinery in factories, including conveyor systems, robotic arms, and heavy-duty equipment. Hydraulic motors enable precise movements and high torque for various manufacturing processes.
- Agriculture: Utilized in tractors, harvesters, and sprayers for driving wheels and operating implements. Hydraulic motors provide the power and control needed for planting, harvesting, and spraying crops.
- Marine: Drives winches, propulsion systems, and steering mechanisms on ships and boats. Hydraulic motors offer reliable and efficient power for marine applications.
- Mining: Powers drilling equipment, conveyors, and heavy machinery in mining operations. Hydraulic motors are capable of operating in harsh conditions and providing the necessary power for mining tasks.
- Material Handling: Hydraulic motors are used in forklifts, cranes, and other material-handling equipment to lift and move heavy loads safely and efficiently.
- Aerospace: Hydraulic motors are used in aircraft landing gear, flight control systems, and other critical applications where reliability and precision are essential.
- Energy Sector: In the energy sector, hydraulic motors are employed in oil and gas drilling equipment, wind turbines, and hydroelectric power plants to generate and control power.
Hydraulic motors offer several advantages, including high power-to-weight ratio, precise speed and torque control, and the ability to operate under heavy loads. However, they also have disadvantages, such as the potential for fluid leaks, the need for regular maintenance, and lower efficiency compared to electric motors.
- High Power Density: Delivers significant power relative to their size and weight. This makes them ideal for applications where space and weight are limited.
- Precise Control: Allows accurate adjustment of speed and torque. This is essential for applications requiring precise movements and control.
- Durability: Capable of withstanding harsh conditions and heavy loads. Hydraulic motors are designed to operate reliably in demanding environments.
- Versatility: Suitable for a wide range of applications. Different types of hydraulic motors are available to meet the specific requirements of various applications.
- Instant Torque: Hydraulic motors can deliver full torque from a standstill, which is beneficial in applications requiring immediate power.
- Overload Protection: Hydraulic systems can be designed with relief valves to protect the motor and other components from overload damage.
- Leakage: Potential for hydraulic fluid leaks, leading to environmental concerns and efficiency losses. Leaks can also pose safety hazards and require regular monitoring and maintenance.
- Maintenance: Requires regular inspection and maintenance to ensure optimal performance. This includes checking fluid levels, replacing filters, and inspecting components for wear and damage.
- Efficiency: Generally less efficient than electric motors due to energy losses from fluid friction and leakage. The efficiency of hydraulic motors can vary depending on the design, operating conditions, and maintenance practices.
- Fluid Requirements: Needs clean, high-quality hydraulic fluid to prevent damage and ensure efficient operation. Contaminated or degraded hydraulic fluid can cause damage to the motor and other components.
- Noise: Hydraulic systems can be noisy, especially at high pressures. Noise-reduction measures may be necessary in some applications.
- Temperature Sensitivity: The performance of hydraulic motors can be affected by temperature changes, which can alter the fluid's viscosity and lead to reduced efficiency.
Designing an effective hydraulic motor system involves several considerations to ensure optimal performance and reliability.
- Load Requirements: Determine the torque and speed requirements of the application. This will help select the appropriate type and size of hydraulic motor.
- Operating Conditions: Consider the environmental conditions, such as temperature, humidity, and exposure to contaminants. This will influence the selection of materials and components.
- Fluid Compatibility: Ensure that the hydraulic fluid is compatible with the motor's components and seals. Incompatible fluids can cause corrosion, swelling, or degradation of the motor's components.
- Filtration: Implement a proper filtration system to remove contaminants from the hydraulic fluid. Clean fluid is essential for the longevity and efficiency of the motor and other components.
- Cooling: Provide adequate cooling to prevent overheating, especially in high-duty-cycle applications. Overheating can cause the fluid to degrade and the motor to fail prematurely.
- Control System: Design a control system that provides precise control over the motor's speed, torque, and direction. This may involve using valves, sensors, and electronic controllers.
- Safety Features: Incorporate safety features, such as relief valves, to protect the motor and other components from overload damage.
Proper maintenance is crucial for the longevity and efficiency of hydraulic motor systems. Regular inspections, fluid changes, and prompt repairs can prevent costly downtime and extend the system's lifespan.
- Regular Inspections: Check for leaks, damage, and wear on hoses, fittings, and components. Pay close attention to areas prone to leakage, such as seals and connections.
- Fluid Analysis: Periodically analyze hydraulic fluid to detect contamination, degradation, and other issues. Fluid analysis can identify problems before they cause damage to the motor or other components.
- Filter Replacement: Replace filters regularly to keep the hydraulic fluid clean and prevent damage to components. Follow the manufacturer's recommendations for filter replacement intervals.
- Component Lubrication: Ensure proper lubrication of all moving parts to reduce friction and wear. Use the recommended lubricants and follow the manufacturer's lubrication schedule.
- Prompt Repairs: Address any issues promptly to prevent further damage and minimize downtime. Delaying repairs can lead to more significant problems and increased costs.
- Torque verification: Periodically check and re-torque all fasteners, especially those subject to vibration or thermal cycling. This helps prevent loosening and potential leaks.
- System Flush: Occasionally flush the hydraulic system to remove accumulated debris and contaminants. This can improve the system's efficiency and extend the lifespan of the components.
Hydraulic motor systems are critical in numerous industries, providing efficient and reliable power for various applications. Understanding their working principles, types, and maintenance requirements is essential for engineers and technicians working with these systems. Despite some disadvantages, the advantages of hydraulic motors, such as high power density and precise control, make them indispensable in many settings. By properly designing, operating, and maintaining hydraulic motor systems, users can maximize their performance and minimize downtime, ensuring efficient and reliable operation.
Hydraulic Motor: A hydraulic motor converts hydraulic energy (fluid pressure and flow) into mechanical energy (rotational motion and torque). It receives pressurized fluid and uses it to turn an output shaft, which can then power machinery or equipment.
Hydraulic Pump: A hydraulic pump, on the other hand, converts mechanical energy (usually from an engine or electric motor) into hydraulic energy. It draws fluid from a reservoir and increases its pressure, providing the pressurized fluid needed for hydraulic systems.
The primary types of hydraulic motors include:
-Gear Motors: These are simple and use meshing gears to generate rotational motion.
-Vane Motors: These use vanes that slide in and out of a rotor to create rotation.
-Piston Motors: These employ pistons moving within cylinders to drive a rotating shaft.
Each type has different characteristics, making them suitable for various applications.
Troubleshooting a hydraulic motor involves several steps:
-Check Fluid Levels: Ensure the hydraulic fluid reservoir has adequate fluid.
-Inspect for Leaks: Look for any signs of hydraulic fluid leaks around the motor, hoses, and fittings.
-Verify Pressure: Use a pressure gauge to confirm that the motor is receiving the correct hydraulic pressure.
-Examine Components: Inspect the motor's components, such as the shaft, bearings, and seals, for damage or wear.
-Test Valves: Check the control valves to ensure they are functioning correctly and directing fluid flow appropriately.
Regular maintenance is essential for hydraulic motors:
-Fluid Changes: Replace hydraulic fluid at recommended intervals to prevent contamination and maintain optimal performance.
-Filter Replacement: Regularly change filters to keep the hydraulic fluid clean.
-Leak Checks: Inspect the system for leaks and repair them promptly.
-Component Inspection: Check the motor's components for wear, damage, or corrosion.
-Lubrication: Ensure proper lubrication of moving parts to reduce friction and wear.
Hydraulic motors are used in a wide range of applications:
-Construction Equipment: Excavators, loaders, bulldozers.
-Agricultural Machinery: Tractors, harvesters.
-Industrial Equipment: Conveyor systems, robotic arms.
-Marine Applications: Winches, propulsion systems.
-Mining Equipment: Drilling equipment, heavy machinery.
These motors provide the necessary power and control for heavy-duty tasks in these industries.
