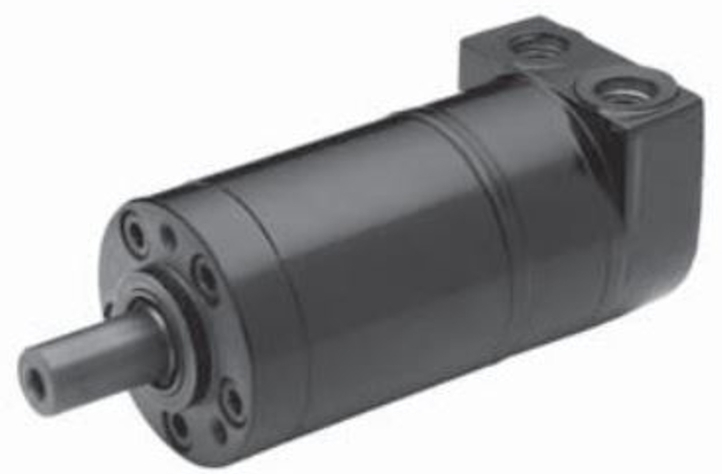

A hydraulic orbital motor, also known as a gerotor or geroller motor, is a type of hydraulic motor that converts hydraulic energy into rotational mechanical energy based on the principles of fluid dynamics and mechanical motion. These motors are widely used in various industrial applications, including construction, mining, agriculture, and transportation. Hydraulic orbital motors are essential components in industrial and mobile equipment, such as construction, agriculture, and forestry machinery.
The main components of a hydraulic orbital motor include:
The motor has an inner rotor and an outer stator. The rotor connects to the output shaft, and the stator features interlocking lobes or rollers, creating pockets for fluid movement. The interaction between the rotor and stator is the core of the motor's operation. The precise machining and design of these components are critical for achieving efficient and reliable performance. Different designs of rotors and stators cater to varying performance requirements, such as high torque, high speed, or a balance of both.

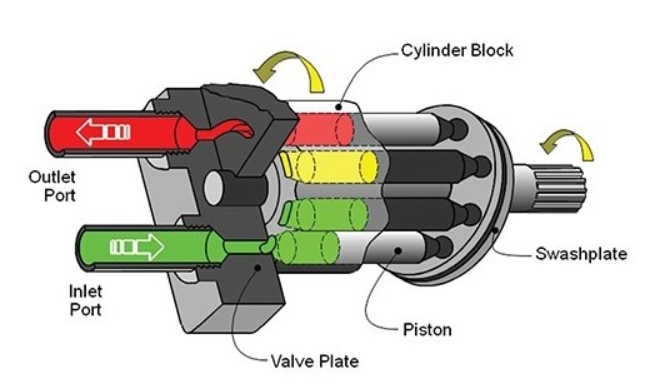

This component directs hydraulic fluid into the motor and manages its flow through specific channels for efficient operation. The valve plate is strategically designed with ports and channels that synchronize the fluid flow with the rotor's movement. Precise control of fluid direction and timing is essential for smooth and efficient operation. Advanced valve plate designs incorporate features that minimize pressure drop and optimize flow distribution, enhancing the overall efficiency of the motor.
The output shaft transfers rotational energy to the connected machinery. Bearings support the shaft, which reduces friction and wear. The shaft is typically made of high-strength steel to withstand the torsional stresses generated during operation. Bearings play a crucial role in supporting the shaft and ensuring smooth rotation, reducing friction, and minimizing wear. The type and quality of bearings used significantly impact the motor's lifespan and performance.
The outer casing protects the internal components and provides structural integrity against environmental factors. The housing is designed to protect the internal components from dirt, moisture, and other contaminants. It also provides structural support for the motor and helps dissipate heat generated during operation. The material and construction of the housing are selected based on the specific application and environmental conditions.
The orbital hydraulic motor operates based on the principle of hydrostatic transmission. Hydraulic motors function similarly to pumps, but instead of rotary motion producing fluid flow and pressure, fluid flow and pressure produce rotary motion. The working principle involves several key steps:
Pressurized hydraulic fluid enters the motor through the valve plate. The design of the valve plate ensures the fluid is channeled into the correct areas. The pressure and flow rate of the hydraulic fluid are critical parameters that determine the motor's speed and torque output. The hydraulic fluid must be clean and free of contaminants to prevent damage to the motor's internal components. Filters are commonly used in hydraulic systems to ensure fluid quality.
- Gerotor Design: The inner rotor has one less lobe than the outer stator, creating a series of expanding and contracting chambers as the rotor turns. This imbalance is crucial for generating rotational movement. The number of lobes on the rotor and stator influences the motor's displacement and torque characteristics. A higher number of lobes generally results in higher torque but lower speed. The shape and profile of the lobes are carefully designed to optimize fluid flow and minimize leakage.
- Geroller Design: Rollers are used between the rotor and stator, reducing friction and wear while improving efficiency. The rollers follow the contours of the stator, enhancing fluid dynamics and torque generation. The rollers distribute the load more evenly, reducing stress on the rotor and stator. This results in lower friction, improved efficiency, and longer component life. The material and surface finish of the rollers are critical for minimizing friction and wear.
As the hydraulic fluid enters the expanding chambers, it exerts pressure on the rotor, causing it to turn. The fluid then moves through the contracting chambers, maintaining continuous rotation. This movement is smooth and consistent, ensuring reliable power output. The rotation of the rotor generates torque, transferred to the output shaft, resulting in the equipment's movement. The speed of rotation is directly proportional to the flow rate of the hydraulic fluid, while the torque output is proportional to the pressure of the fluid. The motor's performance characteristics, such as torque, speed, and power, are typically specified in its datasheet.
There are two main types of orbital hydraulic motors: gerotor and geroller motors.
- Gerotor Motors: These use a rotor with internal gear teeth and a stator with external gear teeth. The vanes are located between the rotor and stator and move in and out of the gear teeth. Gerotor motors are known for their compact size and relatively simple design. They are commonly used in applications where space is limited and high torque is required. The sliding action between the rotor and stator can generate heat, so proper lubrication is essential for reliable operation.
- Geroller Motors: These use a rotor with a series of rollers that ride on a cam ring. The vanes are located between the rollers and the cam ring and move in and out of the roller grooves. Motors with rollers can provide high starting and running torque. The roller reduces friction and improves efficiency. Even at very low speed, the output shaft can produce stable output. By changing the direction of the input and output flow, the motor quickly reverses and produces equal torque in both directions. Geroller motors are generally more efficient than gerotor motors due to the reduced friction between the rollers and the cam ring. They are suitable for applications requiring high efficiency and smooth operation.
Hydraulic orbital motors offer several advantages:
- High Power Density: They have the greatest power-to-size ratios, providing the highest output power in the smallest sizes. This makes them ideal for applications where space is limited and weight is a concern.
- High Torque Output: These motors allow for high levels of torque output to be used in applications that need heavy lifting or the production of very high rotative forces. The ability to generate high torque at low speeds makes them suitable for driving heavy loads and overcoming high starting torques.
- Low Output Speed: They offer the benefit of transmitting low output speed for precise controlled applications or slower operation. This allows for precise control of the driven machinery, making them suitable for applications requiring accurate positioning and speed control.
- Easy to Maintain: They are far easier to engineer into installations and maintain than piston motors, and even easier to troubleshoot. Their relatively simple design and fewer moving parts contribute to their ease of maintenance. Regular inspection and lubrication can help prolong the motor's lifespan and prevent costly repairs.
- Durability: Orbital hydraulic motors have better durability compared to vane motors by way of construction and the number of perishable parts, ensuring durability under most operating conditions. They are also extremely durable, even when placed into hot, wet, or dirty environments. The robust construction and high-quality materials used in their manufacture contribute to their durability and reliability.
- High Efficiency: Hydraulic orbital motors deliver high efficiency in working by transforming hydraulic energy into mechanical power with negligible losses. The use of rollers in geroller motors further reduces friction and enhances efficiency.
- Compact Size: They install easily in cramped spaces and are very adaptable and least bulky pieces of equipment that become a successful fit in a host of equipment and systems. This makes them suitable for applications where space is limited and easy integration is required.
- Reliability: A hydraulic orbital motor has a high level of reliability with fewer moving parts and an inherently robust body, providing stable and reliable performance. A particular advantage is their ability to absorb impacts and sudden spikes in load, as when material is dropped onto a conveyor belt. This makes them suitable for demanding applications where reliability is critical.
Several factors can affect the performance of hydraulic orbital motors, including:
- Fluid Viscosity: The viscosity of the hydraulic fluid can affect the motor's efficiency and torque output. Higher viscosity fluids can increase friction and reduce efficiency, while lower viscosity fluids can lead to increased leakage.
- Fluid Temperature: The temperature of the hydraulic fluid can also affect the motor's performance. High temperatures can reduce fluid viscosity and increase leakage, while low temperatures can increase viscosity and reduce efficiency.
- Fluid Cleanliness: The cleanliness of the hydraulic fluid is critical for preventing damage to the motor's internal components. Contaminants can cause wear and tear, leading to reduced performance and premature failure.
- Operating Pressure: The operating pressure of the hydraulic system can affect the motor's torque output and speed. Higher pressures generally result in higher torque but can also increase stress on the motor's components.
- Load Conditions: The load applied to the motor can affect its performance and lifespan. Overloading the motor can lead to premature failure, while operating at low loads can reduce efficiency.
Orbital hydraulic motors are used in a wide range of industrial applications:
- Construction Equipment: They are commonly used in construction equipment, such as excavators, bulldozers, and cranes. In excavators, they power the tracks, swing mechanism, and hydraulic pumps. In bulldozers, they drive the tracks and blade control. In cranes, they power the hoisting mechanism and swing drive.
- Mining Equipment: They are also used in mining equipment, such as rock drills, crushers, and loaders. In rock drills, they provide the rotational power for drilling. In crushers, they drive the crushing mechanism. In loaders, they power the wheels and bucket operation.
- Agriculture: In agriculture, they are used in tractors, harvesters, and other farm machinery. In tractors, they drive the wheels and hydraulic implements. In harvesters, they power the cutting and conveying mechanisms. They are also used in irrigation systems and other agricultural equipment.
- Transportation Equipment: They are also used in transportation equipment, such as trucks, buses, and trains. In trucks and buses, they can power auxiliary systems such as power steering and hydraulic brakes. In trains, they can be used in hydraulic transmission systems.
- Screw applications: Screw applications exist in injection molding machines in particular, and also in die casting equipment. In these, a screw mechanism is used to apply force to close the dies and hold them closed. Hydraulic orbital motors are capable of the low speed and high torque needed. Their ability to provide precise control and high force makes them ideal for these applications.
Mobile Applications:
- Scissor lifts and other aerial work platforms – low speed controllability enhances operator safety and confidence. Their smooth and precise operation allows for safe and efficient lifting and positioning.
- Agricultural, forestry, and landscaping equipment – skid steers are one popular application. In skid steers, they drive the wheels, providing the necessary power and maneuverability for various tasks.
- Highway maintenance and construction vehicles – hydraulic motors power sweeper brushes, backhoe bucket and arm actuation, travel motors and more. Their versatility and reliability make them suitable for a wide range of highway maintenance tasks.
- Material handling applications – tugs and similar equipment are good uses. Their high torque and compact size make them ideal for moving heavy loads in confined spaces.
Regular maintenance is essential for ensuring the optimal performance and lifespan of hydraulic orbital motors. Here are some maintenance tips:
- Regular Inspections: Regularly inspect the motor for signs of wear and tear, such as leaks, cracks, or corrosion.
- Fluid Maintenance: Keep the hydraulic fluid clean and at the correct level. Change the fluid regularly according to the manufacturer's recommendations.
- Lubrication: Ensure that all moving parts are properly lubricated. Use the recommended lubricants and follow the lubrication schedule.
- Filter Maintenance: Clean or replace the hydraulic filters regularly to prevent contaminants from entering the motor.
- Proper Installation: Ensure that the motor is properly installed and aligned. Misalignment can cause excessive wear and tear.
- Avoid Overloading: Avoid overloading the motor, as this can lead to premature failure. Operate the motor within its specified load limits.
- Monitor Performance: Monitor the motor's performance regularly. Note any changes in speed, torque, or noise levels, as these may indicate a problem.
The main problems users experience are fluctuations in output speed, low power, and oil leaks. Fluctuations in output speed can be caused by variations in fluid flow or pressure. Low power can be caused by insufficient fluid pressure or worn internal components. Oil leaks can be caused by damaged seals or loose connections. Regular maintenance and prompt repairs can help prevent these problems.
Function diagrams illustrate the relationship between operating torque and speed at different pressures. These diagrams provide valuable information for selecting the appropriate motor for a specific application. They also help in troubleshooting performance issues and optimizing system performance.
The future of hydraulic orbital motors is likely to be shaped by several trends, including:
- Increased Efficiency: Ongoing research and development efforts are focused on improving the efficiency of hydraulic orbital motors. This includes optimizing the design of internal components, reducing friction, and minimizing leakage.
- Smart Technology: Integration of sensors and control systems will enable real-time monitoring and optimization of motor performance. This will allow for predictive maintenance and improved overall system efficiency.
- Compact Designs: Demand for smaller and lighter motors will drive the development of more compact designs. This will be achieved through advanced materials and innovative manufacturing techniques.
- Sustainable Solutions: The development of eco-friendly hydraulic fluids and energy-efficient motor designs will contribute to more sustainable hydraulic systems.
Hydraulic orbital motors are vital assets that are essential in modern machinery with regard to the provision of unmatched efficiency, reliability, and versatility. They convert hydraulic energy into mechanical energy, providing high torque at low speeds, making them suitable for various applications across industries. Understanding their working principle, types, advantages, and applications is essential for anyone involved in designing, installing, or maintaining hydraulic systems. Compact in size and strong in the way it performs, hydraulic orbital motors continue to drive high productivity and excellence in general operations. Regular maintenance, proper operation, and awareness of future trends will ensure that these motors continue to play a critical role in various industrial applications.
A hydraulic orbital motor is a device that converts hydraulic energy (pressure, oil flow) into mechanical energy (torque and speed). It is also known as a gerotor or geroller motor. These motors are characterized by their ability to provide high torque at low speeds, making them suitable for various heavy-duty applications.
A hydraulic orbital motor operates based on the principle of hydrostatic transmission. Pressurized hydraulic fluid enters the motor, causing a rotor to turn inside a stator. This rotation generates torque, which is then transferred to the output shaft to power machinery.
The two main types of orbital hydraulic motors are gerotor and geroller motors. Gerotor motors use a rotor with internal gear teeth and a stator with external gear teeth, while geroller motors use a rotor with a series of rollers that ride on a cam ring.
Hydraulic orbital motors offer several advantages, including high power density, high torque output, compact size, durability, and efficiency. They are also relatively easy to maintain and troubleshoot compared to other types of hydraulic motors.
Hydraulic orbital motors are commonly used in a wide range of applications, including construction equipment (excavators, bulldozers, cranes), mining equipment (rock drills, crushers, loaders), agricultural machinery (tractors, harvesters), and transportation equipment (trucks, buses, trains). They are also used in material handling, screw applications, and various mobile equipment.
