Hydraulic servo motors are critical components in modern engineering, combining the precision of servo technology with the power of hydraulics. They are widely used in industries such as aerospace, automotive, manufacturing, and construction for applications requiring high accuracy and force. This article explores the working principles, components, applications, and advantages of hydraulic servo motors.
Hydraulic servo motors operate on the principle of closed-loop control, where feedback sensors continuously monitor and adjust the system's performance to meet desired specifications. These systems use hydraulic fluid to transmit power and control motion with exceptional precision.
Unlike traditional hydraulic systems that rely solely on manual or open-loop control, hydraulic servo motors incorporate advanced electronics and sensors to achieve unparalleled accuracy. This makes them ideal for applications where even minor deviations in motion or force can lead to significant issues.
Understanding the components of a hydraulic servo motor is essential to grasp how it operates effectively. Each part plays a vital role in ensuring high performance and precision.
The servo valve is the heart of the system, responsible for regulating hydraulic fluid flow based on electrical input signals from the controller. It determines the direction, speed, and force of the actuator's movement.
The actuator converts hydraulic energy into mechanical motion, which can be either linear or rotary. Linear actuators are commonly used in applications like pressing or lifting, while rotary actuators are ideal for rotational tasks.
These sensors provide real-time data about variables such as position, velocity, pressure, or force. Common types include potentiometers, encoders, and load cells.
The controller processes feedback signals from sensors and compares them with the desired input signal (setpoint). It then sends corrective commands to the servo valve to minimize errors.

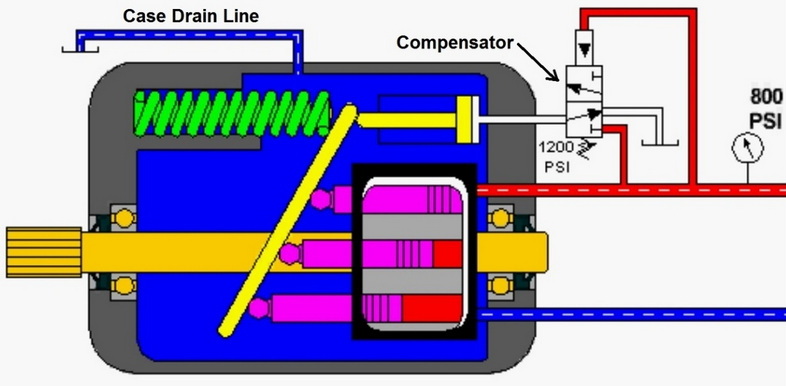

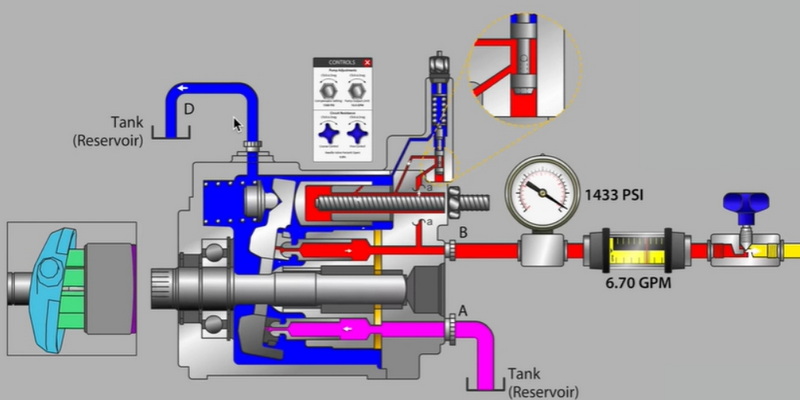

The pump supplies pressurized hydraulic fluid to the system. Pumps can be fixed-displacement or variable-displacement types depending on the application's requirements.
The reservoir stores hydraulic fluid, while filters ensure that contaminants are removed from the fluid before it enters the system.
The operation of a hydraulic servo motor can be broken down into several key steps:
The process begins when an electrical command signal is sent to the controller. This signal represents the desired position, speed, or force that the system must achieve.
Feedback sensors continuously monitor actual system performance (e.g., position or velocity) and compare it with the desired setpoint. Any difference between these values generates an error signal.
The error signal drives adjustments in the servo valve's position. By controlling hydraulic fluid flow, the valve ensures that pressure is directed appropriately to move the actuator.
The actuator responds to changes in hydraulic pressure by moving accordingly—either linearly or rotationally—to correct any discrepancies between actual and desired performance.
This process forms a closed-loop system where real-time feedback ensures continuous adjustments until the error is minimized or eliminated entirely.
Hydraulic servo motors are versatile and find applications across various industries due to their ability to combine precision with immense power:
- Used in aircraft control surfaces (e.g., ailerons and rudders) for precise maneuvering.
- Employed in landing gear systems for safe deployment and retraction.
- Integral to flight simulators for realistic motion replication.
- Found in power steering systems for smooth vehicle handling.
- Used in anti-lock braking systems (ABS) for improved safety.
- Enable automation in transmissions for seamless gear shifting.
- Essential in CNC machines for accurate cutting and shaping.
- Used in robotic arms on assembly lines for precise positioning.
- Control material handling equipment like conveyors and lifts.
- Power heavy-duty machinery like excavators and bulldozers.
- Provide fine control over cranes during lifting operations.
- Enable precision digging or grading tasks in challenging environments.
- Control rudder systems for accurate navigation.
- Power winches for lifting heavy loads on ships.
- Drive underwater remotely operated vehicles (ROVs) for exploration tasks.
1. High Precision: Closed-loop control ensures exceptional accuracy even under dynamic conditions.
2. Powerful Performance: Capable of handling large loads with minimal effort due to high-pressure hydraulics.
3. Versatility: Suitable for a wide range of industries and applications.
4. Fast Response Times: Ideal for tasks requiring quick adjustments or corrections.
5. Durability: Designed to withstand harsh operating conditions such as extreme temperatures or heavy vibrations.
1. High Initial Cost: More expensive than traditional hydraulic systems due to advanced components.
2. Maintenance Requirements: Regular upkeep is necessary to ensure optimal performance.
3. Sensitivity to Contamination: Impurities in hydraulic fluid can degrade system efficiency.
4. Complexity: Requires skilled operators and technicians for installation and troubleshooting.
To ensure long-lasting performance, follow these maintenance practices:
1. Regular Fluid Checks: Monitor hydraulic fluid levels and quality; replace contaminated fluid promptly.
2. Inspect Filters: Clean or replace filters regularly to prevent debris from entering critical components.
3. Lubricate Moving Parts: Minimize wear by applying appropriate lubricants as recommended by manufacturers.
4. Monitor Sensors: Ensure feedback sensors are calibrated correctly for accurate data collection.
5. Schedule Preventive Maintenance: Conduct routine inspections to identify potential issues before they escalate into costly repairs.
As technology advances, several trends are shaping the future of hydraulic servo motors:
1. Integration with IoT: Smart sensors enable real-time monitoring and predictive maintenance through Internet of Things (IoT) platforms.
2. Energy Efficiency Improvements: Development of energy-saving designs like variable-speed pumps reduces power consumption.
3. Miniaturization: Compact designs allow integration into smaller devices without sacrificing performance.
4. Eco-Friendly Fluids: Adoption of biodegradable hydraulic fluids minimizes environmental impact.
5. Hybrid Systems: Combining electric servos with hydraulics offers enhanced efficiency and flexibility.
Hydraulic servo motors are indispensable in modern engineering due to their ability to combine high precision with immense power. By leveraging closed-loop control systems, they ensure accurate performance across a wide range of demanding applications—from aerospace to industrial automation.
Understanding their components, working principles, advantages, limitations, and maintenance requirements allows engineers to maximize their potential while minimizing downtime or inefficiencies.
A hydraulic servo motor is a device that uses pressurized hydraulic fluid combined with closed-loop control systems to achieve precise motion or force output.
Feedback sensors measure real-time variables like position or force and send data back to the controller for adjustments, ensuring accuracy by minimizing errors dynamically.
Industries such as aerospace (flight controls), automotive (power steering), construction (excavators), marine engineering (rudder systems), and industrial automation (CNC machines) rely heavily on these motors.
The servo valve regulates hydraulic fluid flow based on electrical input signals from the controller, enabling precise control over actuator movement.
Yes! Modern advancements include energy-efficient systems like variable-speed pumps that adjust motor speed based on load requirements, reducing overall energy consumption.
