Hydraulic vane motors are a cornerstone of modern hydraulic systems, converting hydraulic energy into mechanical motion with precision and efficiency. Their unique design and functionality make them indispensable in a wide range of industries, from construction and agriculture to aerospace and renewable energy. This article will explore the intricacies of hydraulic vane motors, including their construction, working principles, applications, advantages, and frequently asked questions.

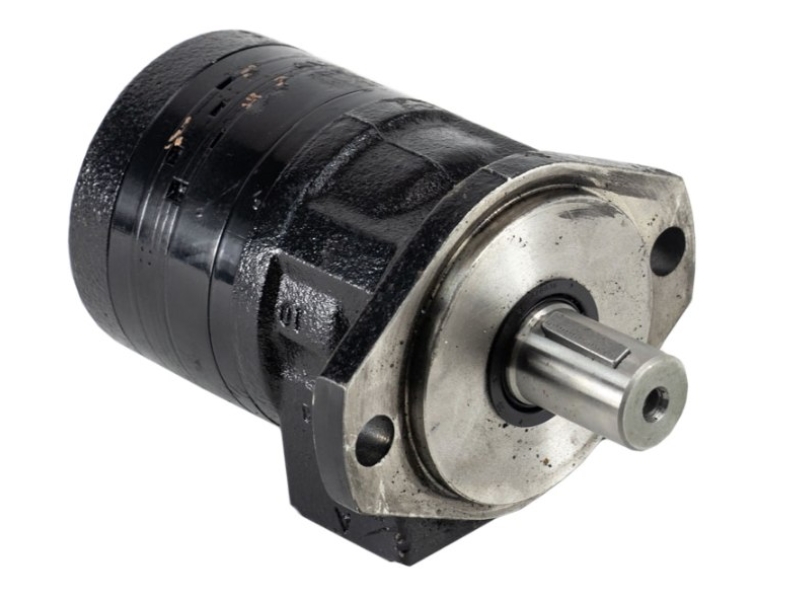

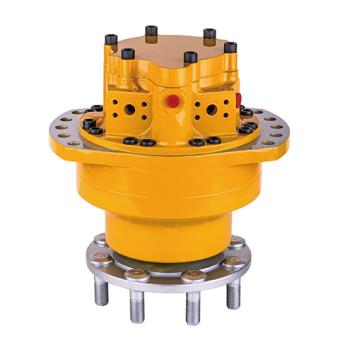

A hydraulic vane motor is a type of rotary actuator that transforms hydraulic energy into mechanical energy through the movement of vanes within a rotor. These motors are known for their smooth operation, high efficiency, and ability to deliver consistent torque across a wide range of speeds.
Hydraulic vane motors are widely used in applications where precise control over speed and torque is required. They are especially favored for their compact design and ability to operate in both directions by simply reversing the flow of hydraulic fluid.
The construction of a hydraulic vane motor is relatively simple yet highly effective. Its key components include:
- Rotor: The central rotating element that contains radial slots to house the vanes.
- Vanes: Thin, flat blades that slide in and out of the rotor slots to create chambers for fluid flow.
- Cam Ring (Stator): An elliptical or circular housing that surrounds the rotor and provides the surface against which the vanes slide.
- Inlet and Outlet Ports: Openings through which hydraulic fluid enters and exits the motor.
- Springs or Centrifugal Force Mechanism: Used to push the vanes outward at low speeds or during startup.
- Side Plates (End Covers): Provide structural support and sealing for the motor.
The rotor is positioned off-center within the cam ring, creating variable chamber sizes as it rotates. This eccentric positioning is crucial for generating the pressure differential needed to drive rotary motion.

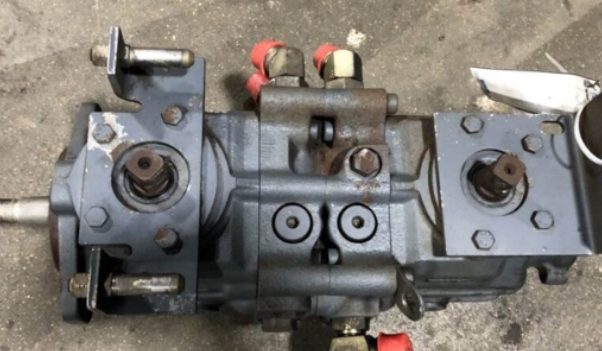

The operation of a hydraulic vane motor can be broken down into several steps:
Pressurized hydraulic fluid enters the motor through the inlet port. This fluid is typically supplied by a hydraulic pump.
The incoming fluid pushes the vanes outward against the inner surface of the cam ring. At low speeds or during startup, springs may assist in extending the vanes.
As the rotor turns, the extended vanes create sealed chambers between themselves, the cam ring, and adjacent vanes. These chambers expand on one side (inlet) and contract on the other side (outlet).
The pressure differential between the expanding chambers on one side and contracting chambers on the other generates torque, causing the rotor to rotate.
After transferring its energy to drive the rotor, the hydraulic fluid exits through the outlet port.
This continuous cycle produces smooth rotary motion that can be harnessed for various mechanical tasks.
Hydraulic vane motors are incredibly versatile and find applications in numerous industries:
- Mixers used in manufacturing processes.
- Conveyor systems for material handling.
- Agitators in chemical processing plants.
- Sprayers for pesticide application.
- Harvesting equipment like combines.
- Irrigation systems requiring precise control over water flow.
- Excavators for digging and earthmoving.
- Road pavers for asphalt laying.
- Skid steer loaders used in landscaping.
- Deployment mechanisms for landing gear.
- Cargo handling systems in aircraft.
- Actuators for flight control surfaces.
- Wind turbines requiring smooth rotational motion.
- Solar tracking devices that adjust panels to maximize sunlight exposure.
- Drilling rigs used in mineral extraction.
- Conveyor belts transporting raw materials.
- Crushers breaking down large rocks into smaller pieces.
Hydraulic vane motors are particularly valuable in applications where reliability under harsh conditions is essential.
Hydraulic vane motors offer several distinct advantages:
- They convert hydraulic energy into mechanical motion with minimal energy loss.
- Their small size allows them to be easily integrated into machinery with limited space.
- Speed and torque can be finely adjusted by controlling fluid flow rate and pressure.
- Made from robust materials like carbon steel or graphite composites, they withstand wear even under demanding conditions.
- Self-lubricating components reduce wear and tear, minimizing maintenance requirements over their lifespan.
- The ability to reverse rotation by changing fluid flow direction adds flexibility to their use.
- The sliding vane mechanism ensures consistent torque delivery with minimal vibration or noise.
Despite their many advantages, hydraulic vane motors have some limitations:
- They require clean hydraulic fluid to prevent damage to internal components like vanes and seals.
- While efficient at moderate pressures, they may not perform as well as piston motors under extremely high pressures.
- The sliding action of vanes against the cam ring can lead to gradual wear if not properly maintained.
- Extreme temperatures can affect fluid viscosity and motor performance.
Understanding these limitations helps users select appropriate applications where hydraulic vane motors excel.
Proper maintenance ensures optimal performance and extends the lifespan of hydraulic vane motors:
- Regularly check for contaminants or degradation in hydraulic fluid quality; use filters if necessary.
- Look for leaks around seals or side plates; replace damaged seals promptly to avoid performance issues.
- Inspect vanes periodically for wear or damage; replace worn-out vanes to maintain efficiency.
- Ensure all moving parts are adequately lubricated using compatible fluids recommended by manufacturers.
- Avoid operating in extreme temperatures; use cooling systems or heaters if necessary to maintain optimal fluid viscosity.
By following these maintenance practices, users can maximize reliability while minimizing downtime due to repairs or replacements.
Hydraulic vane motors are an engineering marvel that seamlessly converts hydraulic energy into rotary motion with remarkable efficiency and precision. Their compact design, smooth operation, and versatility make them invaluable across industries ranging from agriculture to aerospace. While they do have some limitations, proper maintenance ensures they remain reliable workhorses in various applications requiring consistent torque delivery and speed control.
Understanding how these motors work not only highlights their importance but also empowers users to make informed decisions about their implementation and care in real-world scenarios.
Hydraulic vane motors use sliding vanes within an eccentric cam ring to create chambers for fluid flow, unlike gear motors (which use meshed gears) or piston motors (which rely on pistons). This design allows smoother operation at low speeds while maintaining high efficiency across different operating conditions.
Key factors include:
- Fluid pressure and flow rate.
- Rotor speed.
- Volumetric efficiency (seal integrity).
Proper maintenance—such as using clean fluids—also plays a significant role in ensuring optimal performance over time.
Yes! Reversing the direction of fluid flow through inlet/outlet ports changes shaft rotation direction without requiring additional components—making them highly versatile for bidirectional applications like conveyors or winches.
Regular maintenance includes:
- Checking seals for leaks.
- Replacing worn-out vanes.
- Ensuring proper lubrication using manufacturer-recommended fluids.
These practices help maintain performance while preventing costly downtime due to failures caused by neglecting upkeep routines!
Yes! Industries like agriculture (sprayers), construction (excavators), mining(drills), renewable energy(wind turbines), aerospace(landing gear systems)—all benefit significantly from incorporating reliable compact designs offered uniquely via hydrodynamic-based solutions tailored specifically toward each niche's needs!
