Variable displacement hydraulic motors are essential components in modern hydraulic systems, offering the ability to adjust torque and speed dynamically to meet system demands. These motors are widely used in industries ranging from construction and manufacturing to automotive and renewable energy. In this article, we will explore the inner workings of variable displacement hydraulic motors, their components, advantages, and applications. To enhance understanding, we'll include diagrams, video references, and a detailed FAQ section.
Hydraulic motors are devices that convert hydraulic energy (fluid pressure) into mechanical energy (rotational force or torque). They are fundamental in systems where high power density, precise control, and durability are required. Hydraulic motors are part of a broader hydraulic system that includes pumps, valves, actuators, and fluid reservoirs.
Hydraulic motors are divided into two main categories:
- Fixed Displacement Motors: These provide constant torque and speed because their internal geometry does not change.
- Variable Displacement Motors: These allow users to adjust torque and speed by altering the motor's displacement.
Variable displacement motors are particularly valuable in applications requiring flexibility and efficiency under varying loads.
A variable displacement hydraulic motor is a type of hydraulic motor that can adjust its fluid displacement during operation. This adjustment is achieved by altering the internal configuration of the motor, such as the angle of a swash plate or the position of a cam ring. By varying displacement, these motors can deliver different levels of torque and speed depending on the requirements of the system.
- Adjustable Output: Torque and speed can be modified without stopping the motor.
- Energy Efficiency: The motor optimizes energy usage by matching output to load demands.
- Bidirectional Operation: Fluid flow direction can be reversed for forward or backward motion.
- Compact Design: High power-to-weight ratio makes it ideal for space-constrained applications.

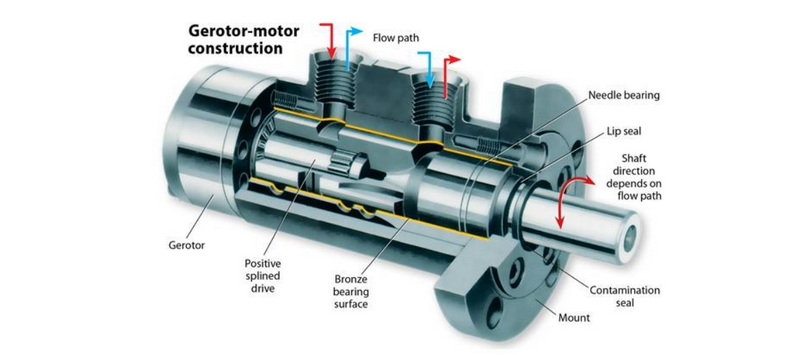

To understand how these motors work, it's essential to know their key components:
The swash plate (in axial piston designs) or cam ring (in vane motors) is responsible for controlling the stroke length of pistons or vanes. Adjusting its angle or position changes the motor's displacement.
These components move reciprocally (in piston motors) or rotate (in vane motors) under fluid pressure to generate mechanical energy.
Control mechanisms include pressure compensators, servo controls, or manual levers that regulate displacement based on system requirements.
This line prevents excessive pressure buildup within the motor casing by allowing fluid to escape back to the reservoir.
These ports allow pressurized fluid to enter and exit the motor, enabling bidirectional operation.
The operation of variable displacement hydraulic motors revolves around adjusting internal geometry to control fluid displacement. Here's how it works step-by-step:
Pressurized hydraulic fluid enters through the inlet port, creating force on pistons or vanes inside the motor.
The angle of the swash plate (or position of the cam ring) determines how much fluid is displaced per revolution:
- A steep angle results in higher displacement, producing more torque but lower rotational speed.
- A shallow angle reduces displacement, resulting in lower torque but higher speed.
As pistons reciprocate or vanes rotate under fluid pressure, they create rotational force that drives the output shaft.
The output shaft transmits mechanical energy to drive machinery or equipment.
There are several mechanisms used to achieve variable displacement in hydraulic motors:

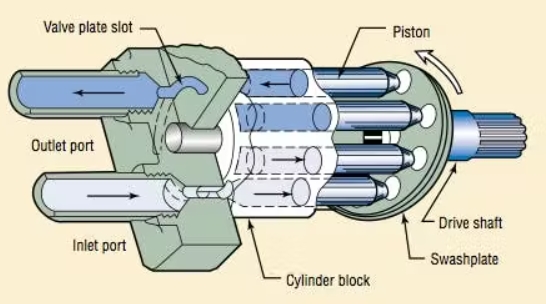

In axial piston designs, a swash plate tilts at varying angles to control piston stroke length and fluid displacement.
In vane motors, the cam ring adjusts its eccentricity relative to the rotor's centerline to vary displacement.

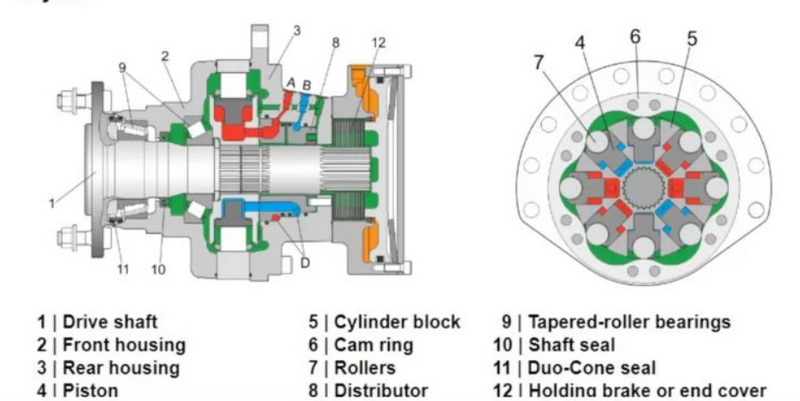

Radial piston designs use a rotating cylinder block with pistons arranged radially around it. The eccentricity between the cylinder block and cam creates variable displacement.
Each mechanism has its advantages depending on application requirements such as precision control, power output, or compactness.
1. Energy Efficiency
- By matching output to load demands, these motors minimize energy wastage compared to fixed-displacement designs.
2. High Power Density
- Compact size combined with high torque output makes them suitable for space-constrained environments.
3. Flexibility
- Adjustable performance allows them to handle varying loads effectively.
4. Bidirectional Operation
- Simplifies system design by enabling forward and reverse motion without additional components.
5. Durability
- Designed for heavy-duty use in harsh environments with minimal maintenance requirements.
Variable displacement hydraulic motors are widely used across industries:
- Construction Equipment: Excavators, loaders, cranes.
- Industrial Automation: Conveyor systems, robotic arms.
- Marine Propulsion Systems: Steering mechanisms for ships.
- Renewable Energy: Wind turbine pitch control systems.
- Mining Machinery: Drilling rigs and haul trucks.
- Injection Molding Machines: Precise control over mold movements.
While variable displacement hydraulic motors offer numerous advantages, they also have some challenges:
1. Complexity
- More components mean higher complexity compared to fixed-displacement designs.
2. Cost
- Initial costs are higher due to advanced control mechanisms.
3. Maintenance
- Regular maintenance is required to ensure optimal performance and prevent wear on moving parts.
4. Sensitivity
- Performance may be affected by contaminants in hydraulic fluid; filtration systems are essential.
Despite these challenges, advancements in technology continue to improve their reliability and cost-effectiveness.
Variable displacement hydraulic motors play a critical role in modern engineering by providing adjustable torque and speed while maintaining energy efficiency. Their versatility makes them indispensable across industries like construction, manufacturing, marine propulsion, and renewable energy systems. By understanding their components and working principles, engineers can optimize their use for specific applications.
Fixed displacement motors provide constant torque and speed because their internal geometry remains static during operation. In contrast, variable displacement motors allow adjustment of torque and speed by altering fluid displacement through mechanisms like swash plates or cam rings.
The swash plate adjusts the stroke length of pistons within an axial piston motor:
- A steeper angle increases fluid displacement (higher torque).
- A shallower angle decreases fluid displacement (higher speed).
They are widely used in industries such as construction (excavators), industrial automation (robotic arms), marine propulsion (ship steering), renewable energy (wind turbines), mining (drilling rigs), and manufacturing (injection molding machines).
By dynamically adjusting their output based on load requirements, they reduce unnecessary energy consumption compared to fixed-displacement designs that operate at constant output regardless of demand.
Yes! They can reverse direction without altering pump rotation by changing the direction of fluid flow through their ports.
