Worm gear reducers, also known as worm gearboxes or worm speed reducers, are crucial components in various industries and applications. They provide efficient power transmission, torque multiplication, and speed reduction. In this article, we will delve into the workings of a worm gear reducer, its benefits, types, applications, and advantages and disadvantages.
A worm gear reducer is a mechanical device that consists of two main components: a worm (a screw-like gear) and a worm wheel (a helical gear). The worm meshes with the worm wheel, converting rotational motion into linear motion or vice versa. Worm gear reducers are widely used for their ability to provide high torque and speed reduction.
- Worm: This is an elongated shaft with a helical surface, often referred to as a worm line. It acts as the input component of the reducer.
- Worm Wheel:A cylindrical gear with a helical tooth surface that meshes with the worm. It is the output component of the reducer.

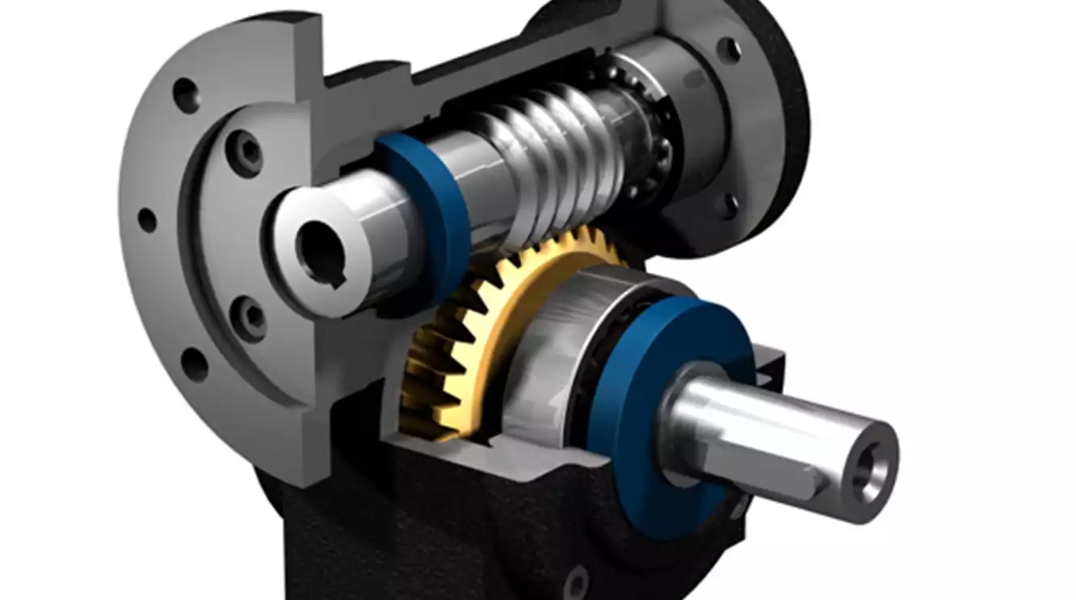

In a worm gear reducer, the worm's rotation drives the worm wheel, causing it to rotate around its axis. As the worm turns, its threads engage with the teeth of the worm wheel, transferring motion and force between the two gears. This interaction results in a change in the speed and direction of the output shaft, providing the desired speed reduction and torque multiplication.
- High Torque Capacity: Worm gear reducers can handle large torque loads, making them suitable for heavy-duty applications.
- Compact Design: The worm and worm wheel arrangement allows for a compact design, saving space in machinery and equipment.
- Self-Locking Capability: In some cases, worm gear reducers can be self-locking, preventing back-driving and ensuring safety in applications where holding a load is necessary.
- Smooth, Quiet Operation: Due to the sliding contact between the worm and worm wheel, worm gear reducers offer smooth and quiet operation, ideal for noise-sensitive environments.
There are several types of worm gear reducers, including:
- Single Reduction Worm Gear Reducers: These reducers have a single worm and worm wheel set, providing a specific reduction ratio.
- Double Reduction Worm Gear Reducers: These reducers have two sets of worm and worm wheel pairs, offering higher reduction ratios and increased torque capacity.
- Hollow Shaft Worm Gear Reducers: These reducers feature a hollow output shaft, allowing for direct mounting onto driven equipment.
- Right-Angle Worm Gear Reducers: These are designed to change the direction of the output shaft by 90 degrees, useful in applications where space is limited.
Worm gear reducers are used in various industries and applications, such as:
- Material Handling: Conveyor systems, lifting equipment, and packaging machinery.
- Industrial Machinery: Mixers, crushers, and extruders.
- Automotive: Steering systems and power transmission components.
- Robotics: Actuators and positioning systems.
- Medical Testing Equipment: Used in precise medical devices.
- Elevators and Security Gates: For controlled movement and safety.
- Agricultural Machinery: Tractors, harvesters, and irrigation systems.
- Construction Equipment: Cranes, excavators, and concrete mixers.
- Wind Turbines: Used in wind energy systems for speed reduction and torque multiplication.
- High Reduction Ratios and Torque Capacity: Worm gear reducers offer significant speed reduction and torque multiplication.
- Compact Design and Space-Saving Capabilities: Ideal for applications where space is limited.
- Self-Locking Features for Safety and Load Holding: Prevents back-driving in certain applications.
- Smooth and Quiet Operation: Suitable for noise-sensitive environments.
- Low Maintenance: Compared to other gear types, worm gear reducers require less frequent maintenance due to their simple design.
- Lower Efficiency: Compared to other gear types due to sliding contact between gears, which results in energy loss as heat.
- Increased Wear and Potential for Overheating: Requires proper lubrication and maintenance to prevent overheating and extend lifespan.
- Limited Back-Driving Capability: While self-locking is an advantage, it can also limit the ability to back-drive the system, which may be necessary in some applications.
To ensure optimal performance and longevity of worm gear reducers, regular maintenance is crucial. This includes:
- Proper Lubrication: Regularly check and replace lubricants to prevent overheating and wear.
- Inspection: Regularly inspect for signs of wear or damage to the gears and bearings.
- Alignment: Ensure proper alignment of the worm and worm wheel to prevent uneven wear.
When selecting a worm gear reducer, consider the following factors:
- Load Capacity: Ensure the reducer can handle the required torque and load.
- Speed Reduction Ratio: Choose a reducer that provides the desired speed reduction.
- Space Constraints: Consider compact designs for limited space applications.
- Noise Requirements: Opt for worm gear reducers if quiet operation is necessary.
- Maintenance Accessibility: Select reducers with easy access for maintenance.
In designing worm gear reducers, several factors must be considered:
- Material Selection: Choose materials that provide durability and resistance to wear.
- Gear Ratio: Determine the optimal gear ratio for the specific application.
- Lubrication System: Ensure an effective lubrication system to prevent overheating.
- Mounting Options: Consider different mounting configurations for flexibility in installation.
Worm gear reducers are essential components in various industries and applications, providing efficient power transmission, torque multiplication, and speed reduction. Understanding their working principles, benefits, types, advantages, and disadvantages can help you make an informed decision when selecting the appropriate worm gear reducer for your needs.
A worm gear reducer consists of two main components: a worm (a screw-like gear) and a worm wheel (a helical gear). The worm acts as the input component, while the worm wheel is the output component.
A worm gear reducer achieves speed reduction through the meshing of the worm and worm wheel. The helical surface of the worm engages with the teeth of the worm wheel, resulting in a lower output speed compared to the input speed.
The advantages include high torque capacity, compact design, self-locking capability, and smooth, quiet operation. These features make worm gear reducers suitable for a wide range of applications.
Worm gear reducers are commonly used in material handling, industrial machinery, automotive systems, robotics, medical testing equipment, elevators, security gates, agricultural machinery, construction equipment, and wind turbines.
The primary disadvantages are lower efficiency due to sliding contact between gears and increased wear and potential for overheating, which requires regular maintenance and lubrication.
