Hydraulic servo motors are sophisticated devices that combine hydraulic power with precise control, offering high performance, accuracy, and reliability in various applications. These systems utilize hydraulic fluid to transmit power and control the motion of mechanical components, making them ideal for heavy-duty tasks requiring precise positioning and force. This article delves into the workings of hydraulic servo motors, exploring their components, functioning principles, applications, and advantages.
Hydraulic servo systems operate based on the principle of closed-loop control. In this system, feedback from sensors is used to adjust the system's output to match the desired set point. The process involves the following steps:
When a command signal is received, the controller compares it with the feedback from sensors to determine the error, which is the difference between the desired and actual position.
The controller then adjusts the control valves to regulate the flow of hydraulic fluid, driving the actuator to minimize the error and maintain accurate positioning.
The corrected output is continuously fed back into the system, ensuring that the motor operates accurately and efficiently.
A hydraulic servo system comprises several key components that work together to achieve precise control. These include:
1. Servo Motor: The servo motor is the core component, consisting of a stator, rotor, motor winding, and feedback system. It converts electrical signals into mechanical motion, providing the necessary torque and speed for the application.
2. Servo Valve: The servo valve is an electrically operated valve that controls how hydraulic fluid is sent to an actuator. It can provide precise control of position, velocity, pressure, and force with good post-movement damping characteristics.
3. Hydraulic Pump: The hydraulic pump supplies the hydraulic fluid under pressure to the system. It can be a unidirectional or bidirectional current conveying pump, depending on the system's requirements.
4. Actuator: The actuator, typically a hydraulic cylinder, converts the hydraulic energy into mechanical force or motion. It can be single-acting or double-acting, depending on the application.
5. Sensors: Sensors provide feedback to the controller by monitoring the position, velocity, and pressure of the hydraulic fluid and the actuator. This feedback is crucial for the closed-loop control system.
6. Controller: The controller processes the command signal and the feedback from the sensors to adjust the servo valve and maintain the desired position or velocity.
7. Hydraulic Fluid: The hydraulic fluid transmits power within the system. It should have appropriate viscosity, stability, and lubrication properties to ensure efficient operation.
8. Hydraulic Tank: The hydraulic tank stores the hydraulic fluid and dissipates heat. It also allows for the settling of contaminants.
There are several types of hydraulic servo motors, each designed for specific applications and performance requirements. These include:
1. Rotary Servo Motors: These motors provide rotary motion and are used in applications requiring precise angular positioning. They are commonly used in robotics, machine tools, and rotary actuators.
2. Linear Servo Motors: These motors provide linear motion and are used in applications requiring precise linear positioning. They are commonly used in CNC machines, industrial automation, and material handling systems.
3. Valve-Controlled Servo Motors: These motors use servo valves to control the flow of hydraulic fluid to the motor, providing precise control over speed and torque. They are used in applications requiring high accuracy and responsiveness.
4. Pump-Controlled Servo Motors: These motors use variable displacement pumps to control the flow of hydraulic fluid to the motor, providing energy-efficient operation. They are used in applications requiring high power and efficiency.
Hydraulic servo systems are used in a wide range of applications across various industries due to their high power density, accuracy, and reliability. Some of the key applications include:
In manufacturing, hydraulic servo systems enable precise positioning and control in machining, assembly, and material handling processes, enhancing productivity and quality. Imagine a robotic arm precisely welding components on a car assembly line, each movement dictated by a hydraulic servo system, ensuring flawless welds every time.
Heavy machinery such as excavators, bulldozers, and cranes rely on hydraulic servo systems for precise control of movement and force, crucial for executing intricate tasks efficiently. Consider an excavator precisely digging a trench for a pipeline, the operator relying on the hydraulic servo system to control the boom and bucket with millimeter accuracy.
Aircraft control surfaces, landing gear, and flight simulators utilize hydraulic servo systems to achieve responsive and accurate control, ensuring safe and reliable operation in demanding aviation environments. Envision the ailerons of an aircraft responding instantaneously to the pilot's commands, adjustments facilitated by hydraulic servo systems that guarantee stable flight.
From power steering and brake systems to automated transmission controls, hydraulic servo systems play a vital role in enhancing vehicle performance, comfort, and safety. Think of the smooth, responsive power steering in a luxury car, or the anti-lock braking system preventing skidding, all thanks to hydraulic servo systems.
Servo drives are utilized in hydraulic systems onboard ships and marine equipment for controlling hydraulic pumps, valves, and actuators, ensuring precise hydraulic power delivery for various applications such as steering, braking, and cargo handling. They also drive winch and crane systems onboard ships and offshore installations for tasks such as cargo handling, anchor handling, and subsea operations, providing precise control over lifting, lowering, and positioning operations. Consider a massive cargo ship precisely maneuvering into a harbor, guided by a hydraulic servo system controlling its rudder and thrusters.
Hydraulic servo systems are used in robotic arms and manipulators to provide precise and powerful movements. Their high force-to-size ratio makes them ideal for heavy-duty tasks. Picture a robotic arm in a factory, lifting and precisely placing heavy engine blocks, a task made possible by the robust hydraulic servo system.
CNC machines utilize hydraulic servo systems for accurate positioning and control of cutting tools. This ensures high precision and surface finish in machining operations. Imagine a CNC mill carving out intricate designs on a metal workpiece, the precision movements guided by hydraulic servo systems that deliver flawless results.
Hydraulic servo systems offer several advantages over other types of control systems, including:
Hydraulic systems can deliver high power in a compact size, making them suitable for applications requiring high force or torque. This is particularly advantageous in situations where space is limited but significant power is needed.
The closed-loop control system ensures precise positioning and velocity control. The system continually monitors and adjusts the output to match the desired set point, minimizing errors and ensuring accuracy.
Hydraulic servo systems can respond quickly to changes in the command signal, providing excellent dynamic performance. This is crucial in applications where rapid and precise movements are required.
Hydraulic systems are robust and can operate in harsh environments. They are less susceptible to damage from shock, vibration, and extreme temperatures compared to other types of control systems.
With proper maintenance, hydraulic servo systems can provide long-term reliable operation. Regular maintenance helps to prevent leaks, contamination, and wear, ensuring that the system operates efficiently for years.
Despite their advantages, hydraulic servo systems also have some disadvantages:
1. Complexity: Hydraulic systems can be more complex than electrical or mechanical systems, requiring specialized knowledge for design and maintenance. This complexity can make it more challenging to troubleshoot and repair problems.
2. Maintenance: Regular maintenance is required to prevent leaks, contamination, and wear. This can include changing the hydraulic fluid, inspecting hoses and fittings, and replacing worn components.
3. Efficiency: Hydraulic systems can be less energy-efficient than electrical systems due to losses in the pump and valves. Energy is lost as heat due to friction and inefficiencies in the hydraulic components.
4. Environmental Concerns: Hydraulic fluid leaks can pose environmental risks, requiring careful handling and disposal. Some hydraulic fluids are toxic and can contaminate soil and water if spilled.

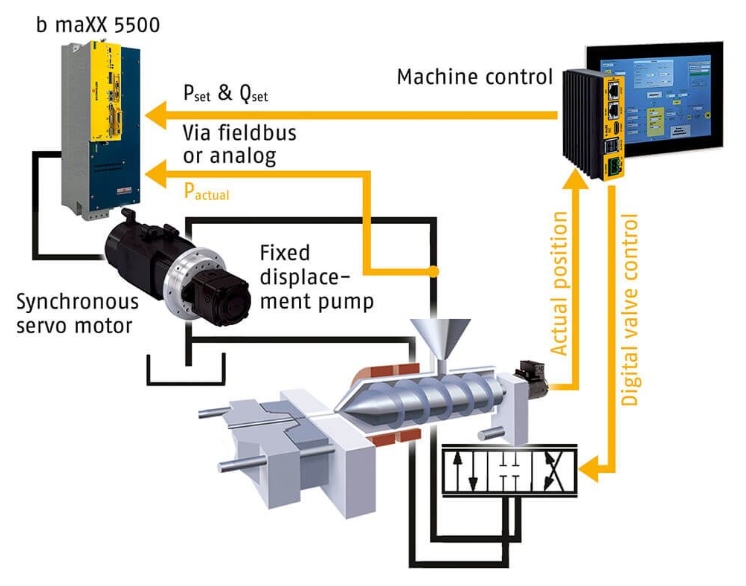

Servohydraulics represents a modern approach to hydraulic systems, integrating servo technology to enhance performance and efficiency. These systems typically consist of a servo converter that drives a synchronous servo motor, which in turn drives a constant pump. The pressure and volume flow are controlled by adjusting the speed of the servo motor, offering precise control and energy savings.
Compared to traditional hydraulic systems that often waste energy through throttling and pressure relief valves, servohydraulic systems adjust the hydraulic output to match the exact demands of the application, minimizing energy waste. This makes servohydraulic systems more environmentally friendly and cost-effective in the long run.
The transition to servohydraulic drives involves replacing conventional hydraulic systems with servohydraulic systems. This can result in significant improvements in energy efficiency, precision, and control. Mechanical engineers provide the required flow rate and pressure values to system suppliers like Baumüller, who then design the entire drive system, including the pump, motor, and converter.
This transition often requires careful planning and consideration of the specific application requirements. However, the benefits in terms of energy savings, improved performance, and reduced maintenance costs can make it a worthwhile investment.

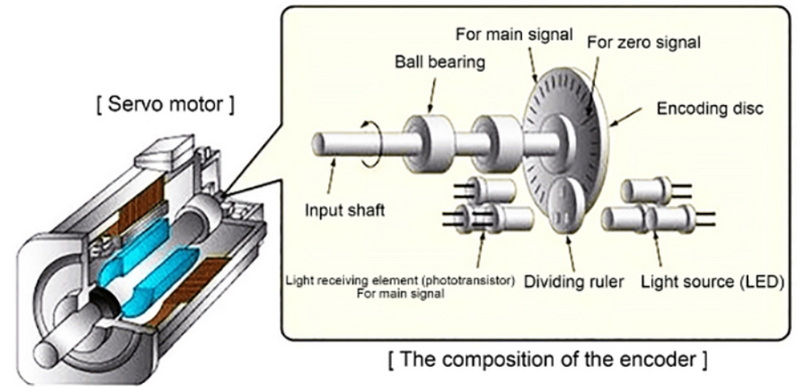

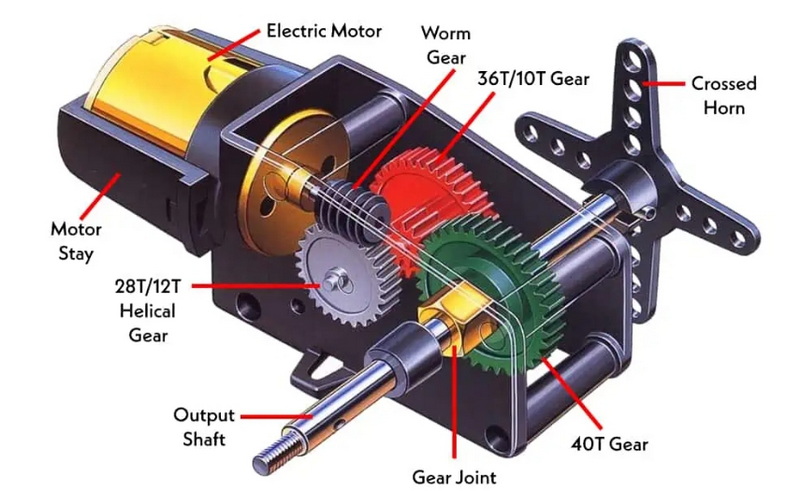

The servo motor's structure includes essential components such as a housing, stator, rotor, motor winding, cooling system, power connection, and feedback system. The servo controller acts as an intermediary between the motor and digital control elements, converting signals as required.
The housing provides a protective enclosure for the motor components, while the stator and rotor work together to generate the torque needed to drive the system. The motor winding converts electrical energy into mechanical energy, and the cooling system prevents the motor from overheating. The power connection provides the electrical power needed to operate the motor, and the feedback system provides information about the motor's position and speed to the controller.
Servo motors operate on negative feedback, where the control input is closely compared to the actual position via a transducer. Any variance between physical and wanted values generates an error signal that is amplified and used to drive the system in the direction necessary to reduce or eliminate the error. Servo motors are controlled by a pulse of variable width, also known as pulse width modulation (PWM), sent from a micro-controller output pin to the motor's control wire.
The PWM signal determines the position of the servo motor. By varying the width of the pulse, the controller can precisely control the motor's position, allowing for accurate and responsive movements.
Electrohydraulic servo valves (EHSVs) are electrically operated valves that control how hydraulic fluid is sent to an actuator. These valves are often used to control powerful hydraulic cylinders with a very small electrical signal. EHSVs can provide precise control of position, velocity, pressure, and force with good post movement damping characteristics.
EHSVs are essential components in hydraulic servo systems, allowing for precise control of hydraulic fluid flow and enabling the system to respond quickly to changes in the command signal. They are used in a wide range of applications, including robotics, machine tools, and aerospace.
The future of hydraulic servo systems is likely to be shaped by several key trends, including:
1. Increased Integration of Electronics: As technology advances, hydraulic servo systems are becoming more integrated with electronic control systems. This allows for more precise control, improved performance, and enhanced functionality.
2. Development of Smart Hydraulic Systems: Smart hydraulic systems incorporate sensors and data analytics to monitor the system's performance and predict potential problems. This allows for proactive maintenance and reduces the risk of downtime.
3. Use of Environmentally Friendly Hydraulic Fluids: As environmental concerns grow, there is increasing demand for hydraulic fluids that are biodegradable and non-toxic. Researchers are developing new types of hydraulic fluids that are more environmentally friendly.
4. Adoption of Additive Manufacturing: Additive manufacturing, also known as 3D printing, is being used to create custom hydraulic components with complex geometries. This allows for greater design flexibility and can reduce manufacturing costs.
5. Integration of AI and Machine Learning: AI and machine learning algorithms are being used to optimize the performance of hydraulic servo systems. These algorithms can analyze data from sensors to identify patterns and make adjustments to the system's control parameters, improving efficiency and reducing energy consumption.
Hydraulic servo motors are essential components in a wide array of applications, offering high power density, accuracy, and reliability. Their closed-loop control systems ensure precise positioning and velocity control, making them indispensable in industries ranging from manufacturing to aerospace. While they present certain challenges such as complexity and maintenance requirements, advancements like servohydraulics are paving the way for more efficient and environmentally friendly hydraulic systems. Understanding the principles and components of hydraulic servo motors is crucial for engineers and technicians working with these powerful and versatile devices. The future of hydraulic servo systems is bright, with ongoing advancements in technology promising even greater performance, efficiency, and sustainability.
A hydraulic servo system is a closed-loop control system that uses feedback to accurately control a device. It utilizes hydraulic fluid to transmit power and control the motion of mechanical components, offering high performance, accuracy, and reliability.
A hydraulic servo motor works by using a closed-loop control system. When a command signal is received, the controller compares it with feedback from sensors to determine the error. The controller then adjusts the control valves to regulate the flow of hydraulic fluid, driving the actuator to minimize the error and maintain accurate positioning.
The main components include a servo motor, servo valve, hydraulic pump, actuator, sensors, controller, hydraulic fluid, and hydraulic tank. Each component plays a critical role in the precise control and operation of the system.
The advantages include high power density, high accuracy, fast response, robustness, and reliability. These systems can deliver high power in a compact size and operate in harsh environments.
Hydraulic servo systems are commonly used in industrial automation, construction and mining, aerospace, automotive, marine, robotics, and machine tools. They are essential in applications requiring precise control of movement and force.
