Determining the appropriate motor size for a 22 GPH (gallons per hour) hydraulic pump is crucial for ensuring the efficiency and reliability of your hydraulic system. Hydraulic systems are widely used in various applications, from heavy machinery to automotive systems, and proper motor sizing is essential for optimal performance. This article delves into the factors influencing motor sizing, calculation methods, and practical considerations to help you select the right motor for your hydraulic pump.
Hydraulic pump motor sizing involves determining the appropriate power and size of the motor required to drive a hydraulic pump in a specific application. This process ensures that the motor can efficiently deliver the necessary flow rate and pressure for the hydraulic system to perform its intended tasks. The motor's size directly impacts the performance and efficiency of the hydraulic system, making accurate sizing critical.
- Pressure: The force needed to perform the task.
- Flow Rate: The speed at which the task needs to be performed.
- Load: The resistance that the hydraulic system needs to overcome.

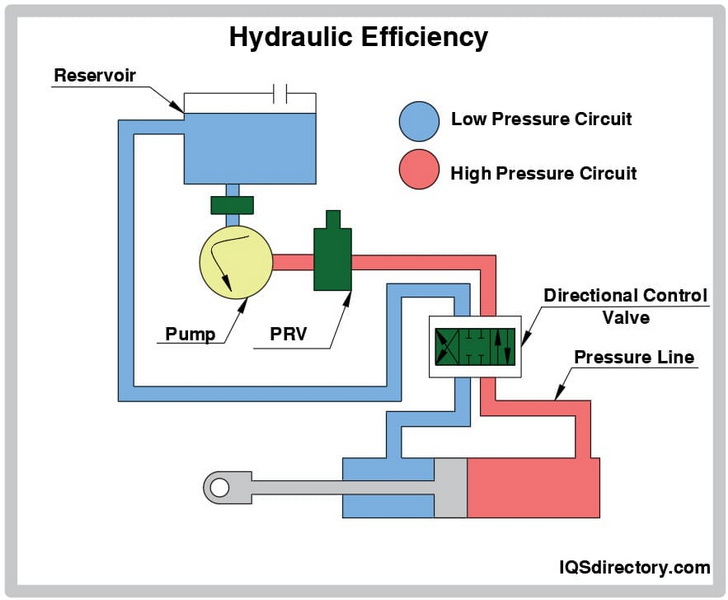

Before diving into the specifics of motor sizing, it's essential to understand the basic components of a hydraulic system. These components work together to convert mechanical energy into hydraulic energy and then back into mechanical energy to perform work.
1. Hydraulic Pump: The hydraulic pump is the heart of the system, responsible for converting mechanical energy from the motor into hydraulic energy. It draws hydraulic fluid from a reservoir and delivers it to the system at the required flow rate and pressure.
2. Electric Motor: The electric motor provides the mechanical energy to drive the hydraulic pump. The motor's size and power output must be adequate to meet the pump's demands under various operating conditions.
3. Reservoir: The reservoir stores the hydraulic fluid, providing a supply for the pump and accommodating changes in fluid volume due to temperature variations and system demands.
4. Valves: Valves control the direction, pressure, and flow rate of hydraulic fluid within the system. They regulate the operation of actuators and ensure smooth and controlled movement.
5. Actuators: Actuators convert hydraulic energy into mechanical energy to perform work. Common types of actuators include cylinders (for linear motion) and motors (for rotary motion).
6. Piping and Hoses: Piping and hoses transport hydraulic fluid between components, providing a closed-loop system for fluid circulation.
The fundamental formula for calculating the required motor size for a hydraulic pump is as follows:
Motor Size HP =(Flow Rate GPM ×Pressure PSI )/(Efficiency×1714)
Where:
- Motor Size is the required motor size in horsepower (HP).
- Flow Rate is the desired flow rate of the hydraulic system in gallons per minute (GPM).
- Pressure is the desired pressure of the hydraulic system in pounds per square inch (PSI).
- Efficiency is the efficiency of the hydraulic pump as a decimal (e.g., 0.85 for 85% efficiency).
To adapt this formula for a 22 GPH hydraulic pump, we need to convert gallons per hour (GPH) to gallons per minute (GPM).
Flow Rate GPM =Flow Rate GPH/60
For a 22 GPH pump:
Flow Rate GPM =22/60≈0.367 GPM
Now, we can use this value in the motor sizing formula.
Let's go through a step-by-step calculation to determine the appropriate motor size for a 22 GPH hydraulic pump.
As calculated above, the flow rate is approximately 0.367 GPM.
The required pressure depends on the specific application. For this example, let's assume a pressure requirement of 1500 PSI.
The efficiency of hydraulic pumps typically ranges from 70% to 90%. For this calculation, let's assume an efficiency of 85% (0.85).
Motor Size HP =(0.367 GPM×1500 PSI)/(0.85×1714)
Motor Size HP =550.5/1456.9≈0.378 HP
Therefore, for a 22 GPH hydraulic pump operating at 1500 PSI with an efficiency of 85%, you would need a motor of approximately 0.378 HP.
While the formula provides a theoretical motor size, several practical considerations can influence the final selection.
Motors are often selected with a service factor to provide additional capacity for unexpected loads or variations in operating conditions. A service factor of 1.15 to 1.25 is commonly used, which means the motor can handle 15% to 25% more load than its rated horsepower for short periods.
Motor Size with Service Factor=Calculated HP×Service Factor
Using a service factor of 1.15:
0.378 HP×1.15≈0.435 HP
In this case, you might opt for a 0.5 HP motor to accommodate the service factor.
The type of motor (e.g., AC induction motor, DC motor) can also influence the selection. AC induction motors are commonly used in hydraulic systems due to their reliability and availability.
The operating environment, including temperature, humidity, and potential exposure to contaminants, should be considered. Motors designed for harsh environments may be necessary to ensure reliable operation and longevity.
Ensure that the motor has sufficient starting torque to overcome the initial load of the hydraulic pump. Starting torque is particularly important in systems where the pump needs to start under load.
Motors are most efficient when operating near their rated load. Selecting a motor that is significantly oversized can lead to reduced efficiency and increased energy consumption.
Inaccurate motor sizing can lead to several problems, affecting the performance and lifespan of the hydraulic system.
- Overheating: An undersized motor will work harder to meet the system's demands, leading to overheating and potential motor failure.
- Reduced Performance: The hydraulic system may not achieve the required flow rate and pressure, resulting in slower operation and reduced performance.
- Premature Wear: The motor components may experience premature wear due to excessive strain, shortening the motor's lifespan.
- Reduced Efficiency: An oversized motor operating at a fraction of its rated load can be less efficient, leading to increased energy consumption and higher operating costs.
- Higher Initial Cost: Larger motors are more expensive to purchase, increasing the initial investment in the hydraulic system.
- Increased Size and Weight: Oversized motors can increase the size and weight of the hydraulic unit, making it more difficult to install and maintain.
To further illustrate the motor sizing process, let's consider a few practical examples.
A small hydraulic press requires a 22 GPH pump to operate at a pressure of 2000 PSI. The pump has an efficiency of 80%. Calculate the required motor size.
1. Flow Rate: 0.367 GPM (22 GPH / 60)
2. Pressure: 2000 PSI
3. Efficiency: 0.80
Motor Size HP =(0.367 GPM×2000 PSI)/(0.80×1714）
Motor Size HP =734/1371.2≈0.535 HP
With a service factor of 1.2, the recommended motor size would be approximately 0.642 HP, so a 0.75 HP motor would be a suitable choice.
A hydraulic lift uses a 22 GPH pump to raise loads, requiring a pressure of 1200 PSI. The pump efficiency is 85%. Determine the motor size needed.
1. Flow Rate: 0.367 GPM
2. Pressure: 1200 PSI
3. Efficiency: 0.85
Motor Size HP =(0.367 GPM×1200 PSI)/(0.85×1714)
Motor Size HP =440.4/1456.9≈0.302 HP
Considering a service factor of 1.15, the adjusted motor size is about 0.347 HP, suggesting a 0.5 HP motor would be appropriate.
For more complex hydraulic systems, advanced techniques and tools can aid in motor sizing.
Software tools like Automation Studio and SimHydraulics allow engineers to simulate hydraulic systems and optimize component sizing, including motor selection. These tools can model system dynamics, predict performance under various operating conditions, and identify potential issues before physical implementation.
Monitoring system performance with data loggers can provide valuable insights into actual operating conditions. Analyzing data such as pressure, flow rate, and motor current can help refine motor sizing and identify opportunities for efficiency improvements.
VFDs can be used to control the speed of the electric motor, allowing for precise adjustment of flow rate and pressure. This can improve system efficiency and reduce energy consumption by matching motor output to actual demand.
To ensure efficient and reliable hydraulic systems, consider the following best practices:
- Regular Maintenance:
Implement a regular maintenance schedule to inspect and service hydraulic components, including pumps, motors, and valves. This can help identify and address potential issues before they lead to system failures.
- Fluid Management:
Maintain hydraulic fluid in good condition by regularly filtering and replacing it as needed. Contaminated or degraded fluid can damage system components and reduce efficiency.
- Proper Cooling:
Ensure adequate cooling for the hydraulic system, especially in high-temperature environments. Overheating can damage components and reduce fluid viscosity, affecting performance.
- Optimize System Design:
Design the hydraulic system to minimize pressure drops and flow restrictions. Use appropriately sized pipes and hoses, and avoid sharp bends and unnecessary fittings.
- Use Energy-Efficient Components:
Select energy-efficient pumps, motors, and valves to reduce energy consumption and operating costs. Consider using variable displacement pumps and proportional valves to match system output to actual demand.
Selecting the right motor for a 22 GPH hydraulic pump involves careful consideration of flow rate, pressure, efficiency, and practical factors such as service factor and operating environment. Accurate motor sizing is crucial for ensuring the efficiency, reliability, and longevity of the hydraulic system. By following the calculation methods and best practices outlined in this article, engineers and technicians can make informed decisions and optimize the performance of their hydraulic systems.
The flow rate is directly proportional to the required motor size. A higher flow rate requires a larger motor to deliver the necessary volume of hydraulic fluid per unit of time. If the flow rate increases, the motor must provide more power to maintain the desired pressure and speed of the hydraulic system.
Pump efficiency plays a significant role in motor sizing. A more efficient pump requires less power from the motor to deliver the same flow rate and pressure. When the pump is less efficient, more power is needed to overcome internal losses, so selecting a high-efficiency pump can reduce the required motor size and energy consumption.
Yes, reducing the system pressure can allow you to use a smaller motor. The motor size is directly proportional to the pressure required by the hydraulic system. If the pressure needed to perform the task is lower, the motor does not need to work as hard, and a smaller motor can be used.
Signs of an undersized motor include overheating, reduced performance, and premature wear. The motor may struggle to maintain the required flow rate and pressure, leading to slower operation and reduced efficiency. The motor may also overheat due to excessive strain, which can shorten its lifespan.
Regular maintenance checks should be performed at least every three to six months, depending on the operating conditions and usage frequency. These checks should include inspecting the motor for signs of overheating or damage, checking the pump for leaks or unusual noises, and ensuring that all connections are secure. Regular maintenance can help identify and address potential issues before they lead to system failures.
