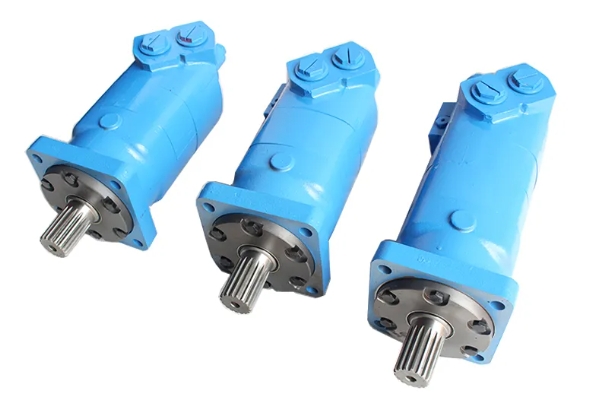

Hydraulic motors are essential components in various hydraulic systems, converting hydraulic power into mechanical rotation. Torque, the turning force generated by the motor, is a crucial parameter for numerous applications. This article delves into the intricacies of torque in hydraulic motors, exploring its significance, potential losses, and effective methods to enhance it.

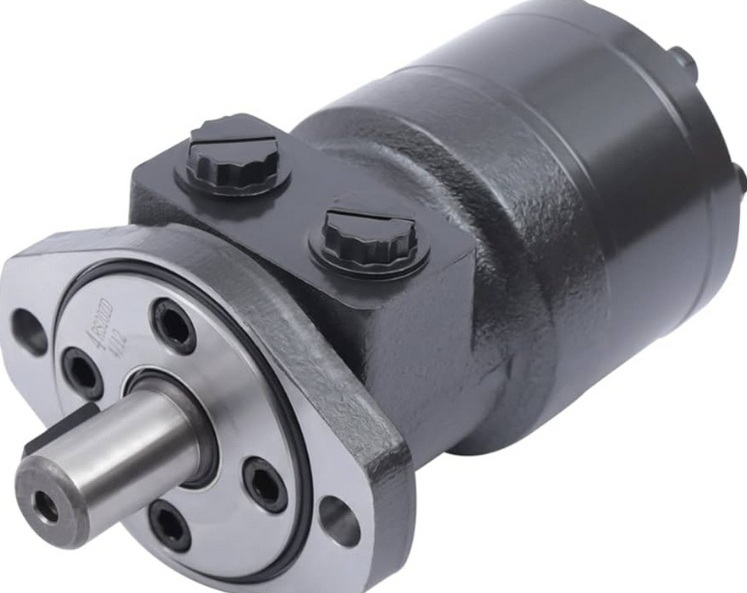

Torque is the rotational force that causes an object to rotate around an axis. In hydraulic motors, torque is generated by the pressure and flow of hydraulic fluid acting on internal vanes or pistons. The torque output of a hydraulic motor is directly proportional to the fluid pressure and displacement and inversely proportional to the motor speed.
Thm=P x d/(2 x pi)
- Where Thm is the Hydraulic Motor Torque (lb-in)
- P is the pressure (psi)
- d is the displacement (in3)
Torque plays a pivotal role in hydraulic motors, determining their ability to perform various tasks. Adequate torque is essential for overcoming loads, accelerating machinery, and maintaining consistent rotational speed. Insufficient torque can lead to motor stalling, reduced efficiency, and potential damage to the system. Torque is always the most significant factor in any hydraulic motor system, even more so than speed or horsepower.
Consider the example of a hydraulic motor used in a construction excavator. The motor needs sufficient torque to swing the excavator arm, lift heavy loads of soil or concrete, and operate consistently under varying load conditions. If the motor lacks the necessary torque, the excavator's performance will be significantly compromised, leading to delays and potential safety hazards.

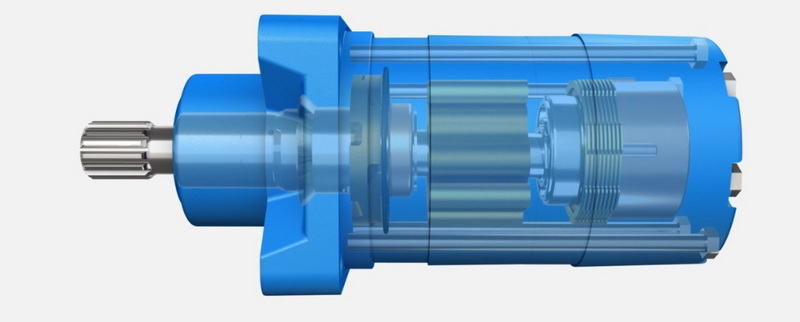

Several factors can contribute to torque losses in hydraulic motors, hindering their performance:
- Internal Leakage: Internal leakage occurs when hydraulic fluid bypasses the intended passages, reducing the effective pressure and flow acting on the motor's vanes or pistons. This leakage can be caused by worn seals, clearances between moving parts, or manufacturing imperfections.
- Frictional Losses: Friction between moving components within the motor, such as vanes, pistons, and seals, can dissipate energy and lead to torque losses. This friction arises from the interaction between surfaces under high pressure and velocity.
- External Inefficiencies: External factors like pressure drops in hoses, fittings, and valves can also contribute to torque losses by reducing the effective pressure reaching the motor. These pressure drops are caused by the resistance to flow within the hydraulic circuit.
To maximize the torque output of a hydraulic motor, consider the following strategies:
- Increase Motor Speed: Raising the motor's rotational speed allows for a higher torque output at a given pressure. However, this may come at the expense of efficiency and potential wear on the motor. It's crucial to consider the motor's design limitations and operating conditions to prevent premature failure.
- Reduce Fluid Pressure: Lowering the operating pressure can minimize internal leakage and frictional losses, leading to improved torque efficiency. However, this approach may require a larger motor displacement to achieve the desired torque output. It's essential to balance pressure reduction with the need to maintain sufficient force for the application.
- Increase Fluid Volume: Utilizing a larger displacement motor provides a greater working volume for the hydraulic fluid, enabling it to generate higher torque at lower pressures. This method is particularly effective for low-speed, high-torque applications. This approach is often preferred when high torque is required at relatively low speeds, such as in heavy-duty machinery.
To calculate the hydraulic motor torque, multiply the pressure by the displacement and then divide by 2 times pi.
- First, determine the pressure (psi). In this example, the pressure (psi) is measured to be 500.
- Next, determine the displacement (in3). For this problem, the displacement (in3) is calculated to be 0.36.
- Finally, calculate the Hydraulic Motor Torque using the formula above:
Thm=P x d/(2 x pi)
Inserting the values from above and solving the equation with the imputed values gives:
Thm = 500 x .36 / (2 x 3.14159) = 28.647 (lb-in)
Using the same process as example problem 1, we first define the variables outlined by the formula. In this case, the values are:
pressure (psi) = 1250
displacement (in3) = 0.75
Using the values above and solving the formula results in:
Thm=P x d/(2 x pi)
Thm = 1250 x .75 / (2 x 3.14159) = 149.2 (lb-in)
For complex systems, simulation software can be used to accurately predict torque output under various operating conditions.
Several other factors can affect the torque of a hydraulic motor, such as the type of motor, the viscosity of the hydraulic fluid, and the temperature of the fluid. It is important to consider all of these factors when selecting a hydraulic motor for a particular application.
- Motor Type: Different types of hydraulic motors, such as gear motors, vane motors, and piston motors, have varying torque characteristics due to their distinct designs and operating principles.
- Fluid Viscosity: The viscosity of the hydraulic fluid affects the internal friction within the motor. Higher viscosity fluids can lead to increased frictional losses and reduced torque output, especially at lower temperatures.
- Fluid Temperature: The temperature of the hydraulic fluid influences its viscosity. As temperature increases, viscosity decreases, which can affect the motor's performance and torque output.
- Use a high-quality hydraulic fluid.
- Keep the hydraulic fluid clean and free of contamination.
- Regularly inspect and maintain the motor.
- Use the correct size motor for the application.
- Do not overload the motor.
- Optimize Hydraulic Circuit: Ensure the hydraulic circuit is designed to minimize pressure drops and maximize flow efficiency. This includes using appropriate hose sizes, minimizing the number of fittings, and selecting efficient valves.
- Proper Cooling: Maintain the hydraulic fluid within the recommended temperature range to prevent viscosity changes and ensure optimal motor performance. This may involve installing a cooling system to dissipate heat.
Hydraulic motors are applicable in road making, metal machinery, trenchers, agricultural machinery, mining machines, special vehicle machinery, swing drives, fan drives, and vibration machines. They are also used in the food industry, hydraulic transmissions, and other applications. Specific examples include:
- Road making machinery
- Trenchers
- Agricultural machinery
- Mining machines
- Food industry machinery
- Swing drives
- Fan drives
- Vibration machines
- Hydraulic transmissions
- Special vehicles
Hydraulic motors are also used in robotics, automation, and aerospace applications. Their versatility and high power density make them suitable for a wide range of industrial and mobile equipment.
Hydraulic motors offer several advantages, including:
- High initial torque
- Durability
- Smooth functioning
- High Power Density: Hydraulic motors can deliver high torque and power output in a compact size, making them ideal for applications with space constraints.
- Variable Speed Control: Hydraulic motors can be easily controlled to provide variable speed operation, allowing for precise adjustment of rotational speed and torque output.
- Reversible Operation: Hydraulic motors can be easily reversed, enabling them to perform bidirectional movements without the need for complex mechanical linkages.
When matching hydraulic motors to loads, torque is always the most significant factor. Load torque is the twisting or turning effort that must be exerted on the load shaft to start the load and/or run it at maximum rated speed. This torque must be supplied by the hydraulic drive motor.
- Calculate Load Torque: Accurately determine the load torque requirements for the specific application. This involves considering factors such as the weight of the load, friction, and any external forces acting on the system.
- Select Motor with Adequate Torque Capacity: Choose a hydraulic motor with a torque capacity that meets or exceeds the load torque requirements. It's important to consider a safety factor to account for variations in load conditions and potential overloads.
- Consider Speed Requirements: Evaluate the required operating speed for the application. Select a hydraulic motor that can deliver the necessary torque at the desired speed range.
Several formulas can be used to calculate hydraulic motor torque:
T = CIR x PSI ÷ 6.28
T = (GPM x PSI x 36.77) ÷ 6.28
HP = T x RPM ÷ 63205
Where:
T = Torque, inch-lbs
CIR = Cubic Inch (in3) per Revolution
GPM = Flow in gallons per minute
PSI = Pressure difference across motor
RPM = Pump revolutions per minute
HP = Horsepower
Feature | Electric Motor | Hydraulic Motor |
Instant Stop/Reverse | Electric motors cannot be stopped instantly, and their direction of rotation cannot be reversed instantly. | hydraulic motor can rotate in the opposite direction. |
Power Transmission | Limited by wiring and location of power source | Power transmission to remote areas. |
Speed Control | Limited to stepped changes in speed | Infinitely variable speed control. |
Overload Protection | Requires external devices and is often slow to respond | Self-overload protection. |
Dynamic Braking | Requires complex circuitry and is expensive | Dynamic braking. |
Power-to-Weight Ratio | Lower power to weight ratio than Hydraulic Motor | High power-to-weight ratio. |
Applications | Home appliances, electronics, and machinery | Material-handling equipment, farm tractors, railway locomotives, buses, lawn mowers, machine tools, farm implements, road machinery, material-handling equipment, Numerical Control(NC) machines high-performance aircrafts, military uses. |
Environmental Factors | Less sensitive to extreme environmental conditions than Hydraulic Motors unless properly shielded or insulated | Can operate safely in explosive or flammable environments |
Size and weight limitations | Size and weight restrictions reduce power available | The size of the motor is less of a restriction. |
- Digital Displacement Motors: Digital displacement motors use electronically controlled valves to regulate the flow of hydraulic fluid to individual cylinders. This allows for precise control of torque and speed, resulting in improved efficiency and performance.
- Electro-Hydraulic Motors: Electro-hydraulic motors combine electric and hydraulic technologies to provide enhanced control and responsiveness. These motors use electric actuators to control hydraulic valves, enabling precise control of torque and speed.
Torque is a critical aspect of hydraulic motor performance, influencing its ability to power various applications. By understanding the factors affecting torque generation and implementing appropriate strategies, engineers can optimize hydraulic motor performance and ensure efficient operation. Carefully selecting the motor size, operating pressure, and fluid flow rate can significantly enhance torque output and system efficiency. Furthermore, advancements in hydraulic motor technologies, such as digital displacement motors and electro-hydraulic motors, offer enhanced control and performance capabilities. When selecting a motor, consider all relevant factors, including speed, environment, operating conditions, and motor technologies.
Torque is the rotational force that a hydraulic motor produces, causing an object to rotate around an axis. It is generated by the pressure and flow of hydraulic fluid acting on the motor's internal components.
The theoretical torque of a hydraulic motor can be calculated using the formula: Thm=P x d/(2 x pi), where Thm is the torque, P is the pressure, and d is the displacement.
Several factors can cause torque loss, including internal leakage, frictional losses, and external inefficiencies such as pressure drops in hoses and valves.
Strategies to increase torque output include increasing motor speed, reducing fluid pressure, and utilizing a larger displacement motor.
Hydraulic motors are used in various applications, including road making, trenchers, agricultural machinery, mining machines, and more. They are also used in robotics, automation, and aerospace.
