Planetary gearboxes, also known as epicyclic gearboxes, are a type of gear system that offers high efficiency and compact design, making them ideal for various industrial and automotive applications. This article will delve into the components, operation principles, types, and applications of planetary gearboxes, along with their advantages and disadvantages.

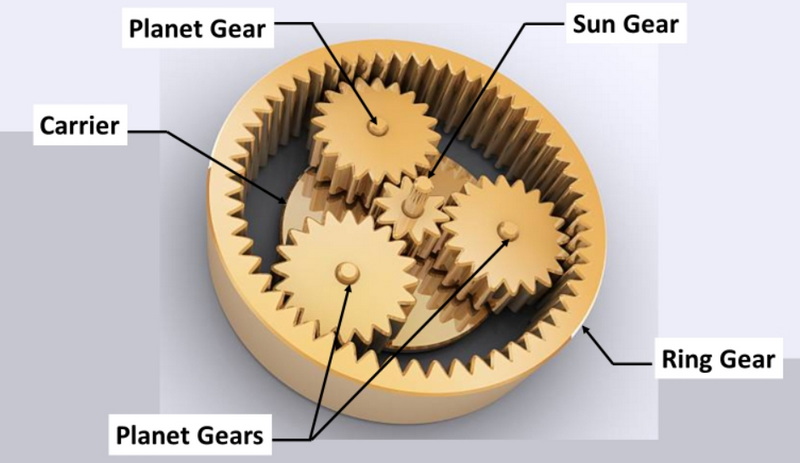

A planetary gearbox consists of three main components: the sun gear, planet gears, and ring gear. The sun gear is the central component, surrounded by multiple planet gears that rotate around it. These planet gears are enclosed by an outer ring gear. The arrangement of these components allows for efficient power transmission and high torque output.
- Sun Gear: Located at the center, it receives the input power and drives the planet gears.
- Planet Gears: These gears rotate around the sun gear and are mounted on a carrier. They mesh with both the sun gear and the ring gear.
- Ring Gear: The outer gear that encloses the planet gears. It can be fixed or rotating depending on the application.
- Carrier: Holds the planet gears in place and rotates with them.
The operation of a planetary gearbox involves the rotation of the sun gear, which causes the planet gears to orbit around it while meshing with the ring gear. The gear ratio is determined by which component is fixed and which is the input/output.
1. Fixed Ring Gear: The ring gear is stationary, and the sun gear drives the planet gears, which in turn rotate the carrier.
2. Fixed Carrier: The carrier does not rotate, and the ring gear rotates when the sun gear is driven.
3. Fixed Sun Gear: The sun gear is stationary, and the ring gear acts as the input, causing the carrier to rotate.
Planetary gearboxes are categorized based on their output configuration:
- Description: The planet gears are attached to a wheel carrier, which rotates the outer ring gear.
- Application: Used in applications requiring high torque, such as wheel drives and track drives.
- Torque Capacity: Can deliver up to 332,000 Nm.

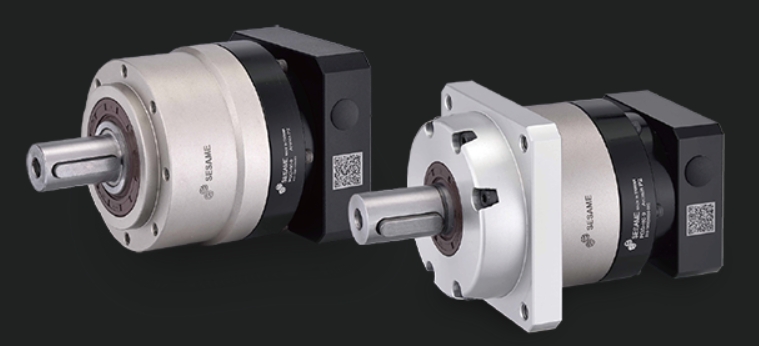

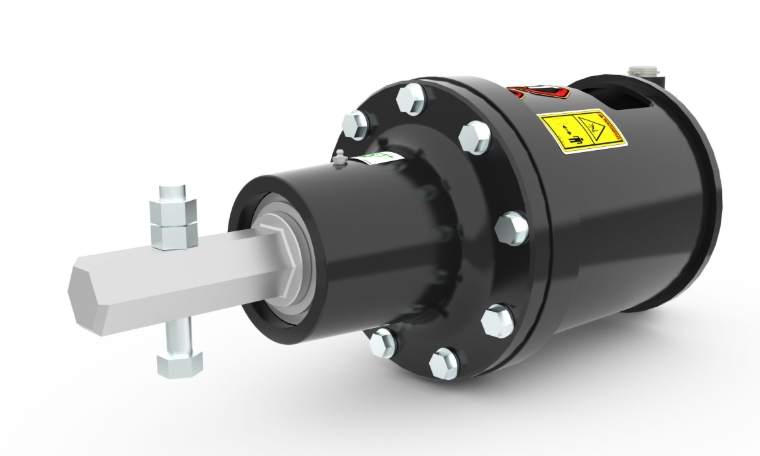

- Description: The sun gear drives the planet gears in a rotating carrier, with the ring gear fixed. The output is a rotating shaft.
- Application: Common in industrial machinery where a rotating shaft is needed.
- Torque Capacity: Up to 113,000 Nm.
- Description: Similar to shaft output but provides the output as a flange.
- Application: Used in applications requiring a flanged output, such as in certain industrial machinery.
- Torque Capacity: Up to 113,000 Nm.
Planetary gearboxes are versatile and used in various sectors:
- Industrial Applications: Conveyors, hoist drives, mixing, pumps, and coil tubing injectors. Their ability to handle heavy loads while maintaining efficiency makes them indispensable in industrial applications.
- Automotive Applications: Automatic transmissions, hybrid vehicles, and electric vehicles. The compact size and robust design make them ideal for the limited space within a vehicle's transmission system.
- Aerospace Applications: Used in aircraft and spacecraft for their high efficiency and reliability. The lightweight and compact nature of these gearboxes make them well-suited for aerospace applications where minimizing weight is critical for fuel efficiency and overall performance.
- Renewable Energy: Planetary gearboxes play a crucial role in wind turbines and solar tracking systems. In wind turbines, they help optimize the rotational speed of the generator to produce electricity efficiently. Solar tracking systems use planetary gearboxes to adjust the position of solar panels, maximizing their exposure to sunlight throughout the day.
- Robotics and Automation: The precision and reliability of planetary gearboxes make them a preferred choice in robotics and automation. Robotic arms, CNC machines, and automated manufacturing systems often incorporate planetary gears to ensure accurate and controlled movements.
- Medical Devices: Planetary gear systems are also utilized in various medical devices, such as diagnostic equipment, imaging devices, and robotic surgical systems. Their ability to provide precise motion control and their compact design make them suitable for applications where space is limited, and accuracy is paramount.
- Consumer Electronics: Planetary gears are used in consumer electronics products like mobile phone lifting camera actuators and mobile phone photo printers.
- Smart Home Devices: They are used in hand-held washing machines, vacuum cleaners, baby strollers, lifting sockets, and sweeping robots.
- Compact Design: Ideal for space-constrained applications.
- High Efficiency: Approximately 97% of input energy is delivered as output.
- High Torque Density: Allows for high torque transmission in a compact size.
- Low Noise: Offers smoother operation with minimal noise.
- Higher Cost: Complex design increases manufacturing costs.
- Overheating: Compact design can lead to overheating issues.
- Bearing Limitations: Limited space for bearings can restrict axial load capacity.
Recent innovations in planetary gearboxes include the integration of smart technologies, such as IoT sensors, to enhance maintenance and performance monitoring. Predictive maintenance techniques leverage data analytics to predict gearbox failures or performance degradation, reducing downtime and improving overall efficiency.
The use of lightweight materials, such as carbon fiber-reinforced composites, aims to reduce the overall weight of planetary gearboxes, enhancing energy efficiency and payload capacity in applications like automotive, aerospace, and robotics. Additive manufacturing techniques allow for rapid prototyping and customization of planetary gears, enabling faster design changes and optimized gear geometries.
- Electric Vehicle Integration: As the automotive industry shifts towards electric vehicles, planetary gearboxes are being optimized for these applications, focusing on efficiency and compactness.
- Advanced Materials: Research into new materials and coatings aims to improve durability and reduce friction, further enhancing efficiency and lifespan.
- Digitalization: Integration with digital systems for real-time monitoring and control is becoming more prevalent, allowing for optimized performance and predictive maintenance.
Despite their advantages, planetary gearboxes can face challenges such as insufficient lubrication, contamination, overloading, and misalignment, which can lead to premature failure. Regular maintenance practices, including lubrication checks and contamination control, are crucial to extend the lifespan of planetary gearboxes.
- Regular Inspections: Monitoring for signs of wear or damage.
- Proper Lubrication: Ensuring adequate lubrication to reduce friction and heat.
- Contamination Control: Keeping the gearbox free from contaminants.
- Load Management: Ensuring loads do not exceed recommended capacities.
- Noise and Vibration: Often indicates misalignment or worn components.
- Overheating: Can be due to insufficient lubrication or excessive load.
- Reduced Efficiency: May result from contamination or improper maintenance.
In robotics, planetary gearboxes are experiencing a resurgence due to their compact size and high torque capabilities, making them ideal for collaborative robots (cobots) and other lightweight applications. Manufacturers like Kinova and Automata are integrating planetary gearboxes into their robotic systems to enhance precision and efficiency.
Planetary gearboxes are essential in renewable energy systems, particularly in wind turbines and solar tracking devices. In wind turbines, they convert low-speed rotational energy into high-speed energy for efficient electricity generation. Solar tracking systems rely on planetary gearboxes to adjust solar panels for optimal sunlight exposure.
In the aerospace industry, planetary gearboxes are valued for their lightweight and high-strength characteristics. They are used in flight control systems, landing gear mechanisms, and other critical applications where minimizing weight is essential for fuel efficiency and performance.
Recent trends include the integration of advanced materials and smart technologies to enhance performance and efficiency. The use of IoT sensors for real-time monitoring and predictive maintenance is becoming more prevalent, allowing for optimized performance and reduced downtime.
North America-based firms are leading the integration of IoT and smart technologies into industrial planetary gearboxes. This includes sensors that monitor lubrication levels, vibration, and temperature, providing valuable insights into gearbox health and performance[4].
By 2025, planetary gearboxes are expected to play a significant role in agricultural machinery and medical devices. In agriculture, they will enhance the efficiency of equipment like tractors and harvesters, while in medical devices, their precision and compact size will support innovations in surgical robots and diagnostic equipment[2].
Planetary gearboxes are highly efficient and versatile, making them suitable for a wide range of applications. Their ability to provide high torque in a compact design, along with their high efficiency and low noise operation, makes them a preferred choice in both industrial and automotive sectors.
The main components of a planetary gearbox include the sun gear, planet gears, ring gear, and carrier.
Planetary gearboxes achieve high torque by distributing the load across multiple planet gears, which mesh with both the sun gear and the ring gear.
Common types include wheel drive, shaft output, and spindle output gearboxes, each suited for different applications.
Advantages include compact design, high efficiency, high torque density, and low noise operation.
Applications include industrial machinery, automotive transmissions, aerospace systems, renewable energy, robotics, and medical devices.
