Converting a PTO-driven bush hog mower to hydraulic drive offers several advantages, especially when used with a skid loader. This conversion involves replacing the mechanical PTO system with a hydraulic motor, enhancing flexibility and control. This article provides a detailed guide on how to add a hydraulic motor to a bush hog, covering component selection, system design, and step-by-step installation.
-Enhanced Control: Hydraulic systems provide precise control over the mower's speed and torque.
-Flexibility: Hydraulic motors can be easily integrated with skid loaders and other hydraulic power sources.
-Safety: Incorporating features like check valves ensures safe operation and prevents freewheeling.
Before starting the conversion, it's crucial to understand the fundamental principles of hydraulic systems.

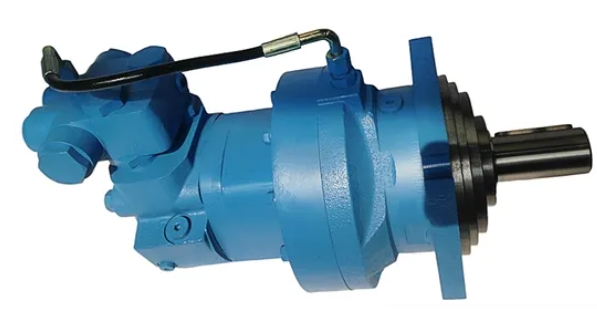

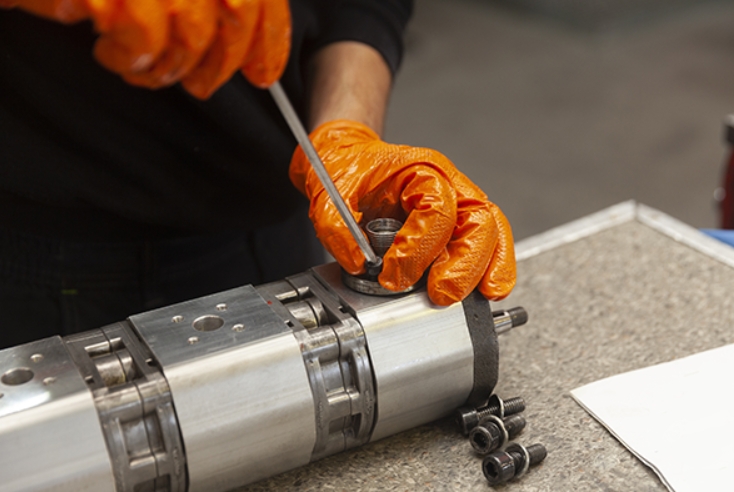

1. Hydraulic Motor: Converts hydraulic fluid power into mechanical rotation.
2. Hydraulic Pump: Provides the necessary flow and pressure to the hydraulic motor.
3. Hydraulic Hoses and Fittings: Connect the hydraulic pump to the motor, ensuring a leak-free system.
4. Control Valve: Regulates the flow of hydraulic fluid, controlling the motor's speed and direction.
5. Check Valve: Allows the blades to freewheel when the hydraulic power is shut off.
6. Reservoir: Stores hydraulic fluid and dissipates heat.
7. Filter: Keeps the hydraulic fluid clean, preventing damage to components.
Hydraulic systems operate on Pascal's principle, which states that pressure applied to a confined fluid is transmitted equally in all directions. This pressure is used to perform work, such as rotating the blades of a bush hog.
1. Determine Hydraulic Requirements:
-Flow Rate: Calculate the required flow rate (gallons per minute, GPM) based on the desired RPM of the bush hog blade.
-Pressure: Determine the operating pressure (PSI) of the hydraulic system.
2. Select Hydraulic Motor:
-Displacement: Choose a motor with the appropriate displacement (cubic inches per revolution, CID) to match the flow rate and desired RPM.
-Torque: Ensure the motor can provide sufficient torque to cut through heavy vegetation.
3. Gather Necessary Components:
-Hydraulic motor
-Hydraulic pump (if not already available)
-Hydraulic hoses and fittings
-Control valve
-Check valve
-Hydraulic fluid reservoir
-Filter
-Mounting brackets and hardware
1. Disconnect the PTO Shaft:
-Remove the PTO shaft from the tractor and the bush hog gearbox.
2. Remove the Gearbox:
-Detach the gearbox from the bush hog deck. This usually involves removing bolts and possibly using a penetrating oil to loosen any seized parts.
1. Fabricate a Mounting Plate:
-Design and fabricate a mounting plate to securely attach the hydraulic motor to the bush hog deck.
-Ensure the mounting plate is robust enough to handle the torque produced by the hydraulic motor.
2. Align the Motor:
-Align the hydraulic motor shaft with the blade spindle. Proper alignment is crucial to prevent vibration and premature wear.
3. Secure the Motor:
-Bolt the hydraulic motor to the mounting plate, ensuring all bolts are tightened to the correct torque specifications.
1. Connect Hydraulic Hoses:
-Connect the hydraulic hoses from the hydraulic pump to the control valve and then to the hydraulic motor.
-Use appropriate fittings and ensure all connections are tight to prevent leaks.
2. Install the Check Valve:
-Plumb a check valve between the supply and return lines of the hydraulic motor.
-This allows the blades to freewheel when the hydraulic power is shut off, preventing sudden stops.
3. Connect the Reservoir and Filter:
-Connect the hydraulic reservoir to the pump inlet and install a filter in the return line to keep the hydraulic fluid clean.
1. Fill the Hydraulic System:
-Fill the hydraulic reservoir with the recommended type of hydraulic fluid.
2. Bleed the System:
-Bleed the hydraulic system to remove any air pockets. Air in the system can cause erratic operation and damage components.
3. Test the System:
-Start the hydraulic pump and gradually increase the flow to the hydraulic motor.
-Check for leaks and ensure the motor is rotating the blades smoothly.
4. Adjust the Control Valve:
-Adjust the control valve to achieve the desired blade speed.
5. Monitor Performance:
-Monitor the hydraulic system's performance under load. Check for overheating, excessive vibration, or any other issues.
-Hydraulic Leaks: Never use your hands to check for hydraulic leaks. Hydraulic fluid injected into the skin can cause serious injury.
-Pressure Release: Always release hydraulic pressure before performing any maintenance or repairs.
-Component Compatibility: Ensure all hydraulic components are compatible with each other and rated for the system's operating pressure and flow rate.
-Emergency Shut-Off: Implement an easily accessible emergency shut-off valve to quickly stop the hydraulic flow in case of an emergency.
-Overrunning Check Valve: Install an overrunning check valve loop to allow the blades to slowly stop when the unit is shut off, preventing abrupt stops that could damage the equipment or cause injury.
Motor Not Rotating:
-Check for proper hydraulic flow and pressure.
-Ensure the control valve is functioning correctly.
-Inspect the hydraulic motor for internal damage.
Overheating:
-Verify the hydraulic fluid level in the reservoir.
-Check for restrictions in the hydraulic lines.
-Ensure the hydraulic cooler is functioning properly.
Leaks:
-Inspect all fittings and connections for tightness.
-Replace any damaged hoses or seals.
Vibration:
-Check the alignment of the hydraulic motor and blade spindle.
-Ensure the mounting plate is securely attached to the bush hog deck.
Converting a PTO-driven bush hog to a hydraulic system can significantly enhance its performance and versatility. By carefully planning the conversion, selecting the right components, and following the step-by-step installation process, you can create a reliable and efficient hydraulic bush hog. Always prioritize safety and regularly maintain the hydraulic system to ensure long-term performance.
To determine the appropriate size hydraulic motor for a 72-inch bush hog, you need to consider the desired RPM and flow rate. A good starting point is to aim for a motor with approximately 8.5 cubic inches per revolution (CID) displacement to achieve 540 RPM. However, consulting with a hydraulic shop or using online calculators can provide a more precise recommendation based on your specific requirements.
To prevent the blades from freewheeling, install a check valve in the hydraulic system. This valve allows the motor to freewheel and circulate oil as the blade spins down. The check valve is plumbed between the supply and return lines, creating a bypass that enables the motor to gradually slow down when the hydraulic power is turned off.
The type of hydraulic fluid to use depends on the specifications of your hydraulic pump and motor. Generally, a high-quality hydraulic oil with a viscosity grade recommended by the equipment manufacturer is suitable. Check your hydraulic component manuals for specific fluid recommendations to ensure optimal performance and longevity.
Hydraulic leaks can be dangerous, as the high-pressure fluid can penetrate the skin and cause serious injury. Never use your hands or other body parts to locate a hydraulic leak. Instead, use a piece of cardboard or wood to detect the leak. If you find a leak, relieve the pressure in the system before attempting any repairs, and always wear appropriate personal protective equipment (PPE).
Yes, you can reverse the direction of the hydraulic motor by using a control valve that allows for bidirectional flow. Additionally, for applications like augers where reversing the motor is beneficial, you can install a manual valve on the bypass line to disable the check valve when you need to reverse the motor's direction. This setup provides flexibility for using the hydraulic motor in various applications.
