Assembling a planetary gearbox requires careful attention to detail and adherence to specific steps to ensure proper function and longevity. This guide will walk you through the process, highlighting key considerations and providing visual aids where possible.
Planetary gearboxes are widely used in various applications due to their compact size, high efficiency, and ability to provide high torque at low speeds. They consist of a central sun gear, planet gears, and an outer ring gear, which work together to achieve the desired gear ratio.
- Sun Gear: The central gear around which the planet gears rotate.
- Planet Gears: These gears orbit the sun gear and mesh with both the sun and the ring gear.
- Ring Gear: The outer gear that encloses the planet gears.

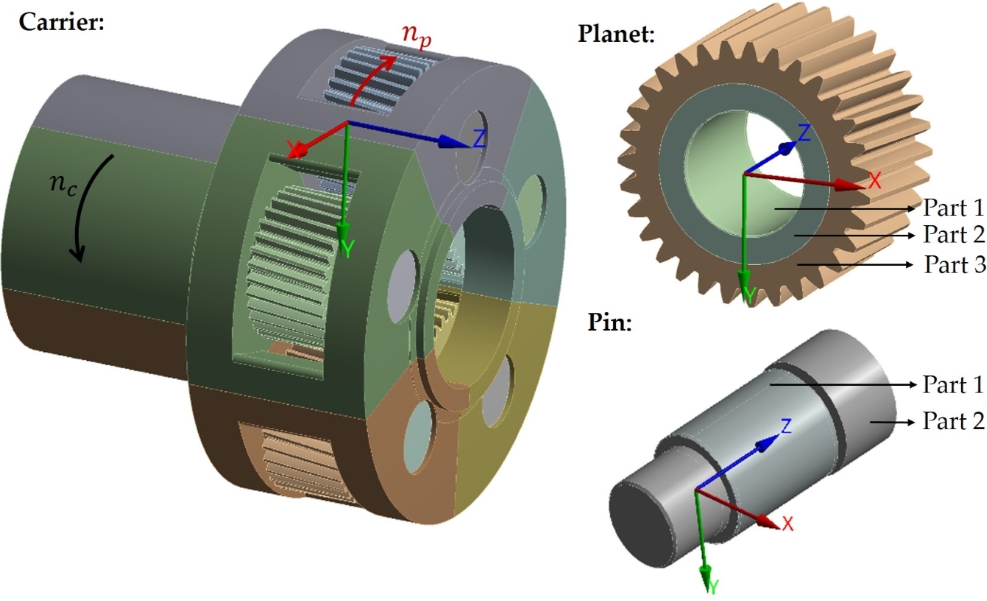

- Carrier: Holds the planet gears in place.
Before assembly, ensure all components are clean and free of debris. Check for any damage or wear on the gears and bearings. It's also important to have all necessary tools and parts ready, such as shafts, bearings, and fasteners.
1. Mount the Planet Gears: Place the planet gears into the carrier, ensuring they are properly seated and aligned.
2. Secure the Shafts: Insert the shafts through the planet gears and secure them in the carrier. Use bushings or bearings to support the shafts if necessary.
1. Align the Ring Gear: Position the ring gear around the planet gears, ensuring it is properly aligned with the carrier.
2. Secure the Ring Gear: Use screws or clips to hold the ring gear in place. Ensure the ring gear is stationary during operation.
1. Mount the Sun Gear: Attach the sun gear to the input shaft, ensuring it is securely fastened.
2. Align with Planet Gears: Ensure the sun gear is properly aligned with the planet gears to prevent misalignment issues.

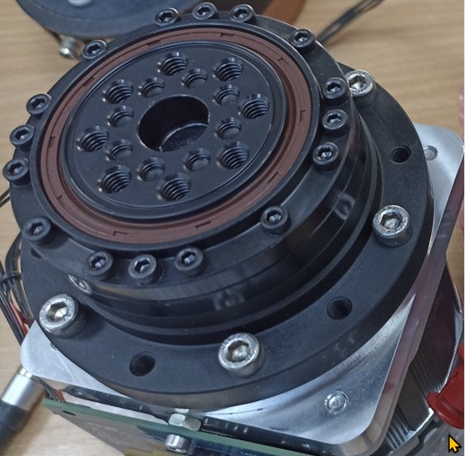

1. Combine Components: Place the assembled planet gears and ring gear into the gearbox casing.
2. Secure the Casing: Tighten the screws to secure the casing, ensuring even pressure.
When designing a custom planetary gearbox, several factors must be considered:
- Gear Ratio: Determine the required gear ratio based on the application's speed and torque requirements.
- Materials: Choose materials that provide the necessary strength and durability for the gearbox components. Nodular graphite cast iron is commonly used for gears due to its excellent mechanical properties.
- Lubrication: Ensure proper lubrication to reduce friction and wear on moving parts.
3D printing can be a useful tool for prototyping planetary gearboxes. It allows for rapid creation of custom parts and testing of different designs without significant investment in tooling.
- Misalignment: Ensure all components are properly aligned to avoid damage or poor performance.
- Loose Screws: Regularly check and tighten screws to prevent vibration and wear.
- Gear Whine: This can be reduced by using selective assembly strategies and ensuring precise manufacturing tolerances. Gear whine is often caused by dimensional variability and dynamic deflections of the gear teeth and carrier.
For more complex planetary gearboxes, additional techniques may be necessary:
- Selective Assembly: This involves selecting components based on specific criteria to minimize variability and improve performance. Selective assembly can help reduce gear whine by ensuring that components with similar dimensions are paired together.
- Bearing Adjustment: Proper adjustment of bearing gaps is crucial for smooth operation and accuracy. Incorrect bearing gap adjustments can lead to significant errors in transmission accuracy.
Several methods can improve the performance of planetary gearboxes:
1. Gear Modification: Modifying the gear profile can enhance load capacity and efficiency.
2. Displacement Coefficient Adjustment: Correctly adjusting the displacement coefficient can increase the gear's carrying capacity by 20% to 30%.
3. Precision Control: Ensuring precise control over pitch errors and other mechanical tolerances is vital for maintaining high efficiency and reducing wear.
Planetary gearboxes are used in a wide range of applications due to their compactness, efficiency, and versatility:
- Automated Guided Vehicles (AGVs): Used in wheel hub drives for compact design and high torque output.
- Laser Cutting Machines: Provide precise motion control and high torque for demanding applications.
- Robotics: Commonly used in robotic arms and grippers for their compact size and high torque capabilities.
Planetary gearboxes are known for their high efficiency, often exceeding 95% due to the distribution of torque across multiple planet gears. However, efficiency can vary based on design and operational conditions. Calculating the overall efficiency involves considering both the basic efficiency of the gearset and the effects of arm motion.
When selecting a planetary gearbox for your application, consider the following factors:
- Torque and Speed Requirements: Ensure the gearbox can handle the required torque and speed.
- Space Constraints: Planetary gearboxes are compact, but ensure they fit within the available space.
- Mounting Features: Consider the type of mounting required, such as flange or shaft output.
- Environmental Conditions: If the gearbox will be exposed to harsh environments, choose materials that are resistant to corrosion and wear.
Regular maintenance is crucial for extending the lifespan and ensuring optimal performance of planetary gearboxes. Key maintenance practices include:
1. Regular Inspection: Perform routine visual inspections to identify signs of wear, damage, or leaks.
2. Lubrication: Ensure proper lubrication to reduce friction and wear on moving parts. Follow the manufacturer's guidelines for lubricant type and change intervals.
3. Oil Analysis: Periodically analyze the gearbox oil to detect contaminants or wear particles.
4. Seal Inspection: Regularly inspect seals to prevent oil leaks and contamination.
5. Bearing Maintenance: Inspect bearings for wear and replace them promptly if necessary.
Recent advancements in planetary gearbox design have focused on reducing noise and vibration through optimized tooth geometry and surface treatments. Additionally, the integration of smart technologies allows for real-time monitoring and predictive maintenance, enhancing operational efficiency.
Planetary gearboxes can be combined with other technologies to enhance performance:
- Harmonic and Strain Wave Gearing: Combining planetary gears with harmonic or strain wave gears creates hybrid drive systems that offer higher torque efficiency and compact design, making them ideal for robotic actuators[5].
- Additive Manufacturing: 3D printing enables rapid prototyping and customization of planetary gears, allowing for faster design changes and the production of intricate geometries[5].
Assembling a planetary gearbox requires precision and patience. By following these steps and ensuring all components are properly aligned and secured, you can achieve a reliable and efficient gearbox for your application.
Answer: The key components include the sun gear, planet gears, ring gear, and carrier. Each plays a crucial role in achieving the desired gear ratio and efficiency.
Answer: Use alignment tools and ensure that all components are visually aligned before securing them. This prevents misalignment, which can lead to premature wear or failure.
Answer: Common issues include misalignment, loose screws, and improper lubrication. Regular checks and proper maintenance can mitigate these problems.
Answer: Consider factors such as required torque, speed, and space constraints. Different gear ratios and configurations may be needed depending on the specific application.
Answer: Regularly check for wear, ensure proper lubrication, and tighten any loose screws. This helps extend the lifespan of the gearbox and maintain its efficiency.
