Attaching a gear reducer to an electric motor is a crucial process that requires careful planning and execution to ensure optimal performance and longevity of the equipment. This article will guide you through the steps involved in attaching a gear reducer to an electric motor, highlighting key considerations and providing visual aids for clarity.
Gear reducers, also known as gearboxes, are mechanical devices used to increase the torque and reduce the speed of an electric motor's output. They are essential in applications where high torque is required at lower speeds, such as in industrial machinery, conveyor systems, and robotics.
Electric motors, on the other hand, are the primary power sources for these systems, converting electrical energy into mechanical energy. The combination of an electric motor with a gear reducer enhances the motor's capability to handle heavy loads efficiently.
Proper installation of a gear reducer on an electric motor is vital for several reasons:
- Efficiency: Misalignment or incorrect installation can lead to energy loss and reduced efficiency.
- Longevity: Incorrect installation can cause premature wear on both the motor and the gear reducer, leading to frequent repairs or replacements.
- Safety: Improperly installed systems can pose safety risks due to potential mechanical failures.
Here are the detailed steps to attach a gear reducer to an electric motor:
Before starting the installation, ensure you have all necessary components and tools:
- Gear Reducer: Ensure it matches the motor's specifications.
- Motor: Verify that it is compatible with the gear reducer.
- Coupling: Choose a suitable coupling type (e.g., flexible or rigid).
- Tools: Include wrenches, Allen wrenches, and safety equipment.
1. Position the Gear Reducer: Mount the gear reducer on a stable surface or directly on the motor if it is designed for direct mounting.
2. Align the Shafts: Ensure the motor shaft and gear reducer input shaft are perfectly aligned. Use alignment tools if necessary.

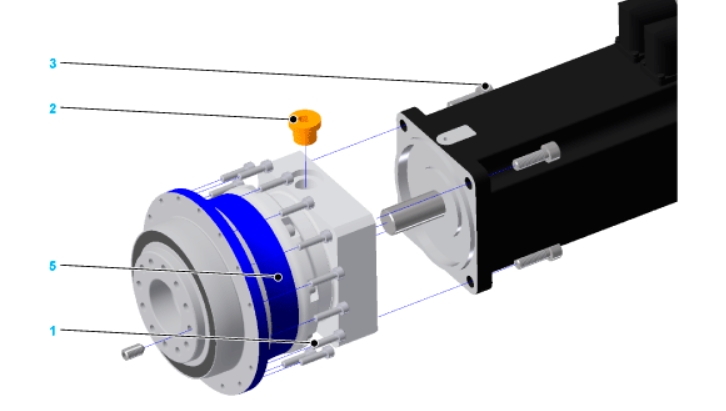

[Illustration: Proper Alignment of Motor and Gear Reducer Shafts]
1. Coupling Installation: Install the coupling halves on both the motor and gear reducer shafts. Ensure they are securely fastened with set screws.
2. Tighten Set Screws: Rotate the shaft to access and tighten all set screws securely.
1. Mounting Hardware: Use bolts or screws to secure the gear reducer to its mounting base or the motor.
2. Torque Specifications: Follow the manufacturer's torque specifications for all bolts and screws.
1. Alignment Verification: Double-check that all components are properly aligned.
2. Lubrication: Ensure the gear reducer is properly lubricated according to the manufacturer's instructions.
3. Safety Guards: Install safety guards to protect against moving parts.
During the installation process, several challenges may arise. Here are some common issues and their solutions:
- Misalignment: Use alignment tools to ensure perfect shaft alignment.
- Vibration: Check for loose bolts or improper balancing.
- Noise: Inspect for worn or damaged parts.
In addition to addressing common challenges, it's important to have a systematic approach to troubleshooting. This includes:
- Visual Inspection: Check for signs of wear or damage.
- Performance Monitoring: Monitor the system's performance under load to identify any inefficiencies.
- Maintenance Schedules: Regular maintenance can prevent many issues before they arise.
For more complex installations or specific applications, consider the following advanced factors:
Ensure that the gear reducer and motor are suitable for the operating environment. Factors such as temperature, humidity, and exposure to chemicals can affect performance and longevity.
In applications where noise is a concern, consider using noise-reducing materials or designing the system to minimize vibration.
Optimize the system for energy efficiency by selecting components with high efficiency ratings and ensuring proper installation to minimize energy loss.
The choice of materials for the gear reducer and motor components can significantly impact durability and performance. Consider factors such as corrosion resistance and mechanical strength.
In modern industrial settings, integrating the motor and gear reducer with control systems can enhance automation and monitoring capabilities. This includes using sensors to monitor performance and adjust settings in real-time.
Real-world examples can provide valuable insights into successful installations and common pitfalls. For instance, in a manufacturing plant, proper alignment and regular maintenance of gear reducers significantly reduced downtime and increased productivity.
In an automated production line, integrating gear reducers with electric motors allowed for precise control over machinery, improving overall efficiency and reducing operational costs.
Regular maintenance is crucial to extend the lifespan of the gear reducer and motor. Here are some best practices:
- Regular Lubrication: Follow the manufacturer's lubrication schedule to prevent wear.
- Inspection: Regularly inspect for signs of wear or damage.
- Training: Ensure personnel are trained in proper maintenance procedures.
Develop a preventive maintenance schedule to ensure regular checks and maintenance tasks are performed. This can include tasks such as:
- Monthly Inspections: Check for signs of wear or damage.
- Quarterly Lubrication: Ensure the gear reducer is properly lubricated.
- Annual Overhaul: Perform a comprehensive inspection and maintenance of the system.
Attaching a gear reducer to an electric motor requires careful attention to detail and adherence to proper installation procedures. By following these steps and ensuring all components are correctly aligned and secured, you can optimize the performance and longevity of your machinery.
Choosing a gear reducer involves considering factors such as the required torque output, speed reduction ratio, compatibility with the electric motor, and environmental conditions (e.g., temperature, humidity).
Use alignment tools to ensure the motor shaft and gear reducer input shaft are perfectly aligned. Misalignment can lead to premature wear and reduced efficiency.
The choice of coupling depends on the application. Flexible couplings are suitable for systems with slight misalignment, while rigid couplings are used for precise alignment.
Lubrication frequency depends on the gear reducer type and usage conditions. Always refer to the manufacturer's guidelines for specific lubrication schedules.
Always turn off and lock out the power source before starting work. Wear personal protective equipment (PPE) and ensure the area is clear of obstacles.
