Hydraulic motors are essential components in many mechanical systems, converting fluid energy into rotational mechanical power that drives various machines. Connecting a hydraulic motor to a drive shaft is a critical process that requires precision and understanding of the components involved. This article provides a comprehensive guide on how to properly attach a hydraulic motor to a drive shaft, ensuring optimal performance and longevity of your machinery.
Before diving into the attachment process, it's important to understand the basic functions and types of hydraulic motors and drive shafts.

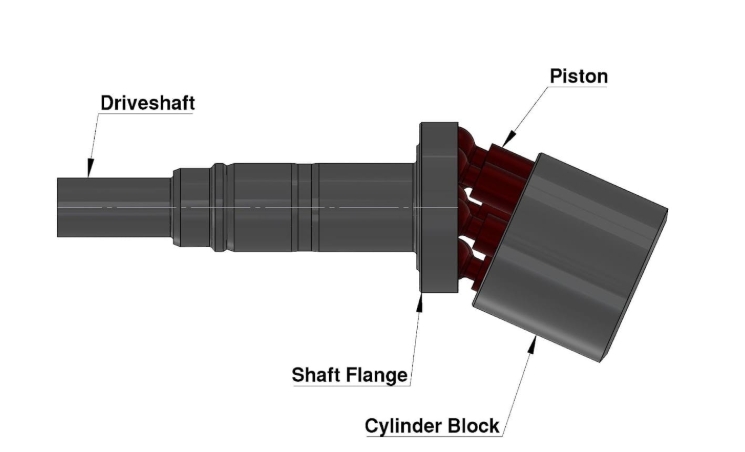

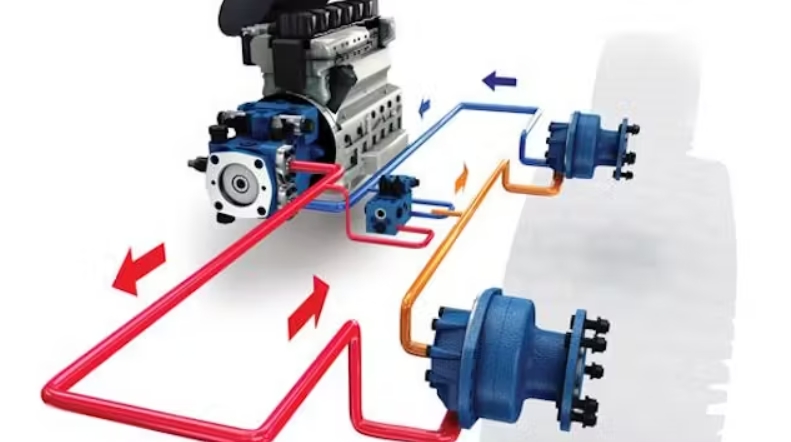

Hydraulic motors convert hydraulic fluid pressure into rotational motion. They are used in a wide range of applications, from heavy machinery to automotive systems. Key components include the motor housing, inlet and outlet ports, and the internal mechanism that generates rotary motion.

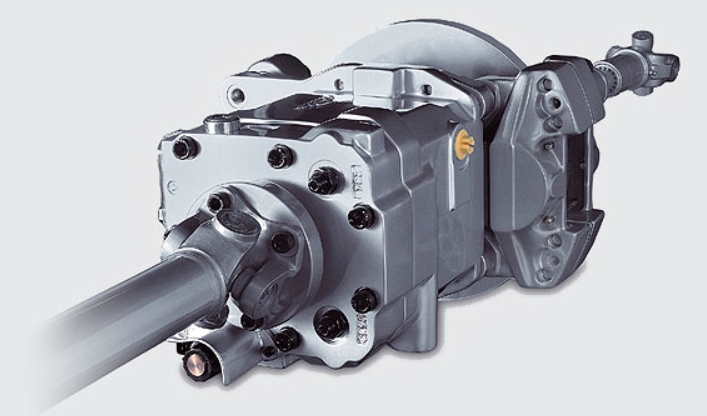

A drive shaft is a mechanical component used to transmit torque and rotational motion. It connects the hydraulic motor to the driven component, such as a wheel, gear, or pump. Drive shafts are designed to withstand high torsional forces and ensure efficient power transfer.
Prior to installation, several checks and preparations are necessary to ensure a smooth and successful attachment.
1. Matching Specifications: Verify that the hydraulic motor and drive shaft are compatible in terms of size, torque capacity, and connection type.
2. Inspecting Components: Examine the drive shaft and hydraulic motor for any signs of wear, damage, or contamination. Clean all surfaces to ensure proper contact.
3. Gathering Tools and Materials: Collect all necessary tools, including wrenches, sockets, shims, and a torque wrench. Also, have on hand any required seals, lubricants, and fasteners.
The following steps outline the process of attaching a hydraulic motor to a drive shaft.
- Determine the best side of the pump for the new hydraulic drive. Temporarily remove the plastic shaft protector. The shaft protector will be re-installed after the hydraulic drive installation is complete.
- Rotate the pump shaft by hand or with a wrench to determine the resistance needed to rotate the pump. A similar amount of resistance is required with the new hydraulic bearing cap.
- Remove the four bolts and the standard bearing cap after selecting a side to mount the hydraulic drive.
- All existing shims and thrust bearings are used with the new hydraulic drive.
- Install the new hydraulic bearing cap, ensuring that all existing shims and thrust bearings are properly positioned.
- If the shaft is more difficult to rotate than before, remove the hydraulic bearing cap and add one red shim (0.002” thickness). This typically sets the proper clearance.
- Refer to the manufacturer's instructions for specific shimming details.
- Slide the coupling over the pump shaft until it stops on the shaft.
- Lock the coupling to the pump shaft by tightening the set screw. Note: The motor shaft utilizes a shaft key design, so no set screw is required.
- Bolt the adapter housing to the hydraulic bearing cap.
- Bolt the hydraulic motor to the adapter housing.
- After the hydraulic drive installation is complete, rotate the pump shaft from the opposite side one last time and confirm proper resistance.
- Since the hydraulic motor is also turning, the amount of resistance will increase. With added resistance and the help of a wrench or tool, confirm the shaft turns without any binding. If there is no binding, re-install the shaft protector before placing the pump back into operation.
To ensure a robust and reliable connection, consider the following detailed instructions and best practices:
1. Alignment: Proper alignment is crucial to prevent excessive wear and vibration. Use alignment tools to ensure the hydraulic motor and drive shaft are perfectly aligned.
2. Torque Specifications: Adhere to the manufacturer's torque specifications when tightening bolts and fasteners. Over-tightening can damage components, while under-tightening can lead to loosening and failure.
3. Lubrication: Apply appropriate lubricants to the drive shaft and coupling to reduce friction and prevent corrosion. Regular lubrication is essential for maintaining smooth operation.
4. Sealing: Use high-quality seals to prevent hydraulic fluid leaks. Ensure the seals are properly installed and compatible with the hydraulic fluid being used.
5. Couplers: Couplers connect two shafts together, and while the shafts have positive splines, the coupler has corresponding negative splines. These are a common sight in hydraulic final drive motors and are used to link the upper drive shaft and lower drive shaft together with a minimum loss of power and torque.
During the installation and operation, you may encounter some common issues. Here's how to troubleshoot them:
1. Vibration: If you notice excessive vibration, check the alignment and balance of the drive shaft and hydraulic motor. Misalignment or imbalance can cause significant vibration.
2. Leaks: Hydraulic fluid leaks can indicate damaged seals or loose connections. Inspect all seals and connections, and replace or tighten as necessary.
3. Overheating: Overheating can result from excessive friction or inadequate cooling. Ensure the hydraulic system has adequate cooling and that all components are properly lubricated.
4. Worn Splines: The most common sign of drive shaft wear is worn-down splines. If the spline teeth have a triangular tip rather than a rectangular tip, they need to be replaced because they can no longer efficiently transmit torque and power.
5. Drive Shaft Failure: If the splines on one of the drive shaft splines are too worn down to interact with the coupler, the final drive won't work. If either the drive shaft or coupler is stripped, then the final drive won't work.
Attaching a hydraulic motor to a drive shaft requires careful attention to detail and adherence to best practices. By following the steps outlined in this guide, you can ensure a secure and efficient connection that maximizes the performance and longevity of your hydraulic system. Regular maintenance and troubleshooting will further safeguard against potential issues, keeping your machinery running smoothly.
Splines provide more contact area and allow the shafts to transmit more torque than would be possible with conventional gear teeth. Splines also last much longer than keys because they better distribute the forces and stresses because all the teeth make positive contact.
Use alignment tools such as laser alignment kits or dial indicators to precisely align the motor and shaft. Proper alignment minimizes vibration and wear.
Use a high-quality, multi-purpose grease that is compatible with the operating temperature and load conditions. Regular lubrication prevents corrosion and reduces friction.
Signs of a failing drive shaft include excessive vibration, unusual noises, and reduced torque transmission. Inspect the splines for wear and replace the shaft if necessary.
Regular inspections should be conducted at least every 3 to 6 months, depending on the operating conditions. Check for leaks, wear, and proper lubrication.
