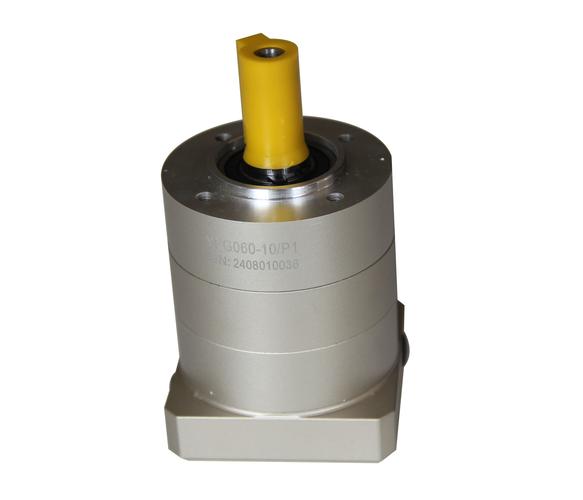

Building a planetary gearbox is an exciting project that requires understanding of mechanical principles and some hands-on skills. In this article, we will guide you through the process of designing and assembling a planetary gearbox, including the necessary components, design considerations, and assembly steps.

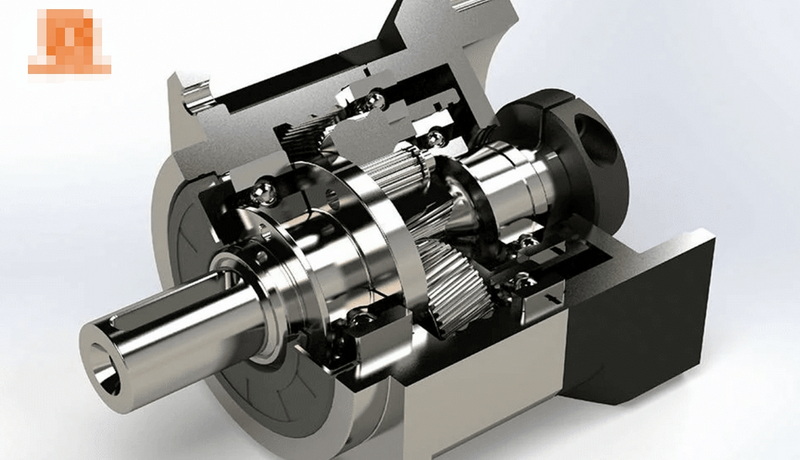

Planetary gearboxes, also known as epicyclic gearboxes, are highly efficient and versatile systems used in various applications, from robotics to automotive and aerospace industries. They consist of four main components: the sun gear, planet gears, ring gear, and carrier.
1. Sun Gear: The central gear that typically serves as the input.
2. Planet Gears: These orbit around the sun gear and are mounted on a carrier.
3. Ring Gear: An internally toothed gear that encloses the planet gears.
4. Carrier: Connects the planet gears and transfers their motion into a single output.
Designing a planetary gearbox involves several steps, including choosing the gear ratio, selecting materials, and using CAD software for modeling.
The gear ratio is determined by how the components are used. For example, if the sun gear is the input and the ring gear is stationary, the output will be at the carrier. The ratio can be calculated based on the number of teeth on each gear. Ensuring that the gears are functionally matched is crucial; for instance, the sum of the teeth on the ring gear and sun gear should be evenly divisible by the number of planet gears to achieve smooth operation.
Materials should be chosen based on strength, weight, and durability. Common choices include aluminum for lightweight designs and hardened steel for heavy-duty applications. The selection of materials also depends on the environmental conditions in which the gearbox will operate. For instance, in industrial environments where moisture and dust are prevalent, corrosion-resistant materials may be necessary.
Using CAD software like Fusion 360, Onshape, or SolidWorks allows you to visualize and refine your design before printing or manufacturing the parts. This step is crucial for ensuring that all components fit together properly and that the gearbox operates smoothly.
Assembly involves preparing the components, such as the sun gear, planet gears, ring gear, and carrier, and then putting them together.
- Sun Gear: Ensure it fits snugly into the carrier.
- Planet Gears: Mount them on the carrier with appropriate bearings or bushings.
- Ring Gear: This often serves as the housing for the gearbox.
- Carrier: Connects the planet gears and provides the output.
1. Install Planet Gears: Use bushings or bearings to mount the planet gears on the carrier.
2. Assemble the Carrier: Secure the two sections of the carrier together with bolts.
3. Insert Sun Gear: Place the sun gear into the carrier.
4. Mount Ring Gear: This will typically be part of the gearbox housing.
5. Add Bearings: Ensure smooth rotation by installing bearings for the input and output shafts.
After assembly, test the gearbox for smooth operation and minimal backlash. Then, mount a motor, such as a NEMA 17 stepper motor, to the gearbox.
1. Prepare the Mounting Plate: Secure it to the motor.
2. Insert the Motor Shaft: Align it with the gearbox input shaft.
3. Secure the Motor: Use bolts to attach the mounting plate to the gearbox.
Planetary gearboxes can experience several common issues during operation, such as noise, vibration, and overheating. These problems often arise from improper installation, overloading, or inadequate lubrication.
Misalignment between the prime mover and gearbox can cause noise and vibration. Ensuring proper alignment and tightening all bolts securely can prevent these issues.
Exceeding the rated load can lead to gear wear and tear. Selecting a gearbox with an appropriate service factor based on the application's duty cycle can mitigate this risk.
Using the wrong lubricant or insufficient lubrication can lead to increased friction and heat buildup. Regular lubrication checks and using the recommended lubricant type are essential for maintaining gearbox health.
Planetary gearboxes are used in advanced applications such as aerospace and robotics due to their compactness and efficiency. For example, NASA has developed advanced planetary gearboxes for propfan-powered aircraft, focusing on high efficiency and reliability. In robotics, micro planetary gears are increasingly used for their precision and low noise characteristics, enhancing robot efficiency and accuracy.
Planetary gearboxes are versatile and are used in various industries:
- Automotive Industry: They are a key component in automatic transmissions, providing multiple gear ratios for efficient power transmission. The compact size and robust design of planetary gear systems make them ideal for the limited space within a vehicle's transmission system[1].
- Industrial Machinery: Used in conveyor systems, mixers, and other machinery where precise control of speed and torque is crucial. Their ability to handle heavy loads while maintaining efficiency makes them indispensable in industrial applications[1].
- Aerospace and Aviation: In the aerospace sector, planetary gearboxes are utilized in various mechanisms, including landing gear systems, actuators, and satellite deployment systems. The lightweight and compact nature of these gearboxes make them well-suited for aerospace applications where minimizing weight is critical for fuel efficiency and overall performance[1].
- Renewable Energy: Planetary gearboxes play a crucial role in the field of renewable energy, especially in wind turbines and solar tracking systems. In wind turbines, they help optimize the rotational speed of the generator to produce electricity efficiently. Solar tracking systems use planetary gearboxes to adjust the position of solar panels, maximizing their exposure to sunlight throughout the day[1][4].

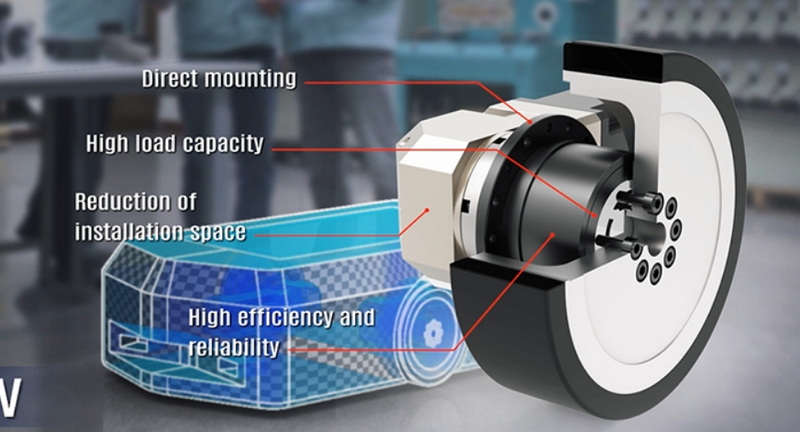

- Robotics and Automation: The precision and reliability of planetary gearboxes make them a preferred choice in robotics and automation. Robotic arms, CNC machines, and automated manufacturing systems often incorporate planetary gears to ensure accurate and controlled movements[1].
Maintaining a planetary gearbox is crucial for ensuring its longevity and optimal performance. Regular inspections should be performed to identify any signs of wear, damage, or leaks. Proper lubrication is essential for smooth operation, and oil analysis can help identify potential issues early on.
1. Regular Inspection: Check for oil leaks, loose bolts, and abnormal noises during operation[7].
2. Lubrication: Follow manufacturer guidelines for lubricant type and change intervals[7].
3. Oil Analysis: Conduct regular oil sampling to detect contaminants or wear particles[7].
4. Seal Inspection: Ensure seals are intact to prevent leaks and contamination[7].
5. Bearing Maintenance: Inspect bearings for wear and replace if necessary[7].
Troubleshooting planetary gearboxes involves identifying common issues such as abnormal noise, overheating, and reduced torque output.
- Abnormal Noise: Check for misalignment of gears, insufficient lubrication, and worn-out gears.
- Overheating: Verify that the load is within capacity, ensure adequate ventilation, and check for electrical issues.
- Reduced Torque Output: Inspect gears for wear, ensure proper lubrication, and check for misalignment.
By addressing these issues promptly, you can ensure the longevity and efficiency of your planetary gearbox.
Building a planetary gearbox is a rewarding project that combines mechanical engineering principles with practical skills. By understanding how planetary gearboxes work and following the design and assembly steps outlined here, you can create a functional gearbox for various applications.
A planetary gearbox consists of a sun gear, planet gears, a ring gear, and a carrier. These components work together to provide different gear ratios based on how they are configured.
The gear ratio depends on which component is the input and which is stationary. For example, if the sun gear is the input and the ring gear is stationary, the output will be at the carrier, typically resulting in a reduced speed.
Materials should be chosen based on strength, weight, and durability. Aluminum is often used for lightweight designs, while hardened steel is preferred for heavy-duty applications.
Yes, you can 3D print a planetary gearbox using materials like PLA. However, ensure that the printed parts are strong enough to handle the mechanical stresses involved.
Mounting a motor involves securing a mounting plate to the motor and then attaching it to the gearbox. Ensure the motor shaft aligns with the gearbox input shaft for smooth operation.
