Hydraulic motors are essential components in various mechanical systems, converting hydraulic energy into mechanical energy to perform work. Understanding how to calculate the cubic inch displacement of a hydraulic motor is crucial for selecting the right motor for a specific application and ensuring optimal performance. This article delves into the concept of cubic inch displacement, its significance in hydraulic systems, and the methods to calculate it effectively.
Cubic inch displacement (CID) refers to the volume of fluid required to rotate the motor shaft by one revolution. It is a fundamental parameter that characterizes the size and power of a hydraulic motor. The cubic inch is a unit of measurement for volume in the Imperial units and United States systems. It represents the volume of a cube with each of its three dimensions (length, width, and depth) being one inch long.
The cubic inch displacement of a hydraulic motor significantly impacts its performance characteristics, including speed and torque. A larger displacement motor requires more fluid to complete one revolution, resulting in higher torque output but lower speed. Conversely, a smaller displacement motor requires less fluid per revolution, leading to lower torque but higher speed.
Several methods can be used to calculate the cubic inch displacement of a hydraulic motor, depending on the available data and desired accuracy. Here are some common approaches:
If the flow rate (GPM) and motor speed (RPM) are known, the cubic inch displacement (CID) can be calculated using the following formula:
CID=(GPM×231)/RPM
Where:
- CID = Cubic inch displacement (cu. in./rev)
- GPM = Flow rate in gallons per minute
- RPM = Motor speed in revolutions per minute
Explanation of the Formula
This formula is derived from the relationship between flow rate, speed, and displacement. The constant 231 converts gallons per minute to cubic inches per minute. By dividing the flow rate in cubic inches per minute by the motor speed in revolutions per minute, we obtain the cubic inch displacement per revolution.
Example:
A hydraulic motor operates at a flow rate of 25 GPM and a speed of 1000 RPM. Calculate its cubic inch displacement.
CID=(25×231)/1000=5.775 cu. in./rev.
Therefore, the cubic inch displacement of the hydraulic motor is 5.775 cu. in./rev.
Practical Considerations
When using this method, ensure that the flow rate and speed are measured under stable operating conditions. Fluctuations in flow or speed can affect the accuracy of the calculated displacement.
If the torque (T) and pressure (P) are known, the cubic inch displacement (CID) can be calculated using the following formula:
CID=(T×6.28)/P
Where:
- CID = Cubic inch displacement (cu. in./rev)
- T = Torque in inch-pounds
- P = Pressure in psi (pounds per square inch)
Explanation of the Formula
This formula relates torque, pressure, and displacement based on the fundamental principles of hydraulics. The constant 6.28 (approximately 2π) is used to convert torque from inch-pounds to inch-radians.
Example:
A hydraulic motor produces a torque of 1000 inch-pounds at a pressure of 2000 psi. Calculate its cubic inch displacement.
CID=(1000×6.28)/2000=3.14 cu. in./rev
Therefore, the cubic inch displacement of the hydraulic motor is 3.14 cu. in./rev.
Practical Considerations
When using this method, ensure that the torque and pressure are measured accurately. The pressure should be the actual pressure acting on the motor, not the system pressure.
The cubic inch displacement is often specified by the manufacturer in the motor's technical specifications. This information can be found in the motor's datasheet or nameplate.
Benefits of Using Motor Specifications
Using the manufacturer's specifications is the most accurate method for determining the cubic inch displacement. The specifications are typically determined through rigorous testing and validation.
Locating Motor Specifications
Motor specifications can usually be found in the following locations:
- Datasheet: A detailed document provided by the manufacturer that outlines the motor's technical characteristics.

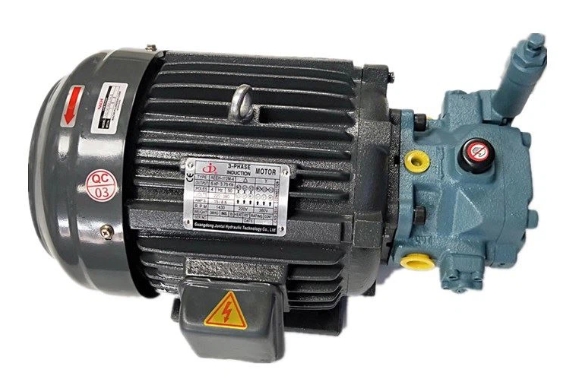

- Nameplate: A metal or plastic plate attached to the motor that contains essential information, including the model number, serial number, and displacement.
- Online Resources: Many manufacturers provide online databases or catalogs where you can search for motor specifications based on the model number.
Several factors can influence the cubic inch displacement of a hydraulic motor, including:
- Motor Type: Different types of hydraulic motors, such as gear, vane, and piston motors, have varying displacement characteristics.
- Motor Size: Larger motors generally have larger displacements than smaller motors.
- Design Parameters: The internal design of the motor, including the size and number of pistons or vanes, affects its displacement.
Motor Type and Displacement

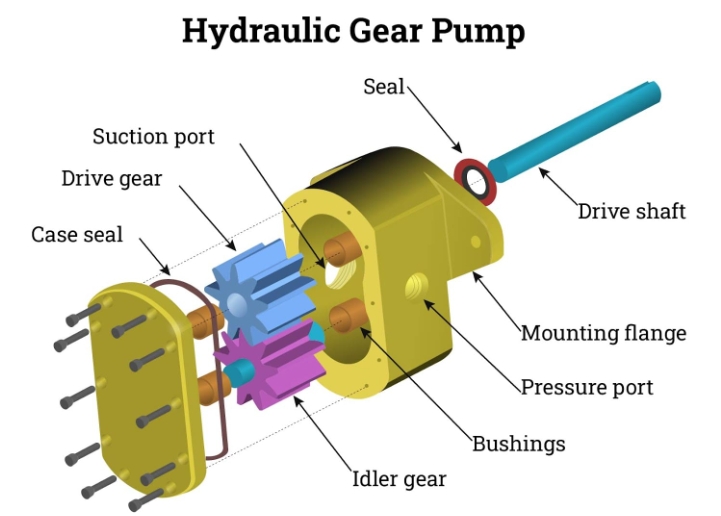

- Gear Motors: Gear motors typically have lower displacements compared to vane and piston motors. They are commonly used in applications requiring moderate torque and speed.
- Vane Motors: Vane motors offer a balance between displacement, torque, and speed. They are suitable for a wide range of applications.

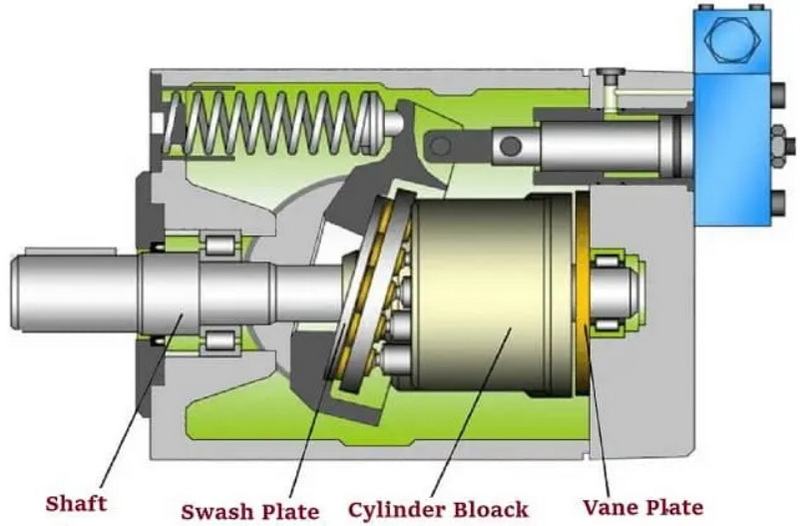

- Piston Motors: Piston motors generally have the highest displacements and are capable of producing high torque at lower speeds.
Design Parameters and Displacement
The internal design of a hydraulic motor directly impacts its displacement. For example, a piston motor with larger pistons or a greater number of pistons will have a larger displacement than a motor with smaller or fewer pistons.
Understanding and calculating cubic inch displacement is essential in various practical applications, such as:
- Hydraulic System Design: Selecting the appropriate motor size and displacement to meet specific torque and speed requirements.
- Troubleshooting: Diagnosing motor performance issues by comparing actual displacement to the manufacturer's specifications.
- System Optimization: Adjusting motor displacement to improve efficiency and reduce energy consumption.
- Component Matching: Ensures that the hydraulic motor is properly matched with other components in the system, such as pumps, valves, and cylinders. Mismatched components can lead to inefficient operation or even damage to the system.
- Performance Prediction: Accurately predicts the performance of the hydraulic motor in a given application. This includes predicting the motor's speed, torque, and power output under various operating conditions.
Some hydraulic motors are designed with variable displacement capabilities. These motors allow the operator to adjust the displacement while the motor is running, providing greater control over speed and torque. Variable displacement motors are commonly used in applications requiring precise speed control or variable torque output.
It's important to distinguish between theoretical displacement and actual displacement. Theoretical displacement is the calculated displacement based on the motor's design parameters. Actual displacement may differ slightly due to manufacturing tolerances, wear, and other factors.
The cubic inch displacement of a hydraulic motor can affect the overall efficiency of the hydraulic system. Choosing a motor with the appropriate displacement for the application can minimize energy losses and improve system efficiency.
Understanding cubic inch displacement is crucial for troubleshooting hydraulic motor problems. Here are some common issues related to displacement:
- Low Torque or Speed: If a motor is producing low torque or speed, it could be due to a problem with the displacement. The actual displacement may be lower than the specified displacement due to wear or internal leakage.
- Excessive Heat Generation: If a motor is generating excessive heat, it could be due to inefficiencies caused by incorrect displacement. A motor with too large of a displacement for the application may be operating at low efficiency, resulting in heat buildup.
- Erratic Operation: Erratic motor operation can be caused by fluctuations in displacement. This could be due to internal damage or contamination in the hydraulic fluid.
By understanding the relationship between cubic inch displacement and motor performance, technicians can effectively diagnose and resolve hydraulic motor problems.
Digital displacement motors are an emerging technology that offers precise control over displacement. These motors use electronically controlled valves to regulate the flow of fluid to each piston, allowing for highly accurate displacement control. Digital displacement motors have the potential to improve the efficiency and performance of hydraulic systems in a wide range of applications.
Calculating the cubic inch displacement of a hydraulic motor is a fundamental aspect of hydraulic system design, troubleshooting, and optimization. By understanding the concept of CID and utilizing the appropriate calculation methods, engineers and technicians can effectively select and maintain hydraulic motors for optimal performance and efficiency. As hydraulic technology continues to evolve, a solid understanding of displacement will remain essential for designing and maintaining efficient and reliable hydraulic systems. Remember to always consult the manufacturer's specifications and guidelines for the specific motor being used to ensure accurate calculations and proper operation.
Cubic inch displacement (CID) and motor displacement are often used interchangeably to refer to the volume of fluid required to rotate the motor shaft by one revolution.
A larger cubic inch displacement results in lower motor speed for a given flow rate, while a smaller displacement leads to higher speed.
A larger cubic inch displacement results in higher motor torque for a given pressure, while a smaller displacement leads to lower torque.
Cubic inch displacement is typically measured in cubic inches per revolution (cu. in./rev) or cubic centimeters per revolution (cc/rev).
The cubic inch displacement is usually specified by the manufacturer in the motor's technical specifications, datasheet, or nameplate.
