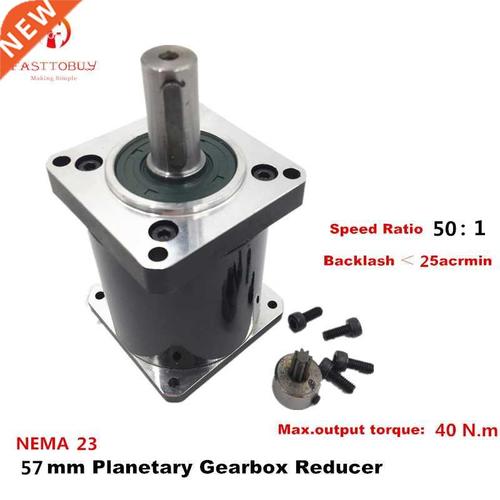

Planetary gearboxes are complex systems used in various applications, from automotive transmissions to industrial machinery, due to their ability to provide high torque and speed variation. Calculating the gear ratio of a planetary gearbox involves understanding its components and how they interact. This article will guide you through the process, including formulas and examples, and provide visual aids to enhance comprehension.
A planetary gearbox consists of four main components:
- Sun Gear: The central gear.
- Ring Gear: The outermost gear that encloses the other components.
- Planetary Gears: These are the gears that orbit around the sun gear, attached to a carrier.
- Carrier: The component that holds the planetary gears.
The interaction between these components determines the gear ratio. The gear ratio is calculated based on which component is fixed, which is the input, and which is the output.
To calculate the gear ratio, you need to know the number of teeth on each gear and the state of the carrier (whether it is fixed, rotating, or stationary).
The basic formula for calculating the gear ratio in a planetary gearbox involves the relationship between the ring gear, sun gear, and planetary gears. The number of teeth on the ring gear (R) is equal to twice the number of teeth on a planetary gear (P) plus the number of teeth on the sun gear (S):
R = 2P + S
This relationship helps in understanding how the gears are sized relative to each other.
There are three common configurations for calculating the gear ratio:
1. Sun Gear as Input, Ring Gear as Output: This is one of the most common configurations.
2. Carrier as Input, Sun Gear as Output: Used for different speed requirements.
3. Ring Gear as Input, Carrier as Output: Provides a different torque and speed profile.
Let's consider an example where the sun gear has 24 teeth, the ring gear has 96 teeth, and each planetary gear has 36 teeth. If the carrier is the input and the sun gear is the output, we can calculate the gear ratio as follows:
Given:
- S = 24
- R = 96
- P = 36
First, verify the relationship:
R = 2P + S
96 = 2(36) + 24
96 = 72 + 24
96 = 96
Now, if the carrier is the input and the sun gear is the output, the gear ratio can be calculated using the formula:
Gear Ratio=(Number of Teeth on Ring Gear+Number of Teeth on Sun Gear)/Number of Teeth on Sun Gear
Gear Ratio=(R+S)/S
Substituting the values:
Gear Ratio=(96+24)/24=120/24=5
However, this formula doesn't directly apply to all configurations. For a more accurate calculation, consider the rotational speeds of the components.
The rotational speeds of the components are related by the following equation:
(R+S)×ωc=R×ωr+S×ωs
Where:
- ωc is the angular velocity of the carrier,
- ωr is the angular velocity of the ring gear,
- ωs is the angular velocity of the sun gear.
This equation helps in determining the gear ratio based on the input and output components.
This configuration is commonly used for reducing speed while increasing torque.
If the sun gear is the input and the ring gear is the output, with the carrier fixed, the gear ratio is:
Gear Ratio=R/S
This setup is useful for achieving different speed ratios.
If the carrier is the input and the sun gear is the output, with the ring gear fixed, the gear ratio can be derived from the relationship between the components' rotational speeds.
This configuration provides a unique torque and speed profile.
The gear ratio for this setup involves considering the rotational speeds and the fixed component.
Planetary gearboxes are used in various applications due to their versatility and efficiency.
In automotive transmissions, planetary gearboxes are used to provide smooth gear shifting and efficient power transmission. They are a key component in automatic transmissions, offering multiple gear ratios for efficient power transmission. The compact size and robust design of planetary gear systems make them ideal for the limited space within a vehicle's transmission system.
In industrial settings, planetary gearboxes are used for high-torque applications, such as in conveyor systems and mixers. These gear systems are employed where precise control of speed and torque is crucial. Their ability to handle heavy loads while maintaining efficiency makes them indispensable in industrial applications.
In the aerospace sector, planetary gearboxes are utilized in various mechanisms, including landing gear systems, actuators, and satellite deployment systems. The lightweight and compact nature of these gearboxes make them well-suited for aerospace applications where minimizing weight is critical for fuel efficiency and overall performance.
Planetary gearboxes play a crucial role in the field of renewable energy, especially in wind turbines and solar tracking systems. In wind turbines, they help optimize the rotational speed of the generator to produce electricity efficiently. Solar tracking systems use planetary gearboxes to adjust the position of solar panels, maximizing their exposure to sunlight throughout the day.
The precision and reliability of planetary gearboxes make them a preferred choice in robotics and automation. Robotic arms, CNC machines, and automated manufacturing systems often incorporate planetary gears to ensure accurate and controlled movements. The compact design allows for efficient integration into robotic systems.
Planetary gear systems are also utilized in various medical devices, such as diagnostic equipment, imaging devices, and robotic surgical systems. Their ability to provide precise motion control and their compact design make them suitable for applications where space is limited, and accuracy is paramount.
For more complex planetary gear systems, involving multiple gear sets or variable constraints, calculations can become cumbersome. In such cases, using tools like Excel or specialized software can help automate the process. The use of simultaneous equations and genetic optimization techniques can aid in designing planetary gearboxes that meet specific performance criteria.
The Willis equation provides a fundamental approach to calculating transmission ratios in planetary gears, considering the motion of the sun gear, ring gear, and carrier. This equation helps in understanding the limits of the transmission ratio, which is always greater than 1, indicating a decrease in rotational speed.
When designing a planetary gearbox, several factors must be considered:
- Efficiency: Planetary gearboxes generally have high efficiency due to their design, but losses can occur due to friction and misalignment.
- Noise and Vibration: Proper alignment and lubrication are crucial to minimize noise and vibration.
- Durability: The choice of materials and manufacturing quality affects the lifespan of the gearbox.
- Cost: The complexity of the design and the materials used influence the overall cost.
Advancements in materials and manufacturing techniques are continually improving the performance and efficiency of planetary gearboxes. The integration of smart materials and advanced lubrication systems is expected to enhance their reliability and lifespan.
Calculating the gear ratio of a planetary gearbox requires understanding the relationship between its components and how they interact. By applying the formulas and considering the configuration of the gearbox, you can determine the gear ratio for different input and output scenarios. Whether in automotive or industrial applications, planetary gearboxes offer a reliable means of achieving desired speed and torque outputs.
A planetary gearbox consists of four main components: the sun gear, ring gear, planetary gears, and the carrier.
The number of teeth on the ring gear (R) is equal to twice the number of teeth on a planetary gear (P) plus the number of teeth on the sun gear (S): R=2P+S
The gear ratio is calculated as R/S, where R is the number of teeth on the ring gear and S is the number of teeth on the sun gear.
The state of the carrier (whether it is fixed, rotating, or stationary) significantly affects the gear ratio. Different configurations yield different ratios based on the carrier's state.
Planetary gearboxes are commonly used in automotive transmissions, industrial machinery, aerospace, renewable energy, robotics, and medical devices due to their compact design and high efficiency.
