Planetary gearboxes are complex systems used in various applications, from automotive transmissions to industrial machinery, due to their ability to provide high torque and speed variation. Calculating the gear ratio of a planetary gearbox involves understanding its components and how they interact. This article will guide you through the process of calculating planetary gearbox ratios, including the necessary formulas and examples.
A planetary gearbox consists of four main components:
- Sun Gear: The central gear that typically serves as the input.
- Ring Gear: The outer gear with internal teeth that encloses the sun gear and planet gears.
- Planet Gears: Gears that orbit around the sun gear, connected to the carrier.
- Carrier: The component that connects the planet gears and transfers their motion into a single output.
The gear ratio of a planetary gearbox depends on which component is the input, which is stationary, and which is the output. The most common scenario involves the sun gear as the input, the ring gear stationary, and the carrier as the output.
The formula for this scenario is:
i=1+Zring/Zsun
where Zring is the number of teeth on the ring gear, and Zsun is the number of teeth on the sun gear.
Suppose you have a sun gear with 15 teeth and a ring gear with 45 teeth. The gear ratio would be:
i=1+45/15=1+3=4
This means the output speed is reduced to one-fourth of the input speed, increasing the torque four times.
For more complex configurations, the Willis equation can be used to derive transmission ratios. This equation accounts for the motion of all components and allows for the calculation of ratios in various configurations.
Planetary gearboxes can be configured in various ways to achieve different ratios:
- Output: Carrier
- Ratio: i=1+Zring/Zsun
- Example: Sun gear with 20 teeth, ring gear with 60 teeth. The ratio is i=1+60/20=40.
- Output: Sun Gear
- Ratio: i=1+Zsun/(Zring+Zsun)
- Example: Sun gear with 20 teeth, ring gear with 60 teeth. The ratio is i=20/(60+20)=1/4.
- Output: Carrier
- Ratio: 1+(Zring+Zsun)/Zsun
- Example: Sun gear with 20 teeth, ring gear with 60 teeth. The ratio is i=(60+20)/20=4.
When designing a planetary gearbox, it's crucial to ensure that the number of teeth on the sun and ring gears are multiples of the number of planet gears. This facilitates even spacing and assembly of the planet gears.
Planetary gearboxes are widely used in:
- Automotive Transmissions: For smooth speed transitions and torque multiplication.
- Industrial Machinery: To achieve high torque at low speeds.
- Aerospace Industry: For compact and lightweight designs with high reduction ratios.
- Robotics: For precise motion control and high torque output.
In industrial settings, planetary gearboxes are used in:
- Conveyor Systems: To control the speed and torque of conveyor belts.
- Mixers and Agitators: To efficiently blend and process materials.
- Heavy-Duty Cranes: For precise control over lifting operations.

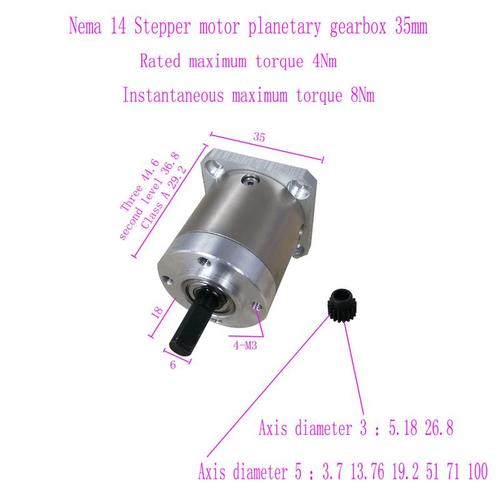

For more complex applications, planetary gearboxes can be staged to achieve higher ratios. Double or triple stages allow for a wider range of transmission ratios, making them suitable for various industrial and mobile applications.
In advanced designs, genetic algorithms can be used to optimize planetary gearbox configurations based on target gear ratios and input parameters. This involves calculating the ring and planet gear tooth counts to meet specific performance criteria.
When designing a planetary gearbox for a specific application, several factors must be considered:
- Torque Requirements: The gearbox must be able to handle the required torque without compromising efficiency or durability.
- Space Constraints: In many applications, such as aerospace or robotics, compactness is crucial.
- Efficiency: Planetary gearboxes are known for their high efficiency, typically around 97%.
The carrier is a critical component that holds the planet gears in place. It can be designed in various shapes to minimize weight and maximize efficiency. Common designs include star or triangle shapes, but a simple circular design can also be effective if manufacturing constraints are a concern.
For the planet gears, friction bearings like brass cylinders are often used, but for higher loads, small ball bearings may be necessary. The carrier's central axis does not require bearings if it is fixed to the chassis.
To optimize planetary gearbox designs, engineers often use advanced techniques such as genetic algorithms. These algorithms help in finding the optimal tooth counts for the ring and planet gears to achieve a target gear ratio while ensuring the gearbox can be assembled and functions efficiently.
As technology advances, planetary gearboxes are being integrated into more sophisticated systems. For instance, in robotics, they enable precise motion control, while in aerospace, they contribute to lightweight and efficient power transmission systems.
Planetary gearboxes play a crucial role in emerging technologies such as renewable energy systems and advanced robotics. In wind turbines, for example, they help adjust the blade pitch to optimize energy capture. In robotics, they enable precise movements necessary for tasks like assembly and surgery.
In renewable energy applications, planetary gearboxes are used to:
- Optimize Energy Capture: By adjusting the pitch of wind turbine blades or the angle of solar panels.
- Increase Efficiency: By providing high torque at low speeds, which is essential for driving generators in wind or hydroelectric systems.
Calculating the gear ratio of a planetary gearbox requires understanding the basic components and configurations. By applying the appropriate formulas based on the input, output, and stationary components, you can achieve various transmission ratios suitable for different applications.
In conclusion, planetary gearboxes offer a versatile solution for power transmission across various industries. Their design and optimization require careful consideration of component interactions and application-specific requirements.
The main components are the sun gear, ring gear, planet gears, and carrier.
Use the formula: i=1+Zring/Zsun.
Planetary gearboxes provide high torque multiplication and speed variation, making them ideal for applications requiring precise control and power.
Yes, by changing which component is the input or stationary, different ratios and directions can be achieved.
Ensure the number of teeth on the sun and ring gears are multiples of the number of planet gears for even spacing and assembly.
