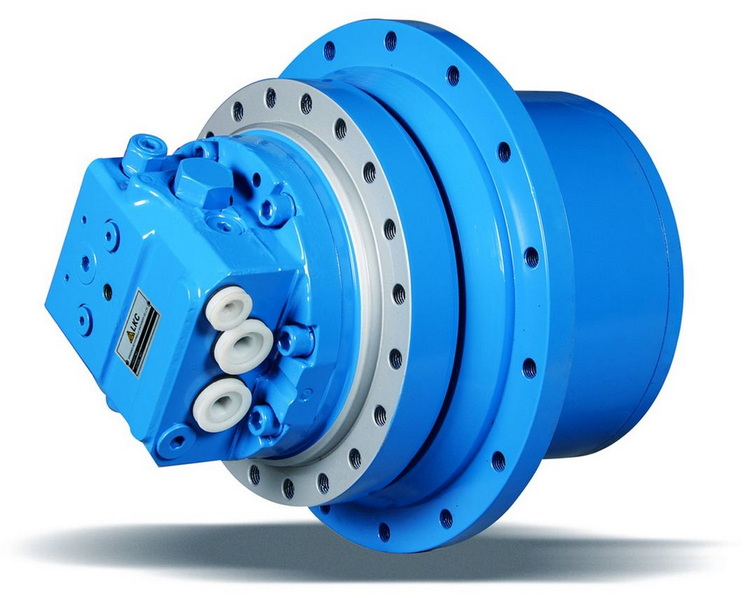

Hydraulic motors play a critical role in converting hydraulic energy into mechanical energy, providing rotational motion for various industrial and mechanical applications. Whether you're working with agricultural equipment, heavy machinery, or industrial automation systems, understanding how to calculate the revolutions per minute (RPM) of a hydraulic motor is essential for optimizing system performance and ensuring efficiency.
This comprehensive guide will walk you through the factors affecting hydraulic motor RPM, the formulas used to calculate it, and practical examples. We'll also explore tools and methods for measuring RPM and answer frequently asked questions. By the end of this article, you'll have a clear understanding of how to calculate and optimize the RPM of a hydraulic motor.

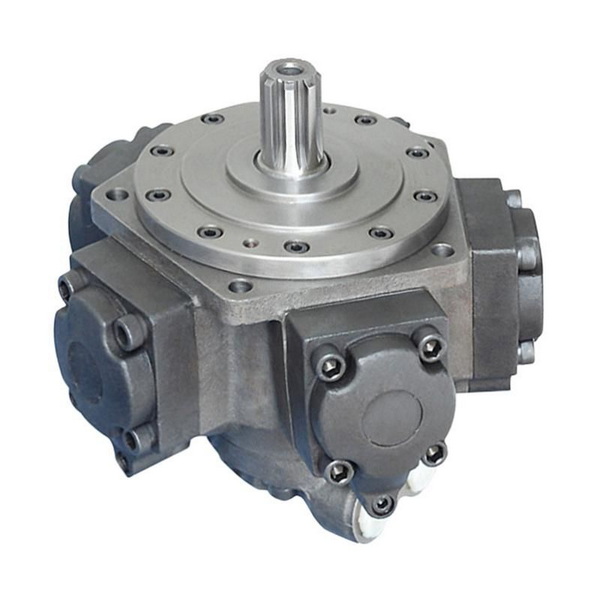

Hydraulic motor RPM refers to the number of complete rotations the motor shaft makes in one minute. It is a key performance metric that determines how fast the motor can operate under specific conditions. The RPM is influenced by several factors, including:
- Flow rate (GPM): The volume of hydraulic fluid delivered to the motor per minute.
- Motor displacement (cu in/rev): The amount of fluid required for one complete revolution of the motor.
- System efficiency: Losses due to friction, leakage, and other inefficiencies can reduce actual RPM.
- Load conditions: External loads applied to the motor can affect its speed.
Understanding these factors is crucial for ensuring that the hydraulic motor operates within its optimal range.
The flow rate, measured in gallons per minute (GPM), directly impacts the speed of a hydraulic motor. A higher flow rate results in faster rotation, while a lower flow rate reduces speed. Flow rate is typically controlled by the hydraulic pump or flow control valves.
Motor displacement refers to the volume of fluid required for one revolution of the motor shaft. It is measured in cubic inches per revolution (cu in/rev). Motors with smaller displacement rotate faster for a given flow rate, while motors with larger displacement rotate more slowly but produce higher torque.
While pressure primarily affects torque rather than speed, it indirectly influences RPM under load conditions. Higher pressure can overcome resistance and maintain speed under heavy loads.
Hydraulic motors are not 100% efficient; mechanical and volumetric losses reduce actual performance. Efficiency losses must be accounted for when calculating real-world RPM.
The load applied to the motor affects its ability to maintain speed. Heavier loads may cause the motor to slow down unless compensated by increased flow or pressure.

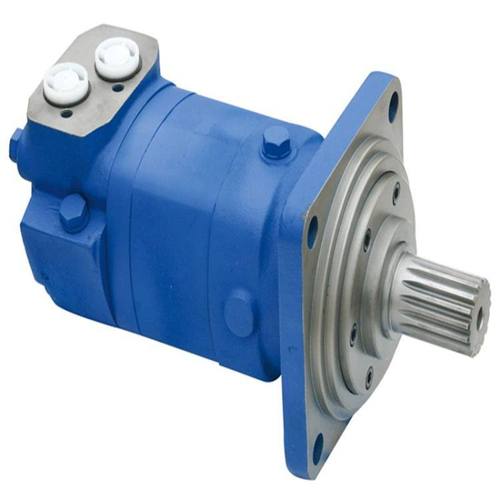

The fundamental formula for calculating hydraulic motor RPM is:
RPM=231×Flow Rate GPM/Motor Displacement cu in rev
This formula assumes no efficiency losses and provides a theoretical value for RPM.
1. Flow Rate (GPM):
GPM=(Motor Displacement×RPM)/231
2. Torque:
Torque(in lbs)=(Pressure psi ×Motor Displacement)/6.28
3. Horsepower:
HP=(Torque in lbs ×RPM)/63,025
These formulas are interconnected and allow you to calculate various performance metrics based on available data.
Given:
- Flow rate = 10 GPM
- Motor displacement = 1.5 cu in/rev
Solution:
RPM=(231×10)/1.5=1,540
The motor will rotate at 1,540 RPM under these conditions.
If the flow rate increases to 15 GPM with the same displacement:
RPM=(231×15)/1.5=2310
The increased flow results in a higher speed.
If the efficiency of the system is only 85%, adjust the calculated RPM:
Actual\RPM=Theoretical\RPM×Efficiency
Actual\RPM=2,310×0.85=1,964
Accurate measurement of hydraulic motor RPM is essential for verifying calculations and diagnosing performance issues.
1. Tachometers: Optical or contact-based devices that measure shaft speed directly.
2. Multimeters with Frequency Mode: Measure electrical frequency generated by sensors attached to the motor.
3. Shaft Encoders: High-resolution devices that provide precise rotational data.
4. Proximity Sensors: Detect shaft rotation by counting pulses from a target object.
For motors producing alternating current:
RPM=(120×Frequency)/Number of Poles
Used for slow-moving shafts:
RPM=60/Time per Revolution seconds
For low-speed applications, manually count revolutions over a set time period using a stopwatch.
1. Ignoring Efficiency Losses: Always account for mechanical and volumetric inefficiencies when calculating real-world performance.
2. Incorrect Units: Ensure all measurements are in consistent units (e.g., GPM, cu in/rev).
3. Overlooking Load Impact: Heavy loads can significantly reduce actual RPM.
4. Using Incorrect Flow Rates: Verify that flow rates are accurate and adjusted for system conditions.
Hydraulic motor RPM calculations are essential across various industries:
- Agriculture: Ensuring proper speed for equipment like harvesters and sprayers.
- Construction: Optimizing excavators, cranes, and loaders.
- Manufacturing: Controlling conveyor belts and robotic arms.
- Automotive: Powering vehicle components like winches or steering systems.
By accurately calculating and adjusting hydraulic motor speed, operators can improve productivity and reduce wear on equipment.
Calculating hydraulic motor RPM is an essential skill for anyone working with hydraulic systems. By understanding key factors such as flow rate, displacement, efficiency, and load conditions, you can accurately determine both theoretical and actual motor speeds using straightforward formulas or measurement tools.
Whether you're designing new systems or troubleshooting existing ones, mastering these calculations will help you optimize performance, reduce downtime, and ensure your equipment operates efficiently.
The primary formula is:
RPM=(231×GPM)/Displacement cu in rev
Higher flow rates increase fluid delivery to the motor, resulting in higher RPMs.
Tachometers, multimeters with frequency mode, shaft encoders, and proximity sensors are commonly used tools.
Yes, external loads can reduce actual speed due to increased resistance and efficiency losses.
Use this formula:
Torque(in lbs)=(Pressure psi ×Displacement)/6.28
