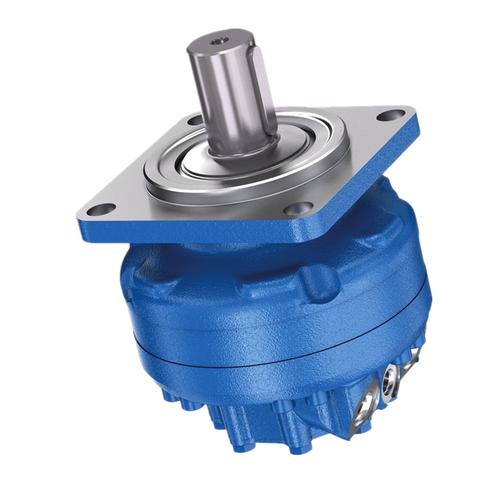

Hydraulic motors are essential components in numerous industrial and mechanical systems, converting hydraulic energy into rotational mechanical energy. Torque, the rotational force generated by a hydraulic motor, is a critical parameter that determines its performance. This article provides a comprehensive guide on calculating torque in hydraulic motors, supported by formulas, examples, and practical tips.

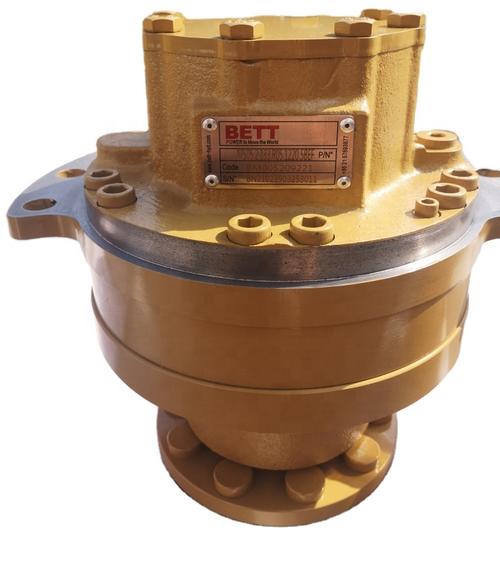

Understanding Torque in Hydraulic Motors

Torque is the force that causes an object to rotate around an axis. In hydraulic motors, torque is generated by the pressure and flow of hydraulic fluid acting on internal components such as vanes, pistons, or gears. The torque output depends on three key factors:

- Pressure (P): The force exerted by the hydraulic fluid.

- Displacement (d): The volume of fluid moved per revolution of the motor.

- Motor Speed (n): The rotational speed of the motor.

Importance of Torque

Torque determines a hydraulic motor's ability to:

- Overcome loads.

- Accelerate machinery.

- Maintain consistent rotational speed under varying loads.

In applications such as lifting heavy machinery, driving conveyor belts, or powering industrial equipment, torque plays a pivotal role in ensuring smooth and efficient operation.

The Formula for Calculating Torque

The general formula to calculate torque (T) in a hydraulic motor is:

T=(Pxd)/2π

Where:

- T = Torque (in-lbs or Nm)

- P = Pressure (psi or bar)

- d = Displacement (in³/rev or cm³/rev)

- π = 3.1416

For metric units:

T=(Pxd)/62.832

Explanation of Variables

1. Pressure (P): This is the input pressure supplied by the hydraulic pump. It is measured in pounds per square inch (psi) or bars.

2. Displacement (d): This refers to the volume of fluid displaced by the motor per revolution, typically measured in cubic inches per revolution (in³/rev) or cubic centimeters per revolution (cm³/rev).

3. Constant (2π or 62.832): This accounts for the circular motion of the motor and ensures accurate conversion between linear and rotational forces.

Step-by-Step Calculation Examples

Example 1: Basic Calculation

Given:

- Pressure (P) = 2000 psi

- Displacement (d) = 2.75 in³/rev

Solution:

Using the formula:

T=(2000x2.75)/(2x3.1416)

T=5500/6.2832=875.35 in lbs

This means the hydraulic motor generates 875.35 inch-pounds of torque under these conditions.

Example 2: Metric Units

Given:

- Pressure (P) = 150 bar

- Displacement (d) = 45 cm³/rev

Solution:

Convert P to pascals (1 bar = 10⁵Pa):

P=150x10⁵=15,000,000 Pa

Using the metric formula:

T=(15,000,000x45)/62.832

T=10,744.4 Nm

This calculation shows that the motor produces approximately 10,744 Newton-meters of torque.

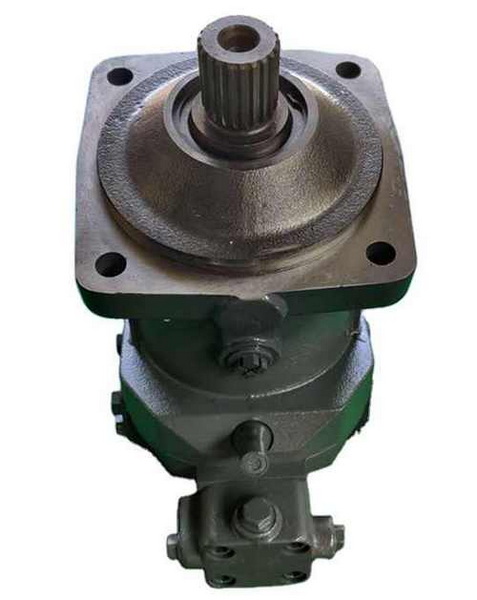

Factors Affecting Hydraulic Motor Torque

Several factors influence torque generation and efficiency:

1. Internal Leakage

Hydraulic motors rely on tight seals to maintain pressure within their chambers. Internal leakage occurs when fluid bypasses these seals, reducing effective pressure and consequently lowering torque output.

2. Frictional Losses

Friction between moving parts—such as pistons, vanes, or gears—dissipates energy as heat and reduces overall efficiency.

3. External Inefficiencies

Pressure drops in hoses, valves, and fittings can reduce the input pressure available to the motor, directly impacting torque generation.

4. Fluid Properties

The viscosity and temperature of hydraulic fluid affect its ability to transfer energy efficiently:

- Low-viscosity fluids may lead to leakage.

- High-viscosity fluids can cause excessive resistance within the system.

5. Load Variations

Sudden changes in load can affect how much torque is required to maintain consistent operation.

How to Enhance Torque in Hydraulic Motors

To optimize torque output and improve performance, consider these strategies:

Increase Displacement

A larger displacement motor moves more fluid per revolution, generating higher torque at a given pressure level.

Optimize Fluid Pressure

Ensure your hydraulic system maintains adequate pressure without exceeding safe operational limits for your motor and other components.

Use High-Quality Fluids

Clean hydraulic fluids with appropriate viscosity ratings reduce internal losses and improve overall efficiency.

Regular Maintenance

Inspect seals, hoses, valves, and fittings regularly for signs of wear or damage that could lead to leaks or inefficiencies.

Minimize Frictional Losses

Use high-quality components with low friction coefficients and ensure proper lubrication within the system.

Common Applications of Hydraulic Motors and Torque

Hydraulic motors are used across various industries where precise control over rotational force is required:

Construction Equipment

Excavators, bulldozers, and cranes rely on high-torque hydraulic motors to lift heavy loads and perform demanding tasks.

Agricultural Machinery

Tractors and harvesters use hydraulic motors for powering attachments such as augers or plows.

Industrial Automation

Conveyor belts and robotic arms depend on consistent torque output for smooth operation.

Marine Applications

Winches and steering systems on ships utilize hydraulic motors for reliable performance under harsh conditions.

Renewable Energy Systems

Hydraulic motors are also used in wind turbines to adjust blade angles for optimal energy generation.

Conclusion

Calculating torque in a hydraulic motor is straightforward using the formula T=(Pxd)/2π or its metric equivalent T=(Pxd)/62.832. By understanding how pressure, displacement, and other factors influence torque output, you can optimize your system's performance for any application. Regular maintenance and careful selection of components will further enhance efficiency and reliability.

Whether you're designing a new system or troubleshooting an existing one, mastering these calculations ensures you can make informed decisions about your hydraulic motor's capabilities.

FAQs

1. What is the relationship between pressure and torque?

Torque is directly proportional to pressure; increasing pressure results in higher torque output if all other factors remain constant.

2. How does displacement affect torque?

Larger displacement increases the volume of fluid moved per revolution, thus generating more torque at a given pressure level.

3. Can I calculate torque without knowing displacement?

No, displacement is a crucial variable for calculating torque accurately because it determines how much fluid is moved per revolution of the motor.

4. What units are used for torque?

Torque is commonly measured in inch-pounds (in-lbs), foot-pounds (ft-lbs), or Newton-meters (Nm), depending on whether you're using imperial or metric units.

5. How can I reduce torque losses?

To minimize losses:

- Regularly inspect seals for leaks.

- Use high-quality fluids with appropriate viscosity.

- Maintain proper system pressure.

- Ensure all components are well-lubricated to reduce frictional losses.
